1800c Special Design mosi2 Molybdenum Disilicide heating rod elements helical heaters

Product Overview

Description

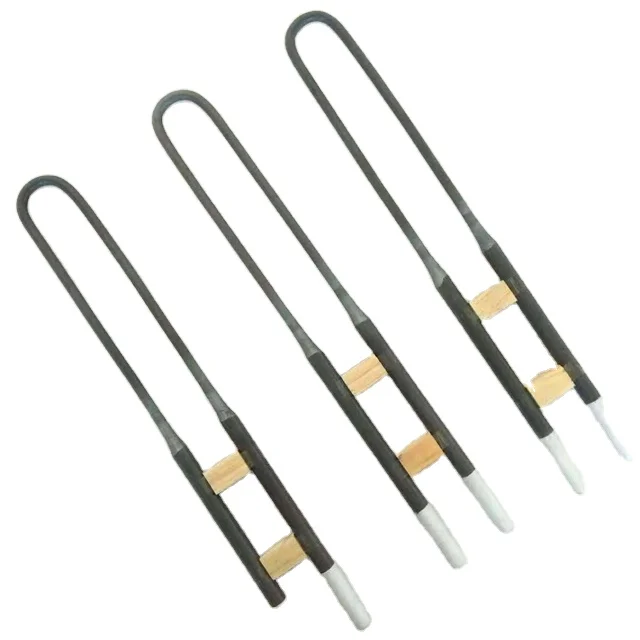

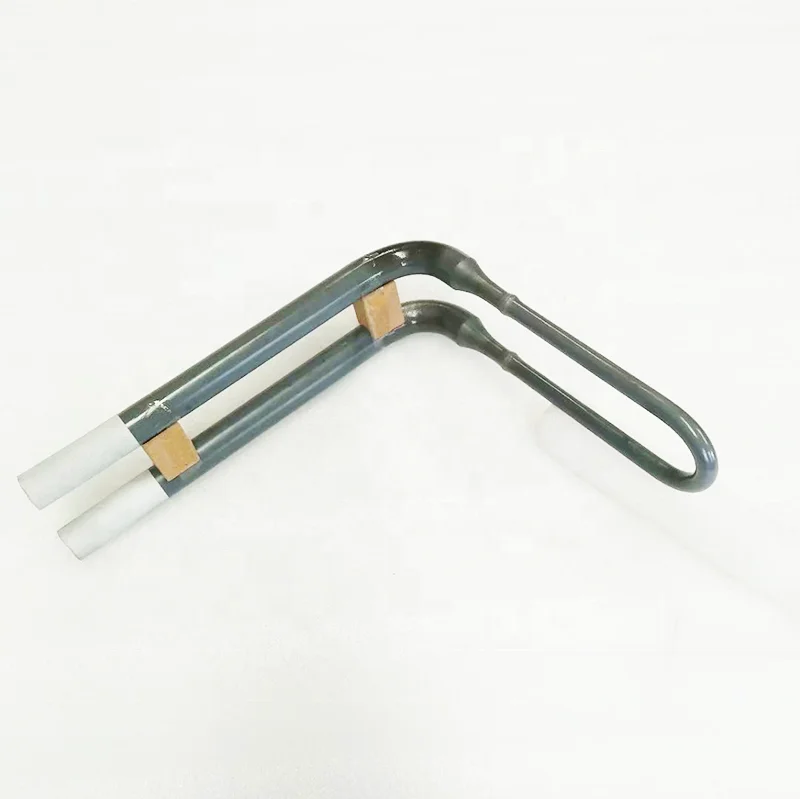

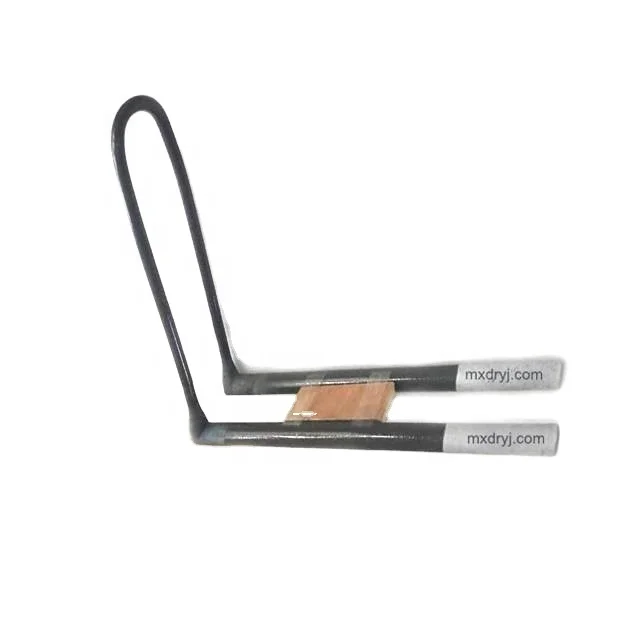

1800c Special Design Molybdenum Disilicide mosi2 heating elements tubular helical heater

      1800C Mosi2 heating element                              1550C silicon carbide heating element

1.Iroduction for MoSi2 heating element

Mosi2 heating element is a special product combined metal and ceramics. So it has the characteristics of silicon and molybdenum.

Advantage
1	High purity
2	High temperature resistance
3	Energy-saving
4	Chemical stability
5	Long life
6	Easy maintenance
7	Easy installation
8	Oxygen-resistance under high temperature
9	With a small expansion coefficient not easily deformed

There are 1700C 1800C 1900C models

Which one is 1800C? Can you guess? A or B?

Contact us directly now!

Click here for more information





2.Feedback for MoSi2 heating element



3.Marks for MoSi2 heating element



When you enquiry, please tell us the following data

D1: Diameter of Hot Zone(mm)

D2: Diameter of Cold Zone(mm)

Le: Length of Hot Zone(mm)

Lu: Length of Cold Zone(mm)

A: Shank Spacing(mm)



4.Product Parameters

Oxygen-resistance under high temperature: in oxidizing atmosphere, a layer of compact quartz protective film is formed on the surface of element owing to the high temperature combustion, which prevent Mosi2 from oxidizing more. When the element temperature is higher than 1700 °C, the film becomes melting. It’s not suitable for long time use in the temperature range of 400-700°C, otherwise, the element will be powdering for the strong oxidation under low temperature.



Physical properties of Mosi2 heating element
Volume Density	Bend Strength	Porosity Rate	Water Absortion	Hot Extensiblity
5.5-5.6g/cm³	15-25kg/cm³	7.4%	1.2%	4%









5.Max. temp for MoSi2 heating element





 6.Details for MoSi2 heating element





7.Notice for using MoSi2 heating element

It should be pointed out that element cannot be used for rather long time in 500-700°C, or it will be powdered owing to the strong oxidizing action in low temperature.



8.Accessories for using MoSi2 heating element

It consists 1 piece of clamp and 2 pieces of straps





9.Package for MoSi2 heating element

Packaging Details: Packed with sponge and box case, and then put it into wooden case.

Port: Qingdao, Shandong

Lead Time: Shipped in 10 days after payment                          Transportation: Most by air.
