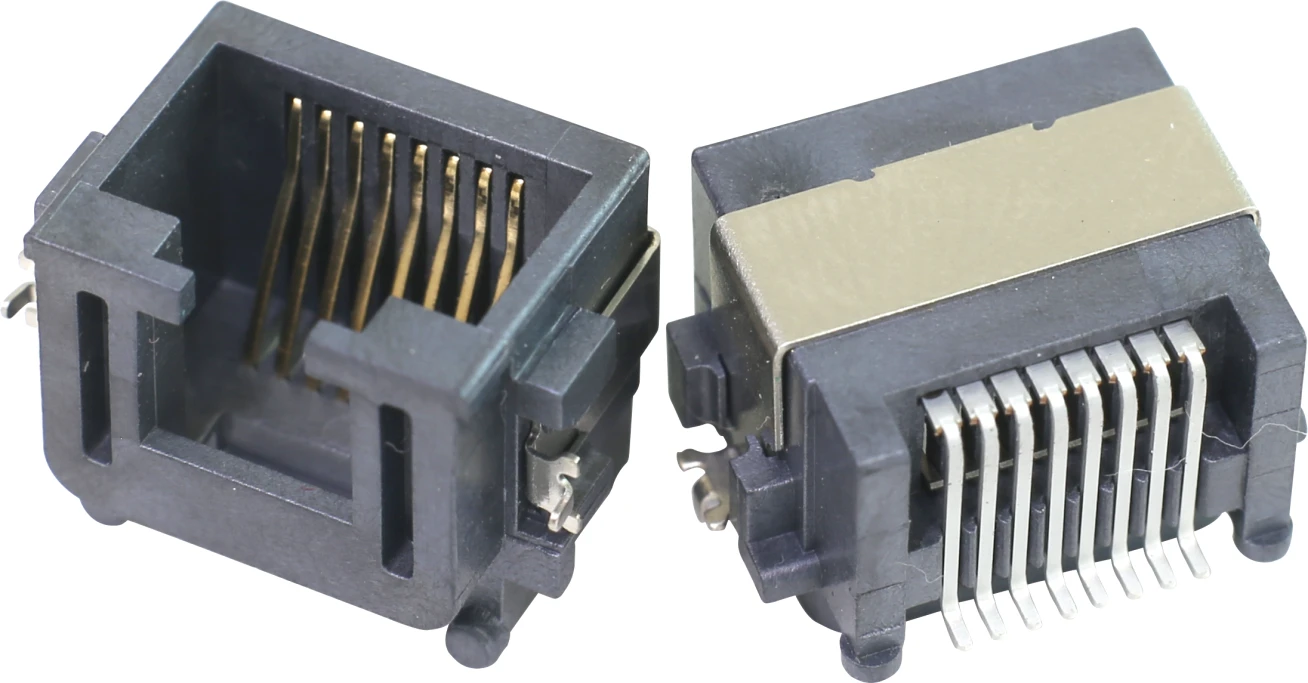

RJ45 Connector with Free Sample Good Price RJ45 connector female connector

single port RJ11 to rj45 8P8C All Plastic with light Modular Jack

Number of ports: 1*1

Number of position: 8
Number of contacts: 2,4,6 or 8

Materials

Housing: ABS resin (UL94V-0), PBT (UL94V-0), PA66 (UL94V-0), and PA46 (UL94V-0)

2. Contact Wire: Diameter 0.45mm phosphor bronze gold plating over Nickel
3. Shield: 0.20~0.25mm thickness brass with tin plated
4. Gold Plating: Fu",+3u",6u",15u",30u",50u"

Electrical

Rated current: 1.5A
Rated voltage: 125VAC
Insulation resistance: 500MΩmin
Contact resistance:  30MΩmax

Withstanding voltage: 1000VAC RMS, 50 or 60Hz 1 Min

Mechanical

Insertion force: 2.2kgf max

Retention strength: 7.7kgf min between jack and plug
Durability: 600 mating cycles minimum
