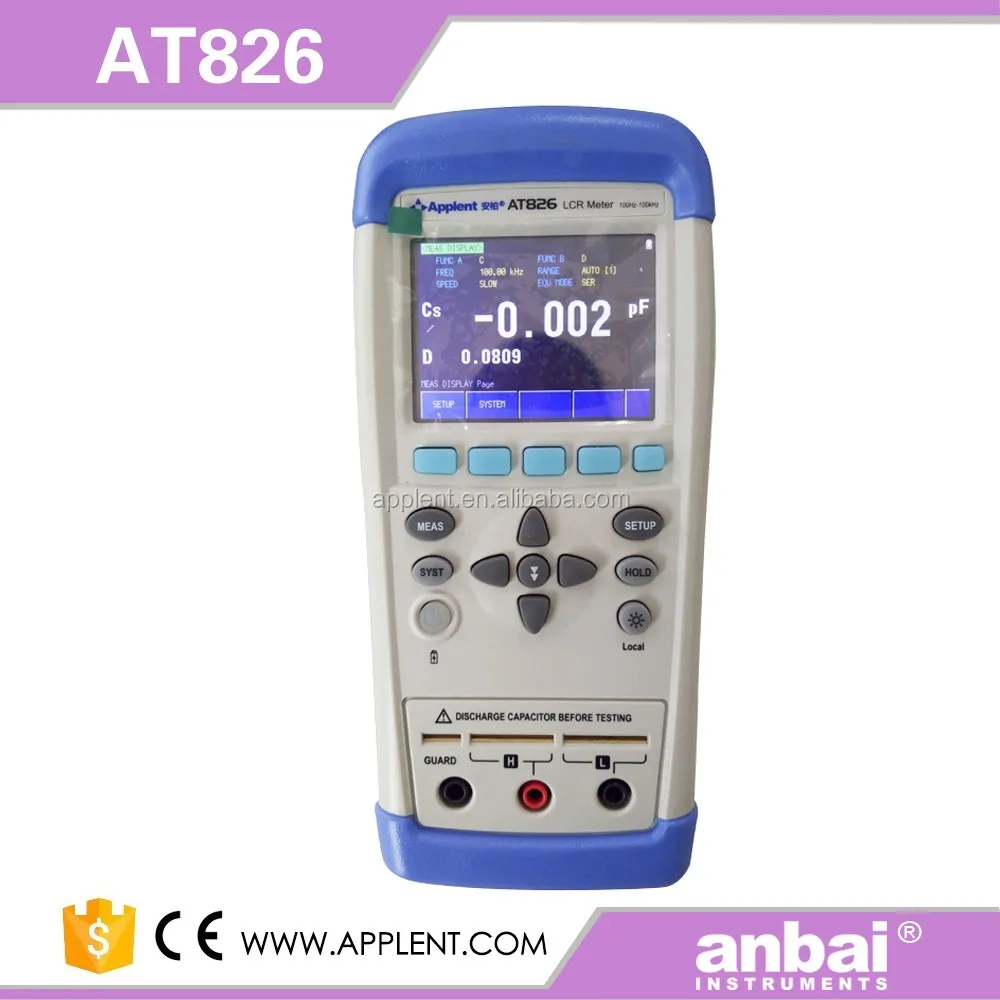

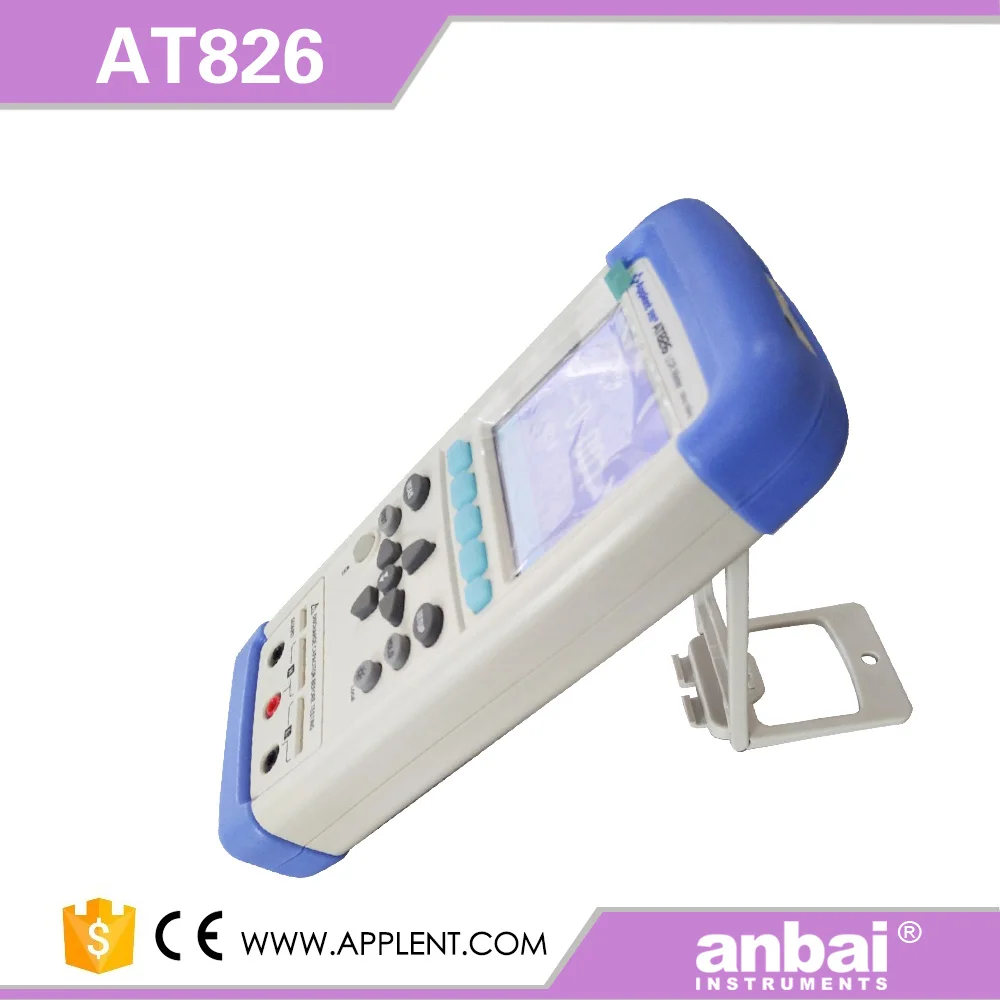

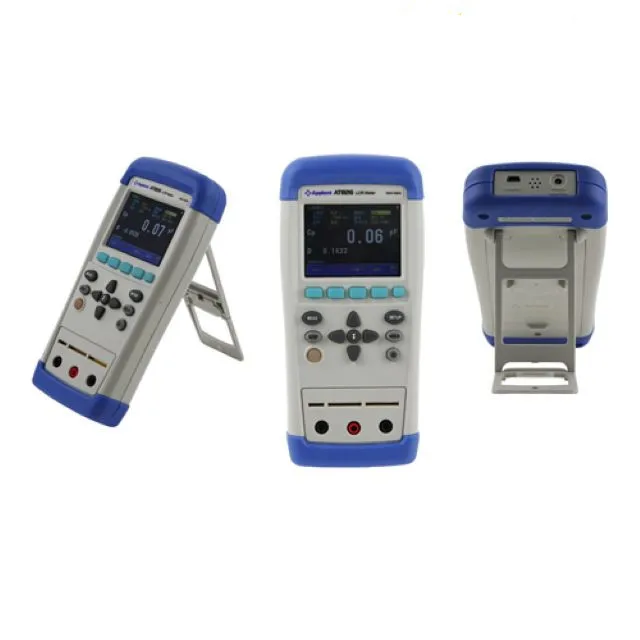

100kHz digital LCR meter multimeter AT826

Product Overview

Description

100kHz digital LCR meter multimeter AT826

Key Features:

·         Test Frequencies: 100Hz,120Hz,1kHz,10kHZ,100kHz (5 point)

·         Test Level: 0.6Vrms

·         Basic Accuracy: 0.2%

·         4 times/sec, 1.5 times/sec speed measurement

·         Output impedance modes: 100Ω

·         Test signal monitoring function

·         Compare & bin-sorting function

·         Open/short zeroing & sweeping correction

·         Detached measurement & display unit design

·         USB interface

·         Color TFT-LCD display, touch screen, SCPI, Level 4 backlight adjustment, powertimer

·         49999 display

·         Build-in comparator,1 set record, main parameter compare, beep

Description

Handheld high performance ARM micro process control. Super-lower power design and high density SMD assembly technology, TFT-color display with keyboard and touch screen control.

Adopt 8.4V Li battery power supply 1400mAh rechargeable battery.

The standard Data Acquisition Software for analysis

 If you are looking for a more cost effective or higher preforming LCR Meter See our LCR Meter Selection Guide
