Product Overview
Description
\t\t\t\t\t\t\t\t\tProduction flow \t\t\t\t\t\t\t
The whole line of making wood briquette charcoal
1.Crush the raw material into small pieces (diameter is about 3-5mm);
2.Dry the material by machine or dried it in the sun , till the moisture is less than 12%;
3.Put the material into feed let of briquette machine;
4.Produce the briquette stick from biomass material without any additive;
5.Carbonized the briquette stick.
1.Wood crusher:
This machine is the most ideal milling equipment for all kinds of wood piece, straw, grass bamboo, peanut shell, tree branches, wheat shell, which are less than 50mm thick into grains and to create proper condition for maamade charcoal, wood crusher is the first step of making charcoal.
(Click picture for detail information)
2.Sawdust dryer:
Drying is important before briquetting process, To get the superior quality of biomass briquettes with high density, it is necessary to control the moisture of material at 8-12% exactly. The selection of drying plant mo0dels depends on the original moisture content of raw materials.
(Click picture for detail information)
3.Briquette machine:
This machine is used to make sawdust into half-charcoal stick.It is equipped with the auto-controlling heating system. The product of this machine can be used to heat boiler, fireplace, etc for warm in house. Using the inherent characteristics of wood raw materials, through the screw extrusion, high temperature, high pressure, the wood raw material to make micro-fiber lignin plastics combine to form a fuel rod.
(Click picture for detail information)

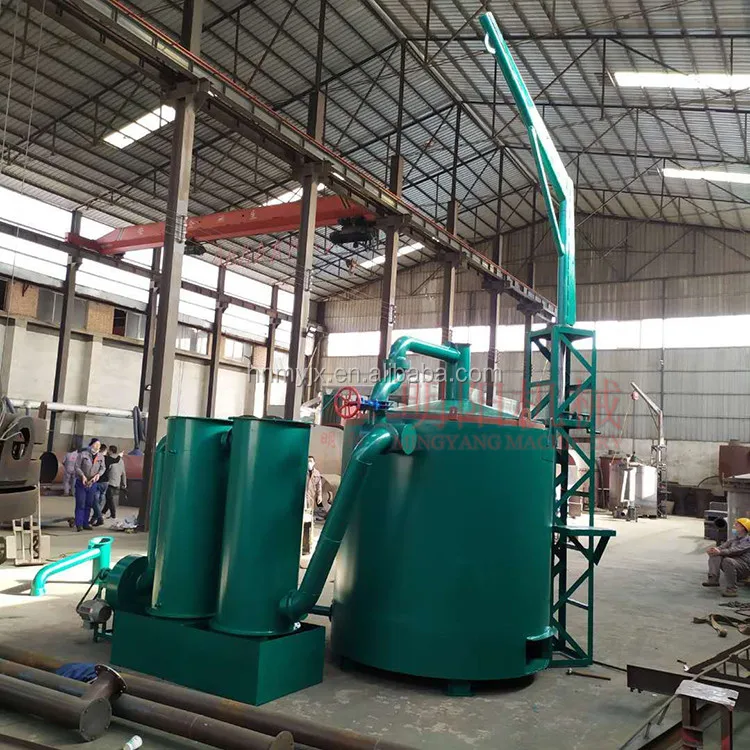

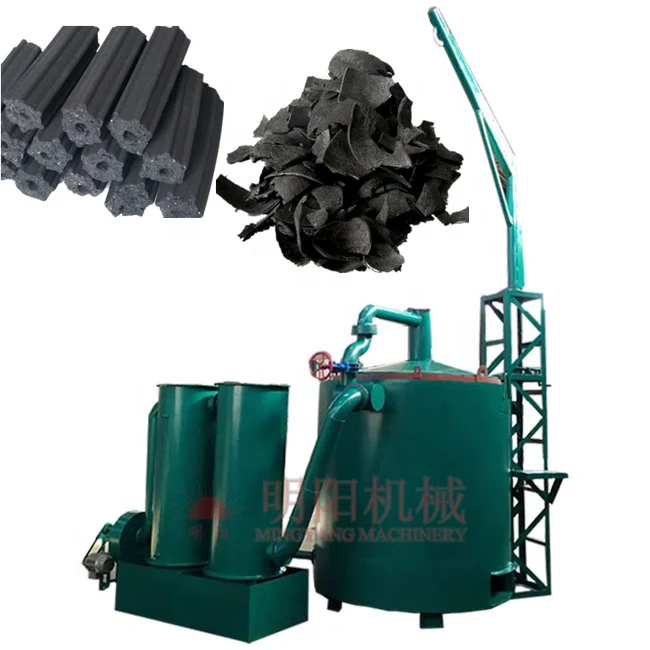

4.Carbonization stove:
The carbonization stove is a new designed machine for chargin the wood briquette, bamboo, wood log, coconut shell and so on into charcoal. It is selling well for its easy operating, high capacity, good quality. Once carbonization need 8 hours, smokeless and the raw materials can be wood log or other flammable goods.
(Click picture for detail information)
Product Description
Product Application:
The carbonization stove adopts the high-temperature dry sliding carbonization technology to make the manmade briquette to charcoal briquette. It is equipped with hyperploid high temperature stream cooling system, and the process of cooling can be accelerated to speed up the period of the production. Moreover, the stove adopts the structure of unique air storage chamber to fully reuse the smoke produced during the process of carbonization. And 60% of the redundant smoke can be used in drying and carbonizing, saving much fuel during the whole process,and increasing the enterprise revenue.
SPECIFICATIONS FOR QHL-1 | ||||||
Carbonization stove QHL-1 | power | 0.22kw | ||||
capacity | 1.5-2t/day | |||||
Weight | 3500kg | |||||
Clients feedback:
Detailed Images
Machine Parts

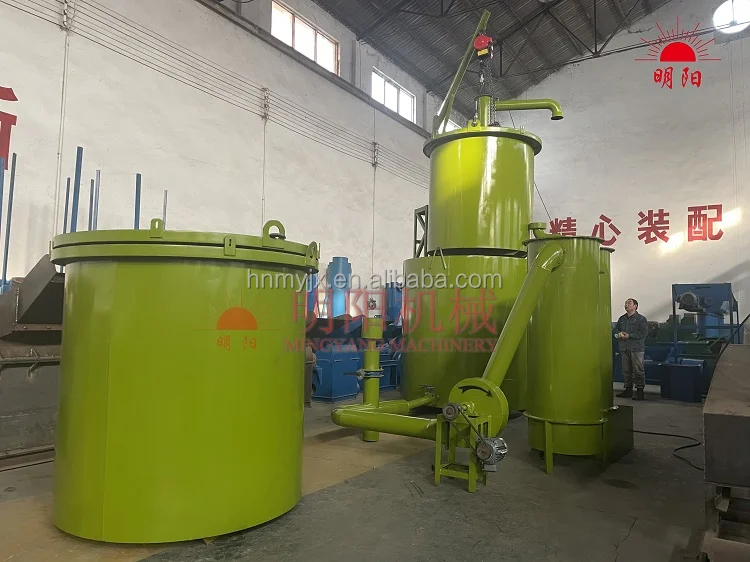

Name: Outer stove
Brand: mingyang
Original: China
Includes heating room (for heating the stove), furnace body and heat-keeping layer (it is made of the heat insulating material, used for keep the heating)
Machine Parts
Name: Inner stove
Brand: mingyang
Original:China
Consist of the stove tank body and the sealed top cap.Both of them are made of the heat resistance thermal steel,and the three carbonization baskets can be stack together,
easy for loading and transporting ,and it will save a lot of space and transport charge.
Machine Parts
Name: Purification tank
Brand: mingyang
Original: China
When during the process of carbonizing, there will be some smoke( can be burning) the smoke can return to the furnace through tube for purifying, after purification , the combustible smoking can be flow into the heating room of the outer stove for heating the stove again; This system is consisting of purification tank and the exhaust heated cycle pipe. And Smoking purification tank are used for purify the smoking (can not Burning)and filter the wood tar. The smoking through the purification tank will Become water vapor, and it will not pollute the air.
Machine Parts

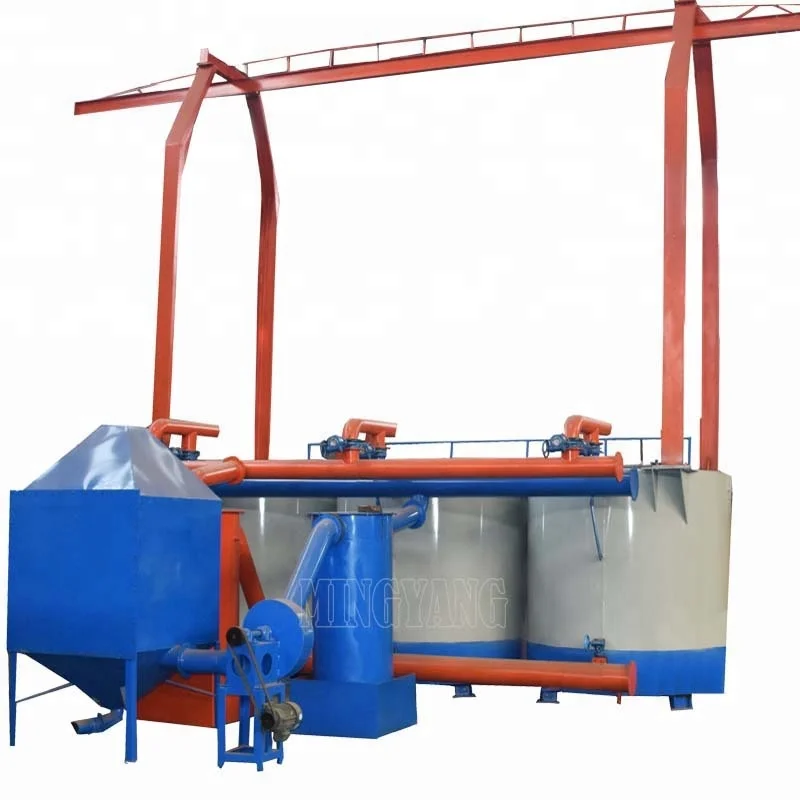

Name: Hoisting equipment
Brand: mingyang
Original: China
It includes the steel hoisting frame and the E-hoist .And it is easy for loading and unloading the stove, and can reduce labor intensity.

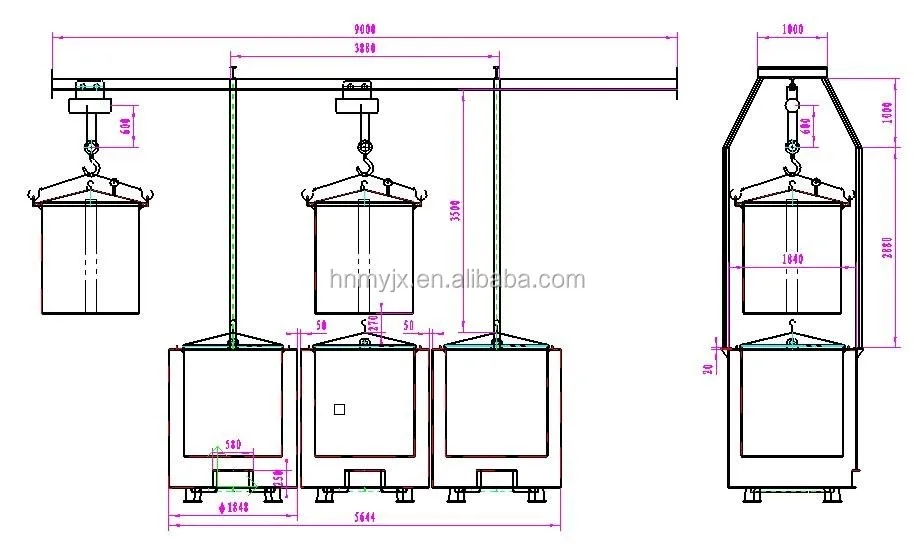

How to operate the carbonization stove:
A: put the raw material into the inner stove neatly;
B: use the hoist to hang the inner stove into the outer stove;
C: use the hoist to hang the caps to seal the inner stove with outer stove;
D: fire the outer stove and then to make the charcoal.
\t\t\t\t\t\t\t\t\tTher raw material \t\t\t\t\t\t\t
Raw Materials: Sawdust, Crops Straw(corn stalk, beanstalk, broomcorn stalk, cotton stalk, rape stalk,palm kernel shell, groundnut stem, sunflower stalk), Husk, Grass, Bush branches, Bamboo butt, Bamboo scraps, Bagasse and so on.
Application
Charcoal carbonization furnace is the ideal equipment for wood briquettes to have anoxic distillation carbonization. The final products charcoal briquette bars can be used for heating furnace, industrial boilers, biomass power plant,barbecue and so on.
Packing and delivery
\t\t\t\t\t\t\t\t\tCompany information \t\t\t\t\t\t\t
Gongyi Xiaoyi Mingyang Machinery plant is located in Zhengzhou.Henan province. Our machinery plant is specialize in WOOD BRIQUETTE MACHINE 38 years.
There have production line of makingwood charcoal briquette(including crusher , dryer , wood briquette machine, carbonization stove) ,
production line of making wood pellet (including crusher, dryer , wood pellets machine , dust separation plant and packaging machine)
production line of making coal ball briquette(includingvertical crusher, mixing machine, coal briquette pressing machine and dryer machine for coal briquette)
and other equipment such as screw conveyor, belt conveyor, scrap conveyor , sawdust carbonization stove, floating fish feed machine and so on.
Our machines have the best quality and we have got many certification such as CE, ISO, BV.
ave got many certification such as CE, ISO, BV.
\t\t\t\t\t\t\t\t\tContact information \t\t\t\t\t\t\t
If you have interest on our machine or have questions on our machine, please don't hesitate to contact us.
