4 Axis CAD CAM Dental Milling Machine Multifunctional Zirconia Dental Milling Machine Made in China for Lab
- Category: >>>
- Supplier: Shandong Carved Intelligent Technology Group Co. Ltd.
Share on (62308944255):
Product Overview
Description
Advantages

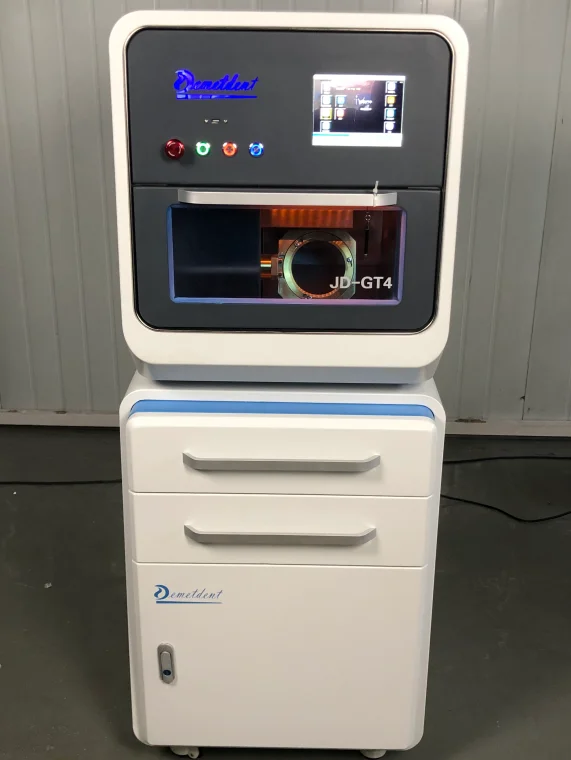

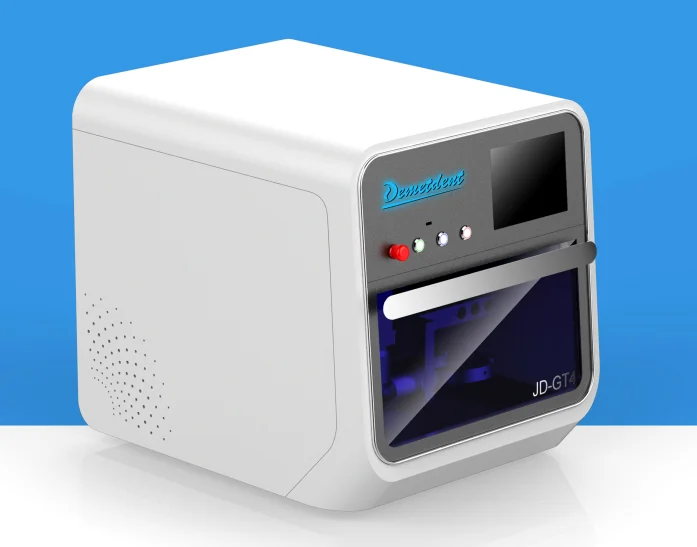

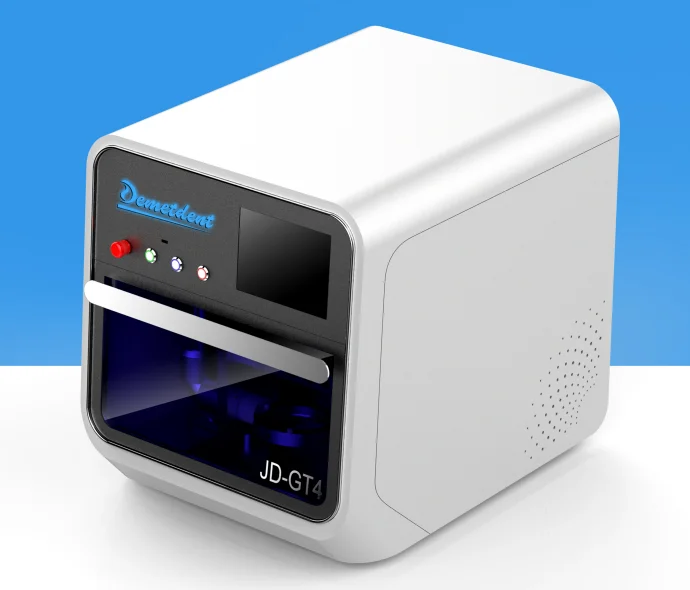

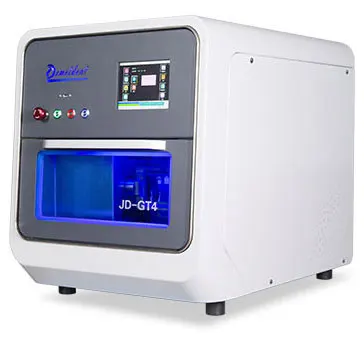

JD-GT4 4-axis multifunctional dental milling machine ----------------------------------------------------------------------------------------- ♦ Two free-changed clamp for multiple-usage ♦ Extreme precision ♦ Excellent performance ♦ Extraordinary stability ♦ Horizontal spindle design ♦ Support both dry and milling ♦ Worry-free after-sales service |  |
Millable Materials
| Zirconia | Wax | PMMA | PEEK |
| Resin | Glass ceramic | Premilled Abutment |

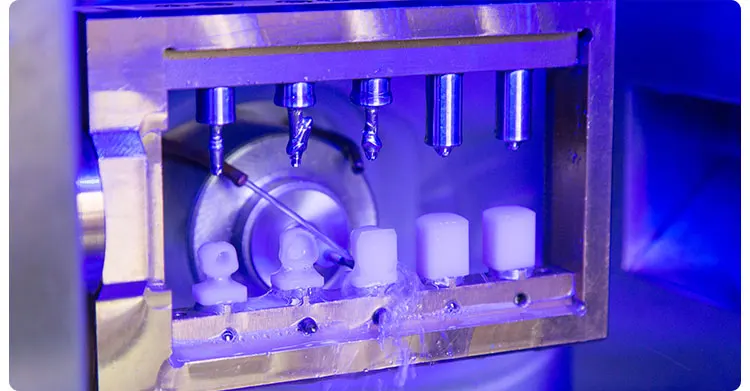

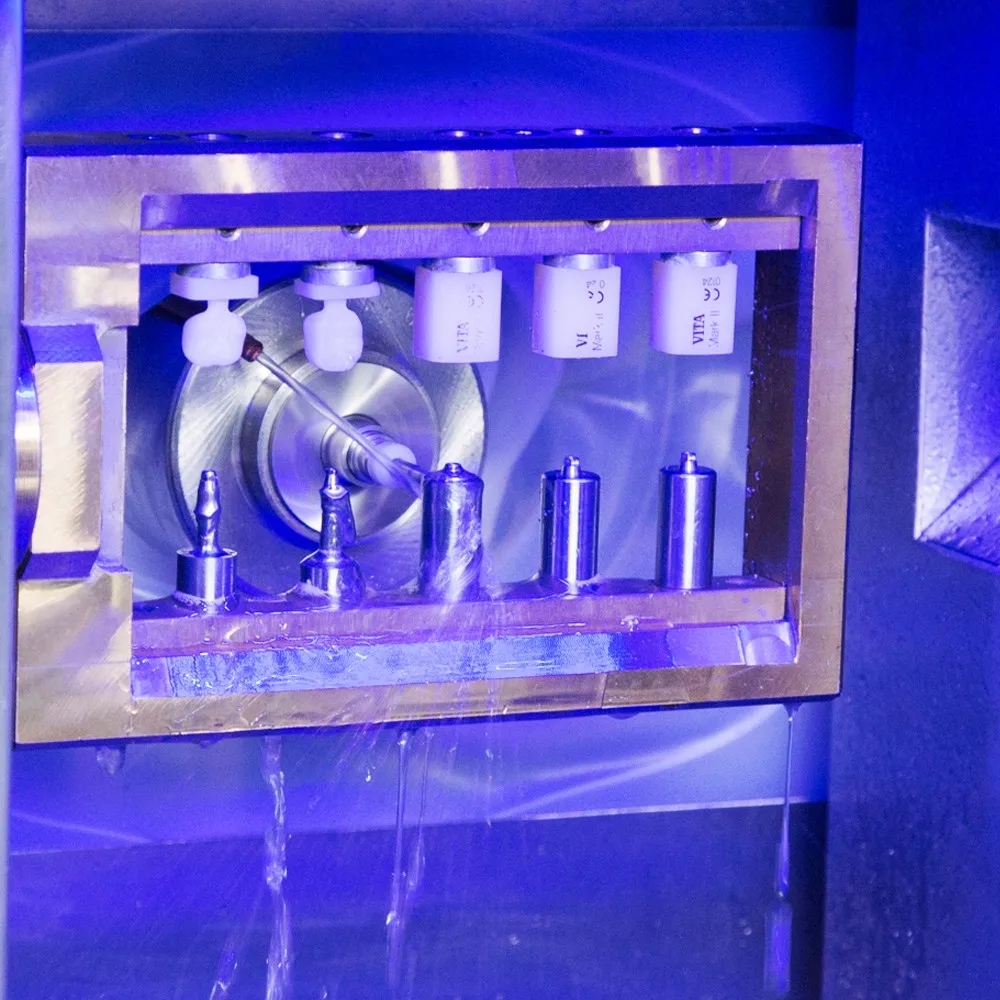

Precise Milling
Sample Display
Technical Parameters
Model | JD-GT4 |
Axis | 4 |
Milling mode | Dry/Wet |
Millable material | Zirconia, Wax, PMMA, PEEK, Resin, Premilled abutment, Glass ceramic |
Product type | Crown, Bridge, Inlay/onlay, Veneer, Glass ceramic, Premilled abutment |
Max spindle speed | 60000 RPM/min |
Spindle power | 1.5 KW |
Spindle cooling | Water cooling |
Rotation range | A: ±360° |
Number of tool housed | 3 |
Tool shank diameter | Φ4 mm |
Tool change and check | Fully Automatic |
Compatible compressed air | 0.7 MPa |
Loadable workpiece shape | Disk/Fixture Disk diameter: 98mm Premilled abutment: Single Glass ceramic: PIN type |
Input Voltage | Single-phase 220V 50Hz/60Hz |
Average milling time(dental crown) | Zirconia: 9-18 min Wax: 3-6 min Resin: 12 min Premilled abutment: 22- 28 min Glass ceramic: 25-38 min |
External dimensions | 524*800*610 mm |
Weight | 108 KG |
Control command set | NC code |
Positioning accuracy | 0.003 mm |
♦ High-tech Enterprise of China
♦ China Mainland and Taiwan Joint Venture
♦ 10+ Years Experience On Dental CAD/CAM Milling Machine Since 2009
♦ 20+ Years Experience On Denture Production, Self-Owned Denture Factory Since 2001
♦ 35+ Exported Countries And Regions
♦ 4000+ Square Meters Modernized Factory
♦ One Of The Most Famous Dental CAM/CAM One-Stop Solution Providers
♦ Positive Feedback from our clients all over the world
FAQ
Q: Is this 4 or 5 axis dental milling machine?
A: Model number include 4 is 4-axis dental milling machine, include 5 is 5-axis dental milling machine
Q: Automatic tool change and check?
A: Yes, all the machine is fully automatic tool change and check
Q: What is the price?Is there any discount policy? Want to learn more about the machine
A: You can SEND INQUIRY directly or chat with us. Please feel free contact us, we are at your service 24-hours.
