Fragrance machine circuit board

Product Overview

Description

Quick Details

Supply Ability

Supply Ability:     5000 Piece/Pieces per Week

Packaging & Delivery

Packaging Details       500PCS/ctn

Port                              ShenZhen

Lead Time                   With 5 working days

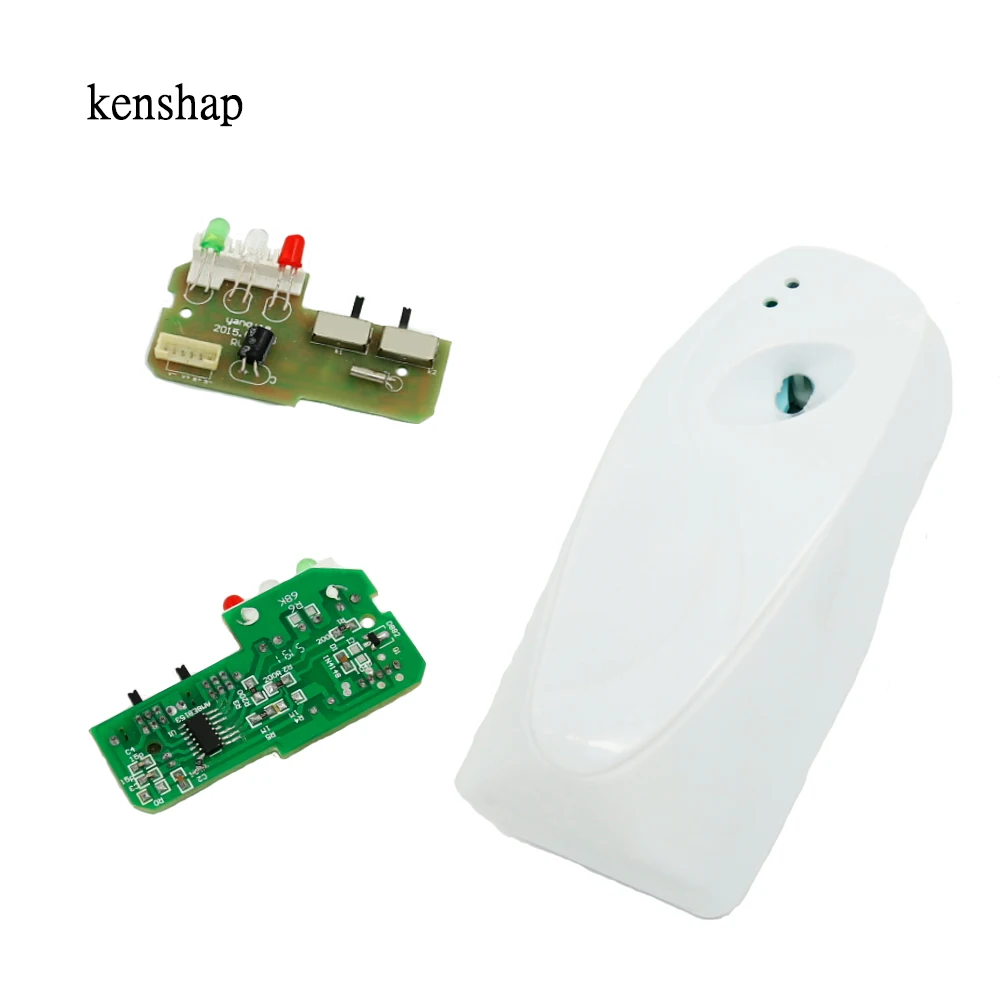

LYXD-PX01 is a high-precision timed aerosol dispenser circuit board with photodiode, which can be used to set day, night, 24 hours, and third-grade time spray perfume.

Features:

1  day, night, 24 hours can be selected;

2  third gear interval can be selected;

3  ultra low power consumption;

4  green light work instructions, red light battery low battery prompt;

5  Pulses with a width of about 500MS after timing;

6  PCB board structure shape and function can be customized;

7  application: timing prompts.

Specifications:

1 \Power supply: Battery 3.0V;

2 \day, evening, 24 hours can be set

3 \7.5 minutes, 15 minutes, 30 minutes can be set

4 \Green light work instruction, flash once every 500 milliseconds interval, red light low battery indication

5 \Power consumption: <10uA;

6 \ Output mode: 500 millisecond pulse level output;

7 \ Working temperature: -10-50 ° C.
