Reinforced New Bidim Fabrics woven geotextile for Road Construction
- Category: Earthwork Products >>>
- Supplier: The Best Project Material Co. Ltd.
Share on (62309124657):
Product Overview
Description
Product Description
Reinforced New Bidim Fabrics woven geotextile for Road Construction
Bidim Fabrics fabric is made of pre-stressed multi-filament polyester or polypropylene yarns entwined in the longitudinal direction of polyester and in a transverse direction with each other by woven method and entangled into stable fabric pattern by special warp straight matting process.
Bidim Fabrics is widely used to reinforce and stabilize the structure of steep slope, soft sub-grade foundation and embankment, retaining soil cover, landfills, etc.
*High tensile strength
*Resistant to UV
*Low elongation, low creep
*High creep resistance
*Resistant to chemical substances
*Resistant to micro-Organisms
*Less differential settlement
*Cost effective
*Ease of installation
Specifications of Bidim Fabrics
| Property | Unit | BETW100-50 | BETW300-50 | BETW500-50 | BETW600-50 | BETW1200-50 |
|---|---|---|---|---|---|---|
| Ultimate Tensile Strength MD | KN/m | 100 | 300 | 500 | 600 | 1200 |
| Ultimate Tensile Strength CD | KN/m | 50 | 50 | 50 | 50 | 50 |
| Strain at short term strength | % | 10 | 12 | 12 | 12 | 12 |
| Elongation | % | 30 | 30 | 30 | 30 | 30 |
| Apparent Opening Size | mm | 0.15 | 0.15 | 0.15 | 0.15 | 0.15 |
| UV resistance ( Retained 500 Hours) | % | 70 | 70 | 70 | 70 | 70 |
| Width | m | 5.2 | 5.2 | 5.2 | 5.2 | 5.2 |
| Height | m | 100 | 100 | 100 | 100 | 75 |
| Roll weight | Kg | 140 | 320 | 480 | 580 | 810 |

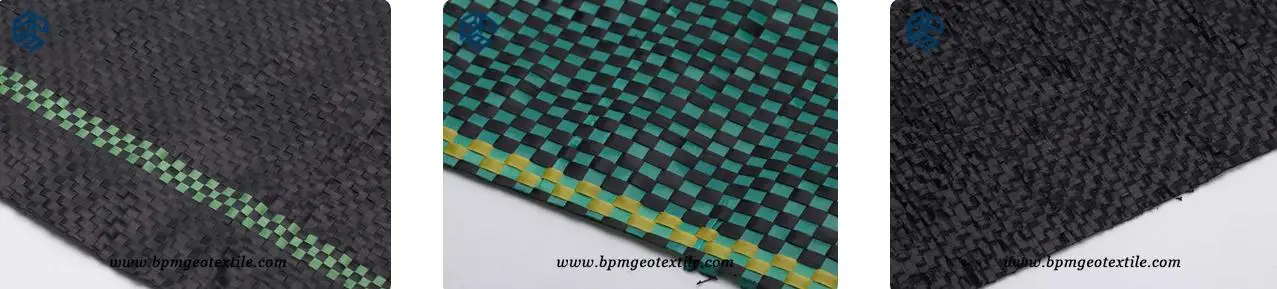

Pet woven geotextile
Polypropylene woven geotextile (PP woven geotextile)
Short fiber needle punched nonwoven geotextiles
filament non woven geotextile
Applications
Reinforced New Bidim Fabrics woven geotextile for Road Construction
*Embankment reinforcement
*Steep Slope Construction
*Retaining soil cover over soft soil
*Coastal and side slope production
*Sub-grade soft foundation treatment
*Railway, road, tunnel, coastal mud flat construction
*Reclamation and environmental project
Packaging & Shipping
Selling Packing:Customer’s company Logo mark can be designed and added
Outer Packing:Packed in Double-layer woven bags to ensure smooth arrival and avoid rough handling
Transport Packing: Put in the container
Company Information
The Best Project Material Co., Ltd (BPM) is the leading geomembrane manufacturer and exporter since 2007. All products have been approved by the ISO9001,ISO14001 and BV certificates and passed the test of SGS,SONCAP,SASO etc
Our main innovative, high quality geosynthetics products include geomembranes, geotextiles, geocells, Welding machine,geosynthetic clay liners (GCLs), drainage boards, geogrids, etc.
BPM is providing professional design and installation service. OEM and ODM are also available.
