Профессиональная заводская цена, удобная в использовании сушильная машина для раков, листьев Моринги, картофельных чипсов

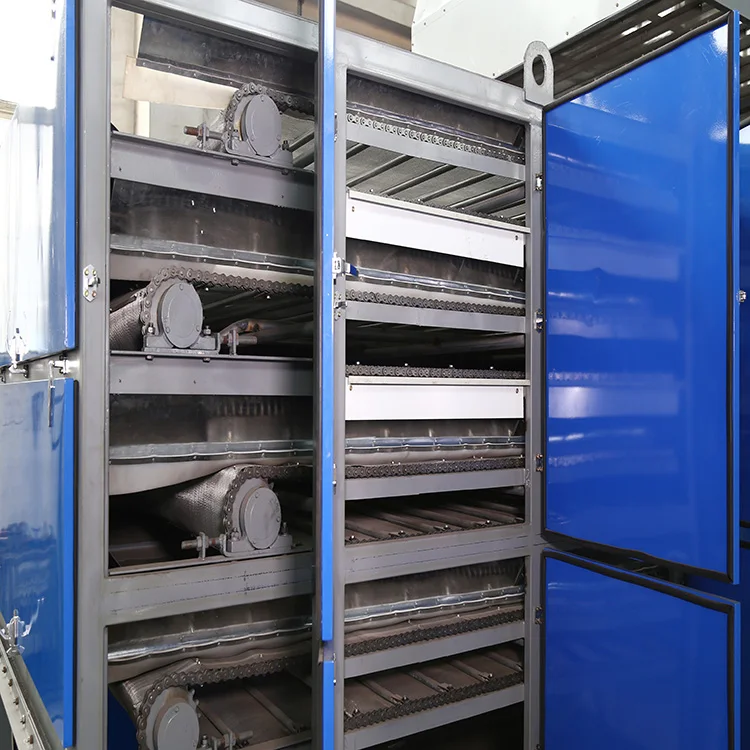

Main configurations of Continuous Belt Dryer

Heat Exchanger

1.The heat exchanger can use different materials, such as biomass fuel, natural gas, steam, diesel, coal

and more.

2. Feeding and Discharging Conveyor

Made from S304 stainless steel, the charging system, conveyor and belt ensures all drier materials

meeting food hygienic standard.

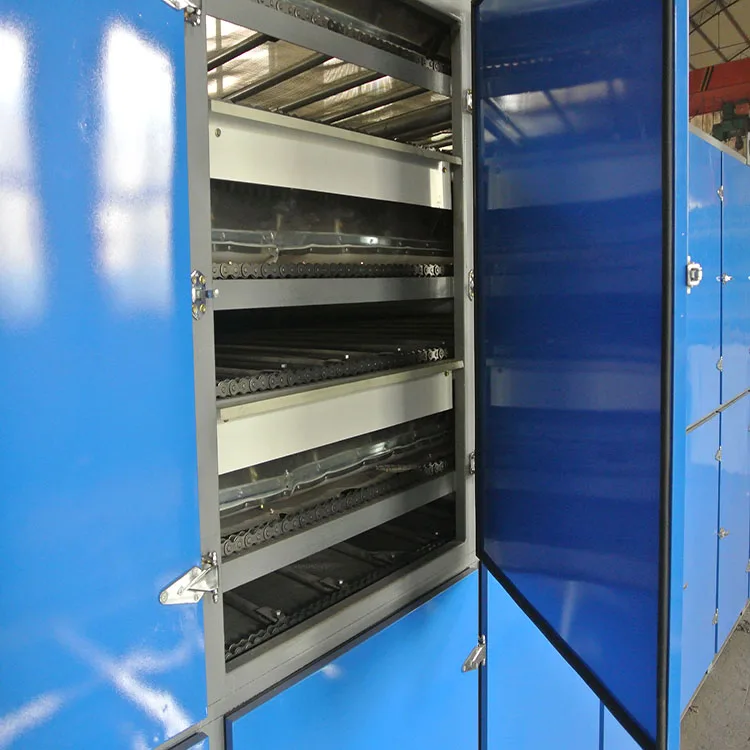

3. Inspection & Maintenance System

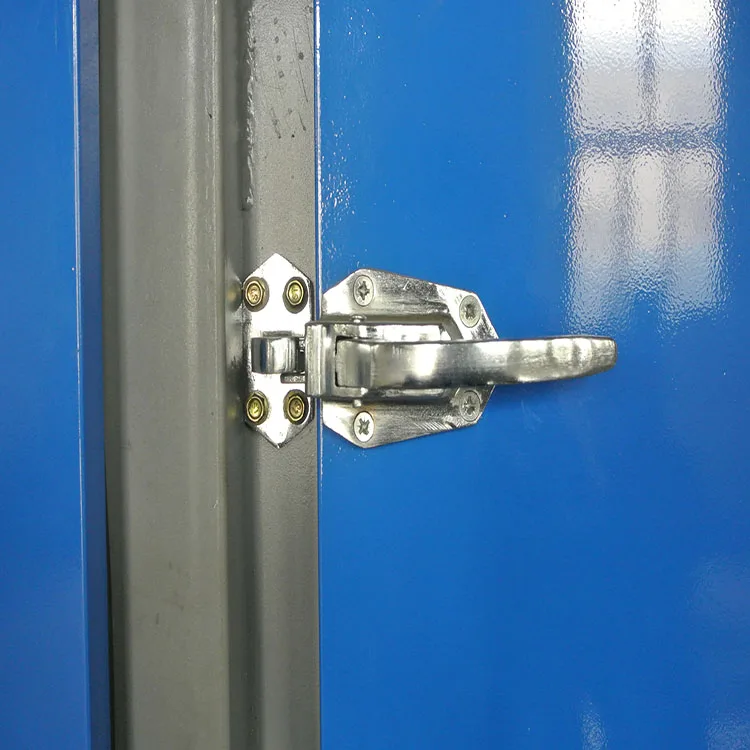

An inspection door is designed to let users watch the drying condition during operation. It also works

as a passage for regular maintenance.

4. Insulation Boards

The continuous belt dryer implements 5cm thick rock wool boards as they offer a safe working

environment, at the same time, greatly reduces thermal loss, with a thermal efficiency of up to 70%.

5. Control System

When it comes to control system, it effectively monitors and regulates the heating temperature

and material moisture content.

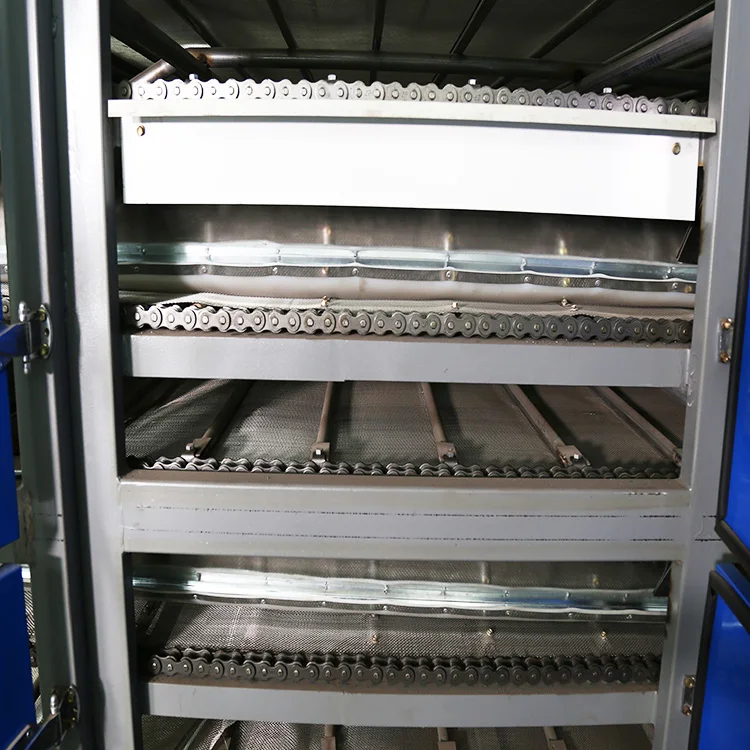

Working principle of mesh belt drying machine:

The material goes through the head of the machine. The distributed feeder distributes the

materials in the mesh belt

evenly, and adjust the thickness of the material according to the conditions. The linear

velocity is decided by the

kinds and the moisture. The dried material is discharged from the discharging port.

(The even layer is discharged

from the head, and odd layer is discharged from the tail.)In the process of drying,

due to the function of fan, drive the hot air flow through the guide duct into the internal

of bottom of the dryer, then drying the material from the bottom to the top, and

next discharge the exhaust through air outlet of the duct.

If want to get better drying effect and reasonable capacity, it should combine reasonably

properly, and organic with the raw material moisture, liner of mesh belt, air volume and

air temperature.

Main features of mesh belt drying machine:

1) The mesh belt drying machine is the most advanced continuous working hot air circulation dehydration

equipment for vegetables, herbs, spicy industry. The dryer is suitable for high capacity processing for slices,

dices or particles products. Typical products suitable for the belt dryer are beans, onion, garlic, carrot, herbs,

fish like anchovies etc.

2) The single layer belt drying equipment carried out by using hot air through each wind guide system allows

hot air evenly through the materials, speed up the evaporation of water.

3) The multi-layer belt is especially suitable for the final dehydration stage which takes long time and lower

temperature

to make the final product with even moisture after the processing.

The application of large capacity continuous type stainless steel chilli pepper dryer equipment
Fruit:Almonds, jujube, peanuts, longans, walnut, papaya tablets, apple, lemon, hawthorn pills, bananas, etc.

Vegetable:Asparagus, beans, kidney beans, lentils, eggplant, red pepper, Chinese prickly ash, black fungus,

tremella, papaya tablets, pills, bitter melon, radish, cucumber slices, mushrooms, mushrooms, ginger, garlic, etc.
Medicinal material:Flos lonicerae, radix scutellariae, salvia miltiorrhiza, burdock, fructus schisandrae,

codonopsis, radix rehmanniae, prepared rhizome of rehmannia, mulberries, forsythia, Chinese wolfberry, etc.
Others:Lily, rose, peony seed,fennel seeds,etc

1.What is the input moisture of your raw material?

Answer:As every mateiral has big difference input moisture,we need calcute it for equip with drying model for you.

2.What is the output moisture of you needs?

Answer:We will calcute the heating source cost and equip with confirm drying machine mdoel for you,according it.

3.How about the capacity per day or per hour of you want?

Answer:Generally vegetable capacity 2-3.5t/24hours for 1 set BX-10*2.2*2.2m drying machine,our engineer will give you the exact model dryer.

4.What is the heat resouce of you want?

Answer:Generally it's coal,gas,electricity for provide heating for drying machine.

(Tips:coal is low price,gas is saving energy,electricity is more clean and no any pollute for material)
