KINGER CE certified Soil Drilling Auger hydraulic Rock earth drill for Excavator Skid Steer Backhoe
- Category: Earth Augers >>>
- Supplier: Yantai Dongheng Machinery Co. Ltd.
Share on (62309280133):
Product Overview
Description
Product description
KINGER Earth Auger has 24 models which can suitable for all types of excavators, skid steer loader, backhoe loader, crane, telescopic handler etc. It was widely apply to forestry, telecommunication municipal works, high-speed railway,construction and forest project.
Parameters and Details
Hydraulic Earth Auger Drive Specifications
Model | YDHMINI | YDH1200 | YDH1500 | YDH2000 | YDH2500 | YDH4000 |
Applicable（T） | 0.8-2 | 1-4 | 1-2 | 1.5-3 | 1.5-3 | 2-4 |
Max Torque (Nm) | 305-1175 | 327-1320 | 542-1580 | 656-2270 | 855-2510 | 1290-3795 |
Oil Pressure Range (Bar) | 60-200 | 60-220 | 60-200 | 60-200 | 60-200 | 60-200 |
Oil Flow Range (Lpm) | 12-45 | 15-50 | 20-75 | 30-75 | 30-75 | 40-80 |
Speed Range(r/min) | 28-95 | 30-102 | 32-97 | 35-98 | 35-90 | 28-80 |
Output Shaft(mm) | 65Rd | 65Rd | 65Rd | 65Rd | 65Rd | 65Rd |
Unit Size(mm) | Φ175*525 | Φ245*680 | Φ200*585 | Φ200*585 | Φ200*585 | Φ200*585 |
Unit Weight(Kg) | 38 | 80 | 49 | 50 | 50 | 52 |
Model | YDH4500 | YDH5000 | YDH5500 | YDH6000 | YDH7000 | YDH8000 |
Applicable（T） | 3-6 | 3-6 | 5-7 | 5-7 | 5-8 | 5-10 |
Max Torque (Nm) | 1570-4580 | 1608-4890 | 1720-5320 | 1855-5960 | 2236-7300 | 2839-8250 |
Oil Pressure Range (Bar) | 60-210 | 60-210 | 70-210 | 70-210 | 70-250 | 70-250 |
Oil Flow Range (Lpm) | 40-95 | 40-95 | 40-115 | 40-115 | 60-150 | 60-150 |
Speed Range(r/min) | 32-77 | 28-57 | 30-85 | 27-80 | 35-82 | 30-72 |
Output Shaft(mm) | 65Rd | 65Rd | 75Sq | 75Sq | 75Sq | 75Sq |
Unit Size(mm) | Φ245*690 | Φ245*690 | Φ270*900 | Φ270*900 | Φ270*900 | Φ270*900 |
Unit Weight(Kg) | 87 | 88 | 119 | 120 | 140 | 142 |
Model | YDH9000 | YDH10000 | YDH12000 | YDH15000 | YDH20000 |
Applicable（T） | 5-8 | 5-8 | 10-15 | 12-17 | 15-25 |
Max Torque (Nm) | 3526-8760 | 3878-10250 | 4870-12300 | 5007-15160 | 13787-19200 |
Oil Pressure Range (Bar) | 80-200 | 80-200 | 100-240 | 100-240 | 150-240 |
Oil Flow Range (Lpm) | 50-95 | 50-95 | 80-150 | 80-150 | 100-170 |
Speed Range(r/min) | 15-30 | 12-26 | 22-47 | 20-45 | 20-35 |
Output Shaft(mm) | 75Sq | 75Sq | 75Sq | 75Sq | 90Sq |
Unit Size(mm) | Φ270*870 | Φ270*870 | Φ290*945 | Φ290*945 | Φ345*1155 |
Unit Weight(Kg) | 123 | 124 | 172 | 175 | 275 |
Model | YDH25000 | YDH30000 | YDH40000 | YDH50000 | YDH60000 |
Applicable（T） | 17-25 | 20-30 | 20-30 | 22-40 | 22-40 |
Max Torque (Nm) | 17233-24920 | 19578-31500 | 23251-39500 | 25270-49760 | 25270-60650 |
Oil Pressure Range (Bar) | 150-240 | 100-210 | 100-210 | 200-350 | 200-350 |
Oil Flow Range (Lpm) | 100-170 | 100-170 | 100-170 | 120-200 | 120-200 |
Speed Range(r/min) | 15-28 | 15-22 | 13-20 | 14-22 | 11-19 |
Output Shaft(mm) | 95Sq | 110Sq | 110Sq | 110Sq | 110Sq |
Unit Size(mm) | Φ345*1155 | Φ450*1300 | Φ450*1300 | Φ500*1400 | Φ500*1400 |
Unit Weight(Kg) | 278 | 485 | 490 | 660 | 670 |
Our Highlights
- More than 12 years manufacture experience- -18-month warranty for motor and gearbox reduction
- Special heat treatment for gear
- Most complete model ranges for 1-50ton excavator
- Well performance
- Quick after-sale service
- Fast delivery
- Focus on quality all the time
- Special heat treatment for gear
- Most complete model ranges for 1-50ton excavator
- Well performance
- Quick after-sale service
- Fast delivery
- Focus on quality all the time
-High efficiency
For the whole set earth auger we can supply with a very favorable price.

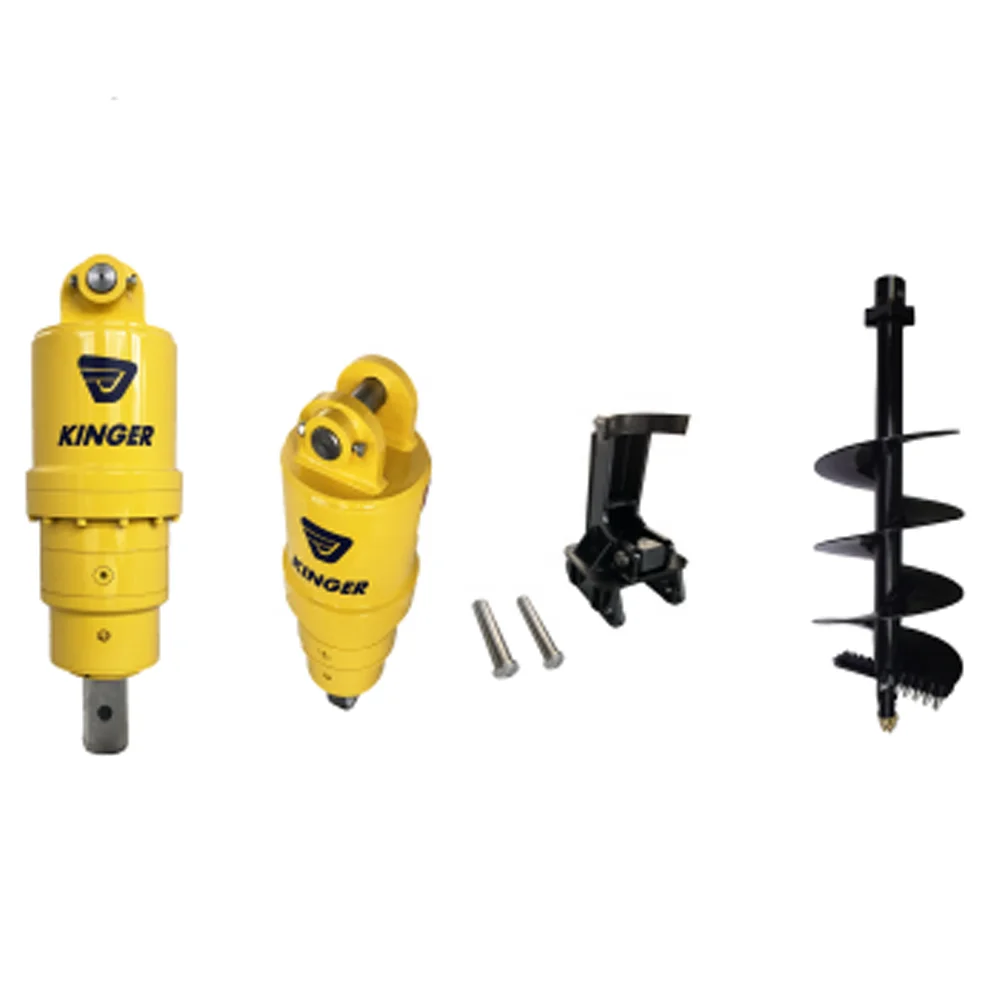

Including auger drive, cradle hitch(mounting hitch), auger stem with auger teeth (Extension rod if needed).
Why Choose Us
Exhibitions for brand promotion
Our products showed on the Bauma Exhibition for many times and get loved with its high quality and exquisite appearance.
Product safety test before shipment
Quality assurance:
Passed ISO90001:2015 quality system, complete production process, control and quality inspection.
Passed ISO90001:2015 quality system, complete production process, control and quality inspection.
Customer feedback
Favourable comments and reorders constantly from the customers.

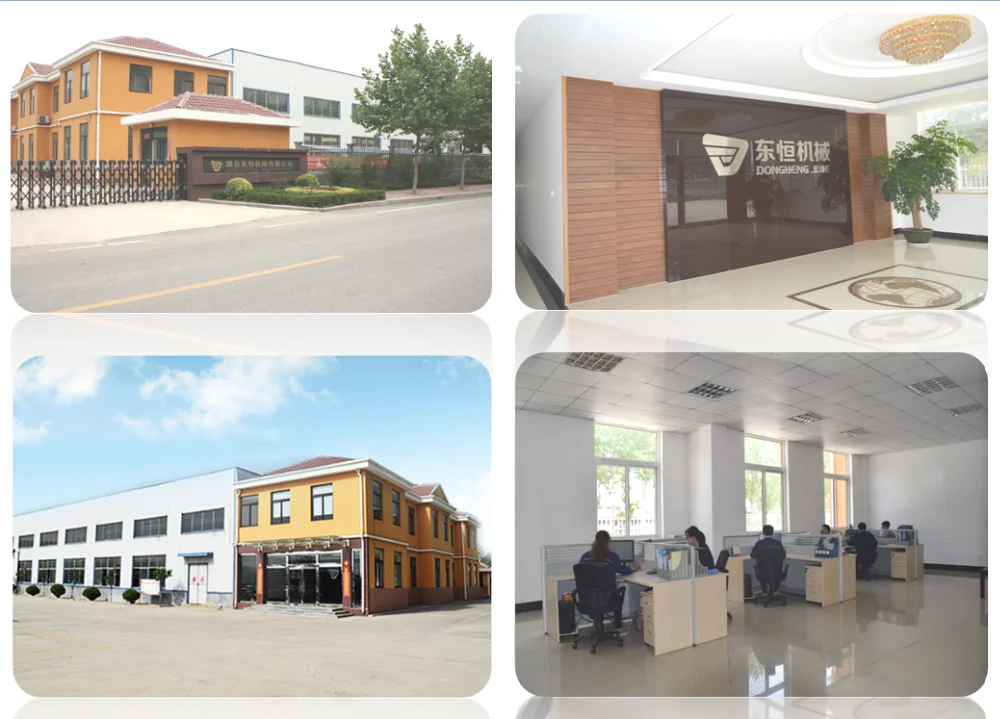

Our Company
Our company has passed ISO9001:2015 and CE certification. We are national high-tech and professional, refined, unique and innovative enterprise. Our company owns plenty of independent intellectual property rights. So far, we have obtained more than 30 patents. That makes Dongheng to be a leading position in the construction, forestry and agricultural machinery industry.
Our product adopts high and new technology, applied with best material and supported by various advanced inspection and testing equipment to make sure the quality stable and performance more excellent.
With our more than 11 years manufacturing, sales and after-sales service experience, we have created our own brand "KINGER". Our product has been exported to USA,UK,New Zealand,Ukraine,Germany, Denmark, Russia, recognized by customers all over the world.
1. Material: We use the special raw materials and plantary gear, which has high efficiency and long service life.
2. Process: We have advanced production technology and quality testing. And passed the ISO90001:2015 quality system certification.
3. Delivery: We usually take about 7-15 days depending on the products you order after receive your payment.
4. Price: High quality with competitive price. With us your money and your business is safe. We can offer 7-days refund in case of bad quality, and Alibaba trade assurance payment for safety.
5. After-sales service: Excellent technical support, complete service system. 12 months for motor, 18 months for gearbox.
Production and Delivery
FAQ
Q: Are you trading company or manufacturer ?
A: Yes,we are manufacturer.
Q: How long is your delivery time?
A: It is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample, but it is not free.
Q: If I need different measurements or weight, could you offer OEM service?
A: Sure, we can provide OEM service, also we can make new mould for your product, attaching your name brand.
Q:If buy your product,can the quality and after-sales service be guaranteed?
A:Yes,you can rest assured that we have our own factory and technical consultants,and you will have a pleasant shopping experience in our company.
