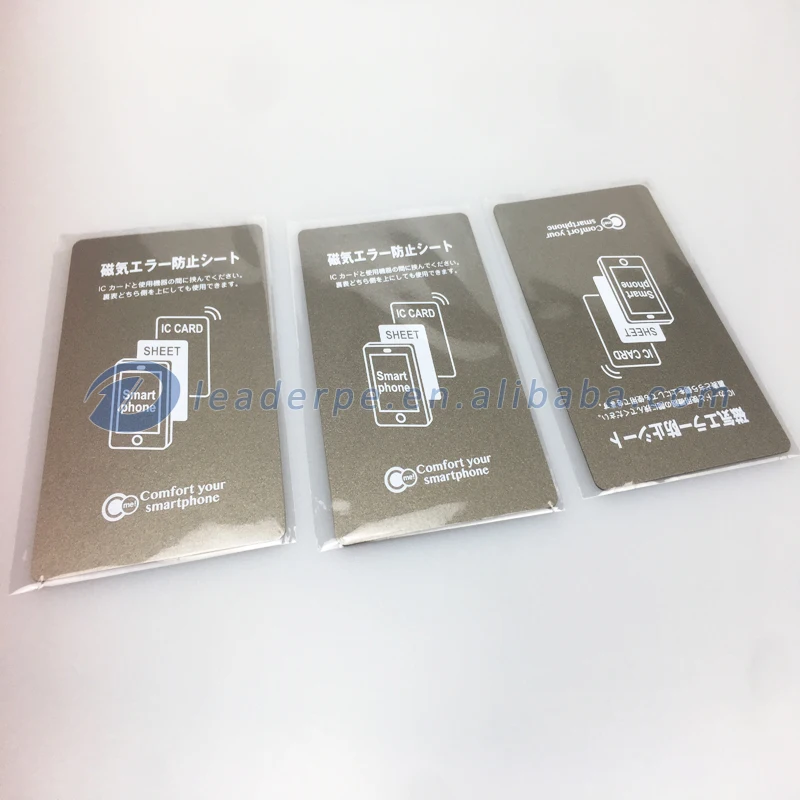

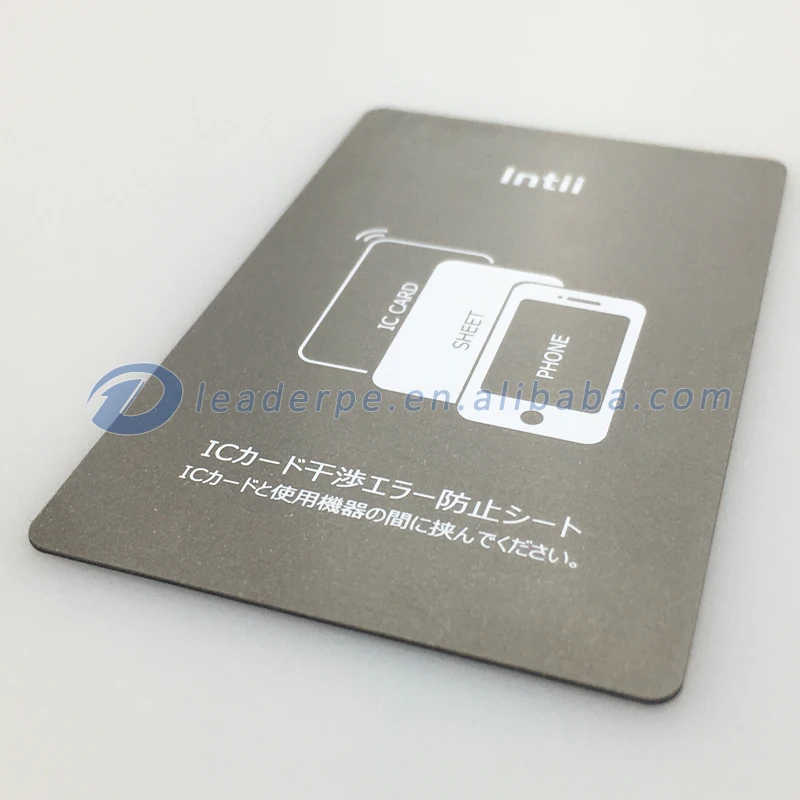

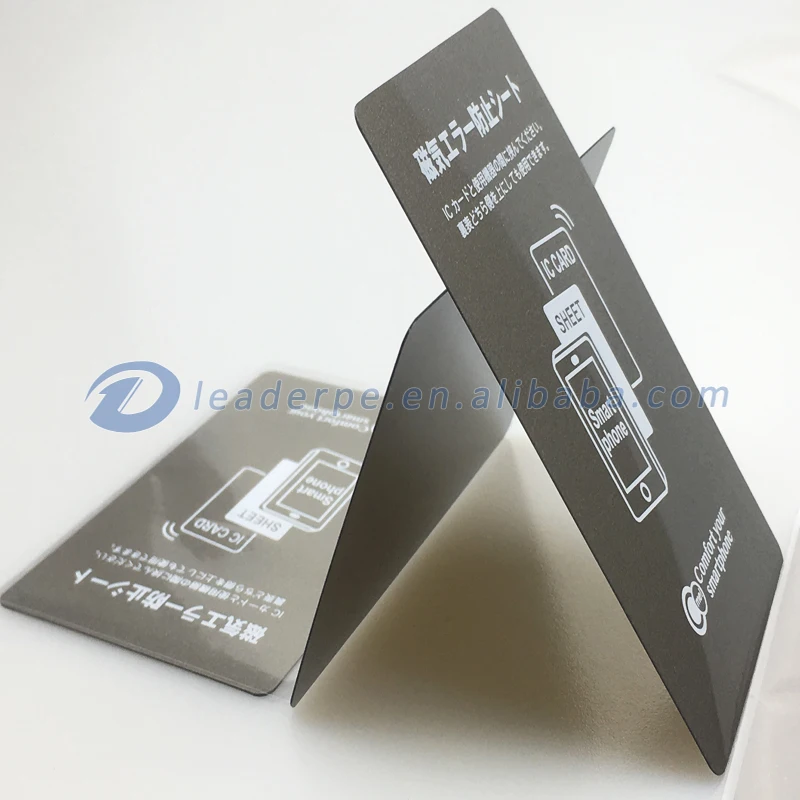

Die cut wave absorbing material electromagnetic insulation wave absorber
- Category: >>>
- Supplier: Dongguan Leader Optronics Technology Co. Ltd.
Share on (62309289628):
Product Overview
Description

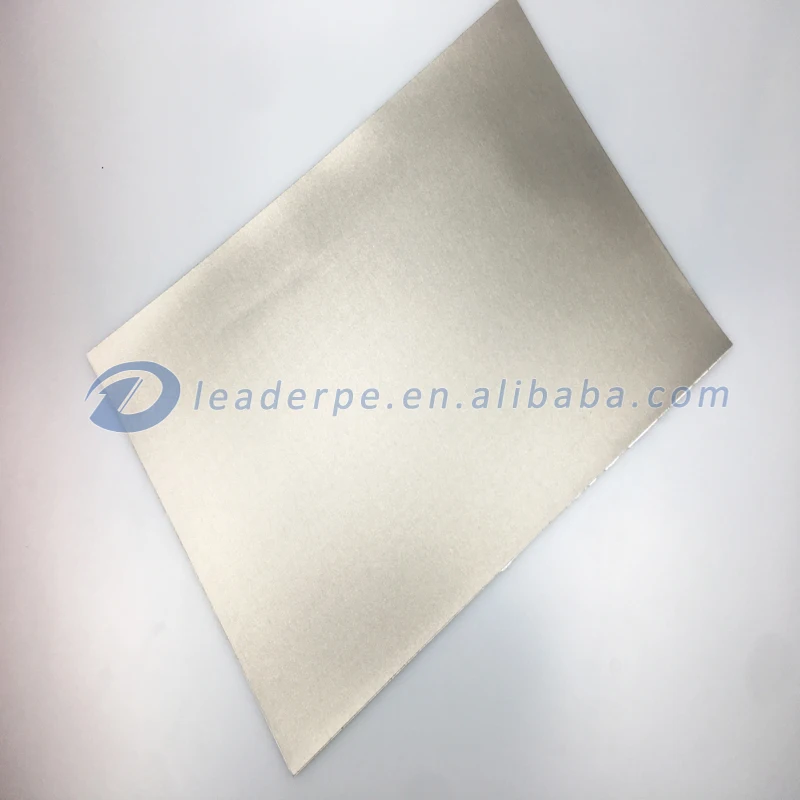

Die cutting soft flexible shield materials die cut wave absorbing material ferrtite EMI absorber
Product Description

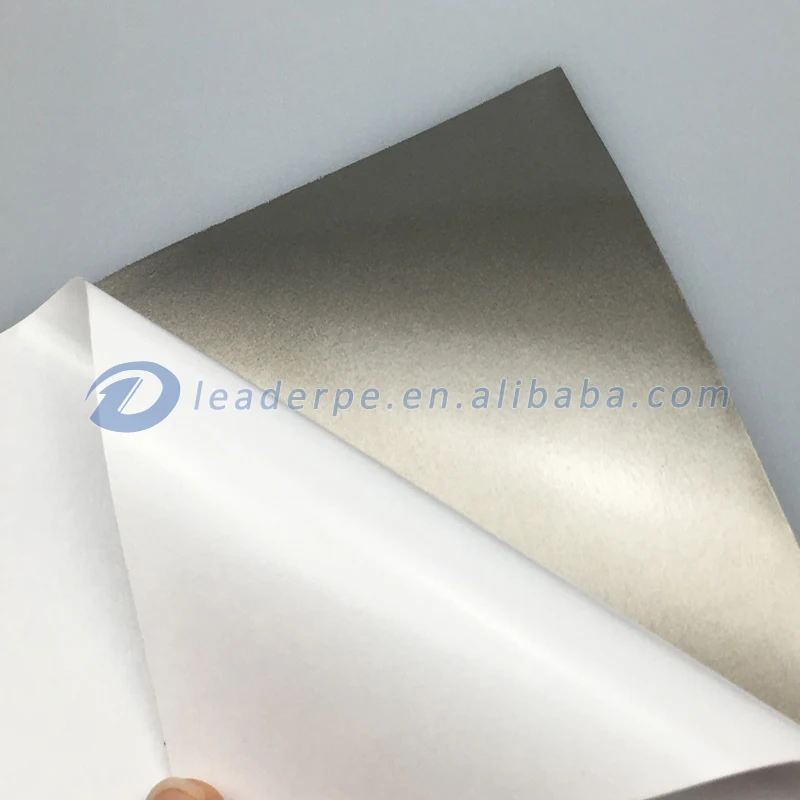

The electromagnetic wave absorber has three layers, including absorber layer, adhesive/tap, and release paper.
Features of electromagnetic wave absorber
- Wide range of anti-electromagnetic interference frequencies (10 M~6 GHz)
- Ultra-thin thickness up to 50 μm
- Good flexibility, resistance to bending, easy die cutting
- Low thermal resistance, in line with RoHS and HF standards
- Avaliable thickness: 50 µm,100 µm, to, 1500 µm, T<1000µm,can be made by Roll,T>1000µm, will be made by sheet
Technical Data of Electromagnetic Wave Absorbers
| Item | Specifications |
|---|---|
| Frequency | 10M ~ 6G Hz |
| Thickness | 500 ± 10 µm |
| Size | 300MM x 20M mm |
| Density2 | 3.4 g/cm3 |
| Permeability | 120 @ 1 MHz |
| Temperature | -25~ 120 ℃ |
| Surface Resistance | 1 x 106 (min) Ω/ |
| Environment | RoHS Compliance |
| Halogen Free, PVC Free, Lead Free |
The production process of electromagnetic wave absorber includes metal smelting, pulverization, flaking and shaping. The complete EMI absorber materials production process is fully automatically and quality guaranteed with advanced manufacturing equipment. We can produce the customized high quality and cost effective die cut wave absorbing material within a short time based on customers'specific requirements.
Application
Application of die cut wave absorbing material
- Smartphone, tablet, digital camcorder
- Electronic payment, electronic label
- Precision medical equipment
- Automatic identification system military stealth
| Application Equipment | Position on Equipment | Remark |
|---|---|---|
| PDA/GPS | Noise on the processor/chip | |
| Barcode Scanner | Flat cable | |
| Mobile Phone | CPU,Intenna,between the speaker and the handset,RFID tags | EMI shielding, RFID |
| Cable | Cable harness | thin film absorbing material |
| Digital Camera | For linking the FPCB between the display and the body | thin film absorbing material |
| Test and Measurement equipment | In the equipment | Although the amount is small, it is expensive |
| DMB/Navigation | Improve receiving sensitivity | Electric wave absorbing material |
| Military Use | Confidentiality |
Quality Inspection Equipment for EMI Absorber Sheets
In order to ensure every piece of EMI absorber materials is of high quality, we have prepared a lots of inspection equipment, including optical projector, vernier caliper, thickness gauge, resistance test, viscosity meter and more.
Company Information
Leader OPUS devotes to provide customers with quality electromagnetic wave absorber at reasonable price with timely delivery and good service. We always insist to help customers to maximize the values and minimize the cost. We can provide the complete EMI shielding solutions at low cost.
Packaging & Shipping
Certifications
Leader OPUS is an ISO9001:2015 quality management system and EU RoHS environmental directives implemented enterprise. Our electromagnetic wave absorber are certificated with UL, REACH. The strict tests in function, quality, reliability and production feasibility at the design stage of each EMI electromagnetic wave absorber and the strict quality management in production ensure excellent quality EMI shielding materials.
FAQ
- Do your require MOQ?
No MOQ for most electromagnetic wave absorber, but some should negotiate. - Can you help to design?
Sure, we have a profession R&D team to helping design and offer you suitable solutions. - Can I take sample?
We are honored to provide you sample for testing. - What's the leading time?
1~3 working days for sample order and 5~7 working days for mass production. - How can you guarantee the quality of your die cut wave absorbing material?
With advanced production machine and testing equipments,we ensure 100% quality inspection before shipping.
