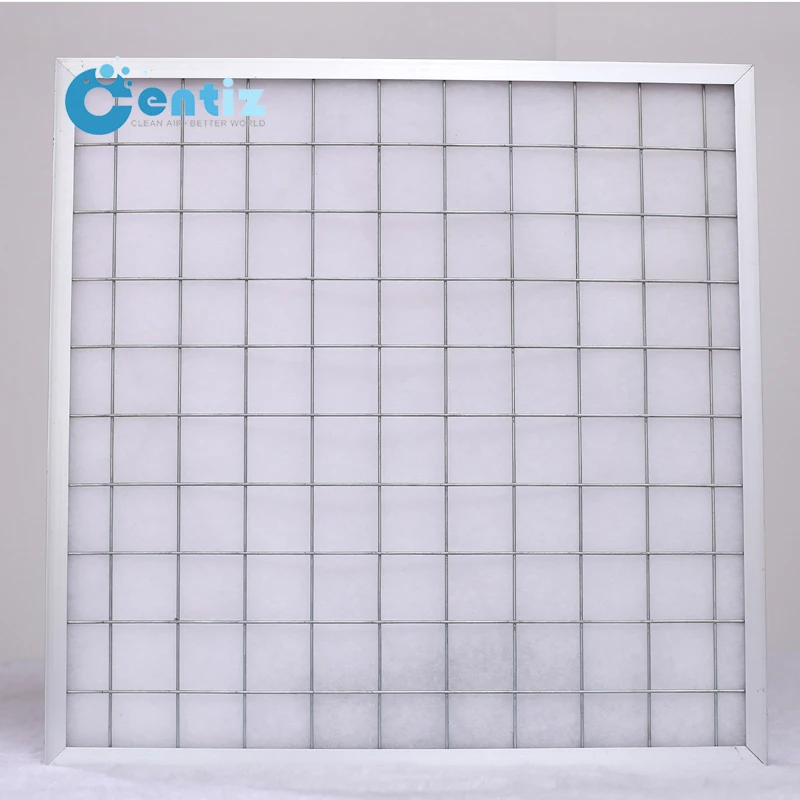

Centiz factory wholesale price G4 customizable synthetic fiber panel filter with aluminium frame

Product Overview

Description

           Factory wholesale price G4 customizable plate filter



Product features

High dust holding capacity

Low resistance

M-WASH board type washable filter uses light board structure, high quality polyester synthetic fiber with low initial resistance and good fire resistance



Application of product

Pre-filtration of air conditioning and ventilation systems to avoid ash pollution inside the system

Pre-filtration of large air compressor

Clean room centralized ventilation and air conditioning system and return air filtration to extend the service life of the high efficiency filter in the rear section

Ventilation system for general industrial plants to meet general cleaning requirements for air

Rough dust filtration system of air conditioning in general construction building



Instruction for structure

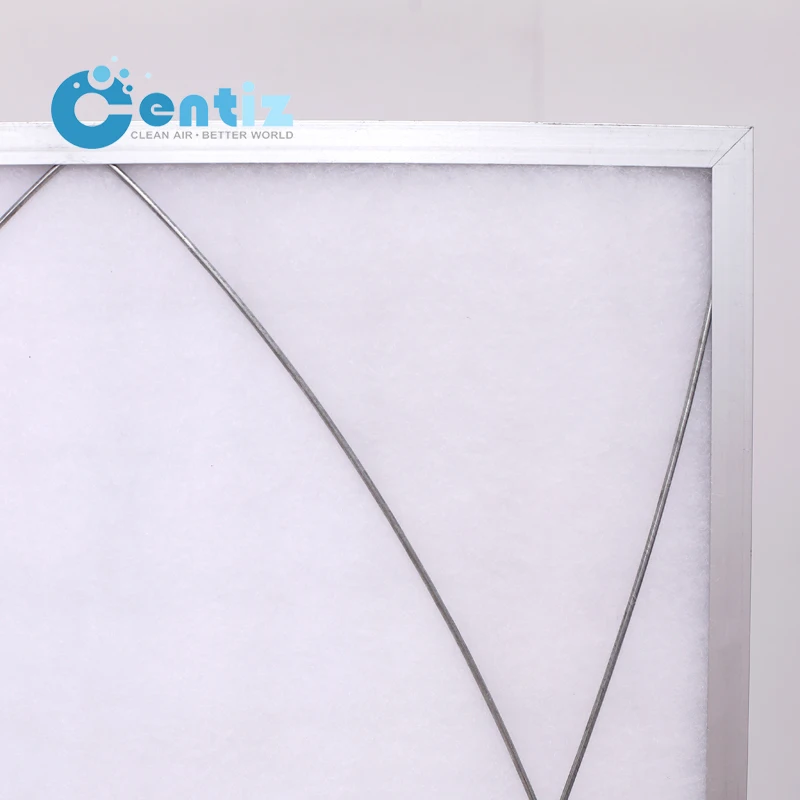

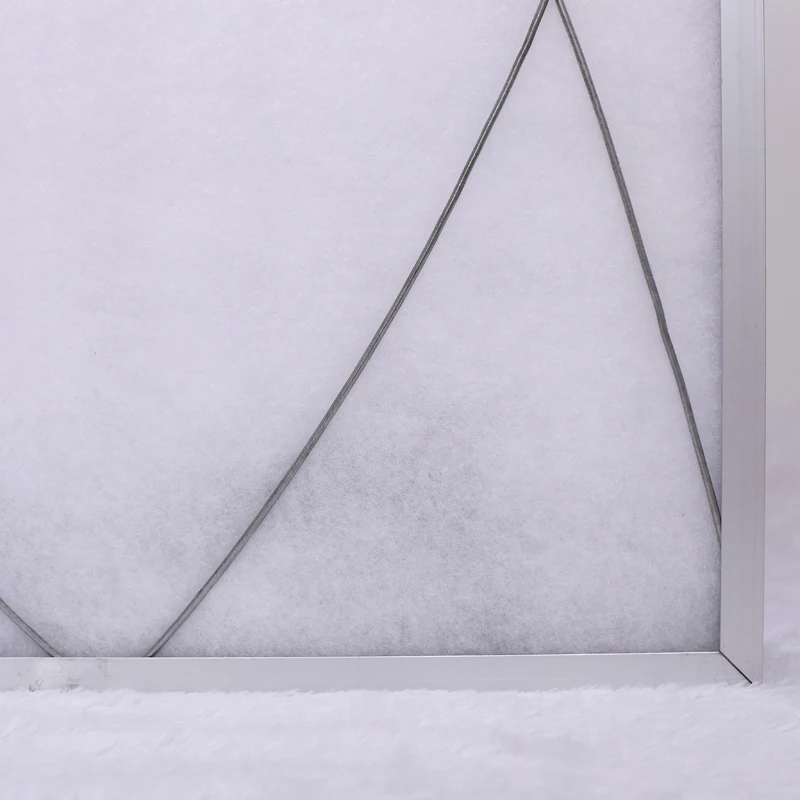

The board type aluminum alloy frame is equipped with an ABS plastic corner or an aluminum alloy corner, and the structure is stable.

The use of a meshed polyester fiber filter provides lower resistance and greater dust holding capacity.



Material list

Frame - aluminum alloy

Optional thickness of frame - 10mm/22mm / 46mm

Filter material - high quality polyester synthetic fiber

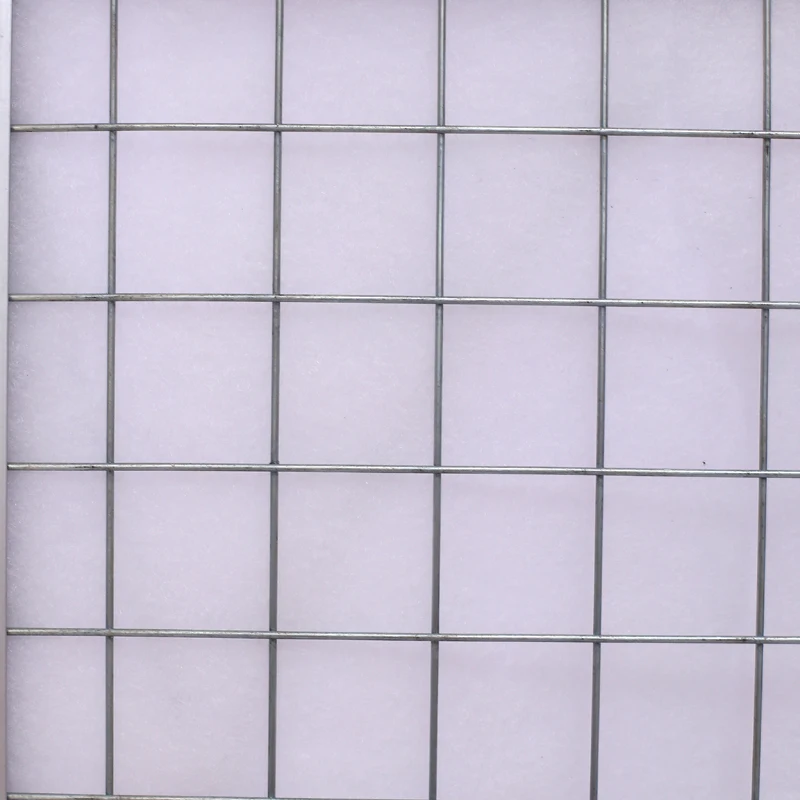

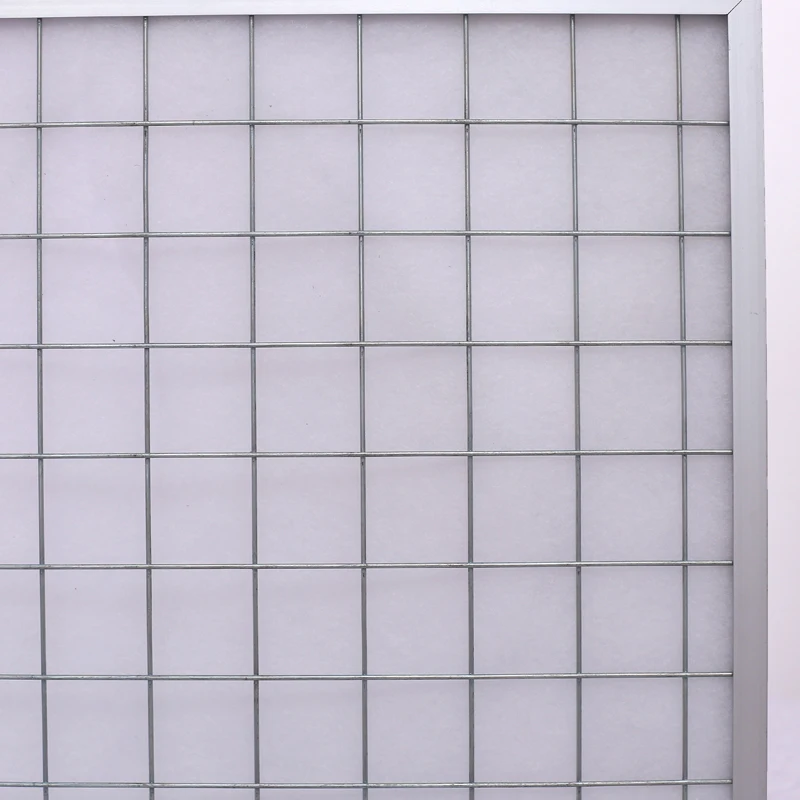

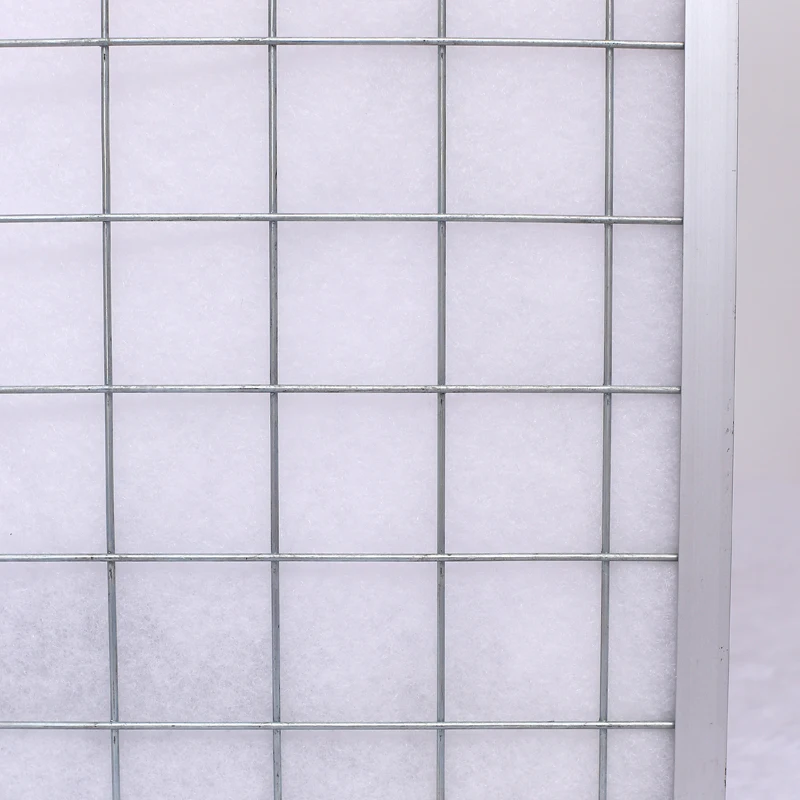

Reinforcement - hot-dip galvanized square wire mesh

Connection angle - sturdy, high temperature resistant ABS plastic angle / aluminum alloy corner



 Efficiency

G4



Applicable condition

Max.temperature(℃) 93(200℉)







Product specification



Nominal size	Actual size	Efficiency	Rated air volume	Initial resistance under different air volumes			Recommended final resistance
(inch)	(mm)	EN779	(m3/h)	(Pa)			(Pa)
W×H×D	W×H×D			70%	100%	120%	Initial resistance 2-2.5 times
12×24×2	290×595×46	G4	1700	40	60	75
20×24×2	490×595×46	G4	2800	40	60	75
24×24×2	595×595×46	G4	3400	40	60	75



Remarks: The tolerance of performance initial resistance is ±10% , it can provide special size production
