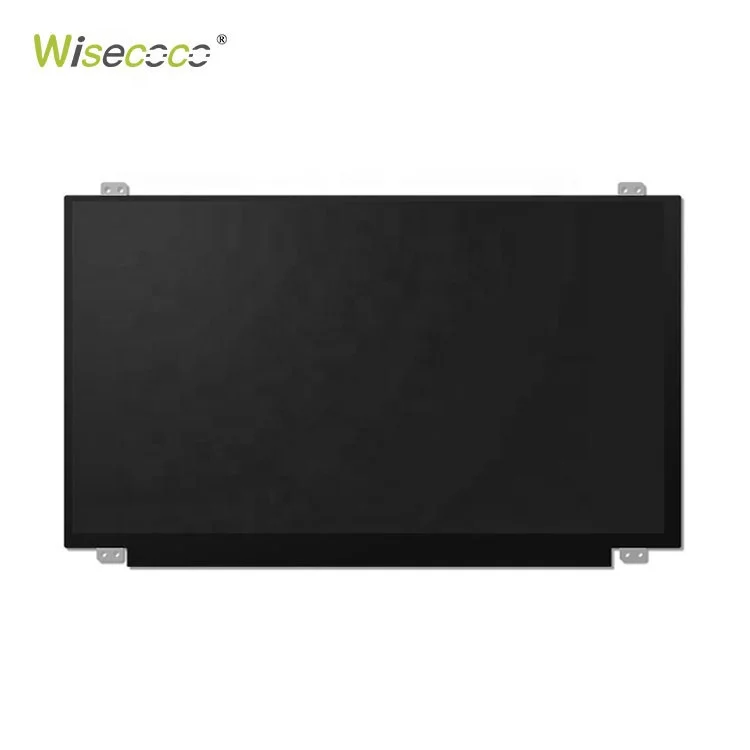

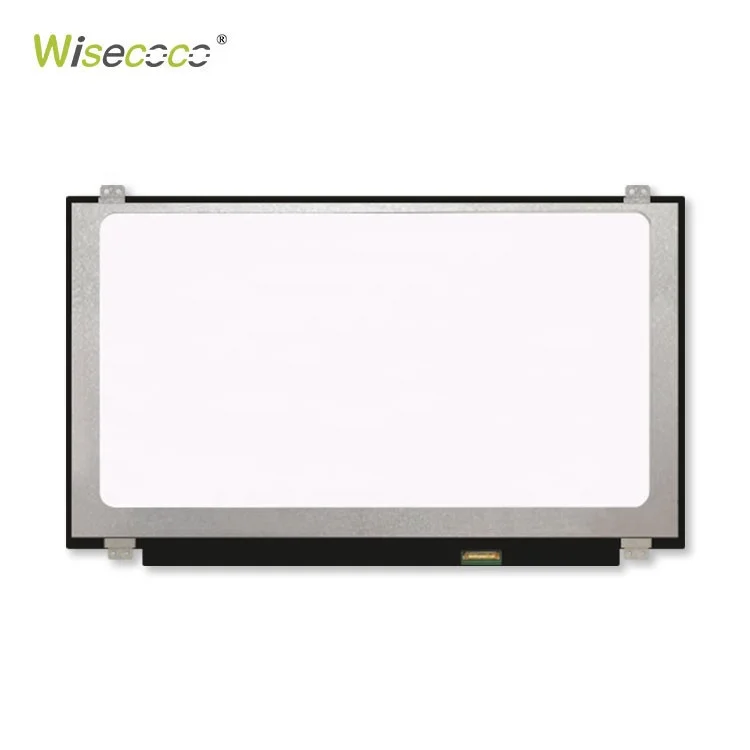

15.6 eDp 30 Pin Laptop 1920*1080 Slim LCD Screen Advertising Laptop 15.6 Inch LCD Screen IPS 15.6' LCD Panel
- Category: >>>
- Supplier: Shenzhen Huaizhi Technology Co. Ltd.
Share on (62309323670):
Product Overview
Description
Product Description
15.6 edp 30pin laptop slim LCD screen advertisisng laptop 15.6 inch lcd screen 1920x1080 ips 15.6'' lcd panel
| General Features | |||
| Screen Size | 15.6 inch | Type | a-Si TFT-LCD , LCM |
| Pixel Number | 1920(RGB)*1080 [FHD] | Configuration | RGB Vertical Stripe |
| Active Area(mm) | 344.16(H)*193.59(V)mm | Outline(mm) | 359.5(H)*224.3(V)*3.2(D)mm |
| Bezel Area(mm) | - | Treatment | Antiglare, Hard coating (3H) |
| Luminance | 220 Cd/m² (Typ.) | Contrast Ratio | 500:1 (Typ.) (TM) |
| View Direction | 6 O'clock | Response Time | 3/8 (Typ.)(Tr/Td) |
| Viewing Angle | 45/45/20/45 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive |
| Support Color | 262K 46% (CIE1931) | Light Source | WLED , 15K hours , With LED Driver |
| Outline Shape | Slim (PCBA Flat, Depth ≤3.2mm) | Used for | Laptop |
| Refresh Rate | 60Hz | Touchscreen | Optional |
| Voltage Supply | 3.3V (Typ.) | Signal Type | eDP (2 Lanes) , Connector , 30 pins |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C | ||
High quality!
Large Stock!
Long-term supply!
Welcome to contact us and get our best service!
