GROW GROW R105 Biometric Desktop Big Size Capacitive USB Fingerprint Reader Similar to TCS1
- Category: Other Access Control Products >>>
- Supplier: Hangzhou Grow Technology Co. Ltd.
Share on (62309359823):
Product Overview
Description
Product Description
Description
R105 capacitive fingerprint reader adopts a large-area fingerprint acquisition chip with 256*360 pixel images.
R105 integrates image acquisition chip and fingerprint algorithm chip, and has fingerprint entry, image processing, feature extraction, template generation, template storage, fingerprint comparison (1:1) or fingerprint search (1: N) and other functions.
At present, R105 fingerprint reader provides USB interface, which can constitute fingerprint collection system, online fingerprint analyzer, online fingerprint attendance machine, fingerprint native protection system and fingerprint network login system through matching application software.We provide SDK files for develop.
Material:Zinc alloy pedestal
The thickness is only 1.3 cm.
·High performance fingerprint reader for precise authentication with PC or network security
·Excellent adaption for dry, wet, harsh fingerprint
·USB interface for high speed communication
·Windows98,Me,NT4.0,2000,XP,Vista WIN7,Android support
·Outstanding authentication performance combined with SDK
·Adopts zinc alloy and well protect the fingerprint sensor
·High speed fingerprint identification algorithm engine
·Self study function
·Fingerprint feature data read/write functions
·Get Feature Data of Captured fingerprint and Verify/Identify Downloaded Feature with Captured fingerprint
·Identify Downloaded Feature with Captured fingerprint
·Security Level setting
Specifications
SPECIFICATION | |
Model | R105 |
Type | USB Capacitive Fingerprint Reader |

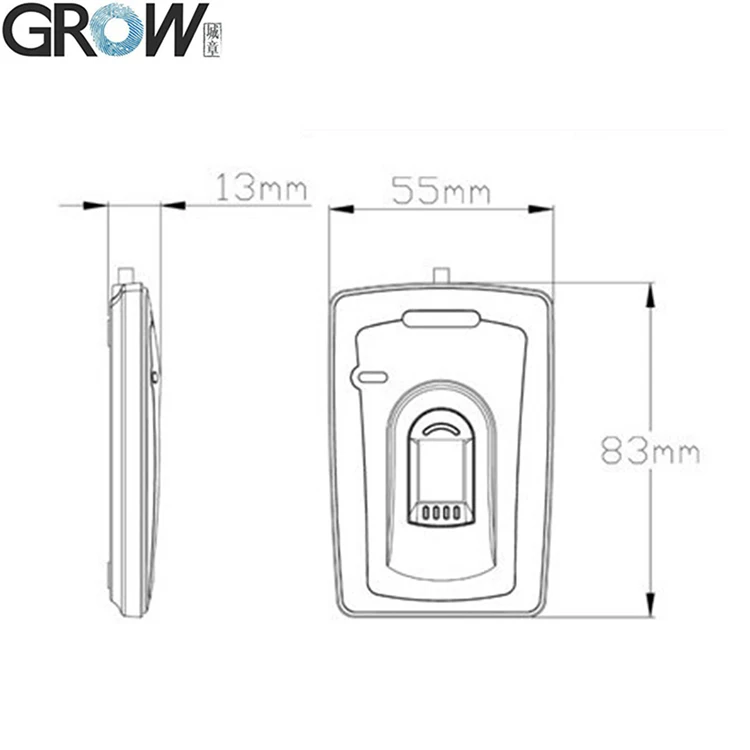

Dimension | 83*55*13 mm(L*W*H) |
Fingerprint capacity | 1000 |
Resolution | 508 DPI |
Voltage | DC 5V |
Working current | 50mA |
Peak current | 60mA |
Sensing array | 256*360 pixel |
Scanning Speed | < 0.2 second |
Verification Speed | < 0.3 second |
Matching Method | 1:1; 1 :N |
FRR | ≤1% |
FAR | ≤0.0001% |
Antistatic capacity | 15KV |
Abrasive resistance intensity | 1 million times |
Work environment | -20°C ---45°C |
Work Humidity | 10-85% |
Storage environment | -40°C ---55°C |
Storage Humidity | <85% |
Files
·Support Windows98,Me,NT4.0,2000,XP,Vista WIN7,Android
·Provide Free SDK Files
·Provide Free SDK Files
You can dowload the R105 SDK from the following website:
You can download the R311 user manual from this website link:
