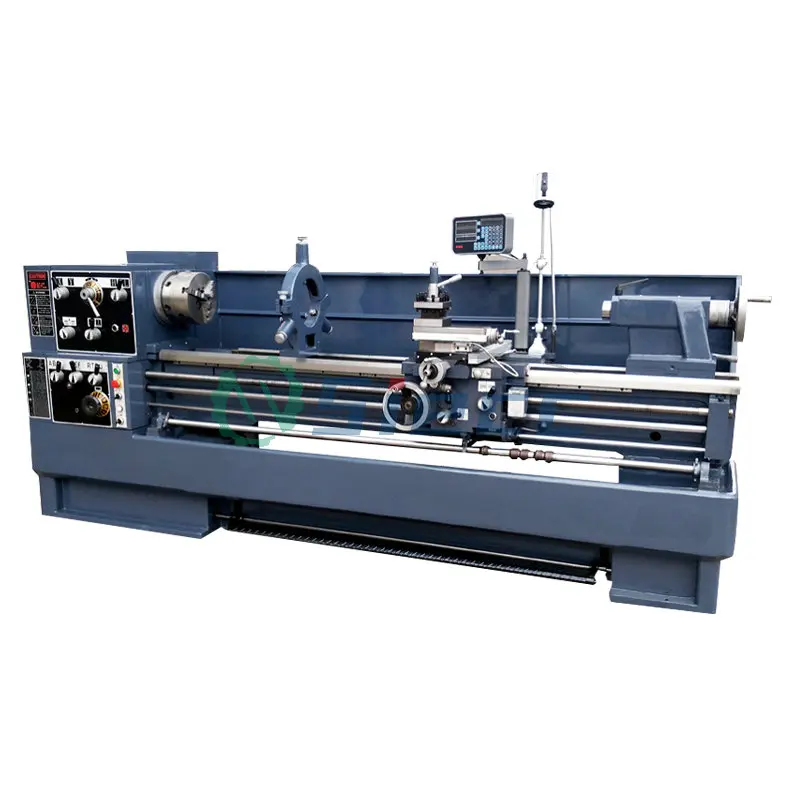

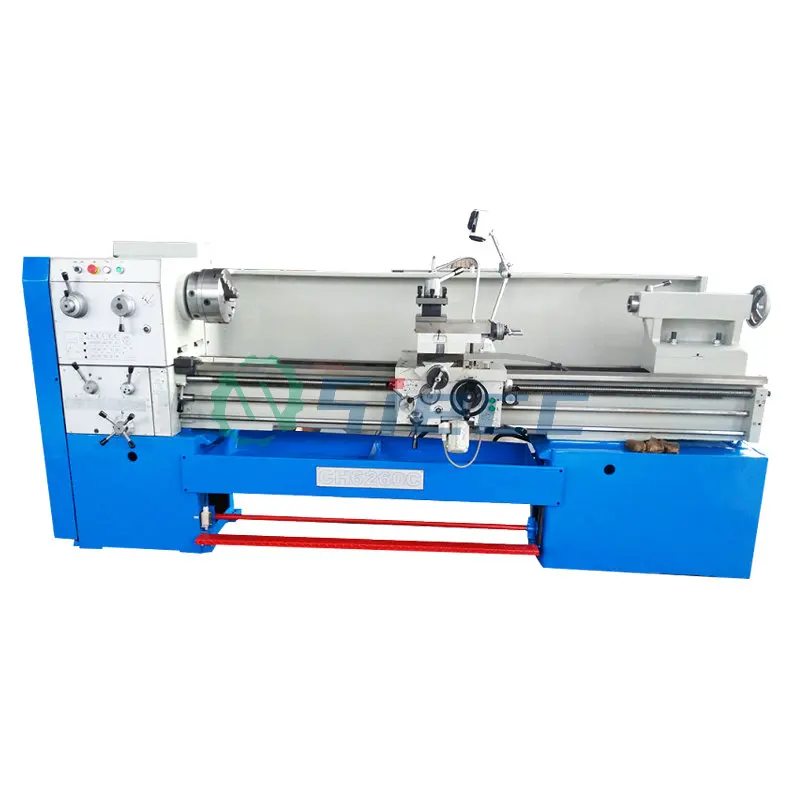

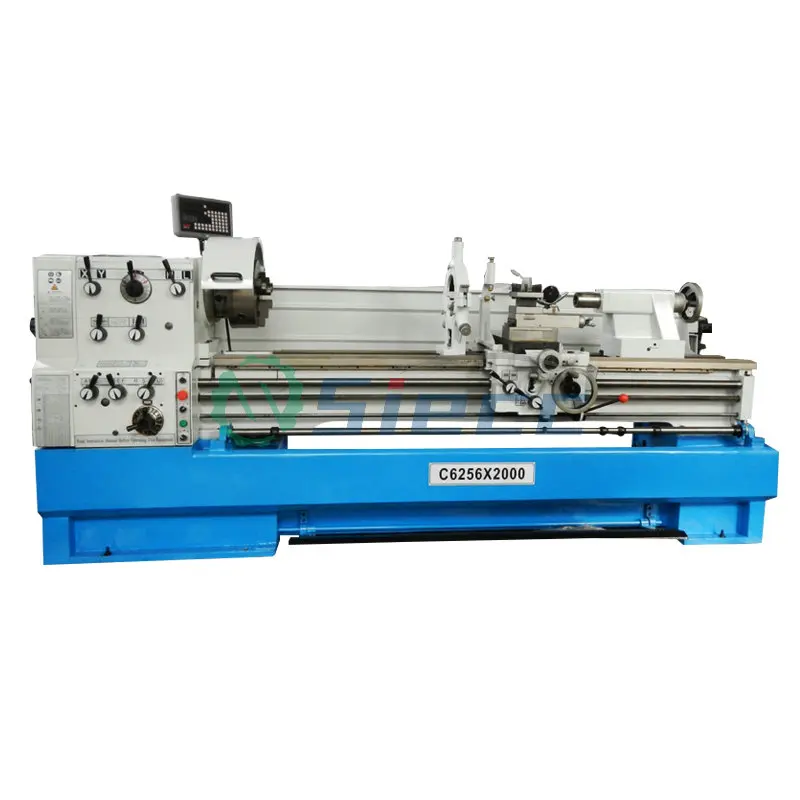

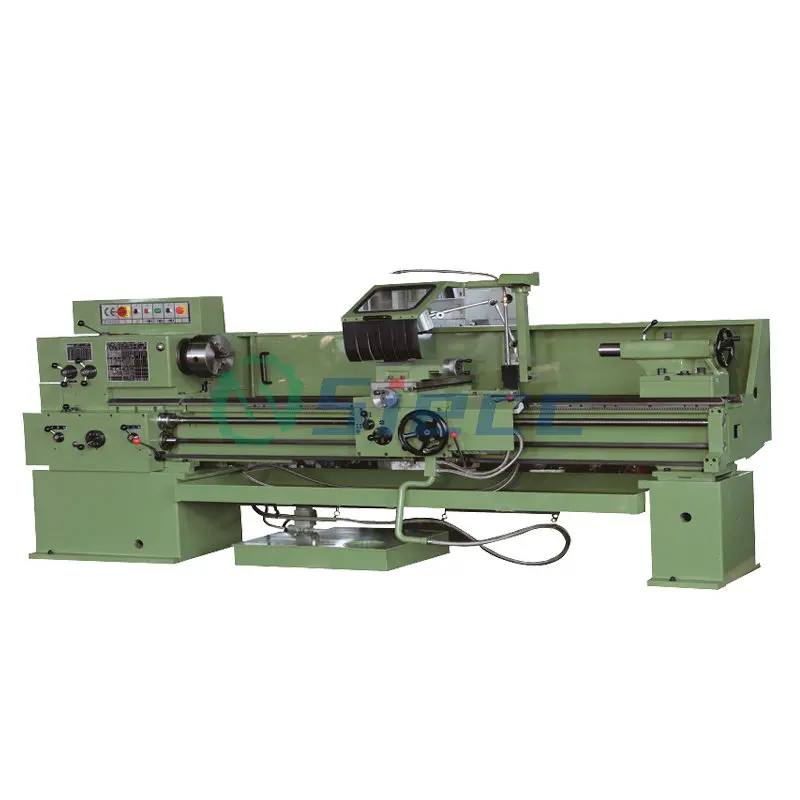

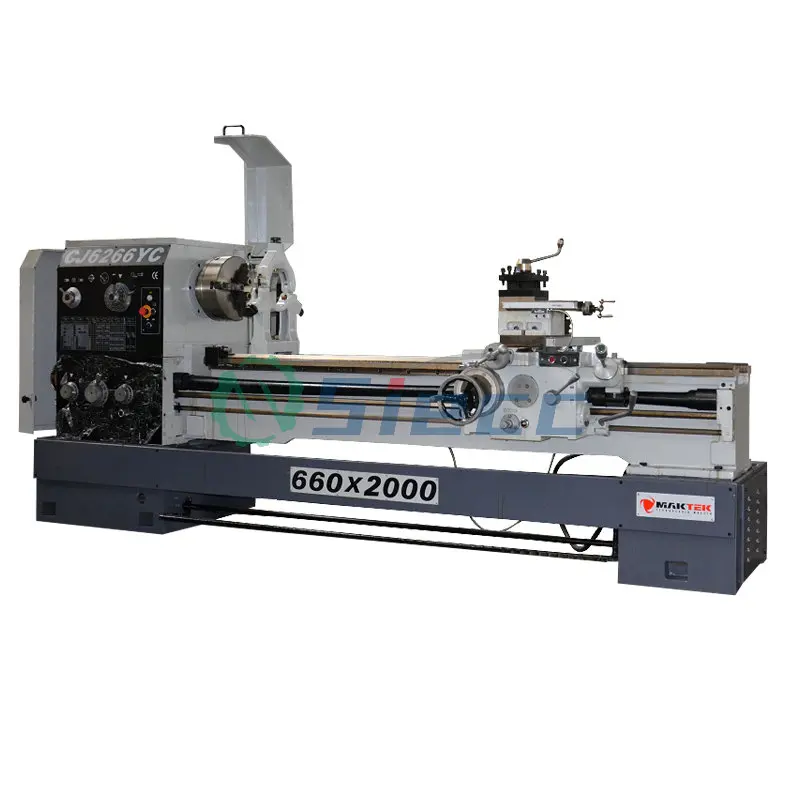

Diamond Cut Alloy Wheel Repair Rim Refurbishment CNC Lathe Machine

Product Overview

Description

lathe machine turning and boring lathe, turning and boring lathe, universal boring machine - SIECC

turning and boring lathe,turning and boring lathe,universal boring machine







C6250HA SERIES HORIZONTAL LATHE
PRODUCT FEATURES *THE SURFACE OF THE BEDWAYS IS SUPERSONIC FREQUENCY HARDENED. *GEARS PRECISELY GROUND TO REDUCE NOISE. *SPINDLE SYSTEM IS OF HIGH RIGIDITY AND PRECISION. *RAPID FEED STRUCTRUE IS AVAILABLE ON APRON.
Model		C6250HA
CAPACITY	Max.swing over bed	500mm
	Max.swing over cross slide	330mm
	Max.swing over gap	660mm
	Effective length of gap	200mm
	Center Distance	1500mm
	Bed Width	360mm
HEADSTOCK	Spindle hole	82mm
	Spindle nose	ISO-C8
	Spindle taper	MT8
	Spindle speed(Number)	(9steps)40-1300rpm
FEEDS	Longitudinal feeds range	0.0832-4.66mm/r
	Cross feeds range	0.048-2.69mm/r
	Metric threads range	19kinds 0.25-14mm
	Inch threads range	49kinds 2-40inch
	Moudle threads range	11kinds 0.5-3.5mπ
CARRIAGE	Max.travel of top slide	95mm
	Max.travel of cross slide	250mm
	Max.size of toolshank	20*20mm2
TAILSTOCK	Dia.of tailstock sleeve	65mm
	Taper of tailstock sleeve	MT5
	Max.travel of tailstock	140mm
MOTOR	Main drive motor	5.5KW
	Coolant pump motor	125W
PACKING L*W*H	Center Distance(1500mm)	295*115*175cm
N.W/G.W	Center Distance(1500mm)	1750/2050kg
