SIMCOM SIM7600E H Mini Pcie SIM7600X H with AT Command Newest Firmware datasheet hardware design pinout for raspberry pi

Product Overview

Description

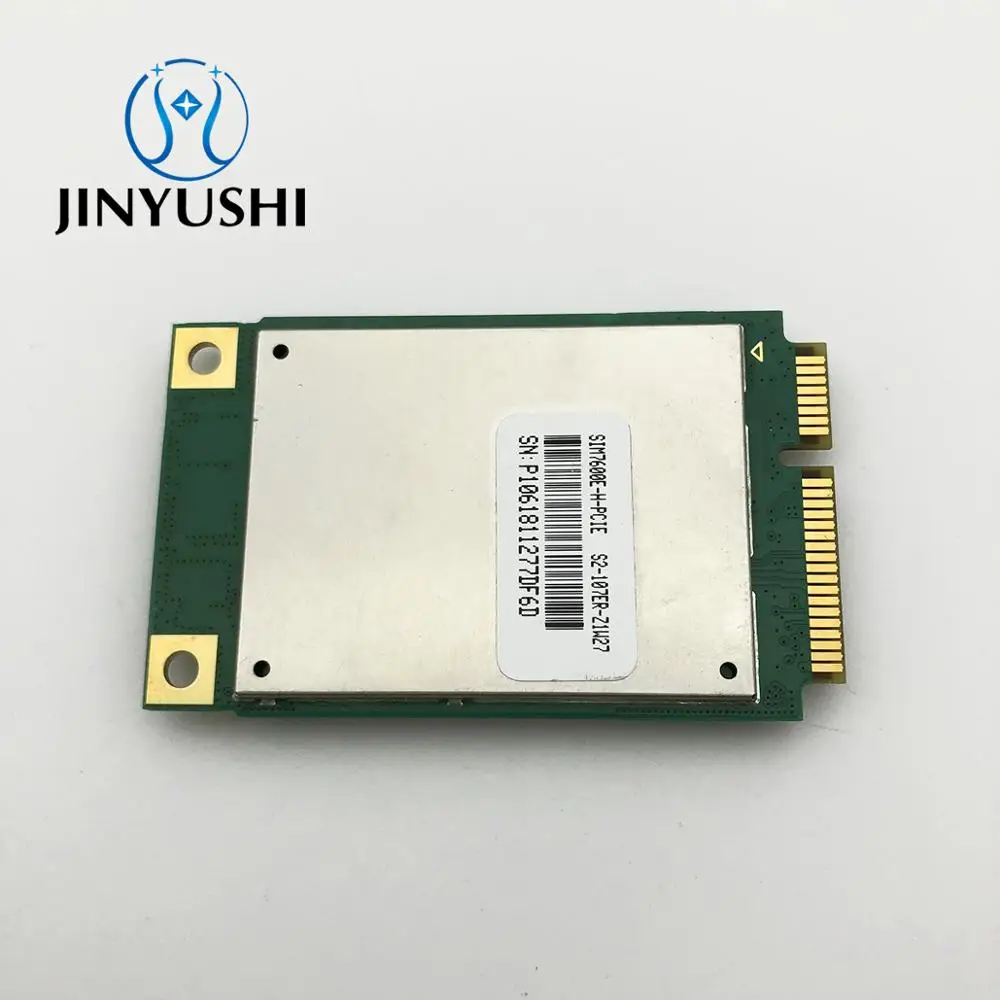

Stock Geunine SIMCOM SIM7600E-H Mini Pcie LTE CAT1+GNSS Module New Original for raspberry pi



Feel free to contact us if you need any AT Command Newest Firmware datasheet hardware design windows drivers Linux Android drivers documents schematic pinout and so on





LTE Cat-4 Module



SIM7600X-H is a complete multi-band LTE-FDD/LTE-TDD/HSPA+/UMTS/EDGE/GPRS/GSM module solution in LCCtype which supports LTE CAT4up to 150Mbps for downlink and 50Mbps for uplink data transfer.Designed in the compact and unified form factor, SIM7600X-H is compatible with SIMCom HSPA+ SIM5360 module/LTE CAT1 SIM7600X and LTE CAT3 SIM7100 module, which allows customer to design their application once for different technology and benefit from great development time-saving.

Variant for EMEA/Korea/Thailand

SIM7600E-H:

•LTE-TDD: B38/B40/B41

•LTE-FDD: B1/B3/B5/B7/B8/B20

•UMTS/HSPA+: B1/B5/B8

•GSM/GPRS/EDGE: B3/B8



Variant for North America

SIM7600A-H:

•LTE-FDD: B2/B4/B12

•UMTS/HSPA+: B2/B5



SIM7600V-H:

•LTE-FDD: B2/B4/B5/B13



Variant for Australia/New Zealand/South America

SIM7600SA-H:

•LTE-TDD: B40/B66

•LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B28

•UMTS/HSPA+: B1/B2/B5/B8

•GSM/GPRS/EDGE: 850/900/1800/1900MHz



Variant for Japan

SIM7600JC-H:

•LTE-FDD: B1/B3/B8/B18/B19/B26



General features

•LCC Package

•Control Via AT Commands

•Supply voltage range: 3.4V~ 4.2V, 3.8V Typical

•Operation temperature: -40℃to +85℃

•Dimension: 30*30*2.9mm

•Weight: 5.7g

•Bandwidth: 1.4/3/5/10/15/20MHz

•3GPP E-UTRA Release 11

Other features

•USB Driver for Microsoft Windows 2000/XP/Vista/Win7/Win8/Win10

•USB Driver for Linux /Android

•RIL supporting for Android 2.4/4.0/5.0/6.0/7.0

•MBIM to Win8

•Firmware update via USB

•TCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS /HTTP/HTTPS/SMTP/SMTPS/DNS

•SSL3.0/TLS1.0/TLS1.2

•DTMF (Sending and Receiving)

•Audio Playing

•USB Audio and VoLTE

•FOTA

•eCall*



Specifications for Data transfer

•LTE CAT4

-Uplink up to 50Mbps

-Downlink up to 150Mbps

•HSPA+

-Uplink up to 5.76Mbps

-Downlink up to 42 Mbps

•UMTS

-Uplink/Downlink up to 384Kbps

•EDGE

-Uplink/Downlink up to 236.8Kbps

•GPRS

-Uplink/Downlink up to 85.6Kbps

Interfaces

•USB2.0 with High speed up to 480Mbps

•UART

•GPIO

•Antenna: Solder pads for Primary, Rx-diversity and GNSS antennas

•(U)SIM card (1.8V/3.0V)

•Digital Audio through PCM

•MMC/SD

•SDIO

•ADC

•GNSS: GPS/GLONASS/Beidou/Galileo*



Approvals

•RoHS Compliant

•CE(SIM7600E-H/SIM7600SA-H*)

•FCC/PTCRB/AT&T*(SIM7600A-H)

•FCC*/GCF*/Verizon*(SIM7600V-H)

•ACMA* (SIM7600SA-H)

•JATE/TELEC(SIM7600JC-H)



*Under Development/Testing
