Custom Low Price LoRAWAN/LoRA/GSM/GPRS/M bus Ultrasonic Digital Water Meter Smart Water Flow Meter

Custom Low Price LoRAWAN/LoRA/GSM/GPRS/M bus Ultrasonic Digital Water Meter Smart Water Flow Meter

Category: Water Meters >>>
Supplier: Hangzhou,Zhongpei,Electronics,Co.,Ltd.

Price:

Price in USD:Details

Quantity:

Product Overview

Description

PRODUCT DESCRIPTION

Parameter	Performance
Diameter(mm)	DN15~DN40
Q3/Q1	400/250
Pressure loss	DN15,DN20: Δp40 ; DN25,DN32,DN40 Δp63
Accuracy	Class 2/B
Maximum working pressure	1.6MPa
Temperature grade	T30/T50/T90
Sensitivity of upstream flow field	U10
Sensitivity of downstream flow field	D5
Climatic and mechanical environmental grades	B
EMC grade	E1
Display	LCD 8 digit + prompt
Consumption	<0.2mW
Protection grade	IP68

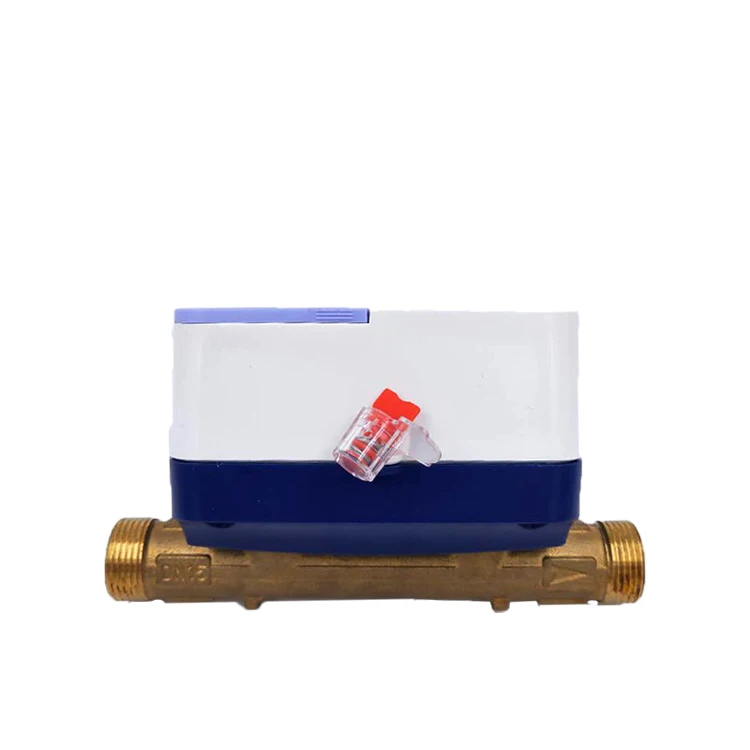

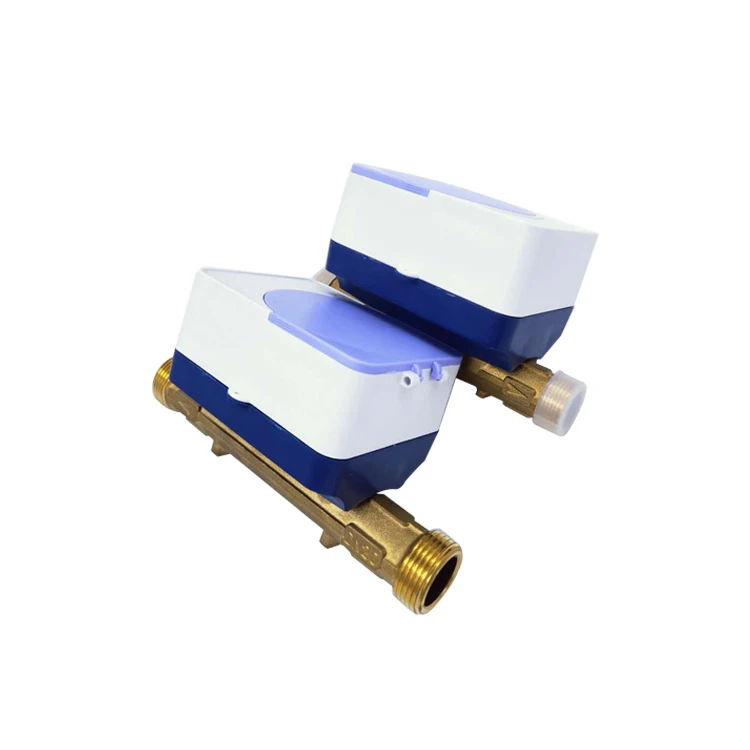

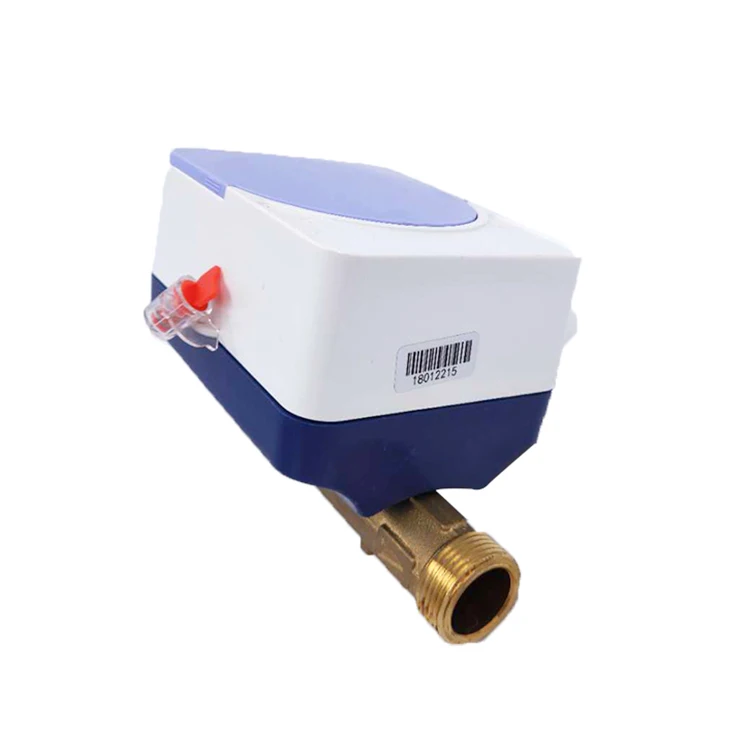

Product description 213E Ultrasonic Water Meter-DN15 DN20 DN25 DN 32 DN40 The Model is the newest developed by our Hangzhou Zhongpei Electronics Co., Ltd. It is an advanced and highly accurate ultrasonic water meter. With no moving parts, the model is used for household measurement of residential quarters.the medium can be hot water and cold water. The ultrasonic water measurement is based on the transit time method, and all measurements, references, readings, calculations and data communication is controlled by an advanced specially designed electronics circuit. The model has no moving parts, presents an IP68 register, and with big and full information LCD, easy to read the data and see the alarms.
	Menu Contents Instantaneous flow (m3/h), cumulative flow (m3), screen detection, table address, cumulative working time (h), date (year/month/day), caliber, software version
Display range Total flow:0m³~+9999.9999m³
	Power supply Battery powered DC3.6V (battery life is more than 6 years).

Flow range data:

The Cube meter has 3 different flow range to choose, R=250, R=400, and R=500. For different flow range, there will be having different flow rate performance.

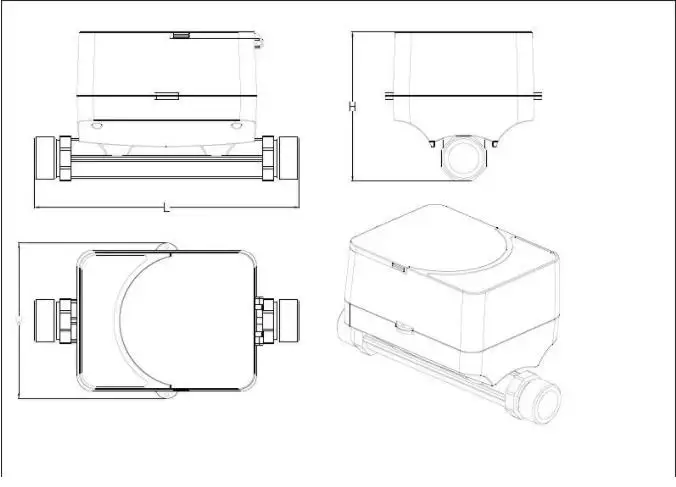

Outline dimension: The water meter could cooperate with different pipe length.

Multi-Communication

Wired communication :

-M-BUS -RS485 -Protocol: EN1434,Modbus,CJ188

Wireless communication :

-Lora : 470MHz,868MHz,915MHz -LoraWan: 470MHz,868MHz,915MHz -GPRS/GSM: Local mobile operators' support is required/needed.

-NB-IoT: Local mobile operators' support is required/needed.

LED Meun

Accuracy Curve
