120KW 16 25bar Water lubrication PET bottle blowing machine Medium pressure air compressor

Product Overview

Description

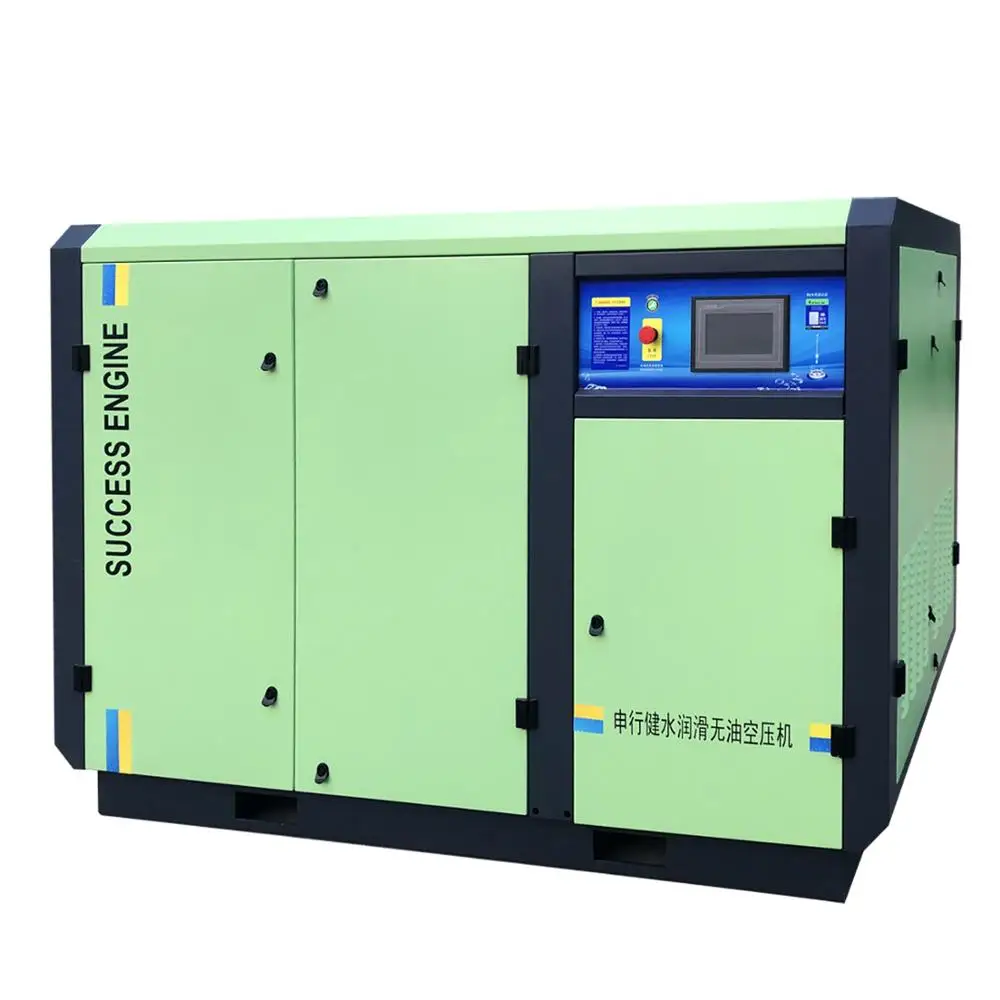

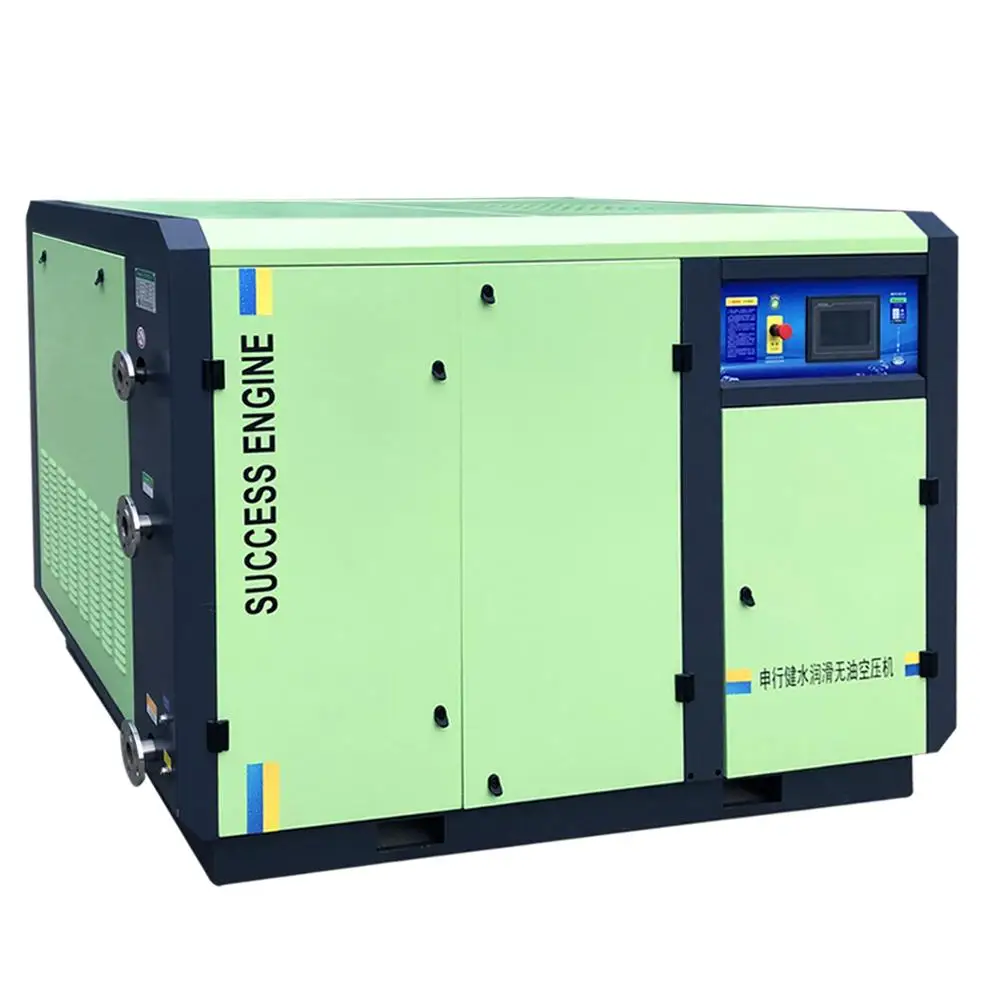

Water Lubricant Oil-Free High Pressure Screw Air Compressor



 1.    Product Profiles:

Since SUCCESS ENGINE established, it has been committed to create energy-saving and high-efficient products to benefit the world. In response to global warming and environmental degradation, our R&D personnel have successfully created water-lubricated oil-free screw air compressor after two years of continuous testing and improvement.

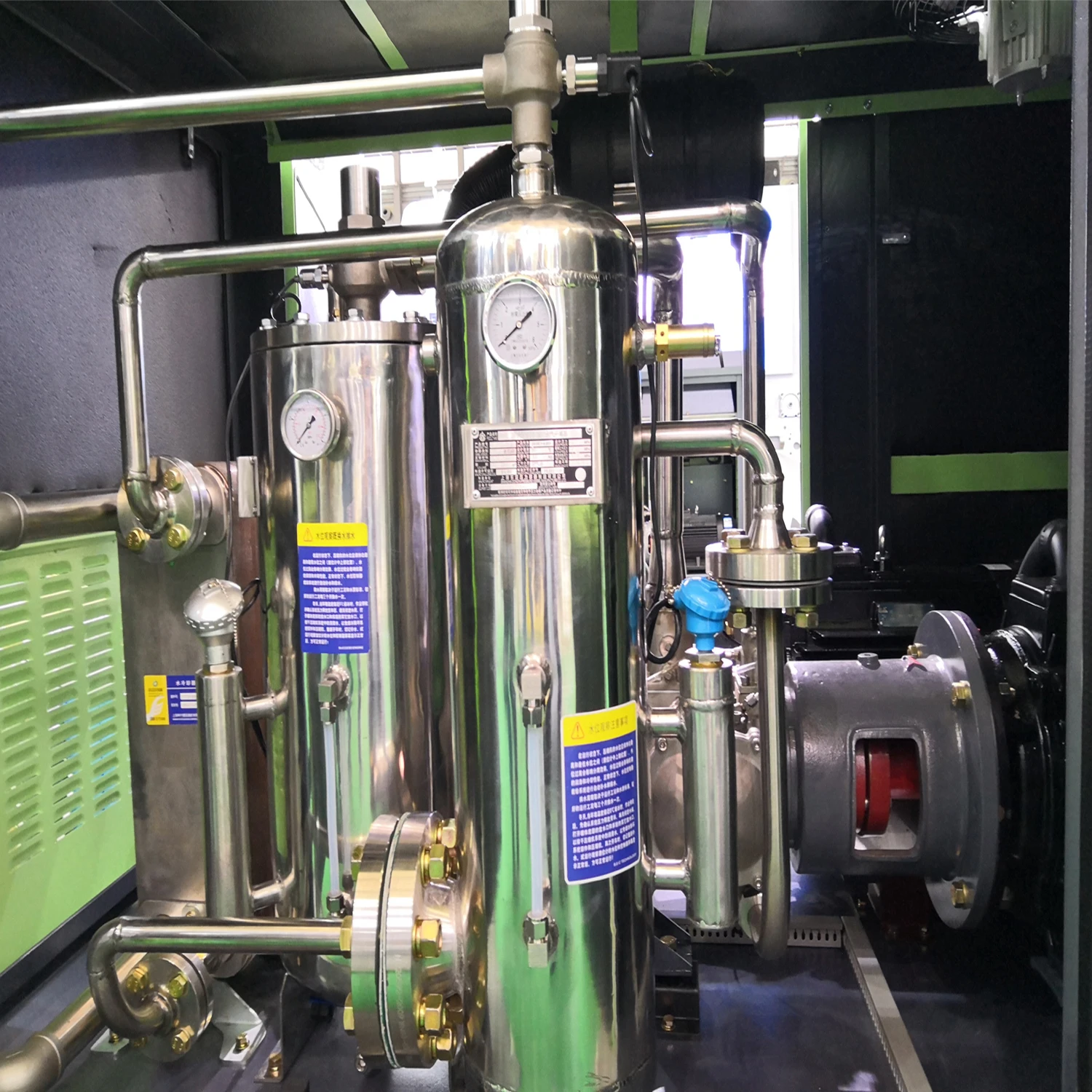

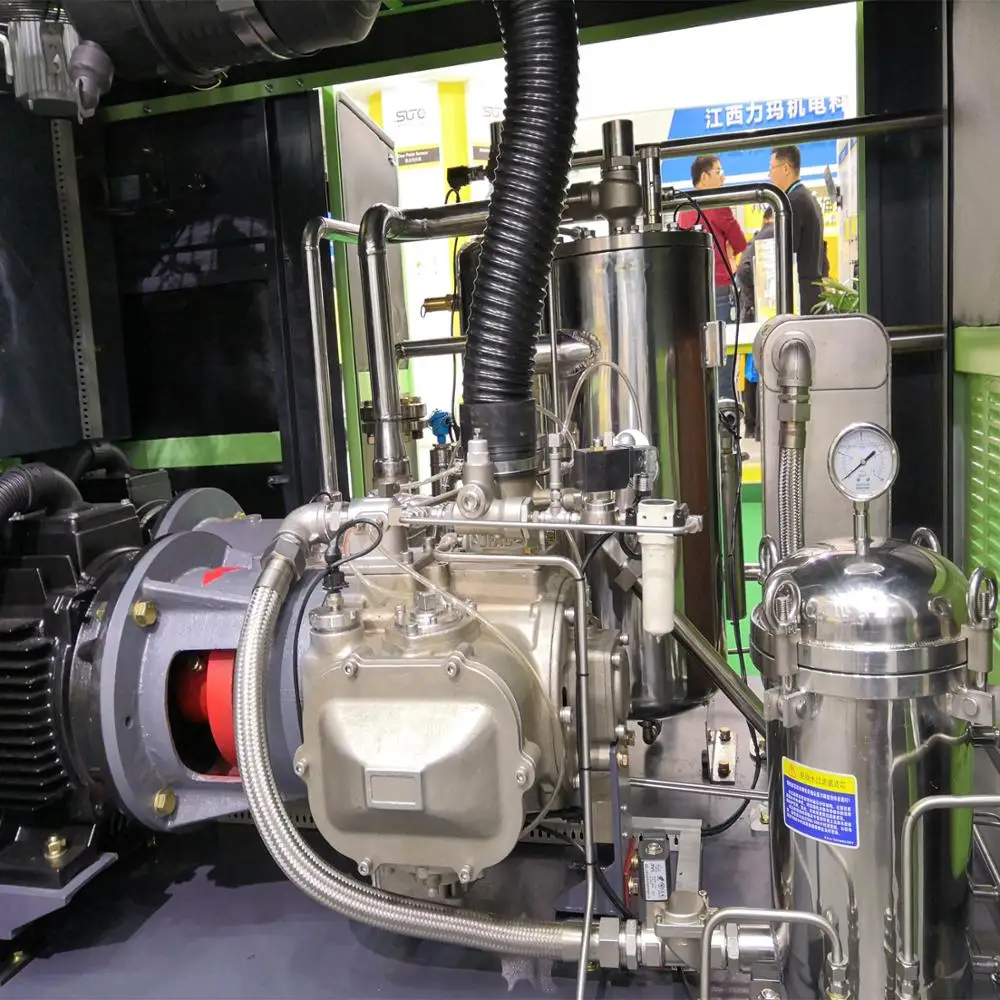

Our water-lubricated oil-free screw air compressors airend are made by stainless steel and special alloy materials, the system was equipped with high-performance stainless steel components, the lubricating medium adopt purified water of drinkable standard, the entire compression system does not contain any lubricating oil. The compressed air is absolutely pure without any oil.



SUCCESS ENGINE specialized oil-free high pressure screw air compressor for PET blowing Machine.

Power: 67-270KW

Pressure: 16-40bar

Air Flow: 2.0-20M³/min















2.    Specifications of ZW40-270(KW)

MODEL	Power kw	Pressure bar	Air Flow m3/min	Outlet Connection	Weight Kg	Dimension L×W×H mm
ZW067W-25	37+30	16-25	2.0-6.2	DN25	2050	2200x1300x1500
ZW074W-40	37+37	30-40	2.0-6.2	DN25	2120	2200x1300x1500
ZW120W-25	75+45	16-25	3.0-10.5	DN25	2650	2500x1600x1500
ZW145-40	90+55	30-40	3.0-10.2	DN25	2800	2500x1600x1500
ZW165W-25	90+75	16-25	5.2-15.3	DN40	3100	2800x1800x1700
ZW180W-40	90+90	30-40	5.2-15.0	DN40	3350	2800x1800x1700
ZW220W-25	132+90	16-25	6.5-20.2	DN40	3800	3100x2000x1800
ZW270W-40	160+110	30-40	6.5-20.0	DN40	4100	3100x2000x1800

















































3. Main Products





4. Application

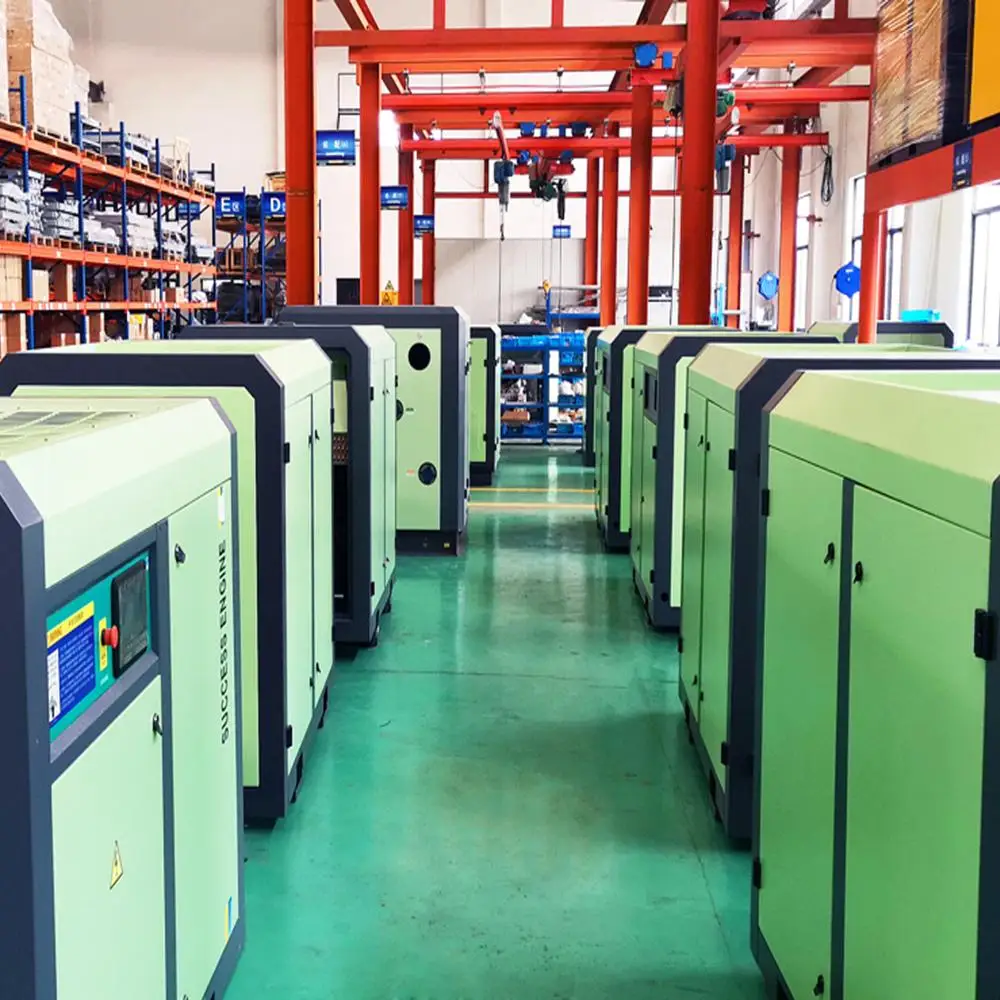

5. Factory View




6. Company Certificate




7. Our Exhibition




8. Packing & Shipment




9. Support & RFQ

Q: Are you a factory or trading company?
A: We are the professional screw air compressor manufacturer established in 2004.

Q: Where is your company and factory located? How can I visit you?
A: Our overseas sales center is located in No.666,Xinbo Road, Maogang Industry Zone, Songjiang, Shanghai, China(201606). It takes about one hour from Shanghai Pudong airport or Hongqiao Airport. We warmly welcome all our clients from home or abroad to visit us!

Q: How does your company and factory do regarding quality control?
A: Quality is priority. SUCCESS ENGINE always attach great importance to quality controlling from beginning to the end. Our factory comply with the IS09001 standard strictly.

Q: What is your after-sale service?
A: The guarantee period is 12 months from the date of the installation or 15 months from the day of delivery. We will take full responsibilities for the charges caused by the defects during the guarantee period.
