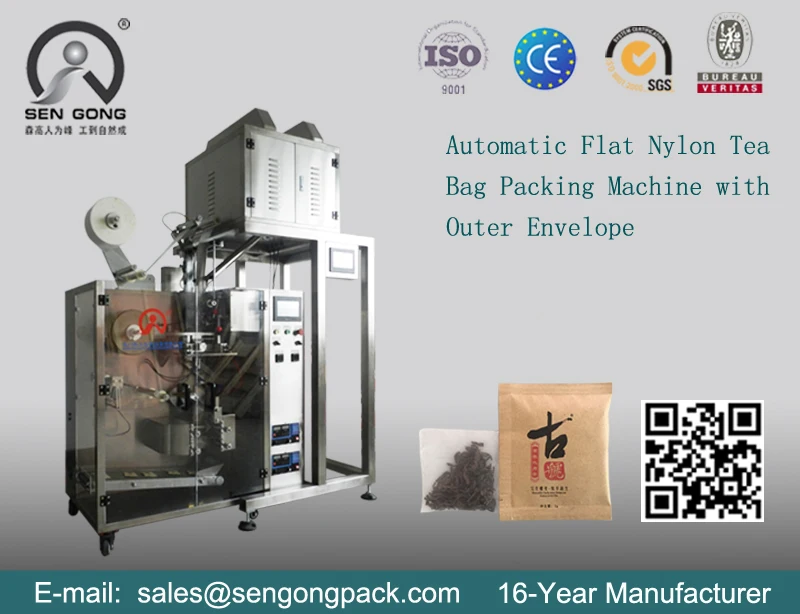

C23DX flat filling machine for peppermint tea powder,tea machine different types of flavors pack

Product Overview

Description













Application:



It is suitable for inner pyramid bag with outer envelope, and for packing multi-material product such as loose leaf tea, herbal tea, health care tea, TieGuanYin, Longjing, DaMaoFeng, DaHongPao, Rose tea, Ginseng, etc.







Feature:



1 It can make inner and outer bag automatically, which would highly improve the working efficiency.

2 Adopts PLC control system, touch screen color monitor device, machine is very easy to operate.

3 Adopt ultrasonic sealing method, and it can seal tightly, safely, and reduce the width of extra edge, avoiding any waste of packing material.

4 All parts in direct contact with products are made of SUS304 stainless steel, ensuring reliable products output conforming to GMP standard.

Standard Technical Data



Technical data
Type:	Tea Bag Packing Machine Series
Product model:	C23DX
Product name:	C23DX flat filling machine for tea powder,tea machine different types of flavors packa
Packing Material:	Inner Bag: Nylon mesh; Non-woven fabric; PET; PLA; 100% biodegradable transparent material. Outer Bag: Kraft paper/aluminum coating; PE/aluminum coating; PE film
Filling range:	1~10g/bag, accuracy:±0.1g/bag
Filling method:	Electric scale
Packing roll width:	140mm, 160mm, 180mm
Sealing length:	50, 60, 70, 80mm
Outer bag size	W: 80-100mm; L: 90-120mm
Sealing method:	Inner Pyramid Bag by ultrasonic sealing and cutting

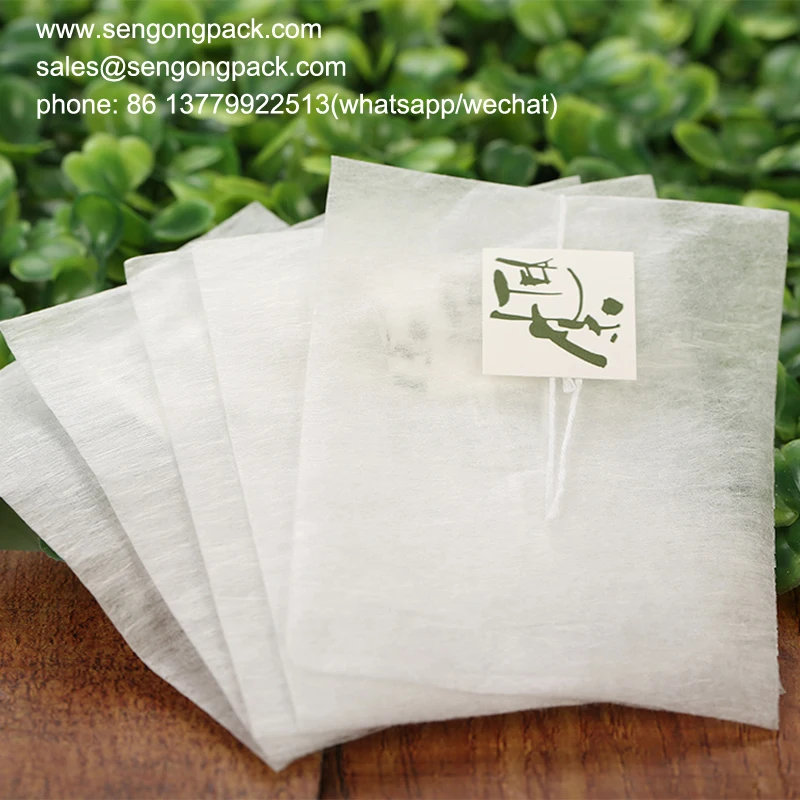

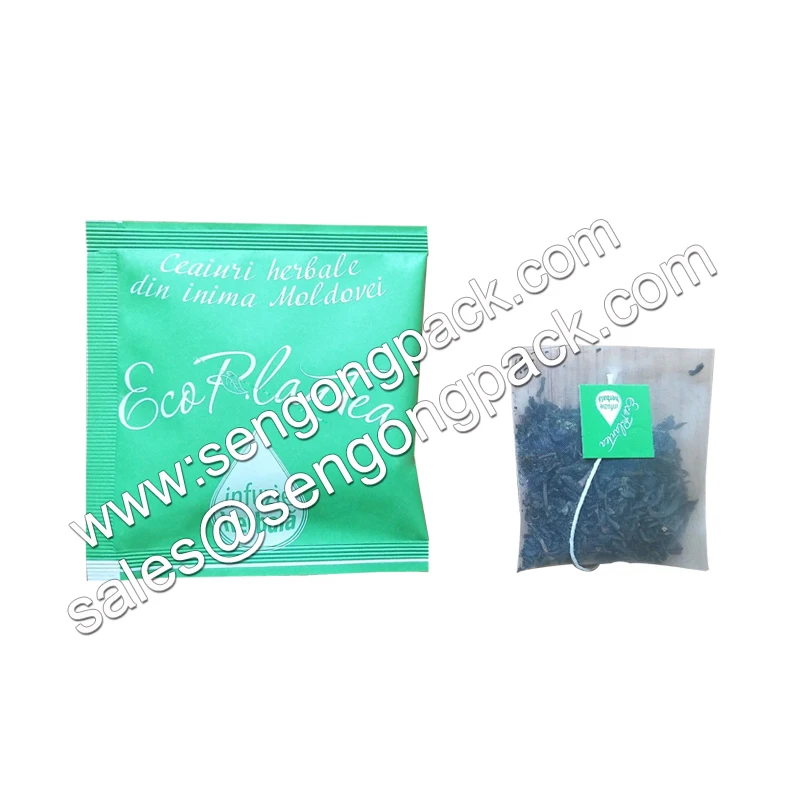

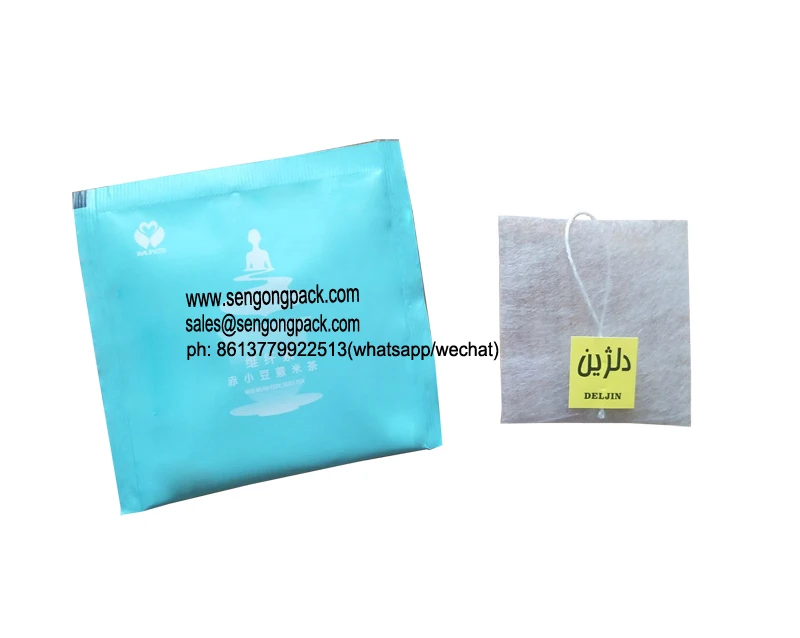

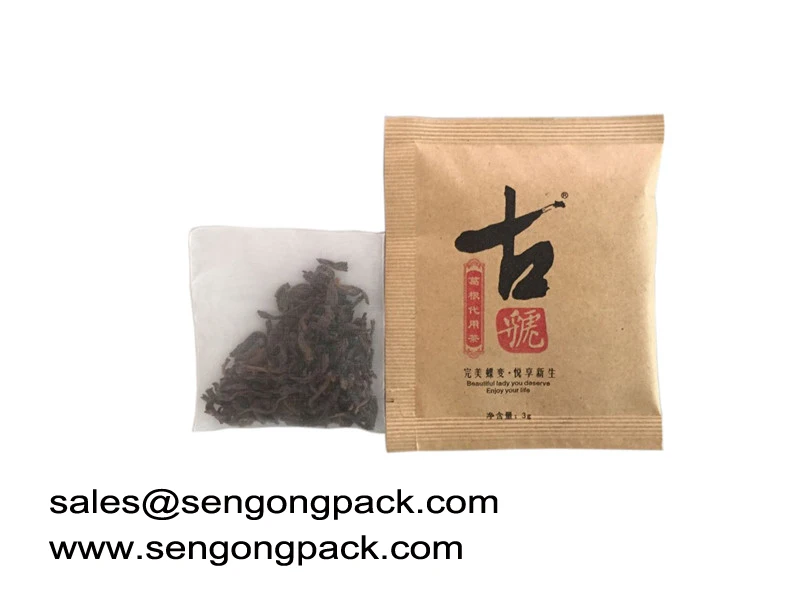

Bag type:	Inner pyramid bag with outer envelope
Quantity of sealing device:	2 sets
Packing speed:	30-60 bags/min
Motor Power:	380V, 50HZ, 1.5KW
Air supply:	0.6Mpa (Can be equipped with air compressor)
Weight:	550KG
Dimension:	3000*900*2300mm(L*W*H)































Q & A (Questions & Answers )
1:Are you a manufacturer or trading company?

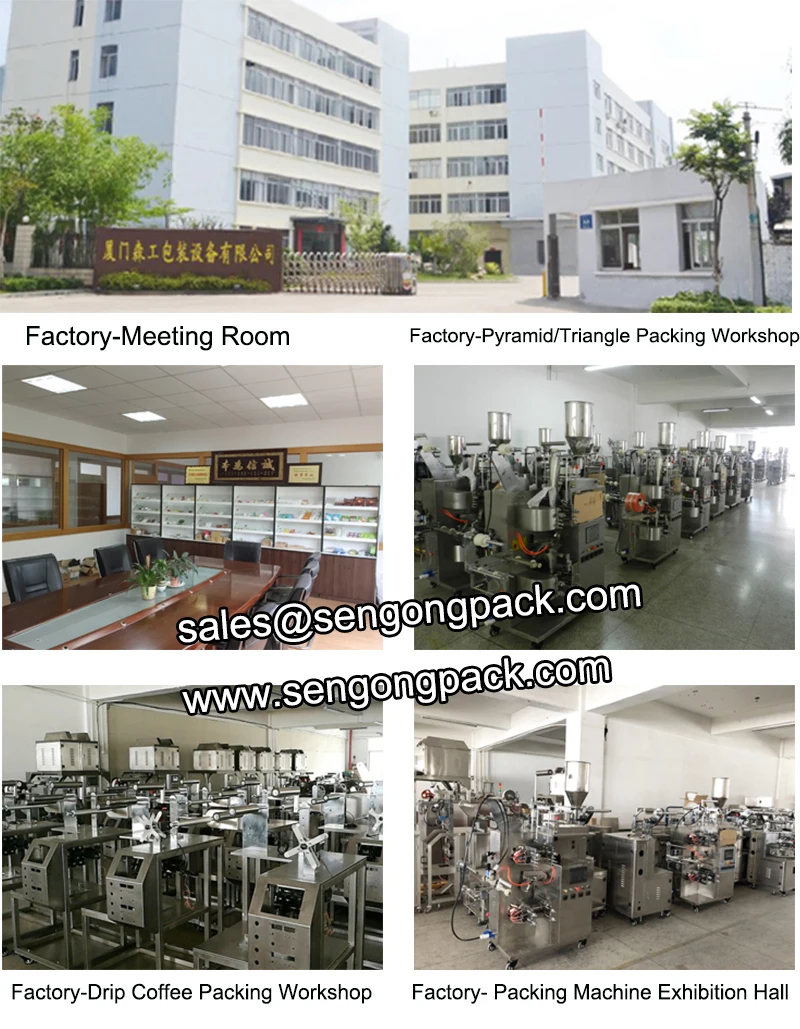

Yes,we are a professional factory special in tea,coffee,food packing machine over 16 years,
We have own engineers and warehouses:

2:How about sengong products quality?
we provide our clients with high quality pyramid tea bag packing machine ,and believe the quality is our products heart,Have already  passed SGS testing, ISO9001:2008 quality system certification,BV certification  and CE certificates of EU.

3: Whether the packing machine can keep the tea taste when packing into bag?
Please don't worry ,will not influence your tea taste, the machine use the ultrasonic seal method,will maintain the pure the taste of tea,or flower tea, herbal tea etc.

4:What can i do while some trouble with the purchase packing machine ?
 We hve a perfect aftersales service guarantee system,staffed with experience technicians,engineers,and managerial persoal,our after-sales service department has always been providing"quality,rapid and efficient service for all customers.



5:We promise below after sales service:



On - site repair
Free one-year warranty
Free testing machine
Free  operating training
