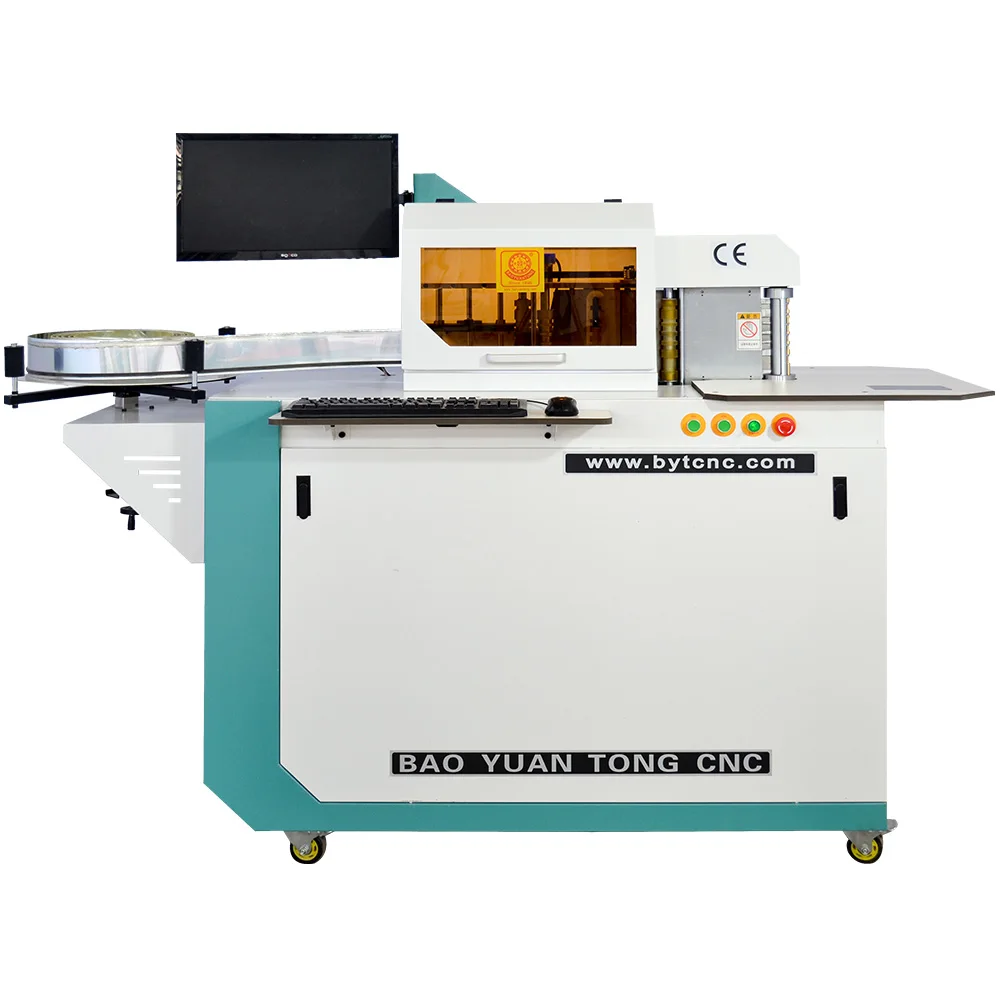

Advertising equipment channel letter bending machine for 3d signage
- Category: Channel Letter Bending Machine >>>
- Supplier: Shandong Yuantong Century Intelligent Technology Co. Ltd.
Share on (62310026465):
Product Overview
Description
Products Information
Channel letter bending machine parameter | ||
Model | BWZ-B1 | |
Working Principle | High precision automatic feeding,trimming,notching and bending | |
Processing Materials | Flat& Floding Aluminum profile | |
Material Width | 10-160mm | |
Processing Materials | Flat and floding aluminum profile | |
File format | AI/DXF/PLT | |
Bending radius | R≥7 MM | |
Peak Power | 1500W | |
Working Pressure | 0.3-0.6mpa | |
Voltage | 220V 50HZ 1P or Customized | |
Overall Dimensions | 2100*800*1530mm | |
N.Weight | 300kg | |
Product Advantage
1. Quality Guarantee
Whole machine guarantee 2 years , the motor guarantee 3 years

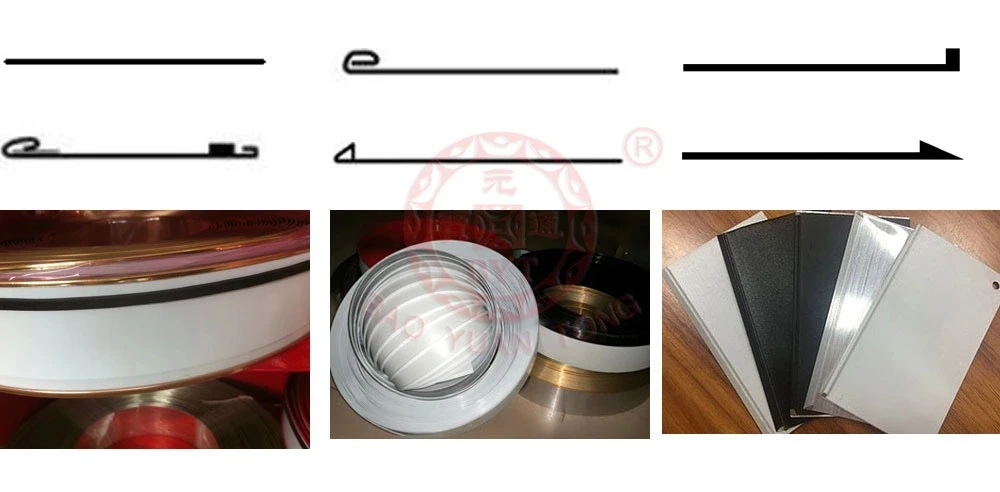

2.Processing material
Width: 10-160mm, Thickness : Aluminum 0.3-1.5mm
3.Machining parts 1
All machining parts be treated with hard chromium plating,which is wear-resistant and corrosion-resistant, especially suitable for coastal areas.

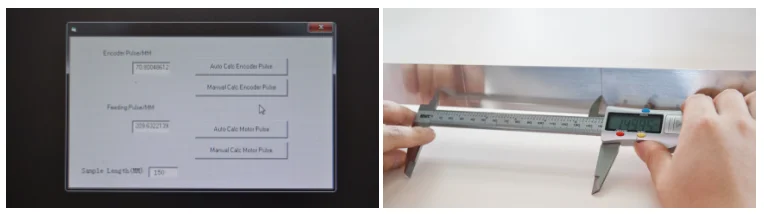

4.Length closed-loop control system

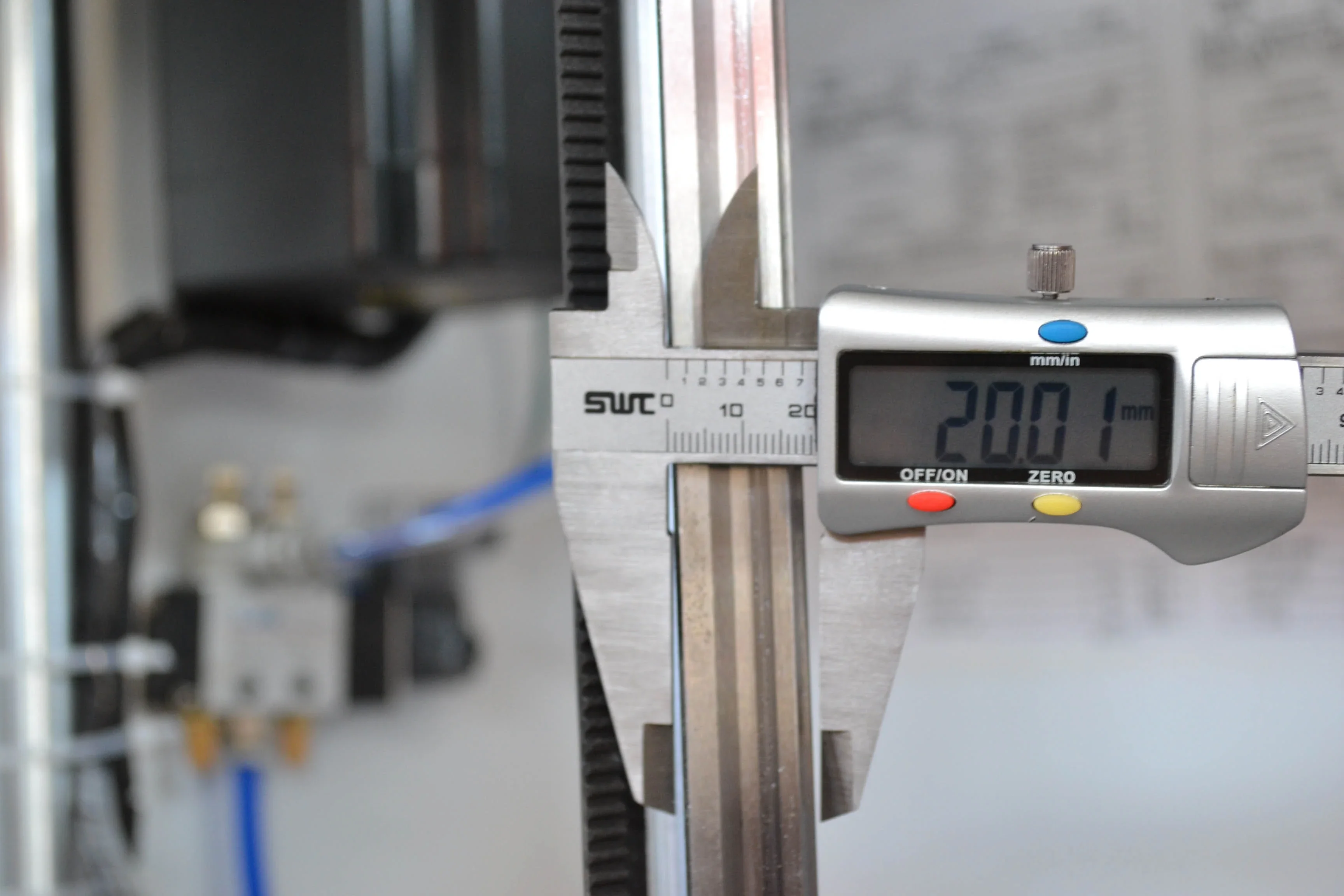

The software have Length closed-loop control system ,the length precision ≤0.1mm.
Meantime Independent development software system , which can updated according customer need and more easy to use .
5.Whole machine weight meet 300kgs and more stab

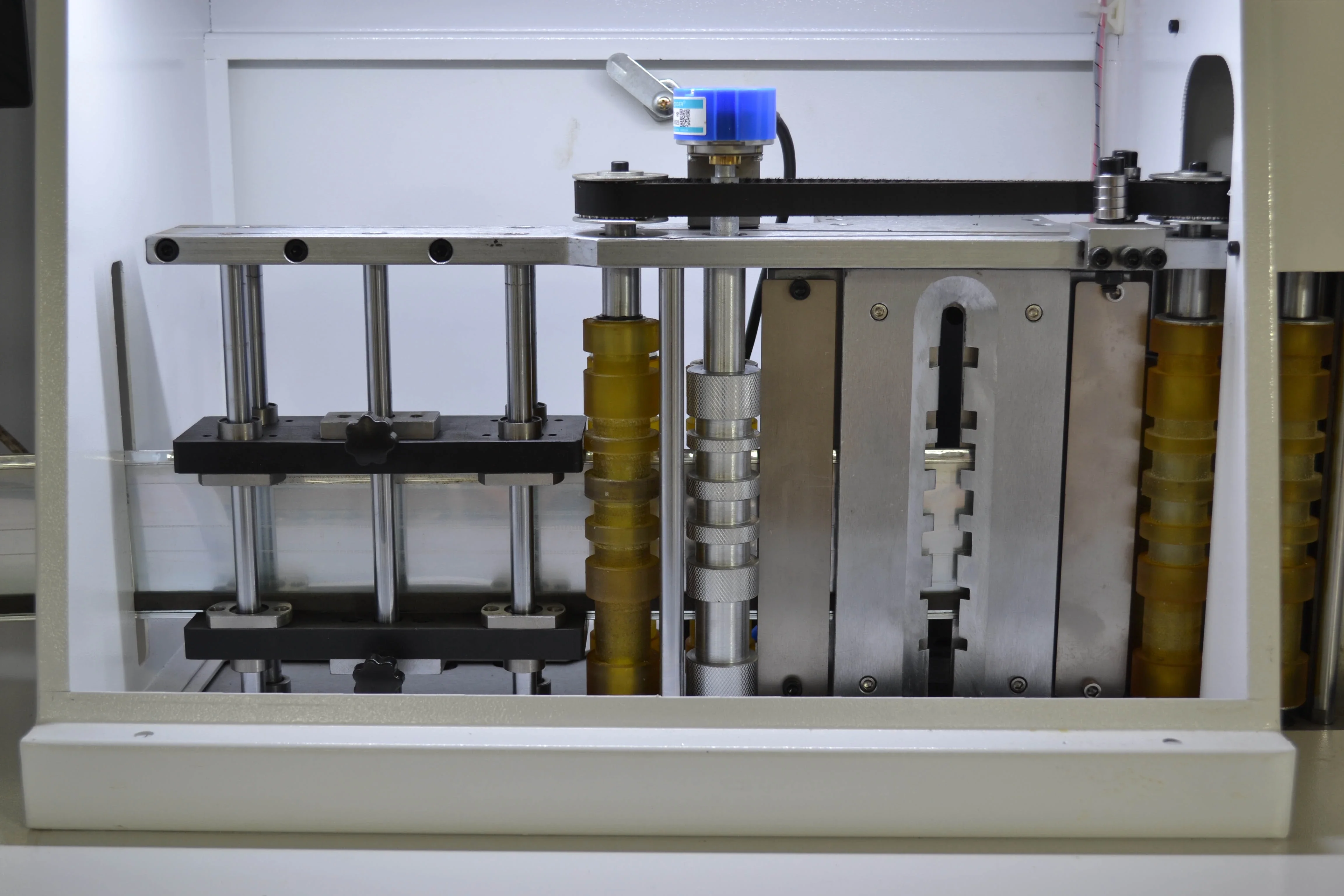

Feeding 1.

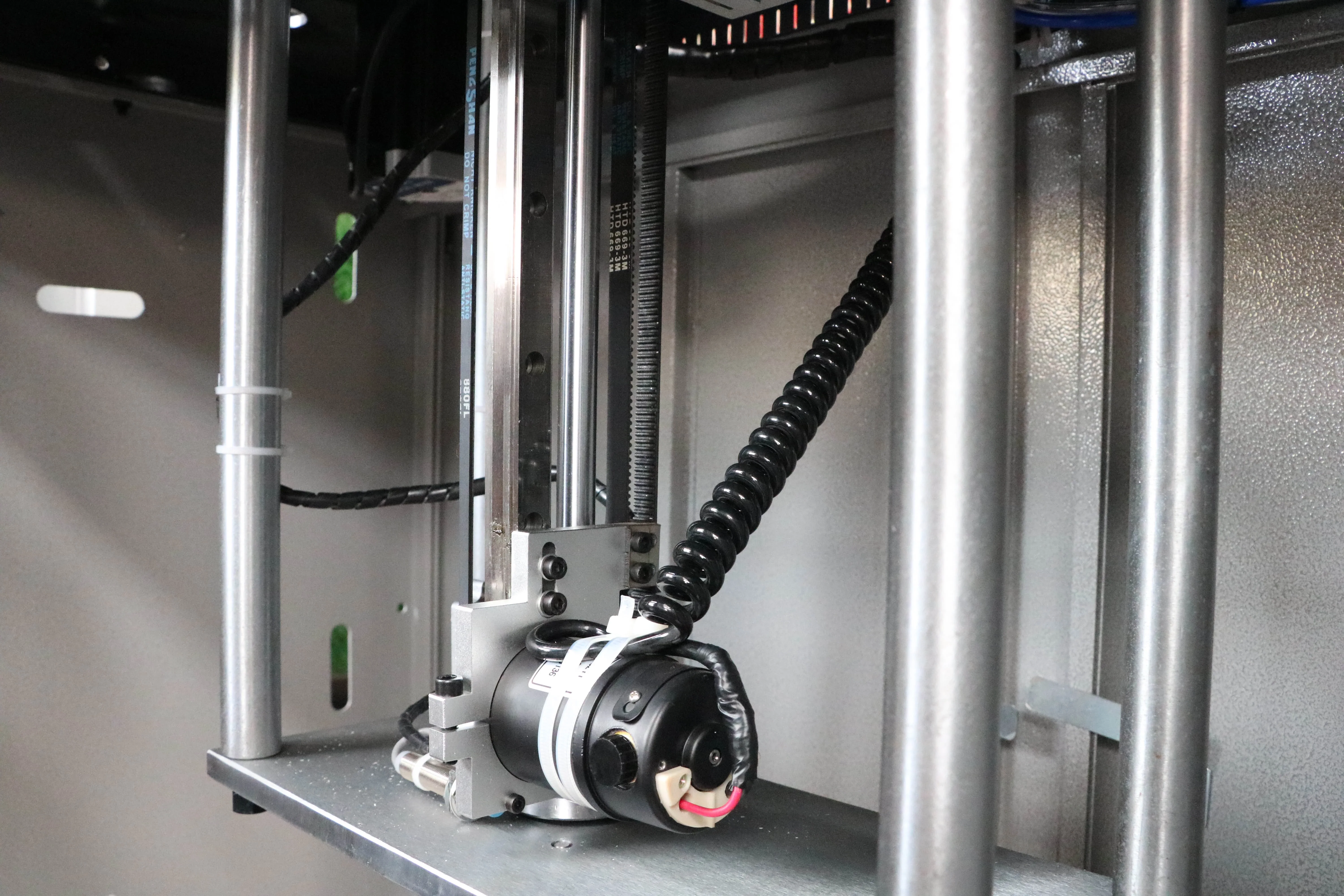

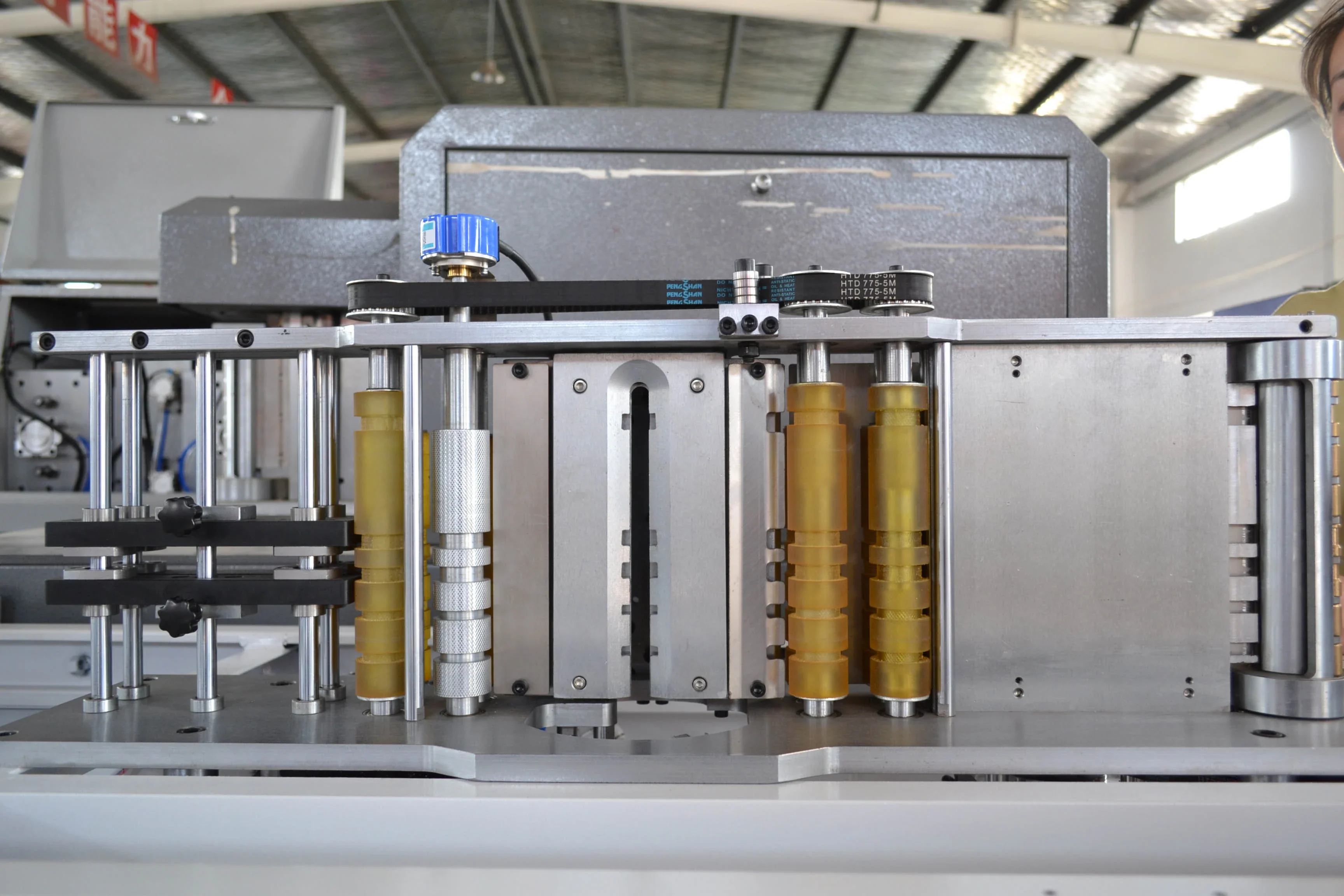

The feeding roller diameter 36mm and install encoder, ensure the feeding precision and speed.
Notching 1.

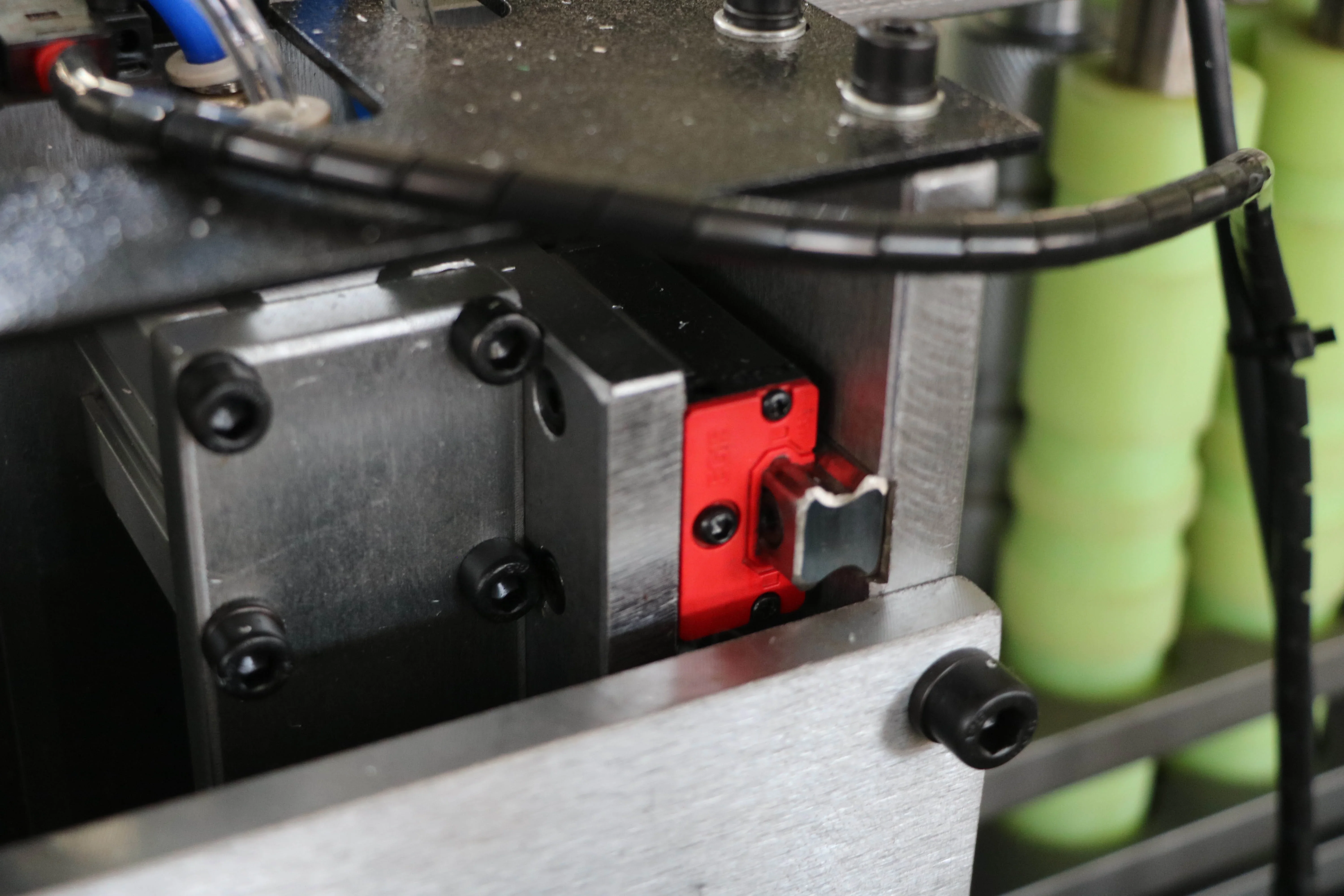

Aluminum cutting use 20mm Taiwan PDF guide rail ,the knife 75mm , guarantee the smooth cutting with fast rotating speed and small cutting angle.

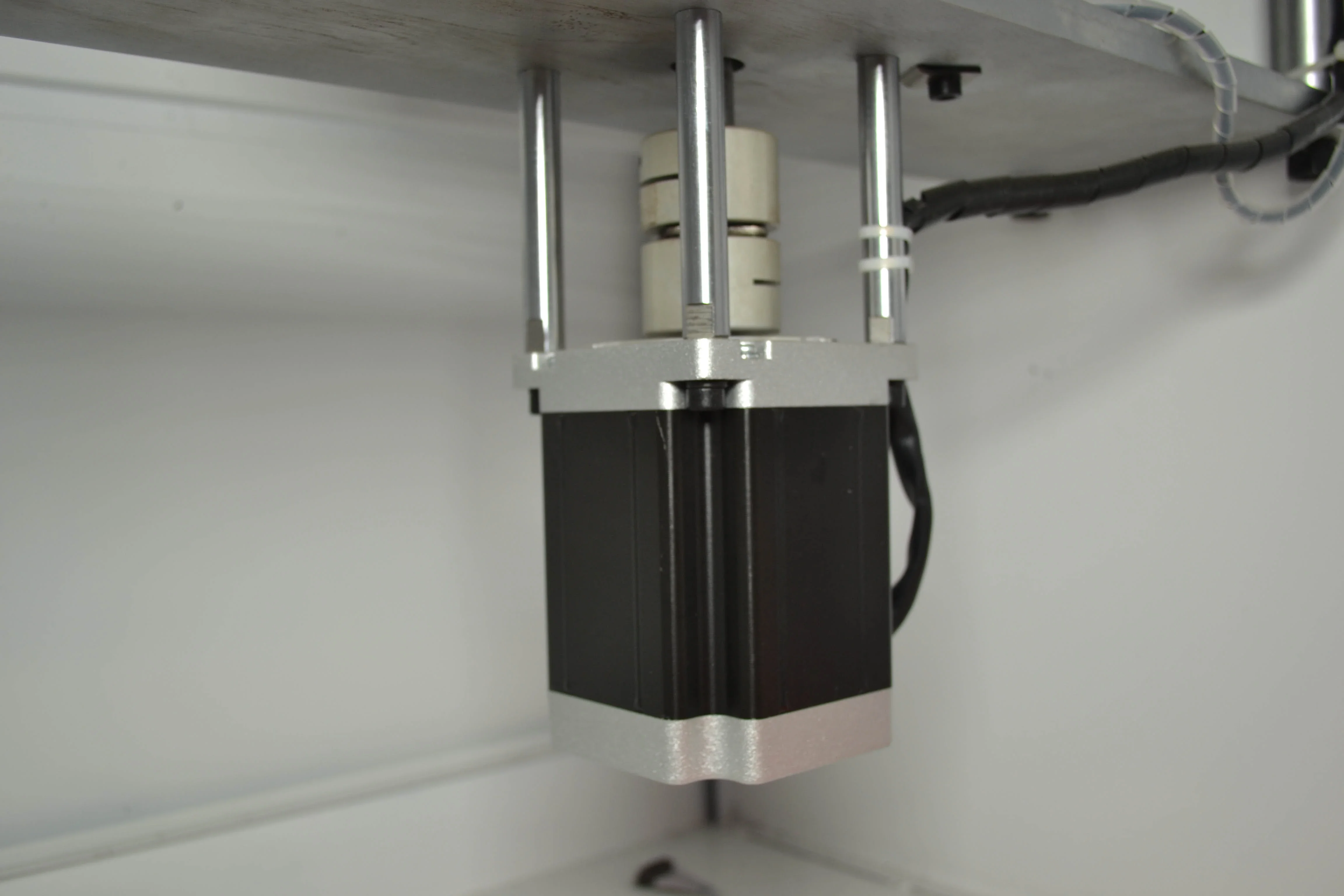

Cutting mode use motor lifting control ,more stable ,not easy damage material and noise small.
Notching 3.
Use four-column design ensure the cutting stable and effect
Notching 4.
The notching deepness adjust by the slide block on guide rail, adjustment more easy and high precision .
Bending

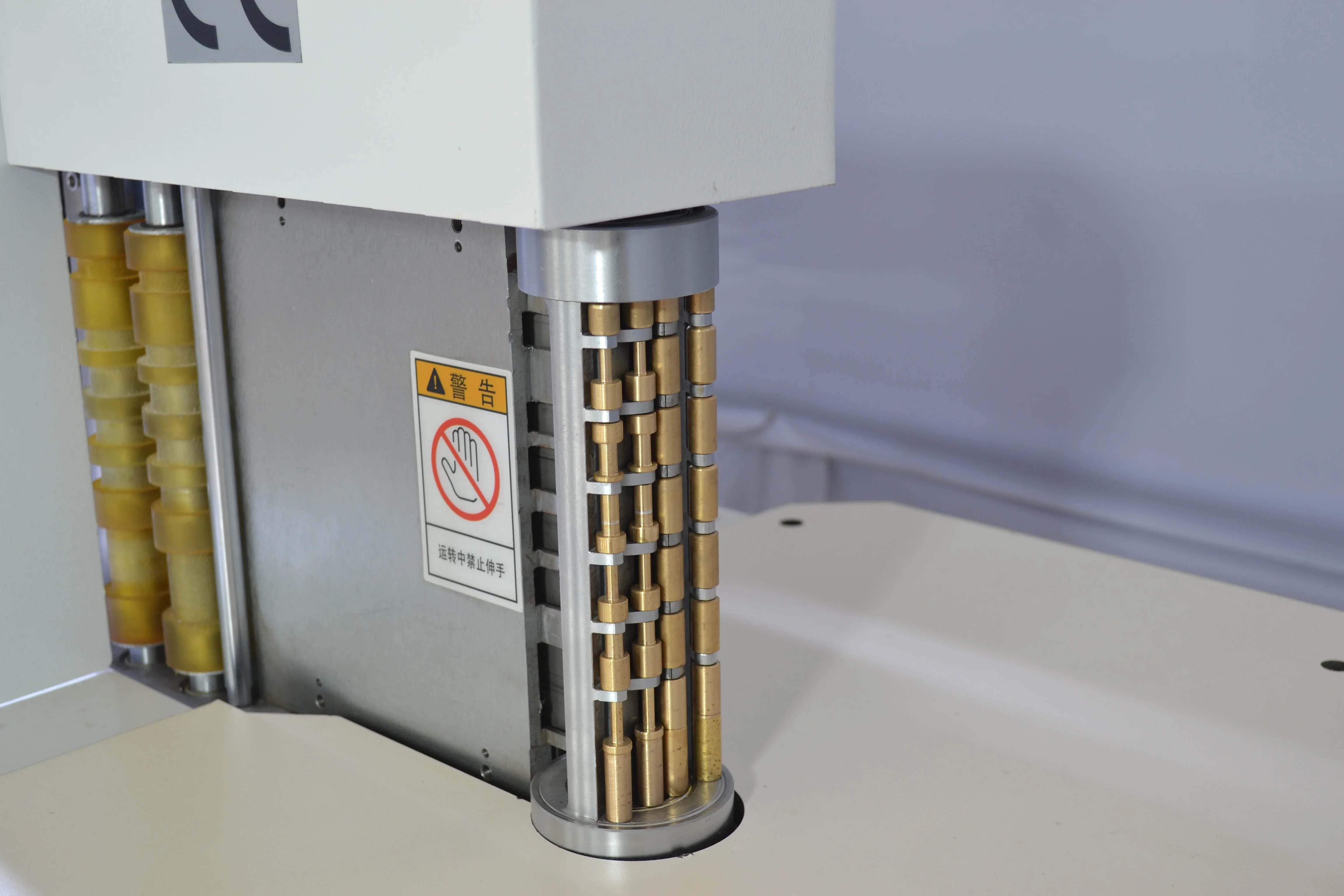

Use double cooper shaft flat arc bending device , small radian beat and large radian extrusion molding ,processing speed fast and don’t damage the material ,every day can finish 80-100 square maters letter.

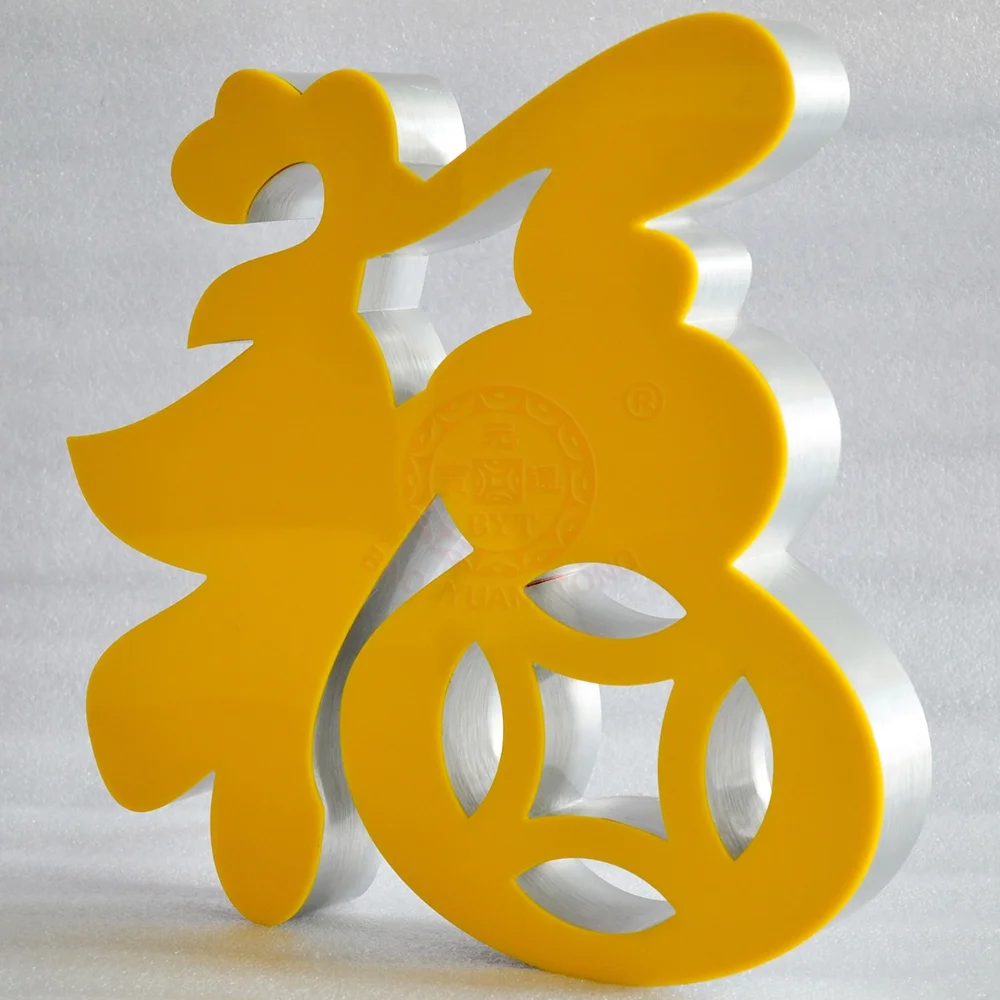

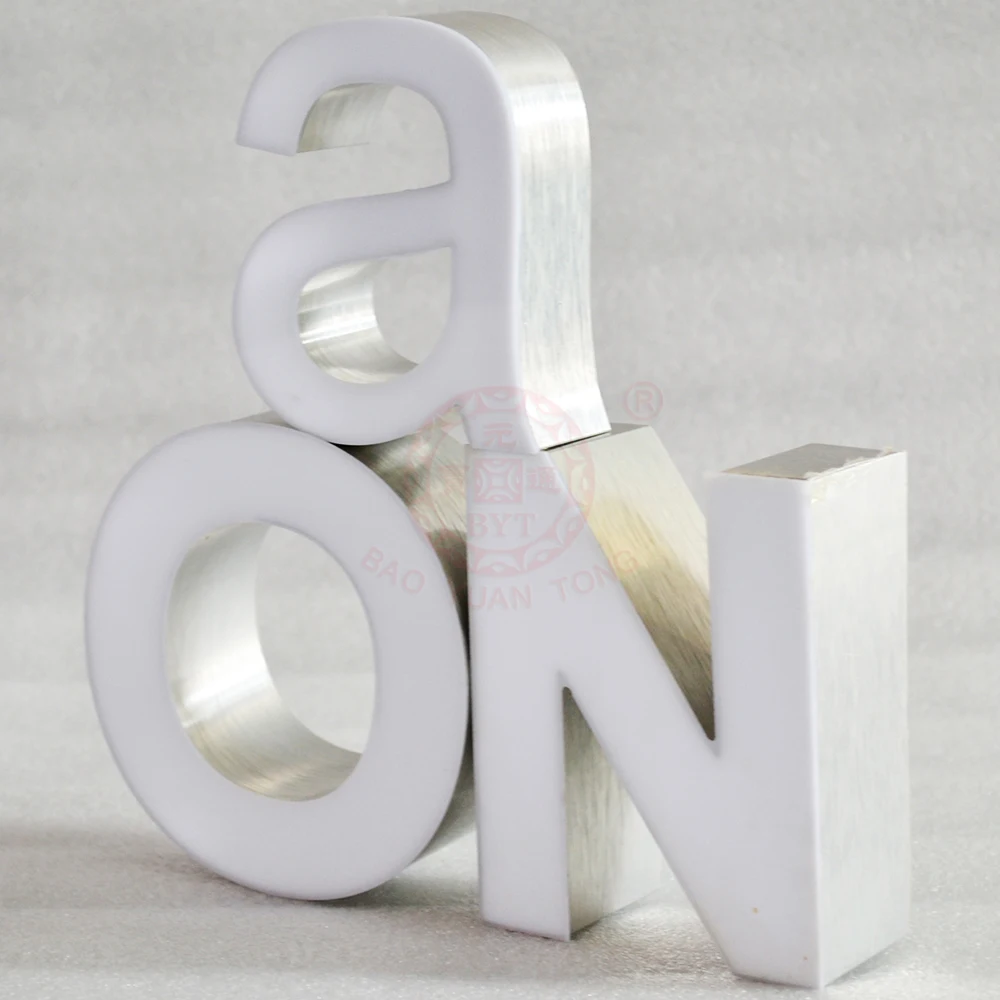

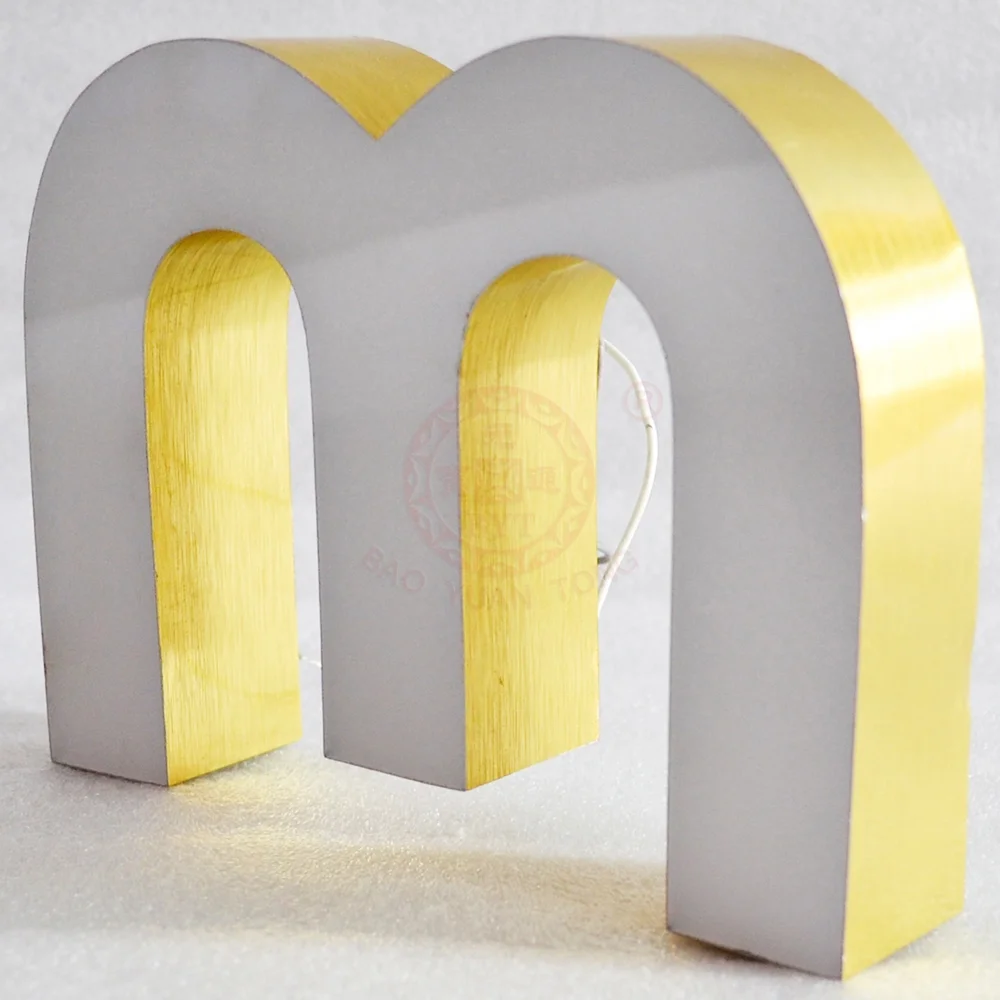

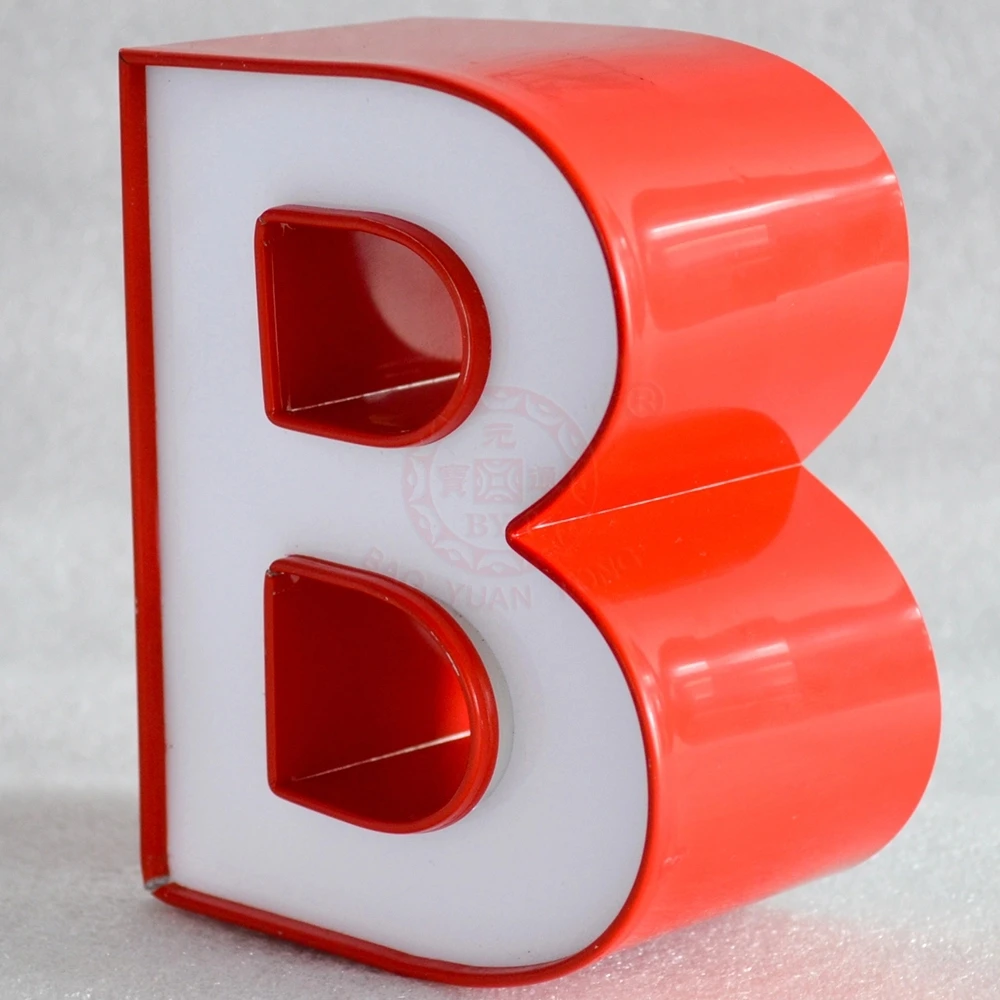

Sample Showing
How to learn machine operate
Operation Manual U disk
Provide U disk with machine which have detail specific english operational manual and videos
Network Service:
Through Whatsapp ,Wechat Teamviewer ect,provide online service
Factory Visiting:
Welcome to visit our factory to learn how to operation the machine,
Abroad Training:
Engineer can go aboard for training when customer needed.

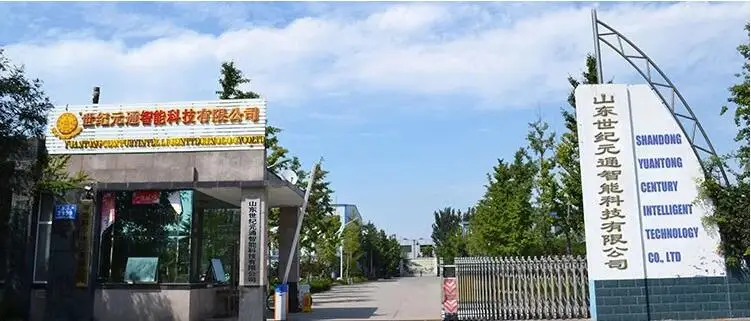

Our Company
Aluminum Coil Supply 1
Aluminum coil supply ,the width from 30mm to 80mm , the thickness from 0.5mm to 0.8mm.
Aluminum Coil Supply 2
Different type aluminum coil supply ,accept customized produce .
Certifications

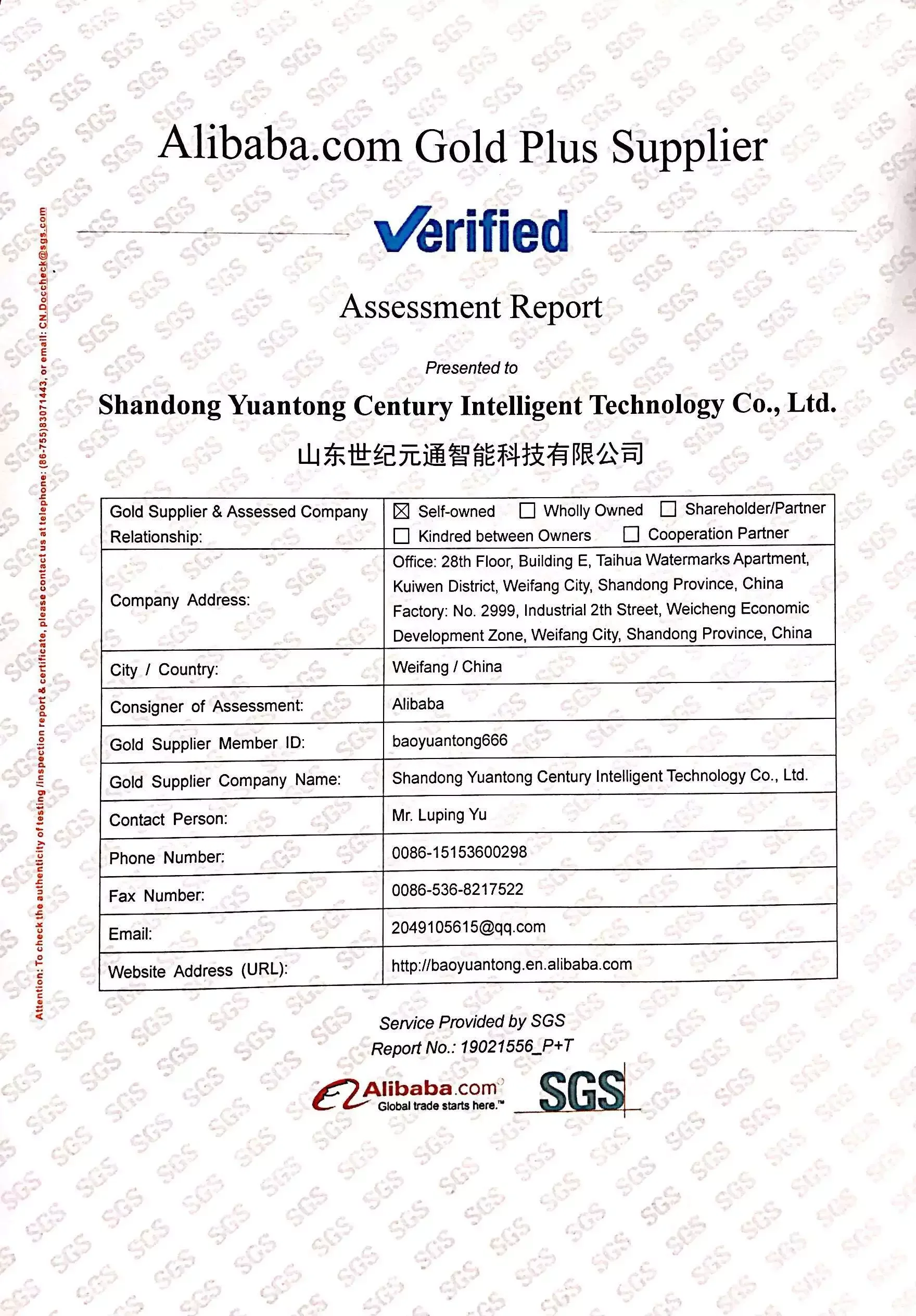

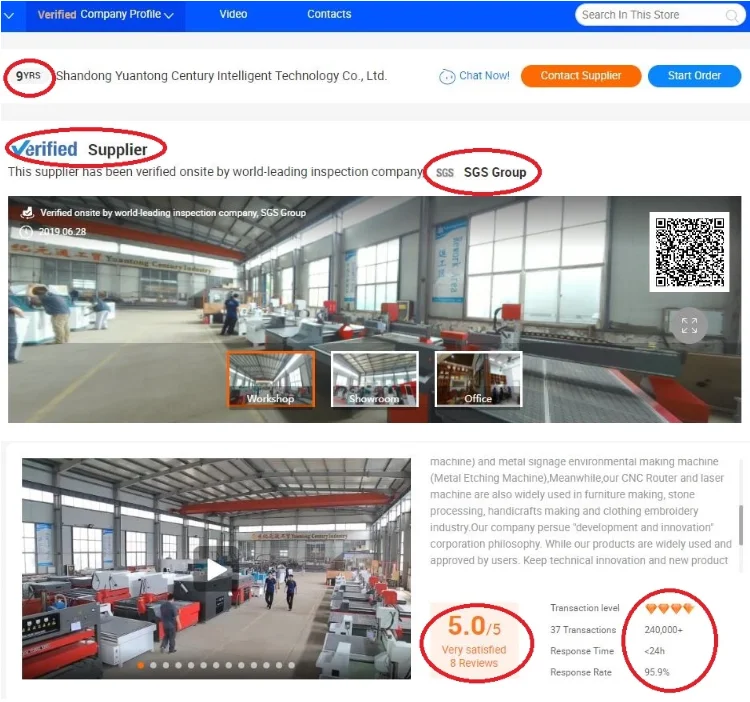

Factory SGS certification

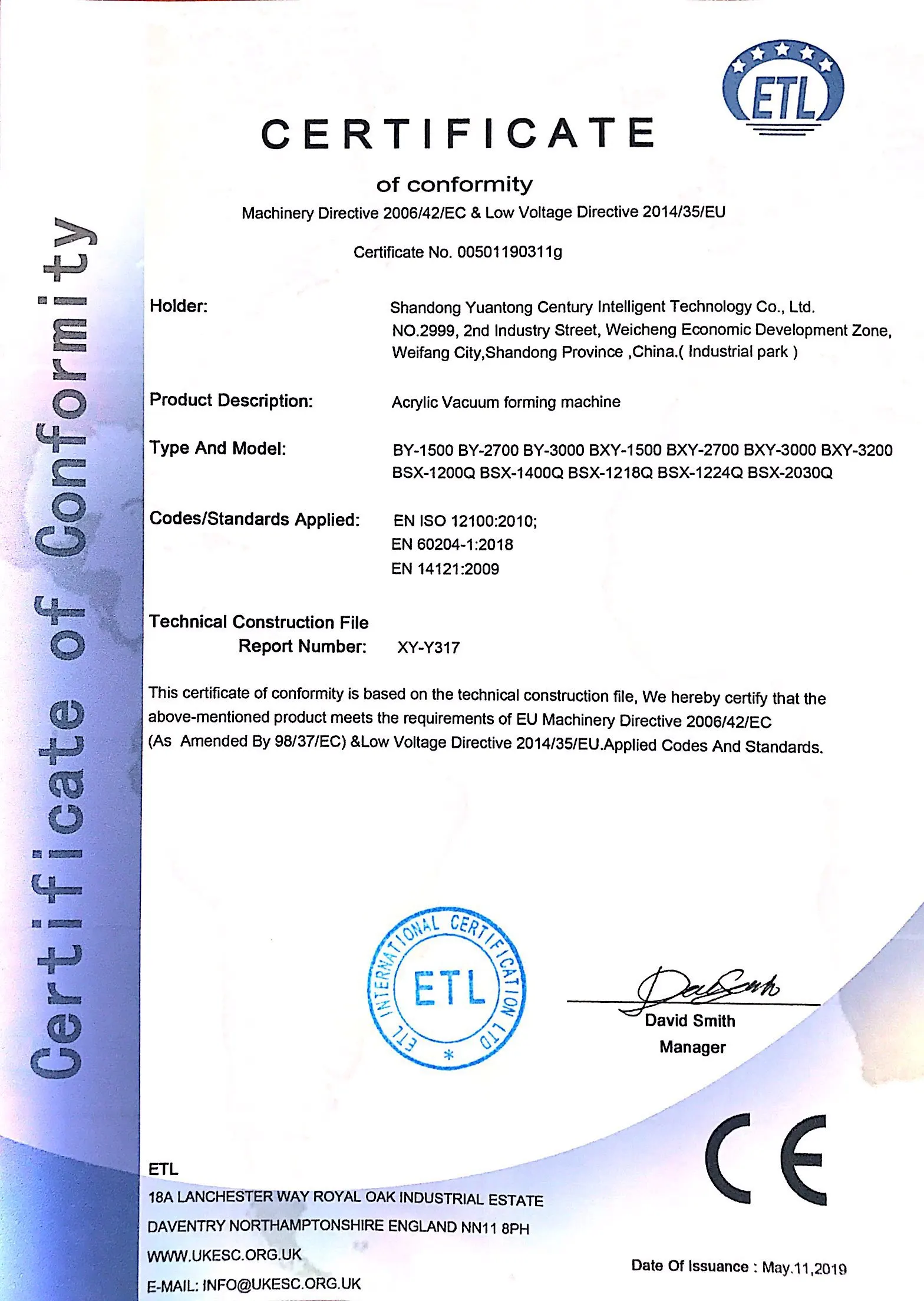

Quality CE certification
Brand Certification
