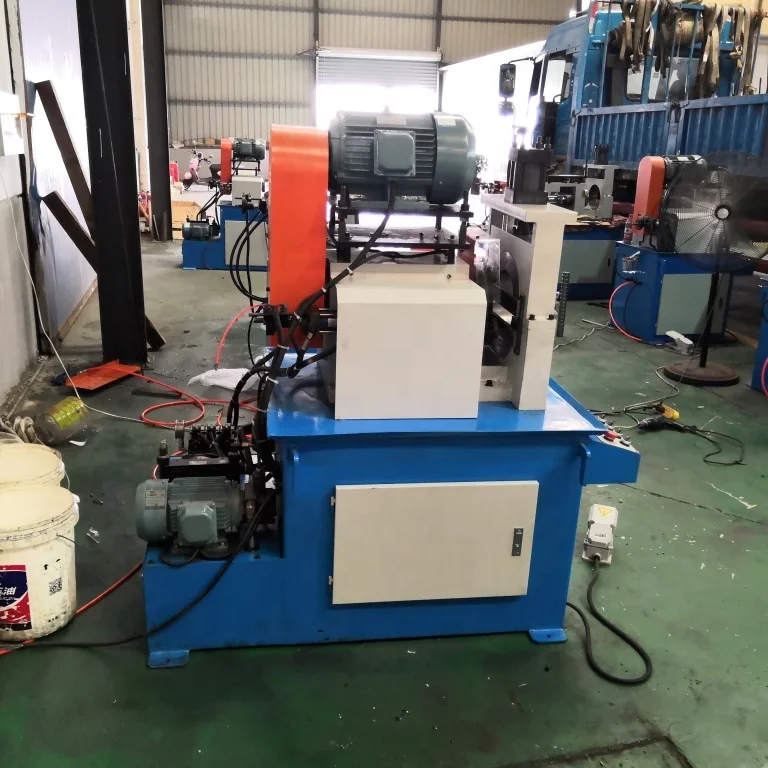

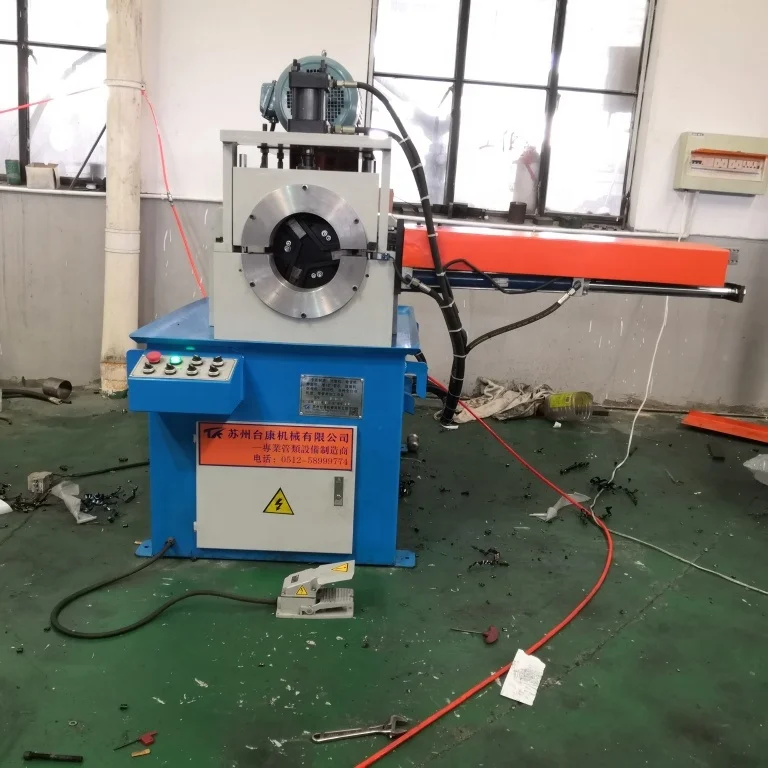

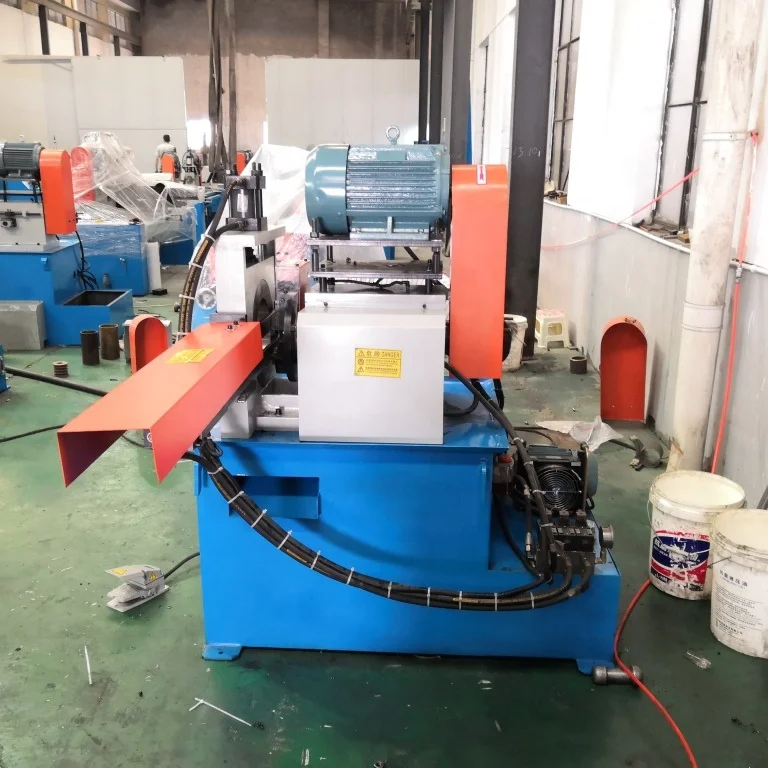

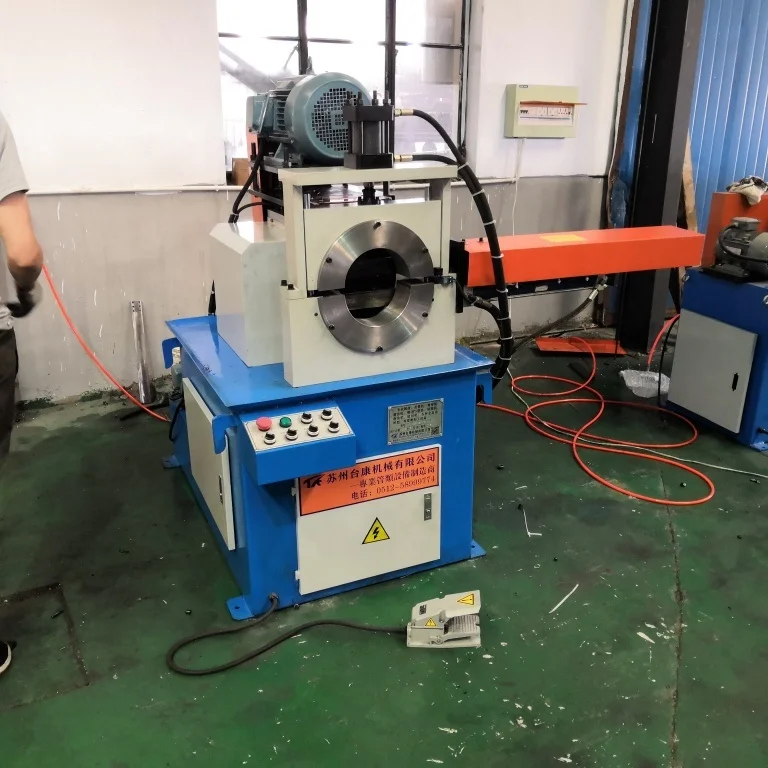

EF-180H Single head pipe chamfering machine stud bolt chamfering machine rod chamfering machine is controlled by hydraulic system. Manual feeding / retracting , clamping by hydraulic. The clamping die and cutter head special designed to finish the processing of the inner and outer sharp edge together with the end surface at same time for pipe. Particularly suitable for mass production of pipes or bar end chamfering /beveling process. It was widely used in automobile fittings ( oil pipe for brake, muffler, seats), motorcycle, fitness equipment, air-conditioning, bicycle, steel furniture, sanitary wares, shipbuilding, boiler and chemical industry.
Specification | EF-180H | ||||
Motor power | 5.5kw | ||||
Cutting head shaft RPM | Selection of appropriate speed for belt pulleys based on different materials | ||||
Pipe outer diameter | Φ16mm-180mm | ||||
Rod diameter | Φ16mm-100mm | ||||

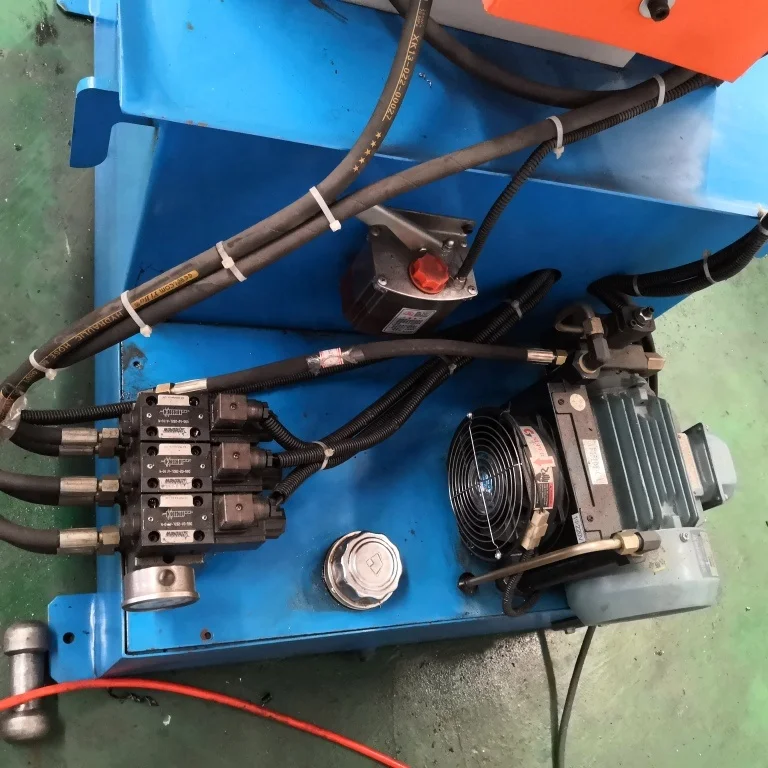

Hydraulic | 0.6-0.8Mpa | ||||
Diamension | 800x1500x1350mm | ||||
weight | 1200kg | ||||
Standard fittings | 1. one set of standard tool 2. one group of clamping fixture and cutter head | ||||
Special fitting(Option) | 1.Different Size of clamping fixture 2.Tailor made cutter head and cutter | ||||

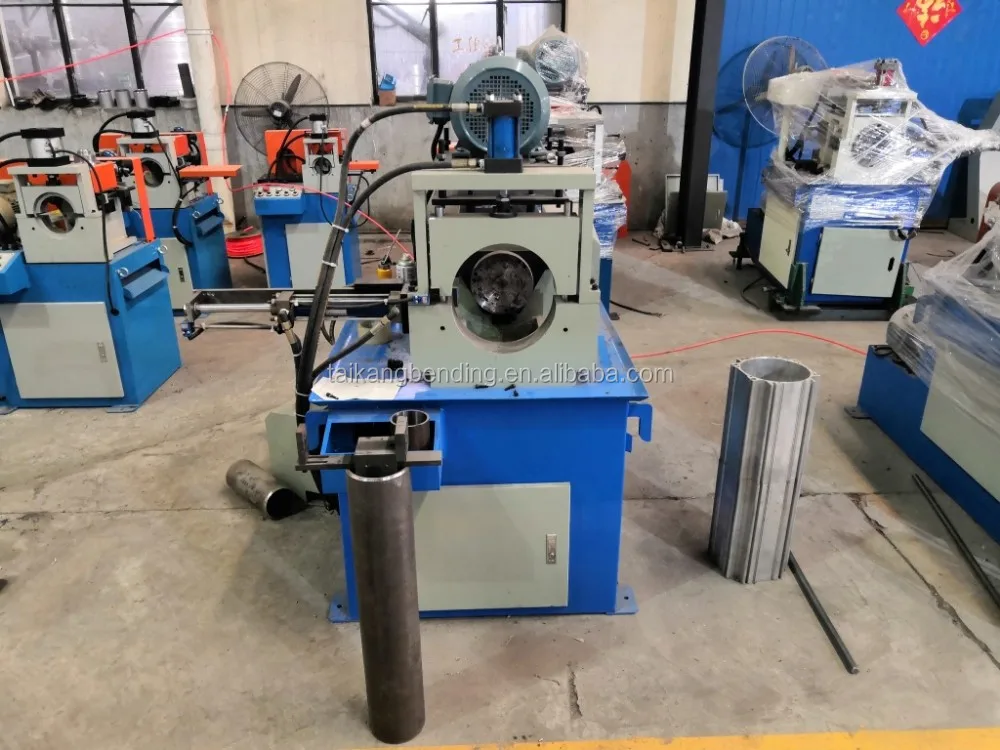

EF-180H Single head pipe chamfering machine stud bolt chamfering machine rod chamfering machine
Main Features

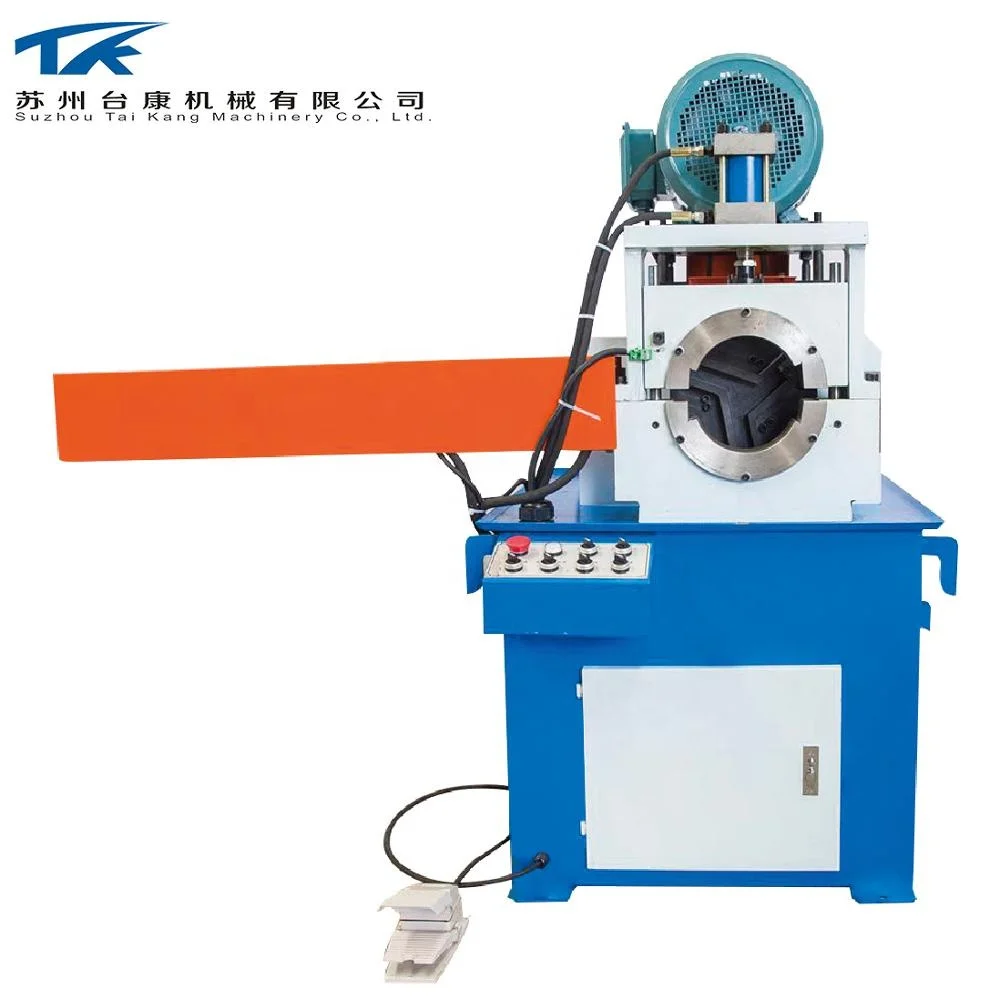

EF-180H Single head pipe chamfering machine stud bolt chamfering machine rod chamfering machine
1) The clamp and cutter head are special designed to guarantee the central line of workpiece and cutter head is exactly aligned. The inner and outer sharp edge together with the end surface can be processed at same time.

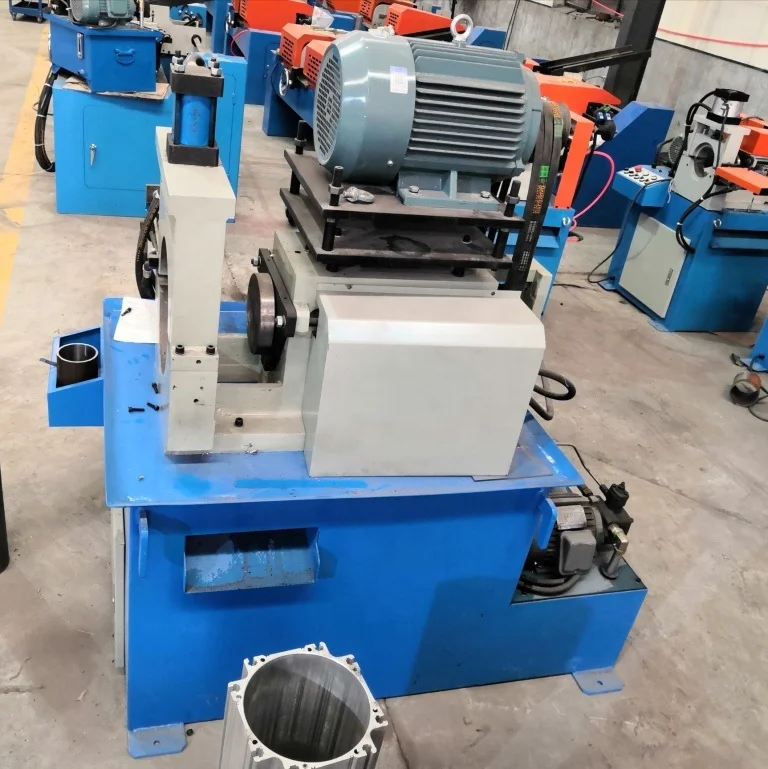

2) Different materials correspond to different rotational speed which achieved by changing of different belt pulley.
3) To ensure the alignment of the centerline between the workpiece and cutter head, the clamping die and cutter head are precisely designed to ensure the processing evenly all the time.

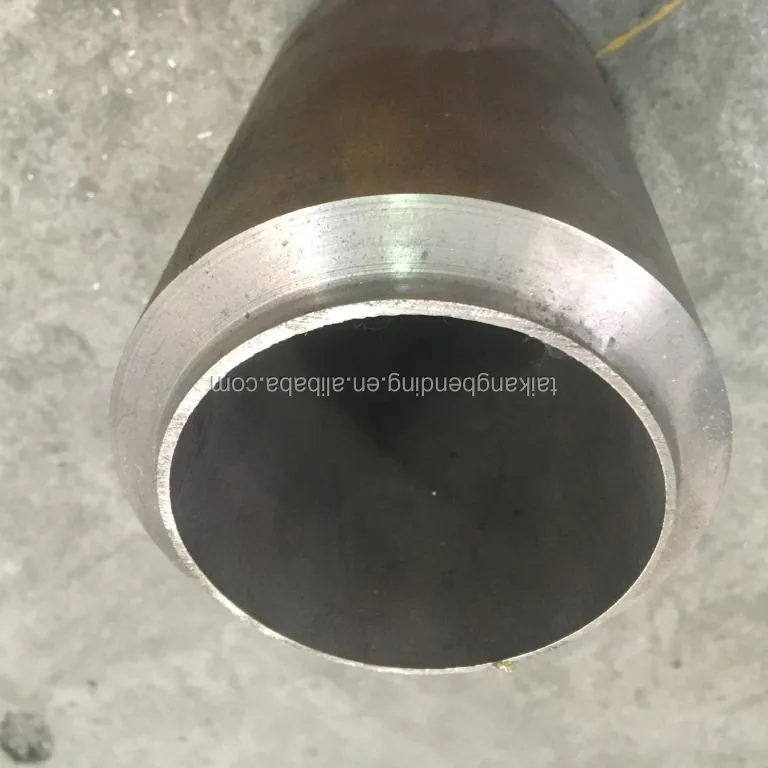

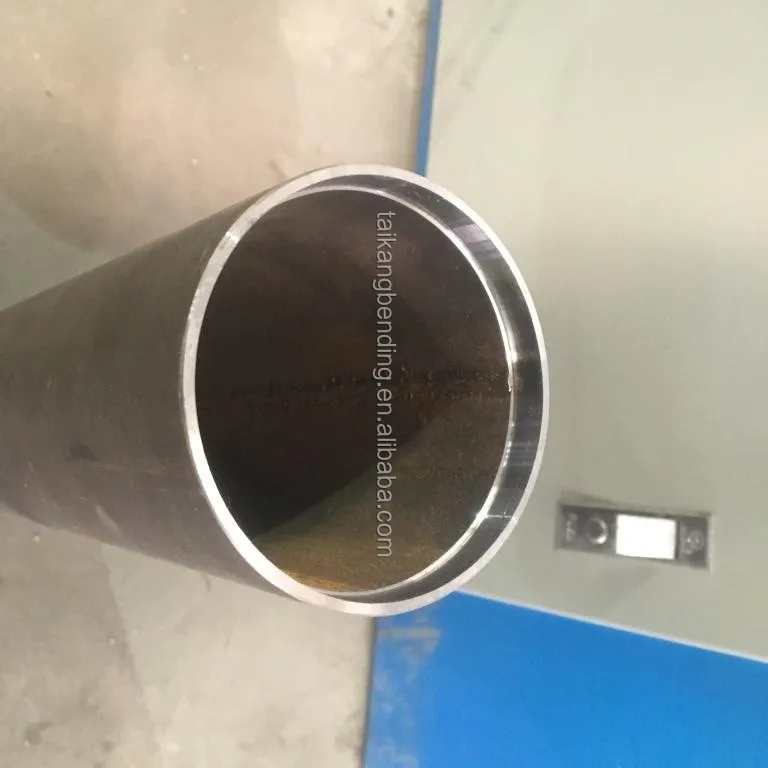

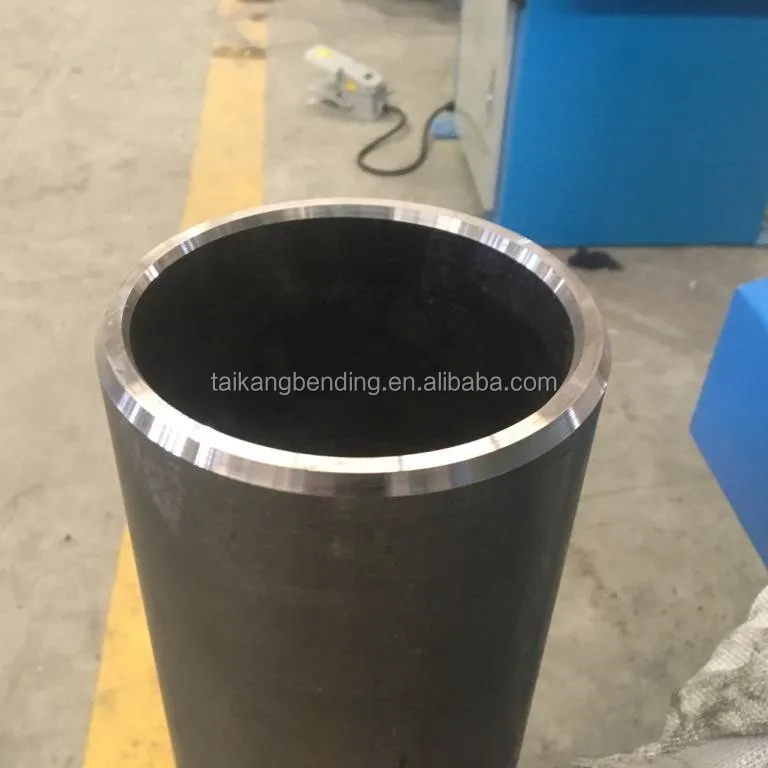

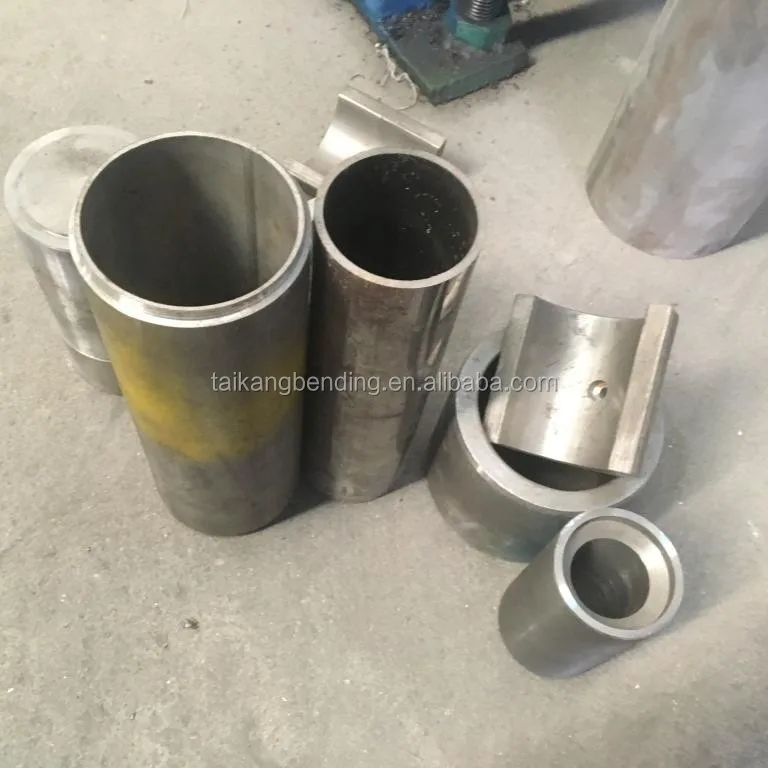

Samples
Our Service
Pre-Sales Service
* Inquiry and consulting support.
*Provide technical suggestion and package solution
* Sample testing support.
*Reply within 24 hours
*Provide progress information
* View our Factory.
After-Sales Service
* Test the machine before shipment
* Provide technical training relate to use the machine.
* Engineers available to service machinery overseas.
* Free spare parts within one-year warranty period
* Reasonable price for spare parts after warranty
* Provide long-term technical assistance.
Packing & Delivery
Packaging | ||
Size | 123 (L) * 456 (W) * 789 (D) | |
Weight | 1.2 T | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
Packaging | ||
Size | 123 (L) * 456 (W) * 789 (D) | |
Weight | 1.2 T | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
Our Company
About our company.
Suzhou TaiKang Machinery Co.,Ltd. Founded 2015.One of top manufacturer in China.Specializing in design and manufacturermachines for pipe process equipment and
tailor made solutions for the global supplier.
Our business philosophy is Client First,Quality First and Honesty First. We sincerely welcome worldwide potential buyers and overseas distributors to contact and visit us for cooperation.
