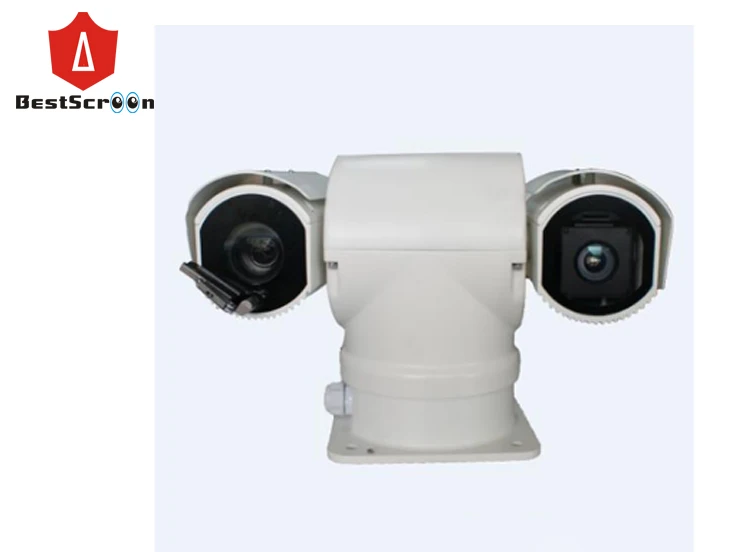

384*288 infrared network visible thermal imaging PTZ camera vehicle mounted boat mounted thermal imaging camera
- Category: >>>
- Supplier: Shenzhen BestScreen Technology Co. Ltd.
Share on (62310475387):
Product Overview
Description
Product Description
1, uncooled the third generation Vox thermal imagining detection, temperature measurement type ,
2. Pixel :384×288 with 15mm or 19mm lens or 400x300 with 19mm or 25mm
3. Working Temperature range : '-20℃~ +150℃ or 100℃~500℃ and Temperature accurency is +-2℃
4, Visible camera 20x 2.0mega or 30x 2.0mega is for your opitonal
5.,Visible light +infrared thermal image design ,day vision is >1000m and night vision is 200m
6. Integrated Visible video +thermal imaginingg video can show one screen
7,Control way: RS485, built-in PELCO-D/P protocol
8. PTZ camera Horizontal rotation 0-360° and tilt rotation is -90° ~+90 ° manual speed Max.160°/S,tilt manual speed Max.55°/S
9.Isolated power design,high stability,vehicle power input:DC9V~DC36V
Technical Parameters :
| Thermal imaging detector | Type | Uncooled focal plane microthermal type |
| Pixels | 384*288/400*300 | |
| Wave Length | 8-14um | |
| Frame rate | 50 Hz | |
| NETED | < 40mk(@30°C,F#=1.0) | |
| View angle | 25° × 19° | |
| Focal length | 15mm/19mm | |
| Min Focal | 15mm/0.2m | |
| Zoom menthods | Auto | |
| Mrad | 1.27mrad | |
| Color Pallette | 7 color is for optional | |
| Working Temperature | -20℃~ +150℃ or 100℃~500℃ | |
| Measure Accurency | ±2℃ | |
| Adjustment | Auto | |
| Measuring Way | 6 mobile point ,select max,average and min point | |
| Radiate rate | 0.95 | |
| HD Camera | Image sensor | 1/2.8" 2MP Progressive Scan CMOS |
| Signal | IP camera | |
| Video Format | PAL/NTSC | |
| Minimum Illumination | Color 0.01Lux @(F1.2,AGC ON),0 LUX | |
| B/W 0.001 Lux @ (F1.2,AGC ON),0 LUX (IR ON) | ||
| Electronic Shutter | Auto | |
| Resolution | 2.1 Mega | |
| D/N Mode | Supports IR-CUT | |
| Aperture | F1.6~F3.5 | |
| Focal length | 4.7mm -94mm | |
| Optical zoom | 20x | |
| PTZ Parameter | infrared | 12pcs high power array leds |
| Infrared range | >=80 m | |
| Manual control speed | Pan speed: 0°~160°/S / Tilt speed:0º~90°/s | |
| Maximum preset speed | Pan: 160°/S; Tilt 90°/S | |
| Pan range | 360° endless | |
| Tilt range | +90--90° | |
| Presets | 255pcs;precision±0.1° | |
| Scanning | 8pcs, scanning speed 8 grade for adjust | |
| Cruise | 8pcs;Each pcs has 255 preset | |
| Self-learning | 8pcs, each can record1024PTZ | |
| 3D location | Support | |
| Pre-arranged planning | 8 group,Preset,Scanning,Cruise ,track,D/N mode | |
| Patrol | Preset, Scanning,Cruise ,track,D/N mode | |
| Alarm | 1 channel output, 1 channel input | |
| Power-off recovery | Support | |
| Auto flip | 180° auto rotation | |
| Azimuth information display | ON/OFF/Display loacation adjustable | |
| Telephoto speed limit | PTZ auto adjust manual control speed according with current zoom | |
| RS485 control | Support PELCO-P & PELCO-D | |
| BNC interface | HD-SDI interface | |
| Network | 10/100M network adaptive,RJ45 adapte | |
| Temperature | -35oC--+55oC | |
| Humidity | Less than 80% ( non-condensing) | |
| IP grade | IP66 | |
| Heater | Automatic temperature control (under 0 temperature heating ON) | |
| Weight | 7.5KG | |
| Power | AC24V±10%/ DC12V for option | |
| Consumption | 60W |
Packaging & Shipping
Functions info2
Certificates
Our Services
1.Quickly response with 24 hours for any questions and issues
2.provide official test report
3. Specific exporting package and provide the tracking number against any parcels
4. provide customized service for customers request
5. OEM/ODE order is appreciated
FAQ
Q1. What is your terms of payment?
A: We accept T/T(Telegraphic Transfer),Western Union or Paypal ,also will sign official contract before payment.
Q2,What is your minimum order quantity?
A: MOQ 1 PCS
Q3. What is your sample policy?
A: we can provide sample if customer can absorb the cost and logistic cost ,also appreciated you come to our office to validate the sample.
Q4. Have you the export certificates and test report ?
A: Yes, we will provide the test report and export certificate ( CE/FCC etc ..)
Q5: What is quality guarantee policy ?
A:Normally guarantee term is 1 years ,we offer 2 years PTZ main body and 1 year for camera
Q6: Do you accept OEM/ODM?
A:Yes! We accept to label your brand if you would like .
