Radiator wire floor heating thermostat white external sensor
- Category: >>>
- Supplier: Nanjing Insbud Controls Company Limited
Share on (62310629055):
Product Overview
Description
Product Description
| Floor Heating Part Type | Floor Heating Thermostats |
| Color | White |
| Application | Underfloor Heating System |
| Voltage | 220V/230V |
| Power comsuption | 2W |
| Switching capability | 16A Resistive |
| Setting range | 5-35°C |
| External limitation | 5-40°C(factory setting:35 °C) |
| Switch differential | 0.5-10°C adjustable factory setting: ± 1 °C |
| Ambient temperature | -5-50°C |
| Protective houseing | IP20 |
| Housing material | Anti-flammable PC/ABS |

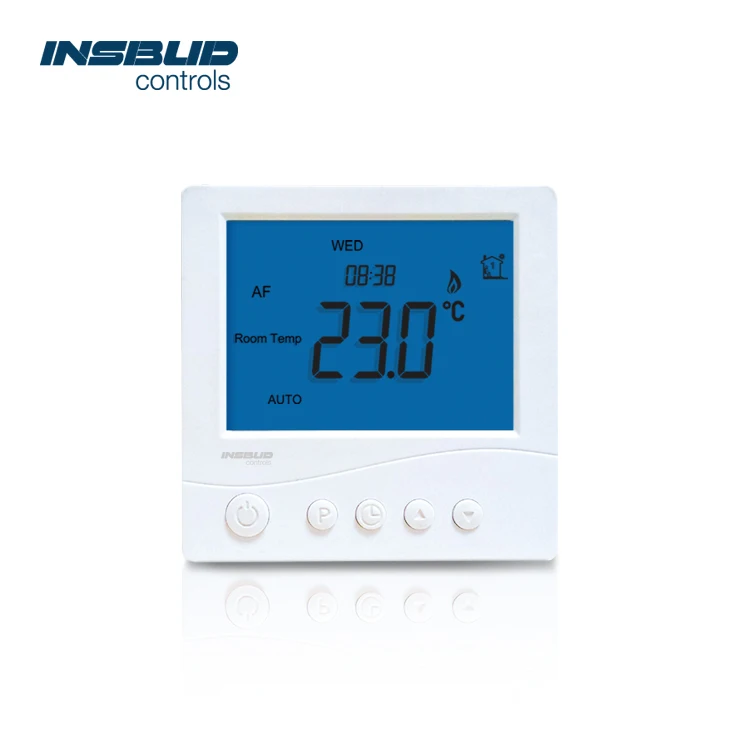

TR3504 Digital room thermostat for water/electric floor heating system
> Large LCD display
> Extra slim and compact control panel
> Can switch up to 16 amps,(24vac, 230v AC, 120v Ac available)
> Can be either an air only / floor only / Air & Floor
> 7 day programmable (each day can be set different).
> 4 set points per day
> Temporary override and vacation mode
> Frost protection
> Blue back light illumination (optional)
> Casing available in white,silver,black color
> F / C temperature format optional
> 12/24 Hour clock format optional
> programmes and settings can be reserved after power break
> 2 year warranty
> equipped with air and floor sensor
> Back light turning on/off time can be set
> Floor temperature limit
> Switching differential setting
> Customizing welcome
Technical Data
Supply voltage: 230vac
Ouput switching capability: 16A resistive
Temp range:5~35 deg C
Floor range: 5-40 deg C
Clock function: 4-event program
Ambient temp:0~+40 deg C
On/off differential:0.5 deg C
Protective Housing: IP20
Housing material: PC+ABS
Sensor type: NTC(10K ohm)
Approvals: CE
Warranty: 2 years
Dimensions:

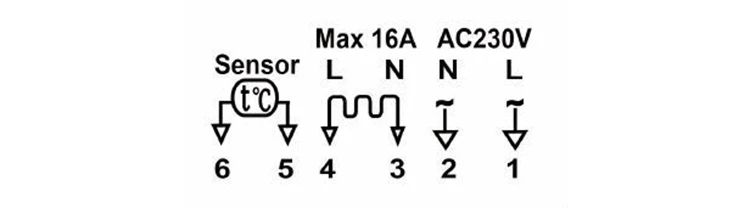

Wiring diagram:
