PEAKMETER PM2128 True RMS ac/dc current 1000A 1000V meter ammeter auto range ac dc multimeter digital clamp meter
- Category: Electrical Instruments >>>
- Supplier: Shenzhen Habotest Instrument Technology Company Limited
Share on (62310636277):
Product Overview
Description

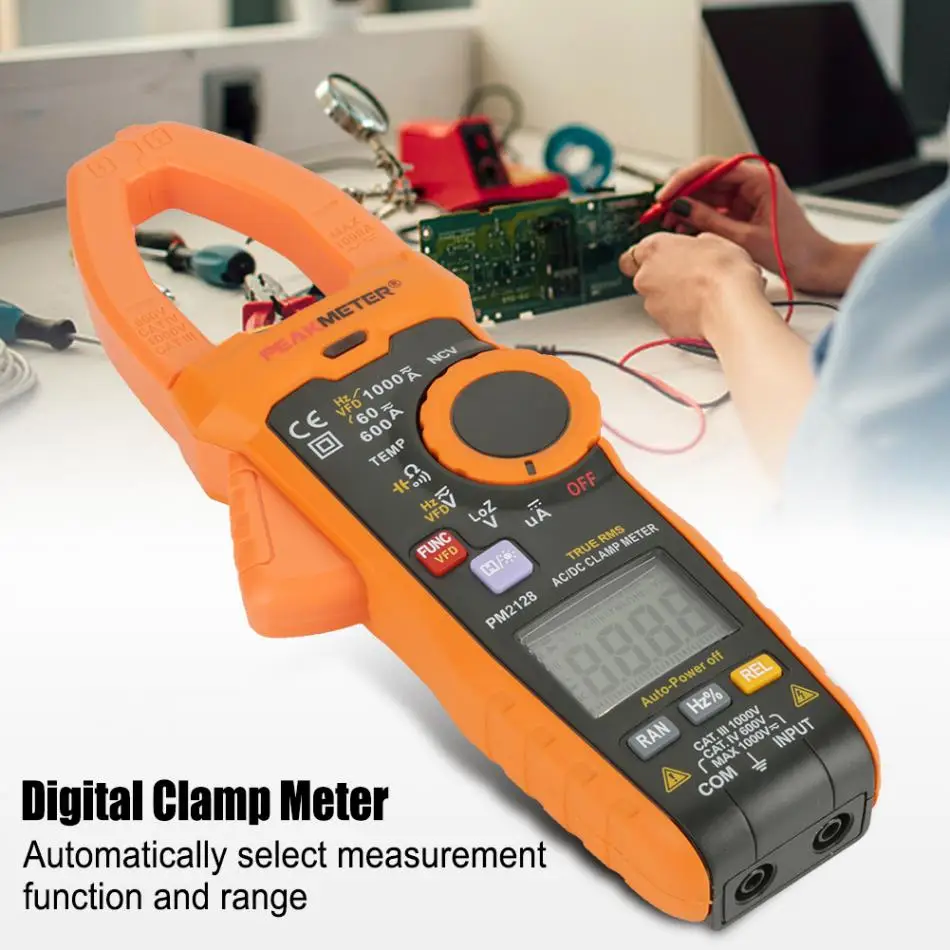

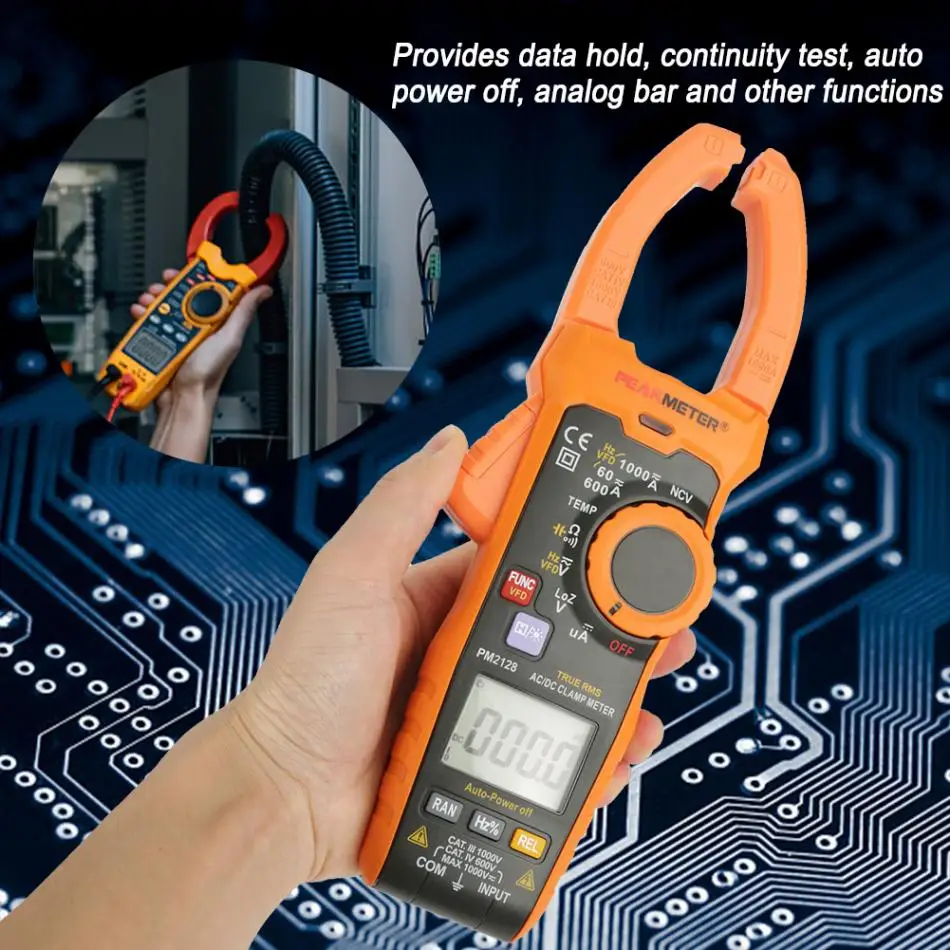

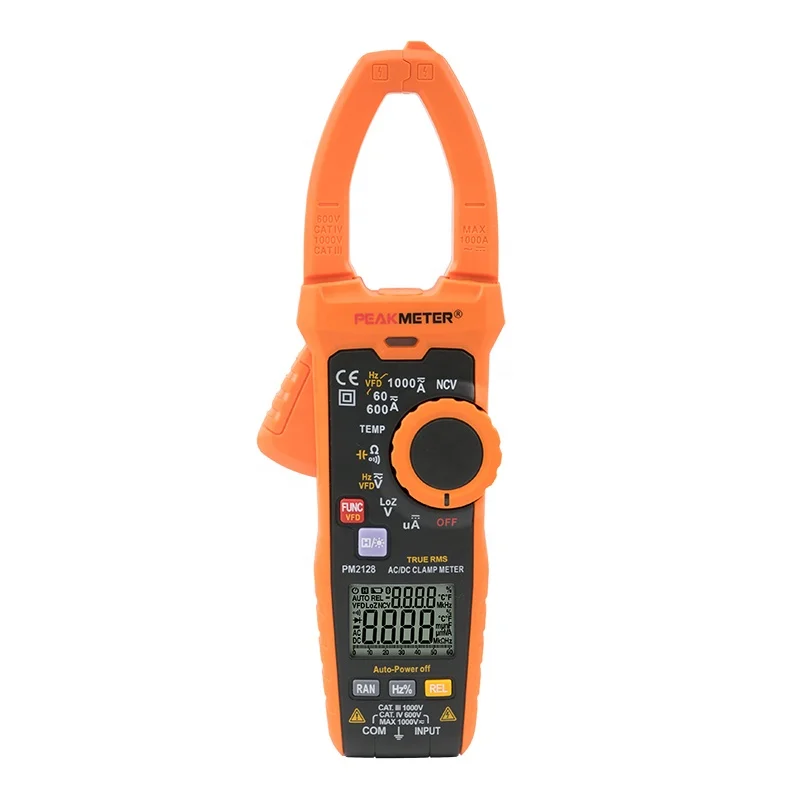

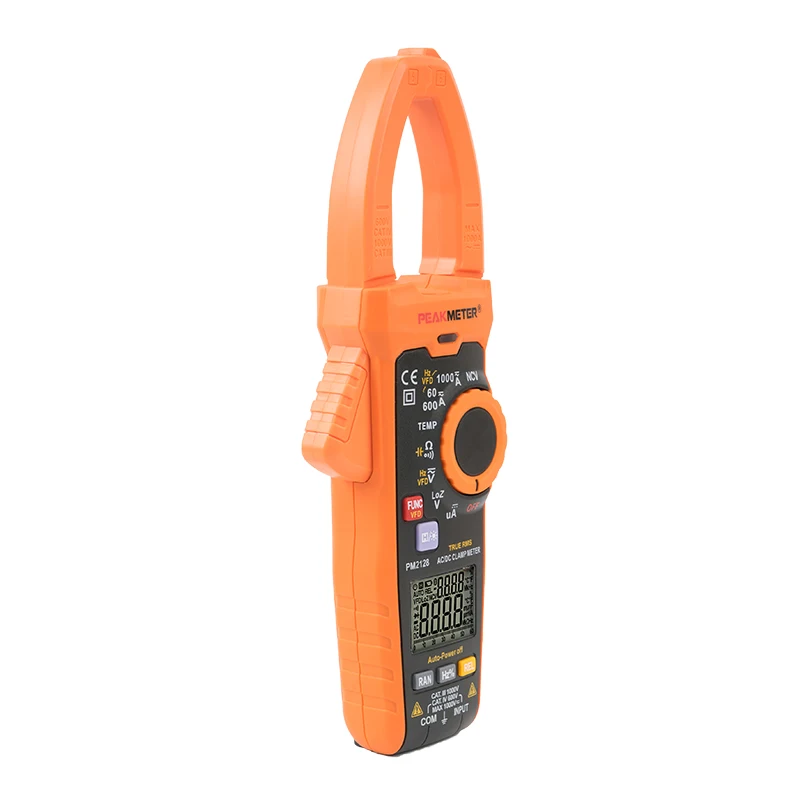

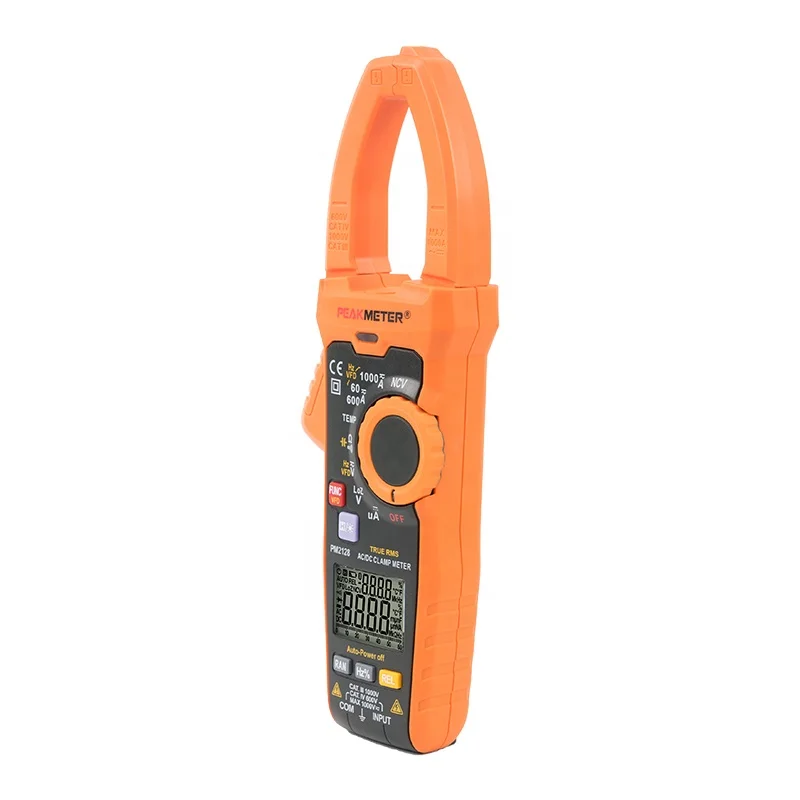

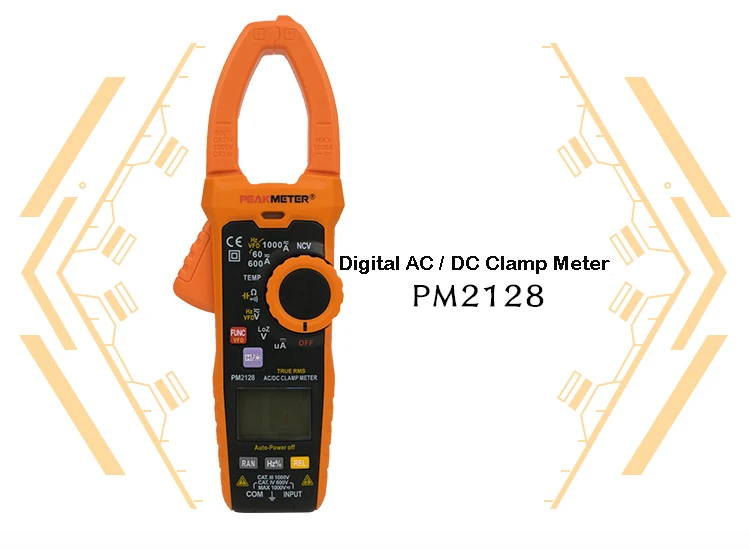

PEAKMETER PM2128 True RMS ac/dc current 1000A 1000V meter ammeter auto range ac dc multimeter digital clamp meter
Product Description
| SPECIFICATIONS | RANGE | ACCURACY |
| DC Voltage | 6V/60V/600V/1000V | ±(0.5%+5) |
| AC Voltage | 6V/60V/600V/1000V | ±(0.8%+5) |
| AC Current | 60A/600A | ±(2.5%+8) |
| 1000A | ±(2.5%+8) | |
| DC Current | 60A/600A | ±(3.0%+10) |
| 1000A | ±(3.0%+10) | |
| Resistance | 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ | ±(1.0%+3) |
| Capacitance | 60nF~60mF | ±(4.0%+3) |
| Frequency | 100Hz~10kHz | ±(1.0%+5) |
| Temperature(℃/℉) | -20℃~1000℃ | ±(1.0%+2) |
| -4℉~1832℉ | ±(1.0%+2) | |
| LowZ | DCV:1000V | ±(1.0%+10) |
| ACV:1000V | ±(2.0%+20) | |
| DC μA | 200μA | ±(0.8%+3) |
| FEATURE | ||
| Display | 6000 Counts | |
| Analogue bar graph | √ | |
| Auto and manual range | √ | |
| True RMS | √ | |
| Data hold | √ | |
| Work light | √ | |
| Back light | √ | |
| Relative Measurement | √ | |
| Continuity | √ | |
| Back light | √ | |
| VFD | √ | |
| GENERAL | ||

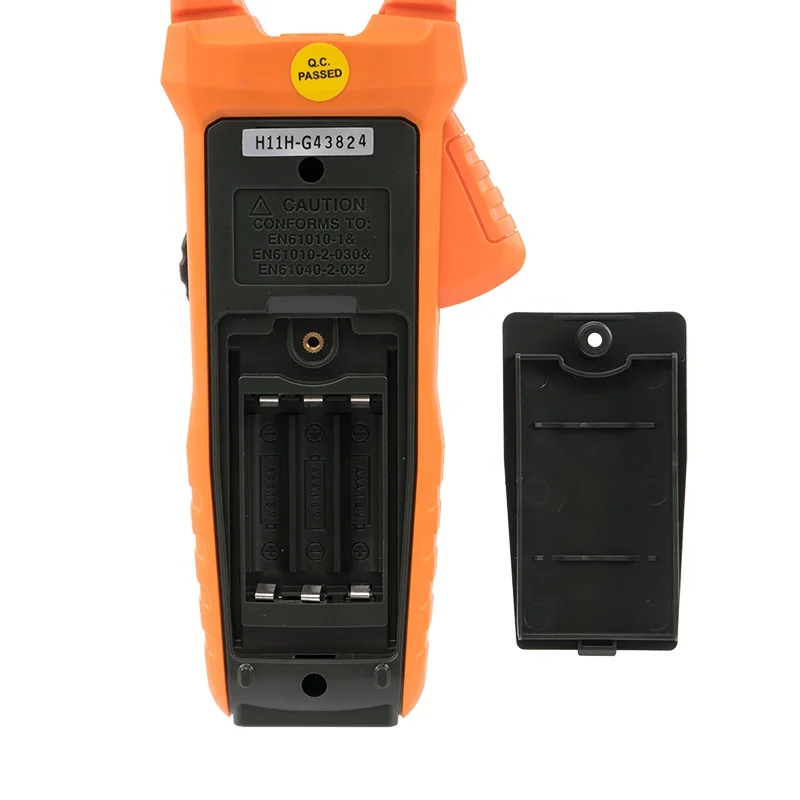

| Power Supply | 3×1.5V AAA Battery | |
| Weight | 380g | |
| Size | 235mm×85mm×40mm | |

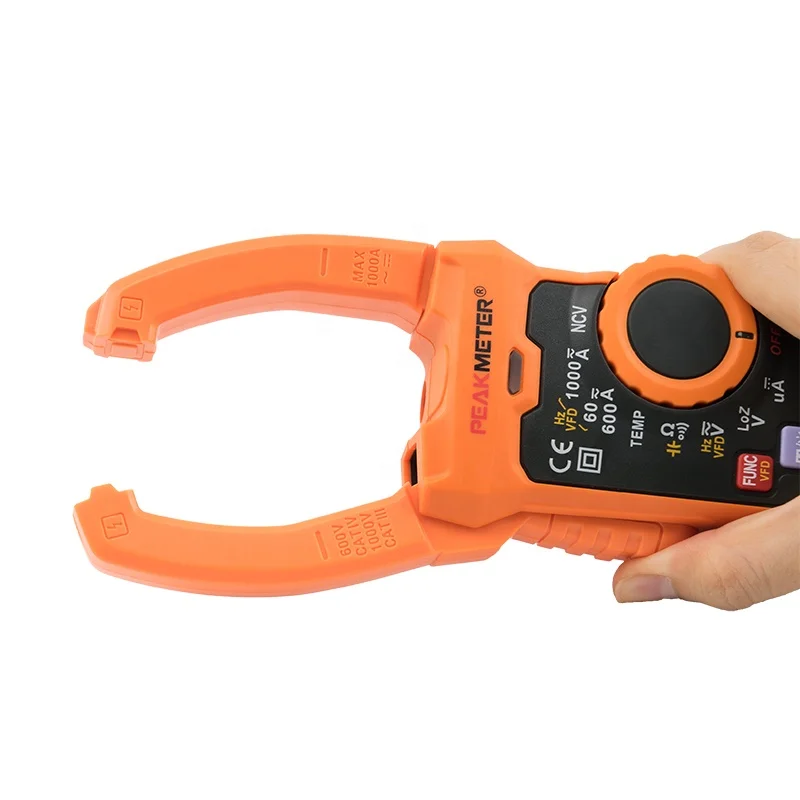

| Jaw Size | φ35mm | |
| Safety Rating | EN61010-1,EN61010-2-032, EN61326,CAT.Ⅲ 1000V | |
