GQuality assured Heliport led Inset Guidance white Light for offshore helideck
Model Type: GS-HP/Y
Product Details
Product Details
Name
GS-HP/Y Heliport led Inset Guidance white Light
Model
GS-HP/Y
Standard
ICAO FAA
Light Intensity
≥30CD
Working Mode
Steady-Burning
Light Source
LED
Service Life Of LED
≥100,000 Hours
Operating Voltage
AC220V (Optional: DC48V, 6.6A, AC120V)
Power Consumption
≤10W
Overall Size
196mm(D)×140mm(H)
Installation Size
206mm×145mm
Material
Base: Die-casting Aluminum
Weight
4.5Kg
Emitting Color
White
Ambient Temperature
-55℃~85℃
Humidity
<95%
Protection Standard
IP68
Function & Features
Function & Features
Adopt the superior thermal performance of aviation aluminum weight casting, provides excellent cooling enviroment for LED light source.
With work stability, strong anti-interference ability and shock resistance.
Full sealed structure base, with superior waterproof performance.
With strom surge protection device.
Shielding sealded power supply, with excelllent waterproof and anti jamming.
Adopt independent encapsulation of high-power LED light source, which has the specific of high light brightness, and long service life.

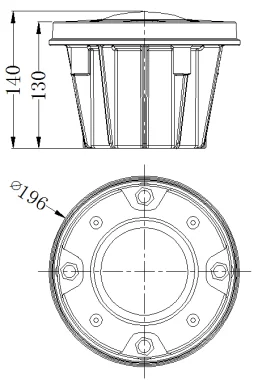

Dimension Drawing
Dimension Drawing
Appliction
Application
Heliport
Helipad
Helideck
FAQ
FAQ
Q1:Can I have a sample order for your products?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2: What about the lead time?
A:Sample needs 3~5days, mass production time needs 1~2 weeks. It is negotiable, if quantity more than 100.
Q3:Do you have any MOQ limit order?
A:No limit, 1pc for sample checking is avaiable.
Q4:How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT worldwide Express. It usually takes 3~5days to arrive, door to door. You also could choose freight by air or by sea.
Q5:How to procced an order ?
A:Firstly let us know your requirement or appliction.
Secondly we will quote according to your requirement or suggested appropriate products.
Thirdly you confirm prices and check the samples.
Fourthly you confrim order and place deposit for formal order.
Then we will arrange the mass production for you.
Q6: is it OK to print my logo on product?
A: Yes, Please inform us formally before our production and confirm the design firstly based on our sample.
Q7:Do you offer guarantee for the products?
A:Yes. we offer 2~5years warranty on our products.
Q8:How to deal with the faulty?
A: Firstly, our products are produced under strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
9.How is the packing?
Every 4pcs Heliport guide lamp is packed in a carton
