horizontal mixer 1000 kg pig feed mixer machine price
- Category: >>>
- Supplier: Shandong Double Crane Machinery Manufacture Co. Ltd.
Share on (62310835908):
Product Overview
Description

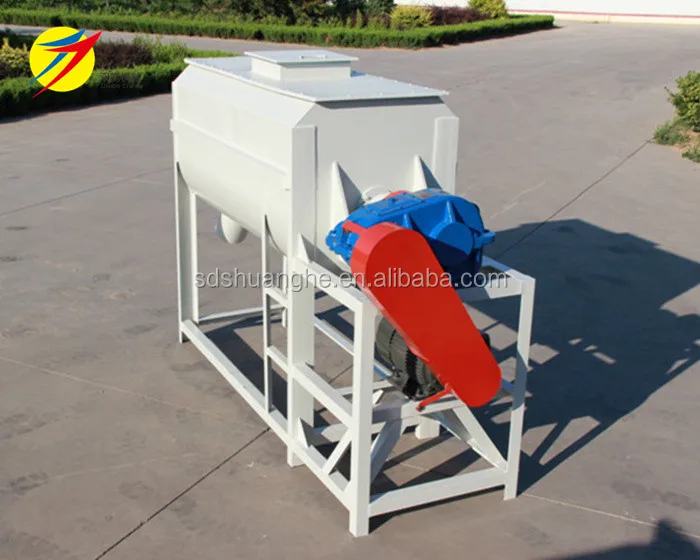

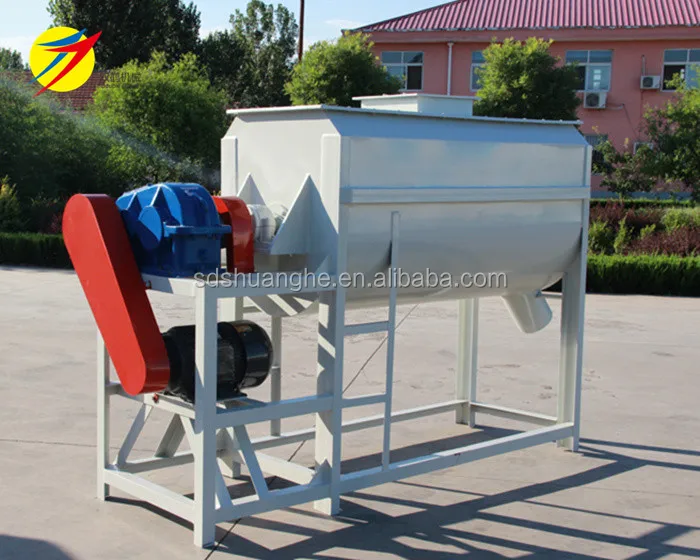

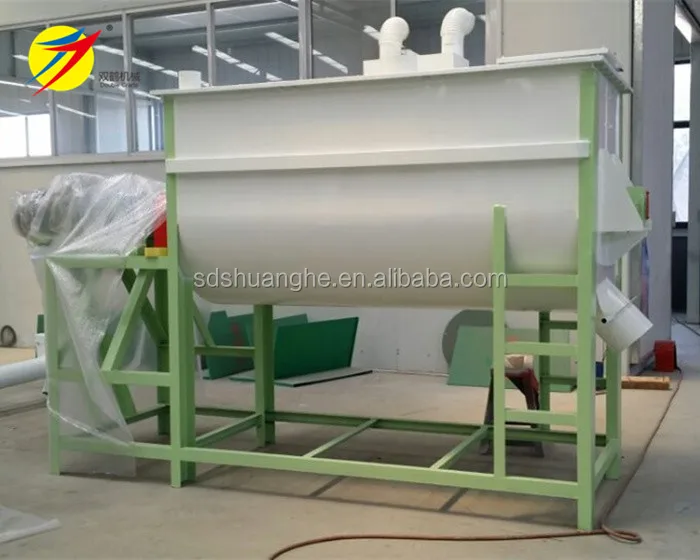

horizontal mixer 1000 kg pig feed mixer machine price
Product Description
Horizontal chicken feed mixer is the second key part of a complete feed pellet production line used to mix
the dry ingredients well. Because of variety of raw materials particles,it is necessary to mix them together.
It is also designed with nozzles which liquid ingredients may be added and blended with dry ingredients to
make a homogeneous mixture of all.
Shandong double crane brand SH series horizontal ribbon feed mixing/mixer machine for pig/chicken/cattle/
poultry/animal feed is designed with high homogeneity,short mixing time,less residue,good sealing effect
without leakage. Our SLHY0.5 feed mixing machine widely is used in feed powder making uint and feed
pellet making line to meet the different animal taste.

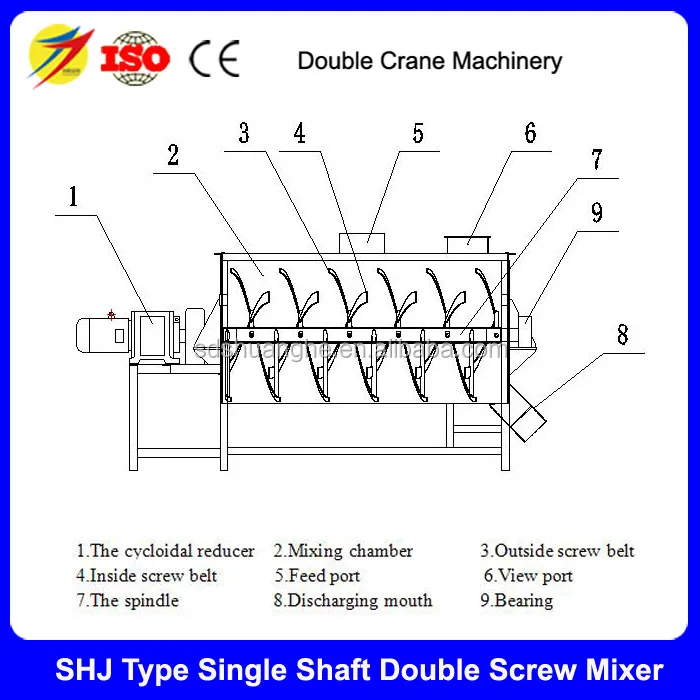

Working principle&basice structure for pig feed mixer machine price
A screw conveyor or bucket elevator is match with feed mixer as a feeding device, there is two feeding
devices, one is to transport the main crushed ingredients particles or powder , the other is for lifting the
auxiliary ingredients such as vitaimin,amino acid and so on. there is two inlets on the top of feed mixer
to receive the above ingredients.
Some animals like to weet taste feed pellet , molasses or lquid flavoured ingredients can be added with
a few atmizing nozzles.You can observe the ingredients feeding and mixing condition by view port.

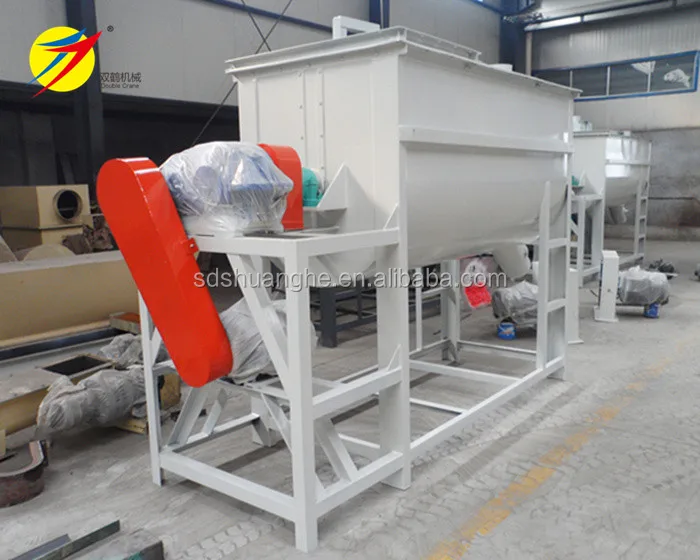

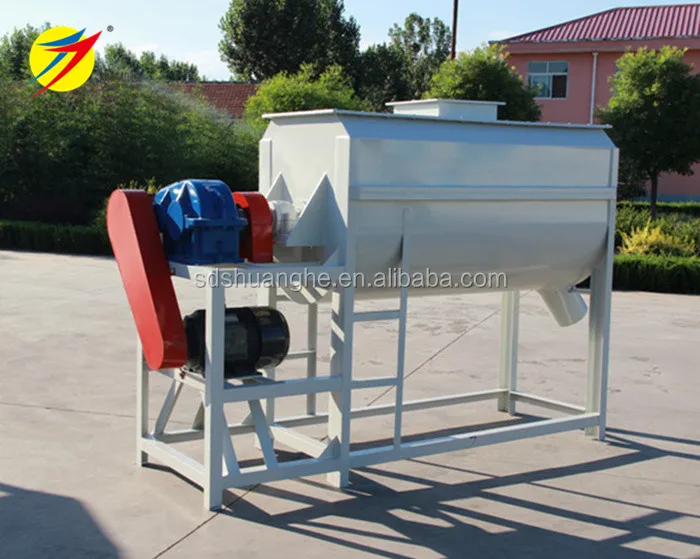

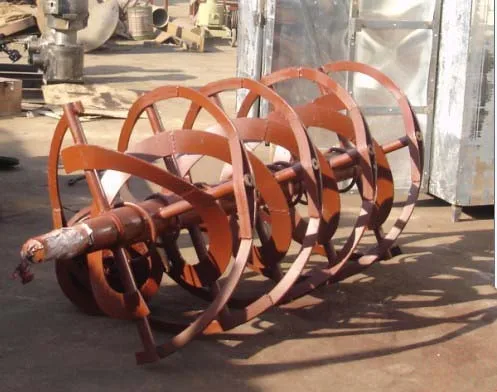

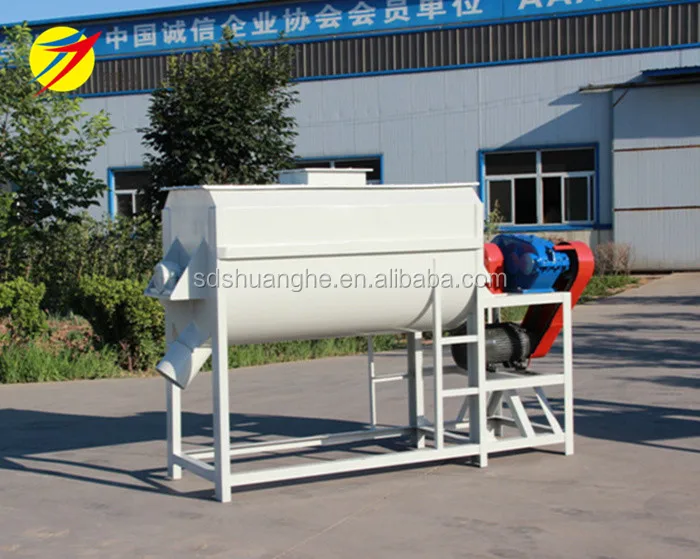

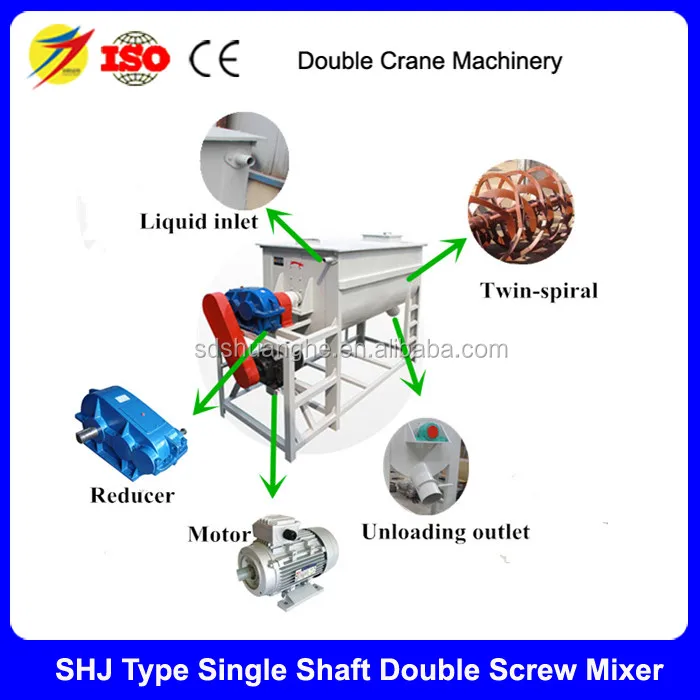

The"twin-spiral" mixer consists of a horizontal, stationary, half-cylinder with revolving helical ribbons
placed on a central shaft so as to move materials from one end to the other as the shaft and ribbon
rotate inside.
Capacity can be from a few litres to several cubic metres. The speed of shaft rotation will vary inversely
as the circumference of the outer ribbon; usually optimum between 75-100 metres per minute.
Finally the final product is unloading by the dicharge system with controll manual valve gate.
 |
 |
Main technical data for pig feed mixer machine price
| Model | SLHY-0.5 | SLHY-1.0 | SLHY-2000 |
| Motor Power(kw) | 4 | 7.5 | 11 |
| Mix Capacity(ton) | 0.25T/Batch | 1.0T/Batch | 2.0T/Batch |
| Effective Volume(m³) | 0.5 | 1 | 2 |
| Dimension | 2.36*1.36*1.1 m | 3.22*1.04*1.46 m | 3.4*1.1*1.9 m |
| Carbon Steel(mm) | 3-10mm | ||
| Mixing Time(minutes) | 3-5 minutes/Batch | ||
| Mixing Evenness (cv%) | CV ≤ 5% | ||
| Structure | "U" shape horizontal double helical ribbon mixer,Mainshaft speed 25rpm | ||
| 1. High degree of mxing homogeneity without segregation,chain driven for stable transmission |
| 2.Short mixing period, quick discharging,less residue,good sealing effect without leakage |
| 3.Can add multiple atomizing nozzles to add liquild, CV is less than5% |
| 4.Also can supply the mixer made of stainless steel |
Q:How a feed mixer is used in the feed mill ?
A: one is to match with a hammer mill as group to produce premix
the other is used in the chicken ,animal, pig, cattle feed production line as a mixing section

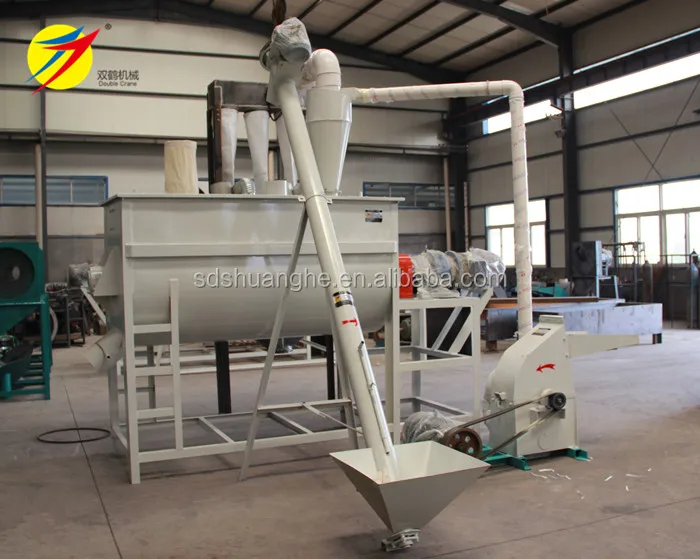

One : A typical example is chicken feed making group as follows: A hammer mill, mixer,screw conveyor,
cyclone and dust collector.
1.Feed Hammer mill:crush the grain into particles or powder which are lifted into the feed mixer by PVC tube.
2.Feed mixer: only mix all the raw materials uniform and together.
3.Screw conveyor: to add the other auxiliary ingredients into the feed mixer.
4.Cyclones: two small ones are colleting the dust from crushing and mixing process, the big one is as a
channel for crushed raw materials into feed mixer and also dust passing channel into dust collecting bag.
5.Dust collecting bag: some dust gas can flow into the bags to be get rid of.

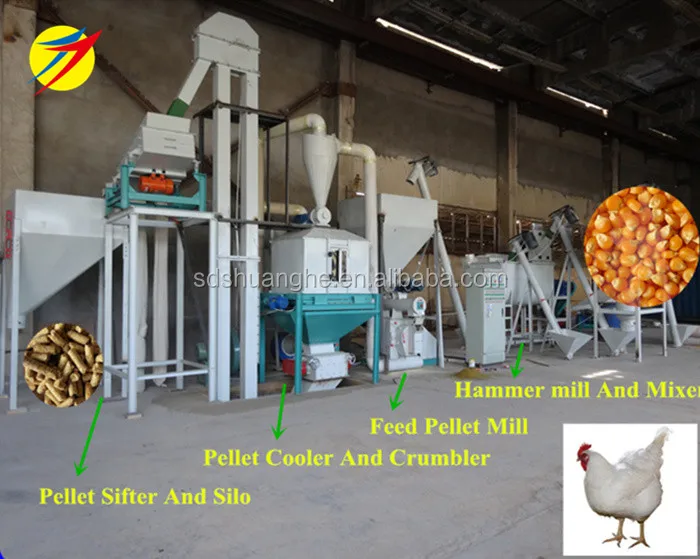

Two: Feed mixing machine is almost used in 1-2 T/H feed pellet production line
Other type feed mixer:

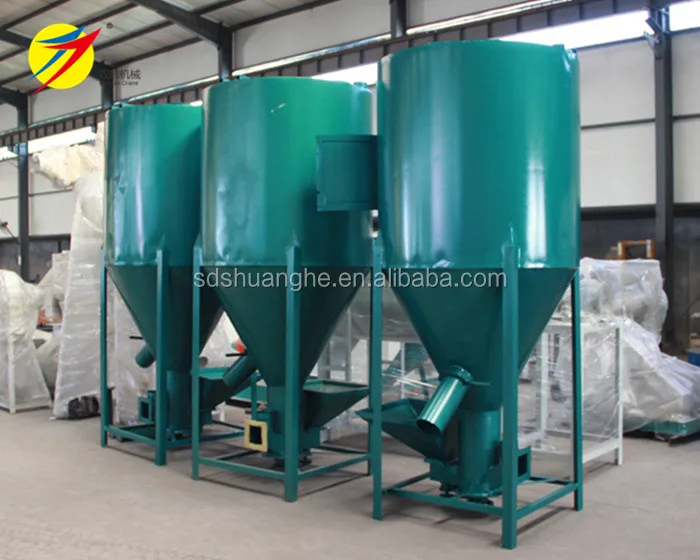

Vertical feed mixer for chicken/pig
Horizontal double shafts paddle feed mixer for goat/cow/cattle/animal
Prime quality is tested by CE certificate:
Packaging & Shipping
Loaded By Wooden Base into Container:
Size:2360*1360*1100 mm,weight:800kg
Company Information
Shandong Double Crane Machinery Manufacture Co.,Ltd. is located in economical and technological
development zone, Leling city,Shandong province,very close to the expressway from Beijing to Shanghai.
Our company is the high and new technological enterprise dedicated to manufacture feed pellet machines
and biomass pellet machines to worldwide users.
Sticking to the product developing ideas of simplicity,perfection,quality and innovation,we have been
Sticking to the product developing ideas of simplicity,perfection,quality and innovation,we have been
always focused on designing and manufacturing feed pellet machines and biomass pellet machines
since the foundation in 2005.
We had cooperated with domestic famous universities like Shandong University,Jinan University
We had cooperated with domestic famous universities like Shandong University,Jinan University
and Shandong Agricultural University in feed pellet production line and biomass pellet production
line research and development since 2008.We had obtained more than 30 patents and successfully
developed 8 series of products,including 60 different kinds of machines.
In the feed pellet industry ,we had achieved advanced level in man-machine design,functional design,
In the feed pellet industry ,we had achieved advanced level in man-machine design,functional design,
automatic control and user experience and became the professional pellet mill manufacturer in China.
We have strong competitive advantages in feed production line with the capacity of 1-30 tph and
biomass pellet complete line with capacity of 1-50tph.Until now,we had installed more than 1200
sets of machines worldwide.

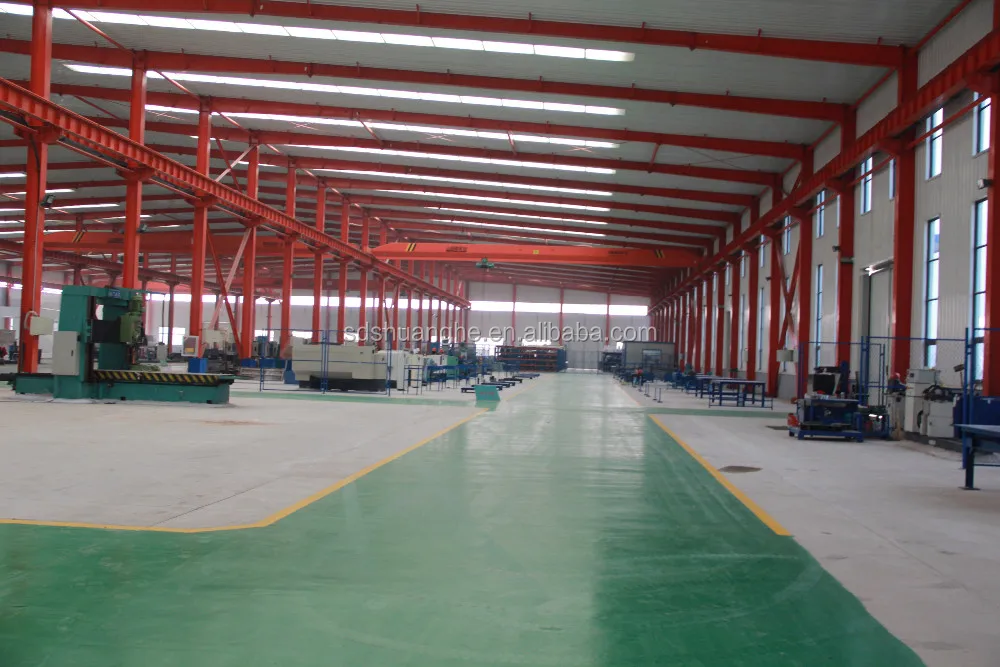

In recent years,our company continuously increase investment.We had invested up to 60 million Yuan
In recent years,our company continuously increase investment.We had invested up to 60 million Yuan
to build 19,200 square meters manufacturing base and 10 million Yuan for technological innovation,
in-depth automatic and integrative technology development.These investments have greatly promoted
the upgrading of the machines,offering best quality solutions for feed industry and biomass pellet industry.
Double Crane Machinery is willing to become your partner with our high price-performance products,
excellent quality and perfect after-sales service.
Promise provide customer Best Quality! Best Price! Best Service! Your satisfaction is our responsibility!
Our Services
Factory Professional Service:
1.We devote to all-round service of all the products from shipment to maintenance.
2.Our professional service include:free training,guidance,onsite installation,and debugging.
3.After selling, we provide the warranty of two years and free technical guidance and spares parts supply.
4.If your equipments have any problems, we will help you to solve online or onsite in time.
5.Welcome oversea agents to join us expand internation market.
6.Welcome to contact us for further information!
FAQ
1.Are you manufacturer or trading company?
R:Our company is manufacturer and public company,we have been specialized in this field more than
ten years. our company's factory covers an area of 67000 square meters,registered capital 60 Million RMB.
2.How can your promise the equipment quality?
R:Our company pass European Union GS Safety Certification,ISO9001 Quality Management System
Certification, Chinese Credit Enterprise Association, AAA Quality Credit Enterprise Member,
Well-known Trademarks In China.We have professional R&D and production team can promise
all equipment is qualifyed befor deliver to customer.
3.If we want to establish a feed pellet production line,can you help us?
R:Yes,our company can provide service free design,training,guidance,onsite installation,and debugging.
Welcome to contact for further information,I will respond to you within 12 hours
