Aluminum Aerosol Can Making Line
Production Application

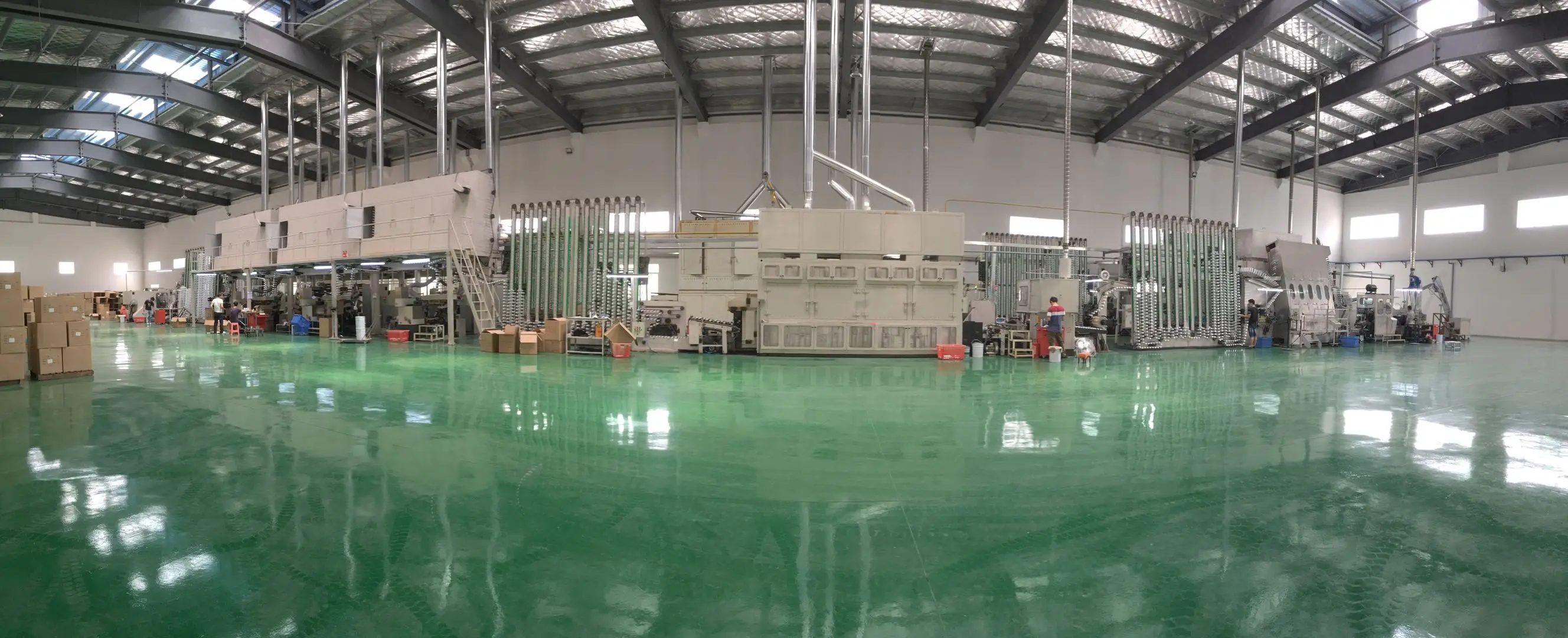

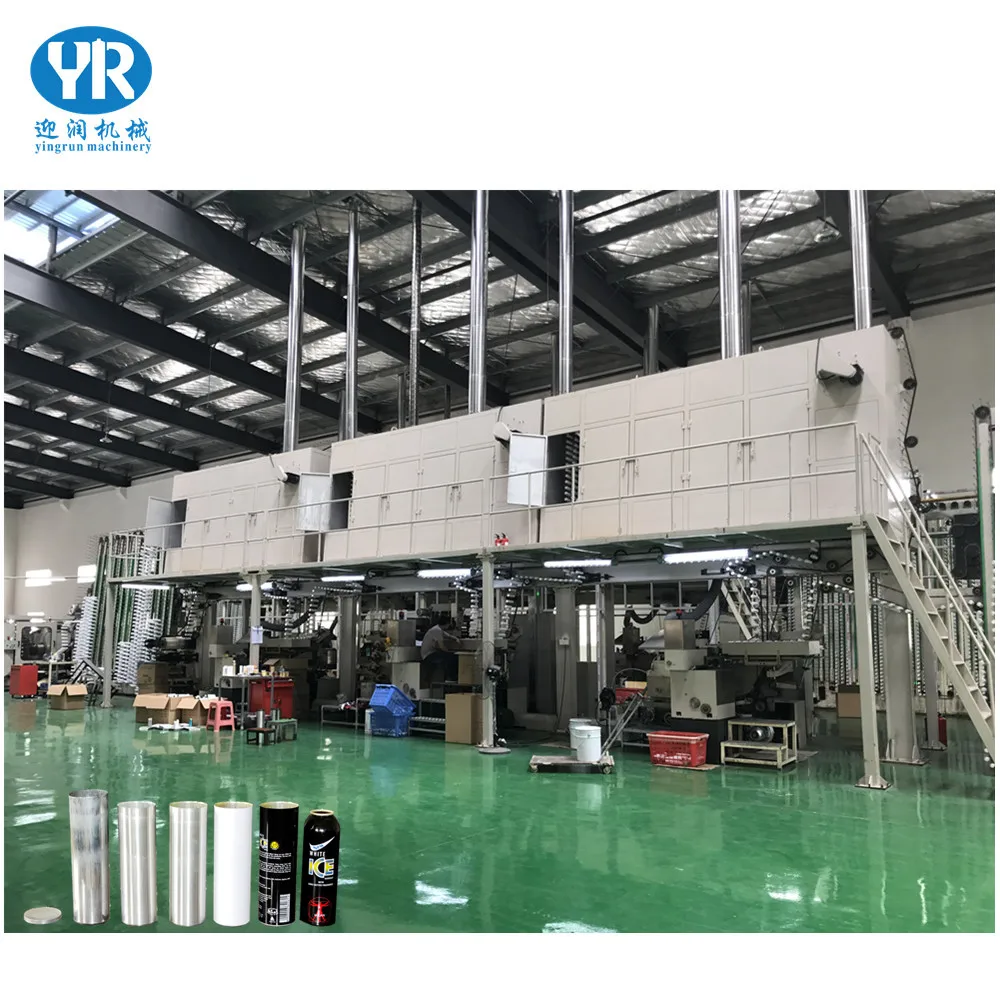

Aluminum can line are a set of machines to produce mono block aerosol cans and bottles.
Monoblock cans and bottles are used for perfume, deodorant, hair sprays, shaving creams, pesticide bottles, aluminum tubes, hair sprays, conditioners, medicines, fire extinguishers, oil and paints.
The YRC series aluminum can lines produced by us are fully automatic. Each equipment of this series can work alone or form partial production lines according to client's needs. The main machines include LJC01 Extrusion press, XSC01 Trimmer cum brushing, QXC01 can washer or degreasing Spray washing machine,CCC01 Accumulator, PTC01 Internal lacquering machine, GHC01 Lacquer curing oven, DYC01
Base-coating machine, YSC01 6-color or YSC02 8-color printing machine, HXC01/02 Drying oven, SJC01 and SJC02 Necking machine, etc.
All the equipment of the series are properly aligned in structure, having advance design, highly automated for fast production. All machines are controlled with SIEMENS PLC to ensure stability. To save energy consumption, all lacquer curing machine and drying oven adopt gas heating. Main units and controlling components all adopt branded products to ensure reliable and stable performance. All the products can be passed automatically through the production line. The color touch screen can display the instant information of speed and production, making it convenient for management.
SPECIFICATIONS OF ALUMINUM AEROSOL CANS MAKING LINE | ||
Production Speed | ≤120pcs/min | |
Diameter | φ22㎜- φ35㎜,φ35㎜-φ53㎜ or φ45㎜- φ66㎜ | |
Motor Power | 230KW | |
Intake Pressure | 0.55MPa | |
Dimensions | 69000×4500×6300㎜ | |
Gas Consumption | 500m³/24h | |
Would like to know more about our equipments? Feel free to send us an inquiry!
Main technical parameters
1. Production speed:≤120pieces/min
2. Diameter: φ22mm- φ35mm,φ35mm-φ53mmorφ45mm- φ66mm
3. Motor power:230KW
4. Dimensions:69000×4500×6300(mm)
5. Intake pressure:
6. Gas consumption:
Main configuration list
1. PLC: SIEMENS
2. Touch screen:Pro-face
3. Pneumatic element:FESTO
4. Terminal display:SIEMENS
5. Bearing:NSK or NTN
6. Approach switch:BANNER
7. Photo switch:TURCK
8. Divider:TANTZU
9. Electrical component:SCHNEIDER or OMRON
Would like to know more about our equipments? Feel free to send us an inquiry!
Certifications
Company Profile
Wuxi Yingrun Machinery Technology Co., Ltd. is located in beautiful Wuxi, China, only 150 kilometers away from Shanghai.
The company is mainly engaged in the production, sales, consulting and service of aluminum tube production line, aerosol can production line and toothpaste production line. We have more than 20 years of experience. Our products have passed the EU CE certification. Providing customers with better products and services is always our code of conduct. We also provide professional consulting and technical support to our clients.
The company is mainly engaged in the production, sales, consulting and service of aluminum tube production line, aerosol can production line and toothpaste production line. We have more than 20 years of experience. Our products have passed the EU CE certification. Providing customers with better products and services is always our code of conduct. We also provide professional consulting and technical support to our clients.
Why Choose Us
Product packaging
Would like to know more about our equipments? Feel free to send us an inquiry!
FAQ
Q: What's the MOQ?
A: 1 set.
Q: Are you trading company or manufacturer?
A: Both. We have our own factory to produce machines and also as the agents of some materials, such as parts, slug, latex...
Q: How long is your delivery time?
A: 1-10 months by negotiation.
Q: What's the warranty time?
A: One year start from installed.
A: 1 set.
Q: Are you trading company or manufacturer?
A: Both. We have our own factory to produce machines and also as the agents of some materials, such as parts, slug, latex...
Q: How long is your delivery time?
A: 1-10 months by negotiation.
Q: What's the warranty time?
A: One year start from installed.
