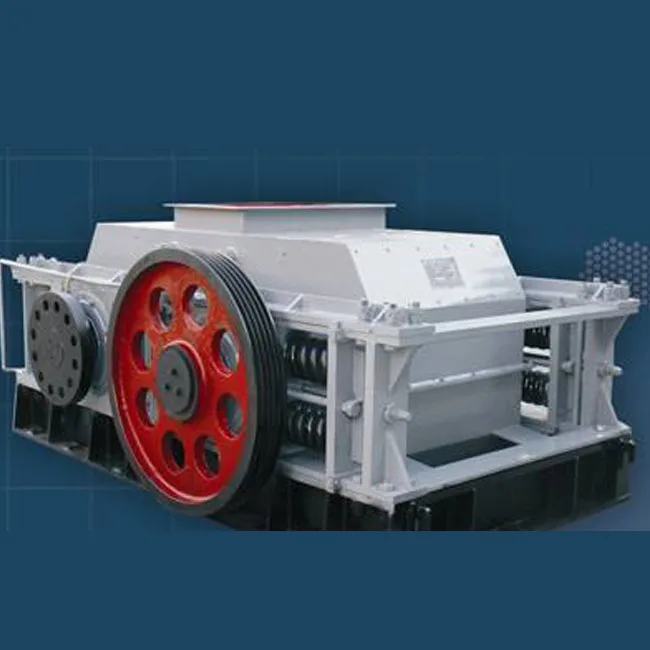

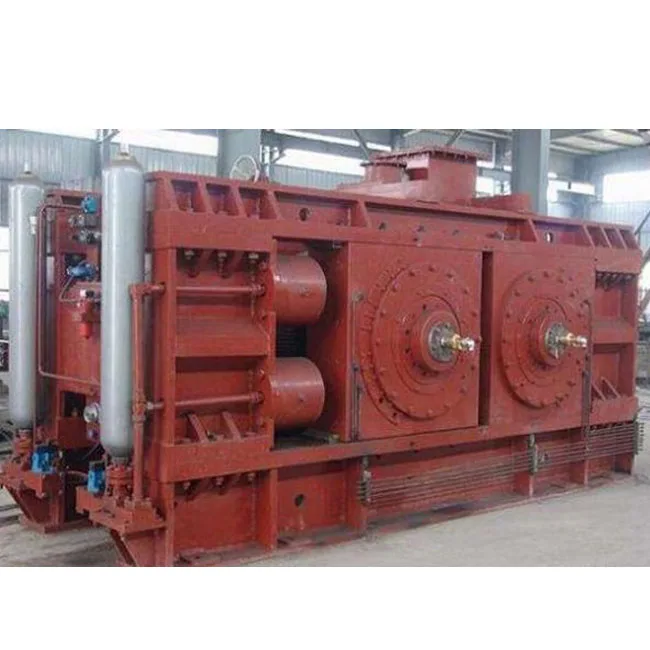

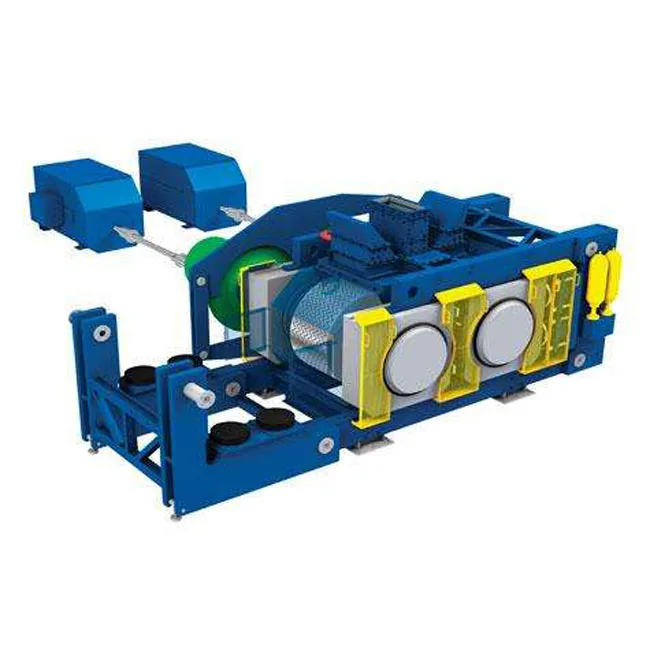

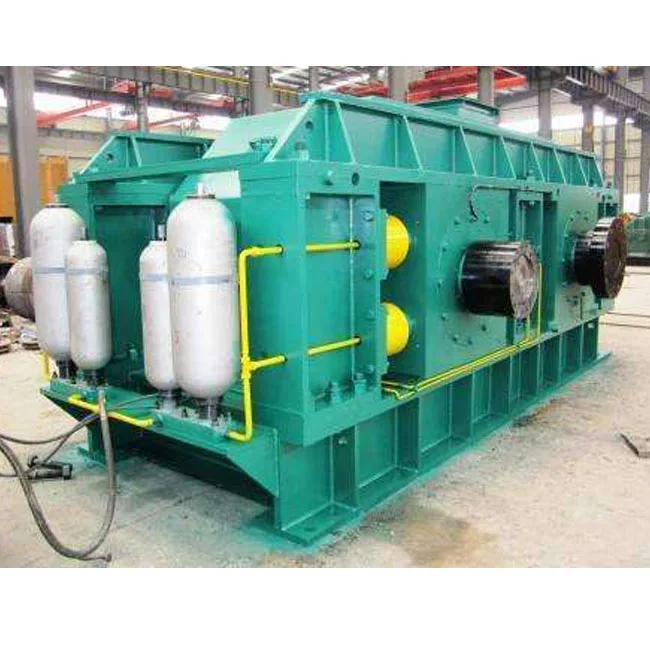

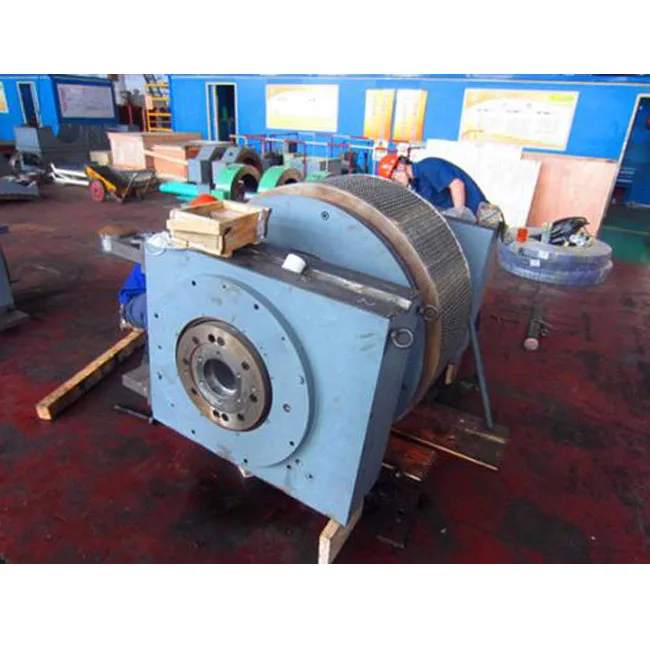

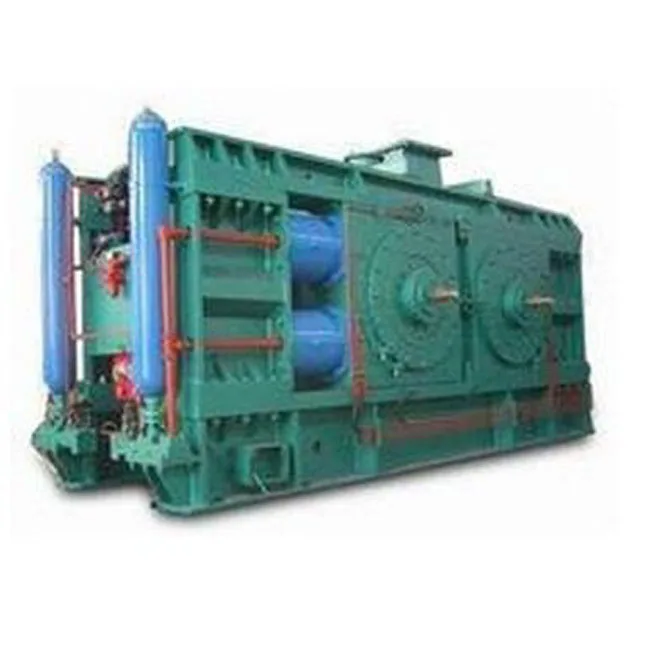

High quality shaft roll press equipment

High quality shaft roll press equipment adopts the principle of low energy consumption of high pressure layer crushing and adopts the working method of single particle crushing group. Fragile materials undergo high-pressure extrusion(the pressure of machine in the pressure area is about 150MPa) to rapidly reduce the particle size of the material, the fine powder content of less than 0.08mm reaches 20 to 30%, and the material of less than 2mm reaches more than 70%. In addition , there are a lot of cracks in all the compressed materials, which greatly reduces the energy consumption when the materials are grinding in the next process. The grinding system using this device can increase output by 20-35%. And because of the small wear and tear, the unit wear is greatly reduced. At the same time, this noise and powder of the equipment work are small, which Improves the working environment of the workers and fully shows its outstanding economic and social benefits.

Working principle

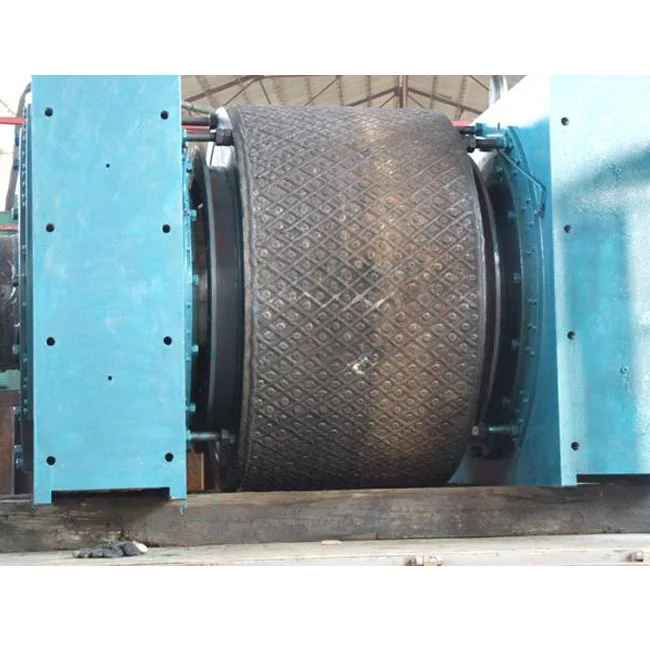

The effective crushing of materials by the roller press is based on the principle of single particle crushing group of large energy input, that is, intergranular crushing. The way to achieve the crushing principle is to use a pair of grinding rolls with opposite rotation, one for the moving roller and one for the fixed roller. Among them, the bearing seat of the active roller is connected with the hydraulic system that provides pressure, and the fixed roller is fixed in the inner cavity of the main frame. The moving roller applied high pressure to the material under under the pressure of the hydraulic system will continue to crush effectively through the material in the pressure area between the two grinding rolls. Through the observation of high magnification microscope, we can find that the crushed material surface is covered with cracks, which shows that not only the granularity of the material is greatly reduced, but also its abrasiveness is significantly improved, which will play a crucial role in greatly increasing production and saving energy of the grinding system.

1.International export standard packing of roll press

2.small parts are woodened box package
3.main engine nude,container,or customer 'requirement

Q1.How long is the warrenty of your equipments?
The warranty period of our equipments is one year.
Q2. What Information should customers give us, So that we can be able to provide you suitable quotation and service.
What minerals are you separating?
What's the maximum size of your raw minerals?
How much capacity do you need per hour for your project?
Q3.Can you test our samples?Do you provide beneficiation flow chart?
Yes. You can send your samples to us for test and analysis. Our experienced engineers are specialized in designing process flow for various ores beneficiation, including iron ore, tin ore, copper ore, gold ore, lead zinc ore, manganese ore, etc.
Q4. If I need the complete crushing plant can you help us to build it?
A: Yes, we can help you combine a complete crushing line and give you related professional advices as long as you need. We had already build many mining projects in China & Overseas.
