Product Overview
Description
Product Description

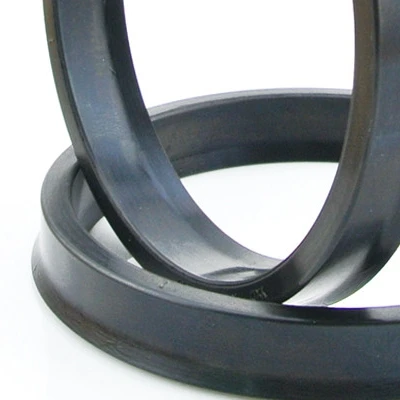

YX-D Piston Seal shaft seal ring is widely used in a various copper cylinder and generally used in equipment oil cylinder to play a good sealing role in the reciprocating movement. And simple structure, easy to install, small cross-sectional area, products with oil resistance, wear-resistant properties of product use: for the reciprocating movement of the piston seal cylinder.
Polyurethane (PU) is a special material that offers the resilience of rubber combined with the toughness and durableness. It allows people to substitute rubber, plastic and metal with PU. Polyurethane can reduce factory maintenance and OEM product cost. Polyurethane has better abrasion and tear resistance than rubbers, and offering higher load bearing capacity.
Compared PU with plastic, polyurethane not only offers excellent impact resistance, but also offers excellent wear resistant and high tensile strength. Polyurethane have subsituted metals in sleeve bearings, wear plates, conveyor rollers, rollers and various other parts, with benefits such as weight reduction, noise abatement and wear improvements.
Material | PU |
Temperature(℃） | -20~+120℃ |
Pressure | 40MPA |
Medium | Mineral oil based, hydraulic fluids,water |
Hardness | 90-95 shore A |
Standard or Nonstandard | standard/Customize |
Application | Heavy machinery, Pump, oil cylinder, etc. |
Installation instructions
1: Make sure the mechine is chamfered; if not, use the mounting sleeve.
2: Deburr and chamfer or chamfer sharp edges; cover the end of the bolt threads to prevent scratches.
3: Remove processing residues, such as dust, debris and other external particles, and clean all parts.
2: Deburr and chamfer or chamfer sharp edges; cover the end of the bolt threads to prevent scratches.
3: Remove processing residues, such as dust, debris and other external particles, and clean all parts.
4： Use non-sharp edge installation tools to prevent damage to seals and cylinders.
Advantages
1. Particularly strong wear resistance.
2. Insensitivity to shock loads and pressure peaks.
3. High crush resistance.
4. It has an ideal sealing effect under no load and low-temperature conditions.
5. Suitable for demanding working conditions.
6. Easy to install.
2. Insensitivity to shock loads and pressure peaks.
3. High crush resistance.
4. It has an ideal sealing effect under no load and low-temperature conditions.
5. Suitable for demanding working conditions.
6. Easy to install.

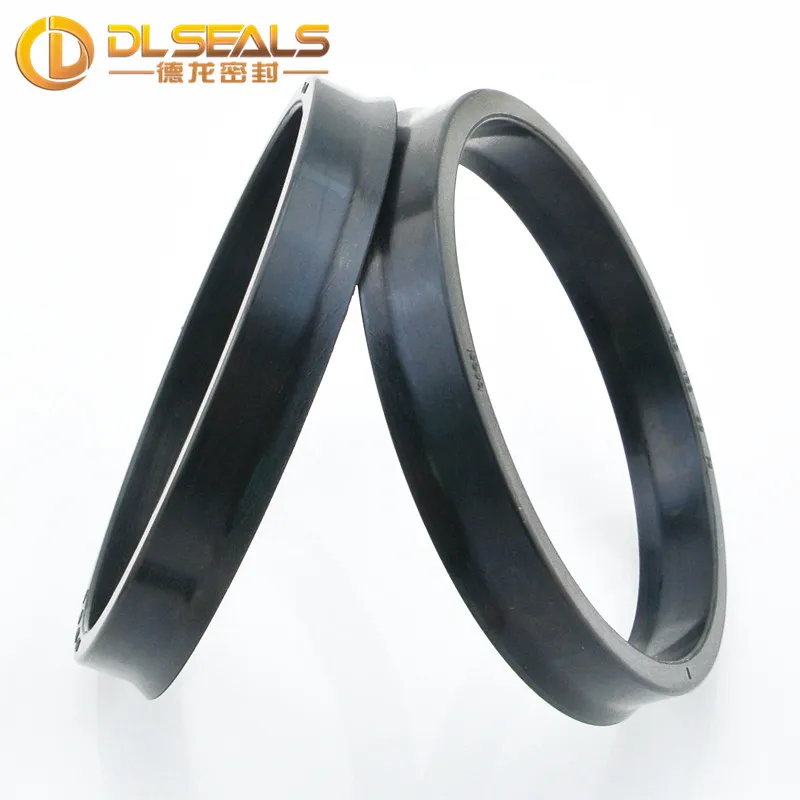

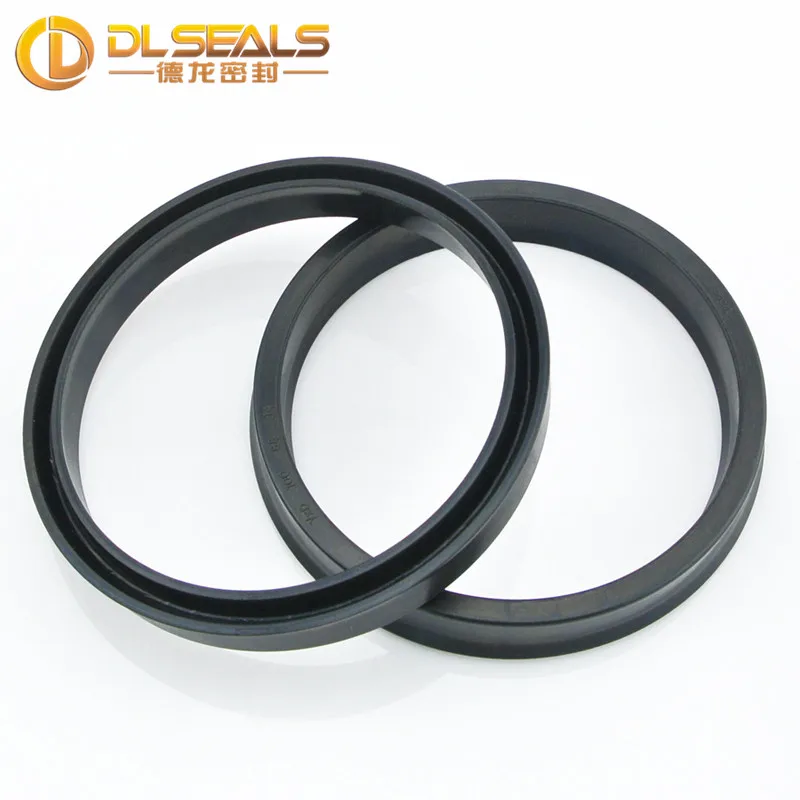

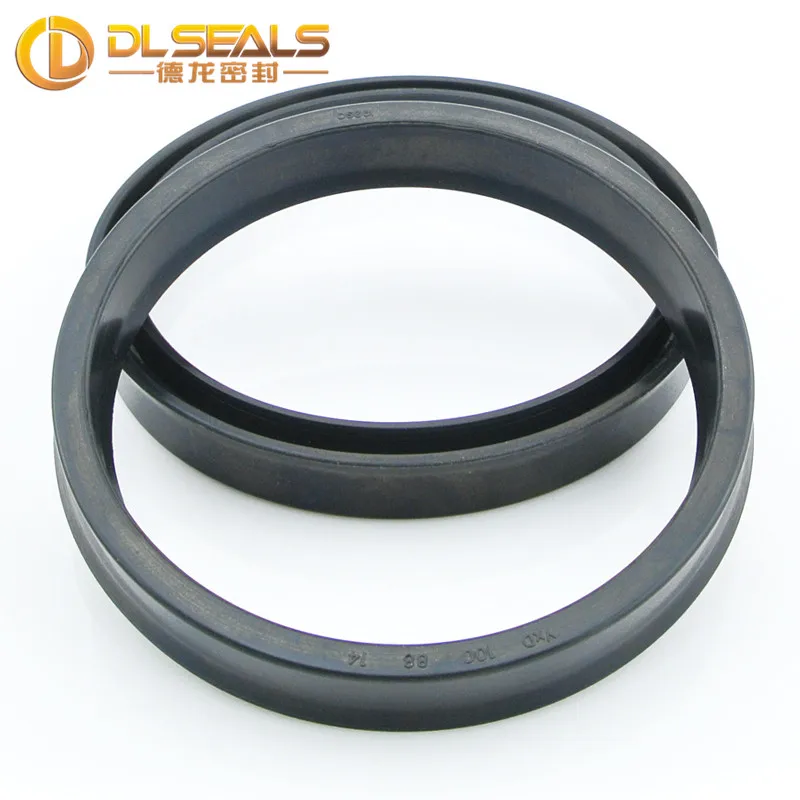

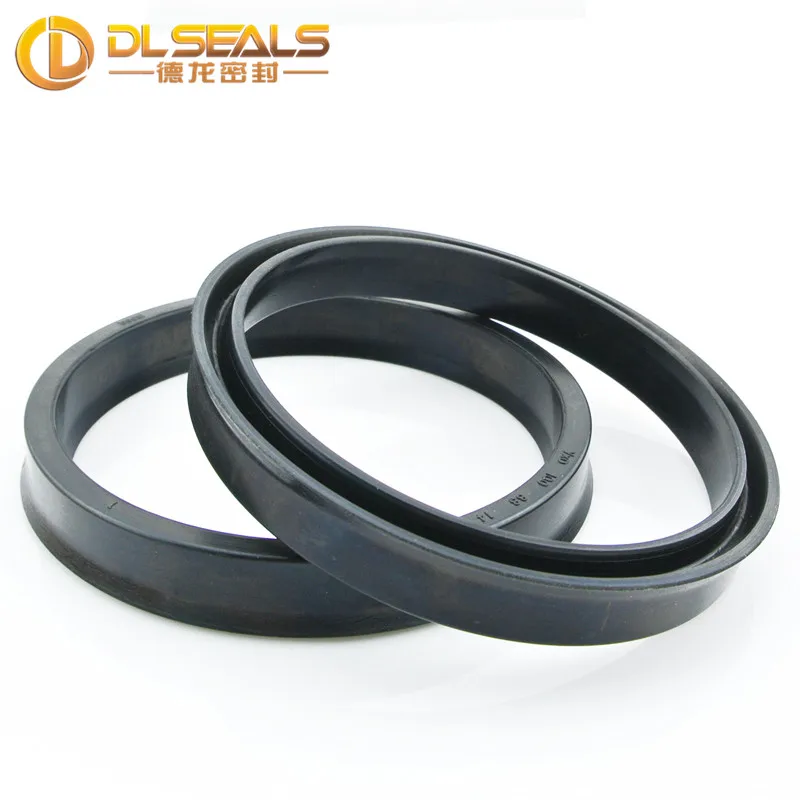

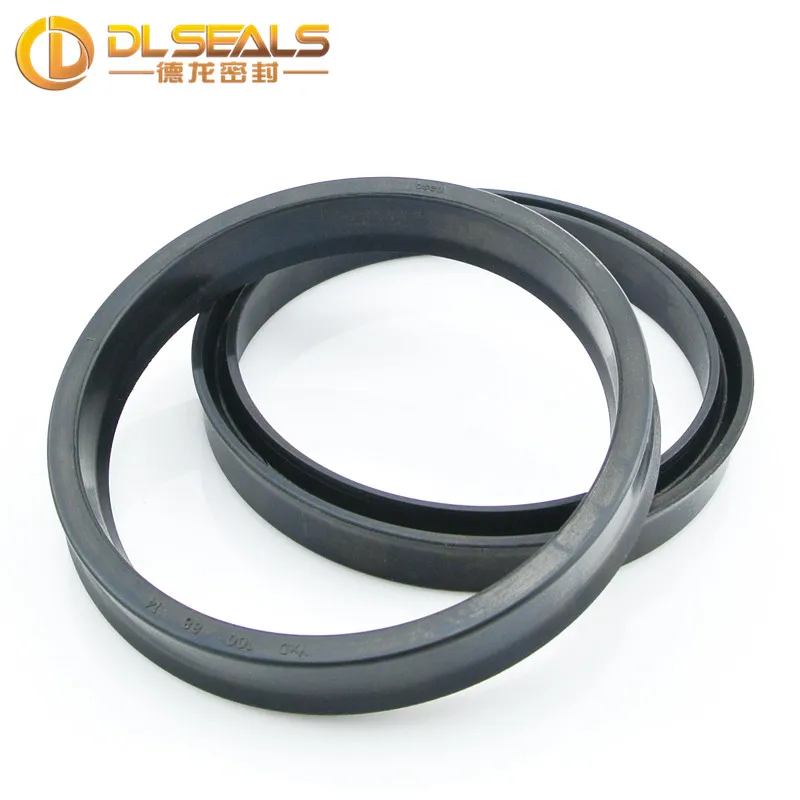

Details Images

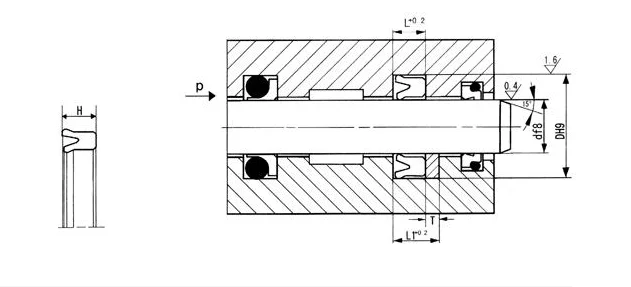

Size Information

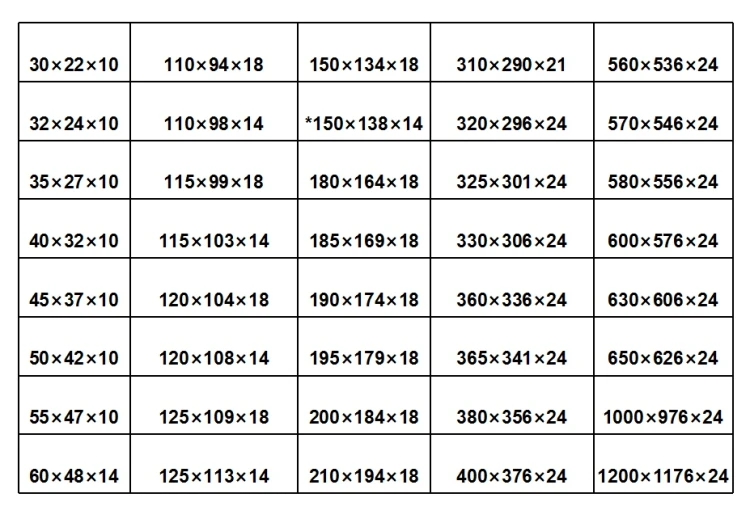

Size Chart of This Design
The diameter of seals from 0.5mm-3500mm
More quantities, sizes, colors, and materials, or if you choose the nonstandard one, please contact Laney Li.
