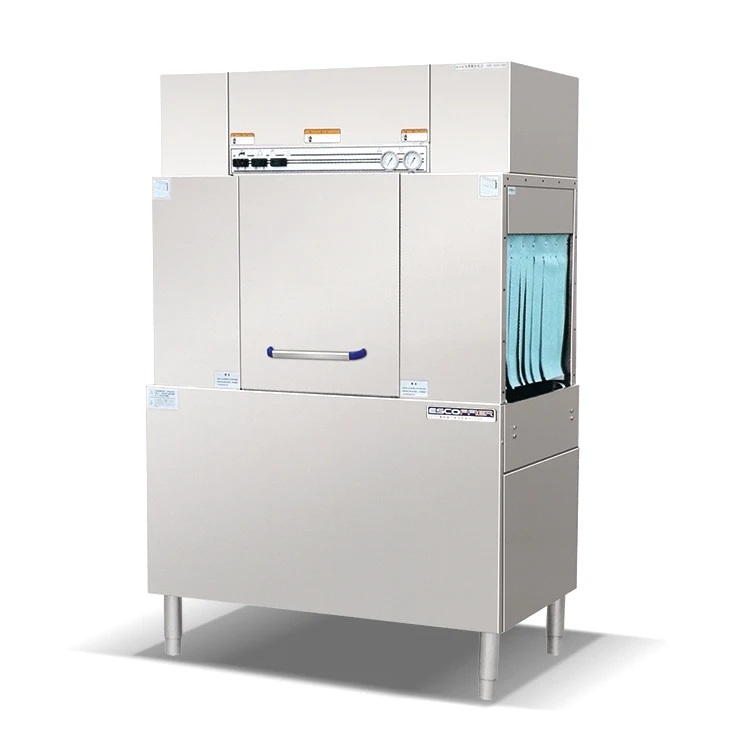

Professional Commercial Kitchen electric Series of channel type dishwasher Hood Type Dishwasher

National standard 304 #8 nickel  =1.0-4.0mm stainless steel materials,

Imported AMADA CNC laser cutting machine is expected to open, import AMADA CNC  machine bending  bending forming ,so that the accuracy of the product to achieve 1‰.

Assembled cleaning spray arm and nozzles, not only easy to disassemble, easy to clean .Oval wash range, leaving cleaning without dead ends.

Since large capacity stainless steel sieve plate punching and large dark screen basket can be removed for easy cleaning.

Automatically turn off when closing the outlet, convenient and practical.

Double doors and door switch automatic locking feature designed to bring assurance from the user point of view of safety and practicality.

Motor overload protection function, effectively prevent the damage is not the time for personnel to operate the equipment itself.

Automatic water system, automatic temperature control system, heated water tank automatic water power protection system concept design, not only make the machine itself more powerful, leaving the user to operate worry, must be assured.

This product has been the state authority, through the CE certification, is the National Federation of kitchenware Industry Association of China only designated commercial dishwasher famous brands, and has awarded honorary certificates issued by the relevant departments. This product not only received praise in the country, but also exported to Germany, Indonesia, Thailand, Yugoslavia and other countries.

Power: 380v/50hz3p(three-phase five-wire system), cable: 2 GB 25mm²;

Steam Connection: steam pressure: 0.5-3.5Bar; steam consumption: 70kg/h;

Gas connection: water pressure >0.15Mpa; Gas Consumption: 5-5.5ma/h;

gas generator tank 68kg, external tank 120Kg;

Inlet diameter: 6(t); drain diameter: 2(in); Water pressure: 1.055kg/cm²~ 1.76kg/cm², preferably 1.4kg/cm²,you need to install pressure over 1.7 6kg/cm valve(with other companies);

Water temperature: 10C℃or 50 ℃, according to the configuration of the heater;

Water hardness: 0.034-0. 103g/L;

For information about installing an exhaust hood(other companies),

Displacement: inlet end -5.7m /min outlet end -11.3m³/min

Q1: Are you a trading company or factory?
A1: We are a kitchen equipment factory in Shandong province.

Q2: What's the MOQ of your products? Can I have a sample order?
A2: Our MOQ is  one container.Yes,we can offer sample firstly.

Q3: How is the quality of the products?
A3: All the equipment are equipped with high quality spare parts to ensure the whole quality, safe,

stable and pretty.

Q4: How to proceed if I want to print my own logo?
A4: First,please offer your logo design drawing and the position of the logo,next we will make a

sample, then sample picture or send sample to you for confirmation, finally we will go ahead for

mass production.

Q5: How about your packaging? Can you offer OEM packaging?
A5: Carton packing or wooden frame packing without fumigation. Yes, OEM packing alsowelcomed.

Q6: What's the lead time?
A6: For samples is 3~7 days,mass production time is 25days after payment with one container.

Q7: How about your after sales-service?

A7: 1.Warranty: 1 Year.

      2.Maintenance policy: If there is defective in warranty, please collect them together and send pictures

to us,we will offer technical supports and spare parts according to the condition, and to discuss how to

bear the cost(freight).

Q8:  Free Spare Parts

A8: We offer 5% free spare parts from order quantity when you order more than 100pcs in one time.

Q9:   What document we can offer

A9:According to your request, we can offer:

C/O (certificate of origin)

FORM E / FORM F / FORM A / FORM P / FORM B / FORM R / FORM N

CCPIT stamp

Fumigation certificate

Bill of Lading

Commercial Invoice

Packing List.

Embassy stamp (Fees paid by the buyer)

CIQ (Fees paid by the buyer)

Welcome to visit our factory any time. Please feel free to contact us.
