P0080E TO 92 TSS E Series тиристорный стабилизатор напряжения 6 В 320 в Защита от перенапряжения светодиодный индикатор обнаружения THT P0080

Product Overview

Description

YINT TSS thyristor surge suppressor Series



TA Series
P0080TA,P0220TA,P0300TA,P0640TA,P0720TA,P0900TA,P1100TA,P1300TA,P1500TA,P1800TA,P2300TA,P2600TA,P3100TA,P3500TA,

S Series  SA/SB/SC
P0080SA,P0220SA,P0300SA,P0640SA,P0720SA,P0900SA,P1100SA,P1300SA,P1500SA,P1800SA,P2300SA,P2600SA,P3100SA,P3500SA,
P0080SB,P0220SB,P0300SB,P0640SB,P0720SB,P0900SB,P1100SB,P1300SB,P1500SB,P1800SB,P2300SB,P2600SB,P3100SB,P3500SB,
P0080SC,P0220SC,P0300SC,P0640SC,P0720SC,P0900SC,P1100SC,P1300SC,P1500SC,P1800SC,P2300SC,P2600SC,P3100SC,P3500SC,

E Series  EA/EB/EC
P0080E,P0220E,P0300E,P0640E,P0720E,P0900E,P1100E,P1300E,P1500E,P1800E,P2300E,P2600E,P3100E,P3500E,

L Series  LA/LB/LC
P0080L,P0220L,P0300L,P0640L,P0720L,P0900L,P1100L,P1300L,P1500L,P1800L,P2300L,P2600L,P3100L,P3500L,

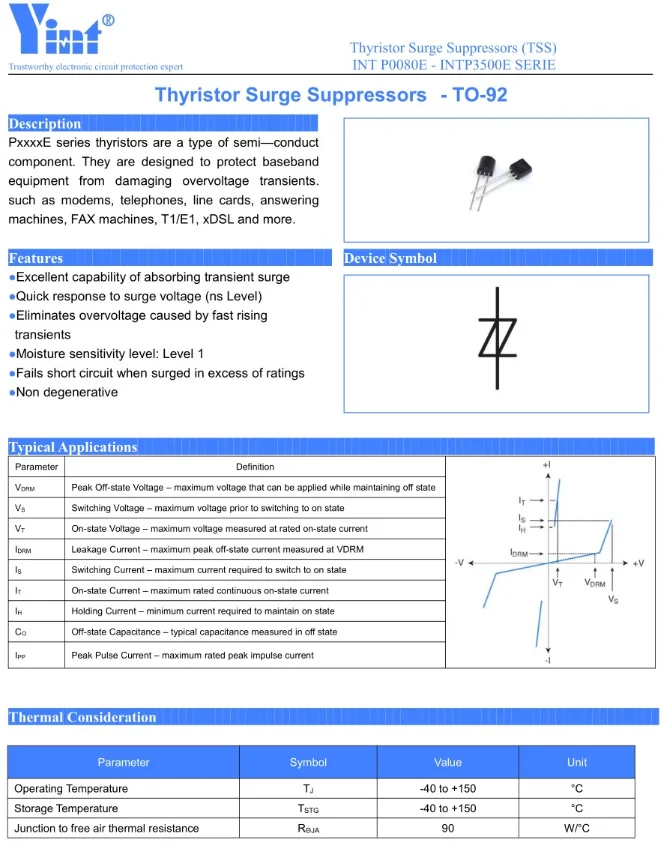

Description
YINT TSS TA/L/E/S series thyristors are a type of semi—conduct component. They are designed to protect baseband equipmentfromdamagingovervoltagetransients. such as modems, telephones, line cards, answering machines, FAX machines, T1/E1, xDSL and more.



Features
Excellent capability of absorbing transient surge
Quick response to surge voltage (ns Level)
Eliminates overvoltage caused by fast rising transients
Moisture sensitivity level: Level 1
Fails short circuit when surged in excess of ratings
Non degenerative
