550 kg baby hand small road roller compactor for asphalt paver FYL-S600CS
Product Description
The FYL-S600CS is a 550kg hand operate road roller with 600 mm tandem vibratory drums.

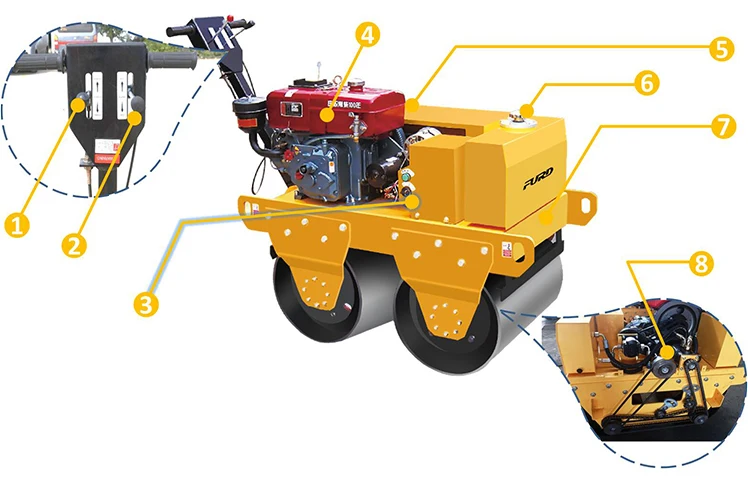

1. Accelerator handle
2. Forward and backward control handle
3. Electric start knob: the road roller can startup with light and flexible
4. 21 L Hydraulic oil tank: for the Italy made varialbe positon pump and full hydraulic system.
5. Water Cooled Diesel Engine: durable, superior performance, easy to start
6. 20 L Water spray tank: the water for asphalt compaction
7. Scraper: two scraper per drum
8. Hydraulic system: double drum drive and double drum vibration
Technical Parameter
550 kg baby hand small road roller compactor for asphalt paver Main Parameters.
OVERVIEW
Brand
FURD
Model
FYL-S600CS
OPERATING SPECIFICATIONS
Operating Weight
550 kg
Standard Compaction Width
600 mm
Travel Speed - Maximum
4.0 km/h
Static Linear Load
53 N/cm
ENGINE
Nominal Power
7.0 HP
Engine Model
CP90
Engine Type
Water Cooled Diesel Engine
Start
Electric
DIMENSIONS
Overall Length
1450 mm
Overall Width
1100 mm
Maximum Machine Height
1200 mm
Drum Width
600 mm
Drum Diameter
425 mm
VIBRATORY SYSTEM
Frequency
70 Hz
Nominal Amplitude - High
0.5 mm
Centrifugal Force Maximum
20 KN
Vibration Control
Automatic or Electromagnetic Clutch
SERVICE REFILL CAPACITIES
Fuel Tank Capacity
8.0 L
Hydraulic Oil Tank Capacity
21 L
Water Spray Tank Capacity
20 L

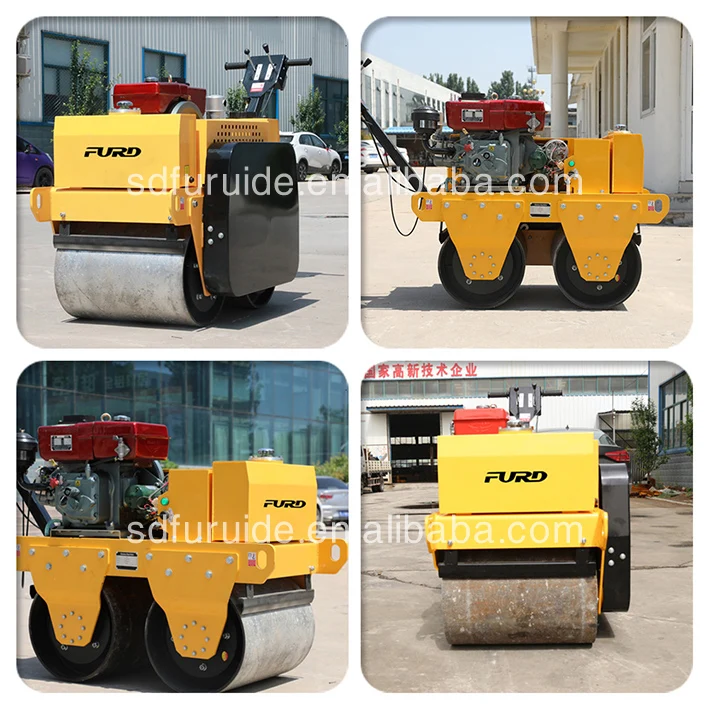

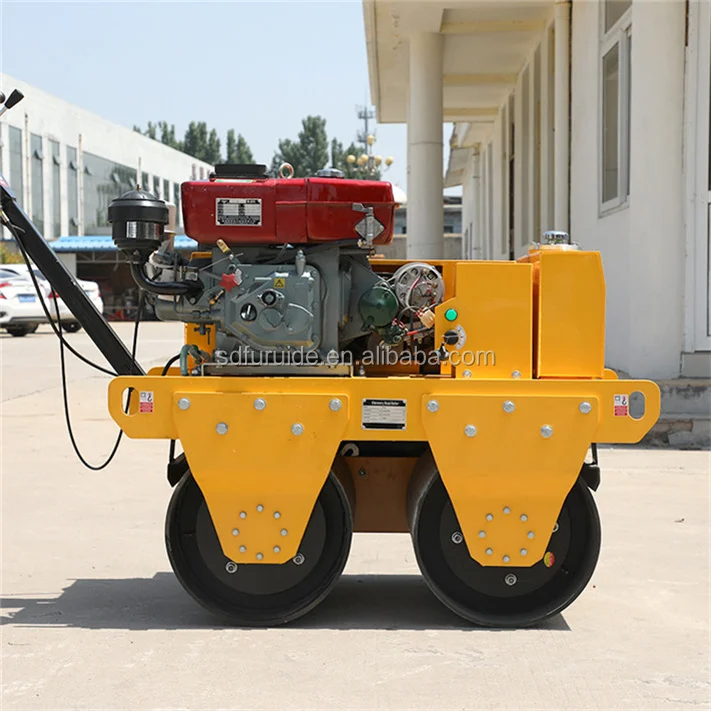

Product Photos
550 kg baby hand small road roller compactor for asphalt paver Introduction:
The FYL-S600CS small han guide road roller is a light self-propelled vibratory asphalt roller. It can effectively compact a variety of soil and asphalt.It is used new construction and repairs of sidewalks, hard shoulders, cycle paths, yards and drive ways, children playgrounds, tennis and sports grounds as well as agricultural and forestry road construction.
Features
Reliable, Durable Diesel Engine: With famous water cooled diesel engine, superior performance, easy to start;
Compact Design: Operating radius is small, can work in small area;
Efficient, Reliable Hydraulic System: The transmission mechanism of famous hydraulic drive system, and infinitely variable speed, reversing is convenient, long lifetime;
Excellent performance:
Double drum driving and vibration, ensure the compaction performance of the whole machine and gradeability.
Jining FURD Machinery Manufacturing Co., Ltd specialized in research & development and manufacture of Vibratory Road Roller since 2006.
Our main products are: Road Roller, Concrete Laser Screed, Concrete Truss Screed, Mobile Light Tower, Road Crack Sealing Machine with CE, EPA, ISO 9001 and ISO1400 certification.
We have been exported to more than 50 countries of the world, such as Australia, America, Canada, Russia, Brazil, Qatar, UAE and so on.
FAQ
Q1: Are you original manufacture?? A1: Yes, we are a manufacturer in China.
Q2: Where your products have been exported before? A2: Our products have been sold to Europe, Southeast Asia, Africa, Latin America, middle East, North America, and so on.
Q3: What about the Minimum Order Quantity? A3: The MOQ is 1 pcs.
Q4: What about the delivery time? A4: 7-30 days after receving the balance payment.
Q5: What kind terms of payment can be accepted?
A5: T/T, L/C, Western Union is available.
Q6: What about after-sale service? A6:12 months warranty for all kinds of products.
