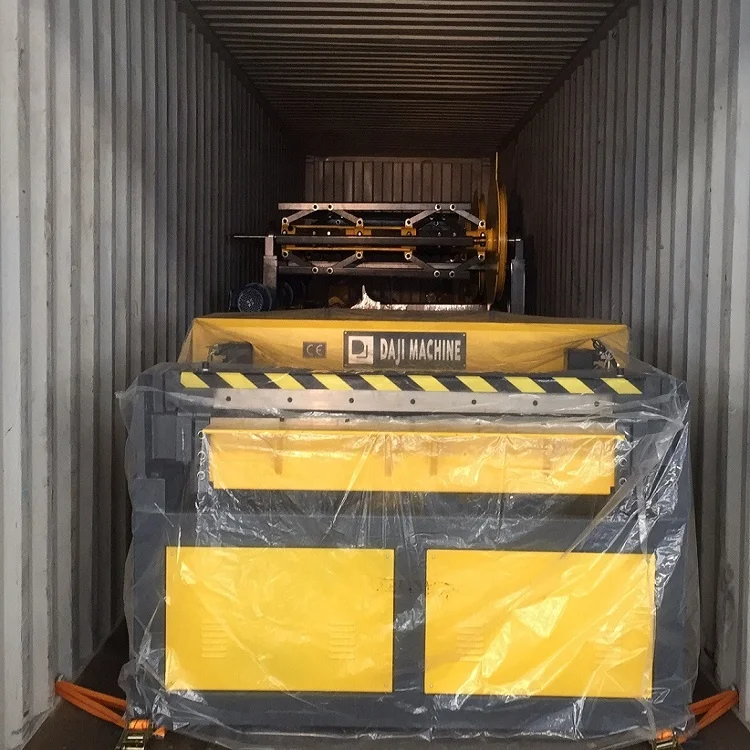

CE approved auto duct line 3 for HVAC square duct manufacture

Product Overview

Description







Performance features:

1) Aluminium alloy suspension arm makes the machine easy to operate.

2)The build-in control cabinet reduces wiring as a whole structure and makes it easy to move.

3)The inported configuration is very stable and comfortable to use.



Function:

It's mainly for uncoiling, leveling, beading, punching, locking. Because of its small space requirement and easy to install and operate the machine can upgrade to "super line 4".



Basic Configuration:

1) One electric coil cradle (two material trays)

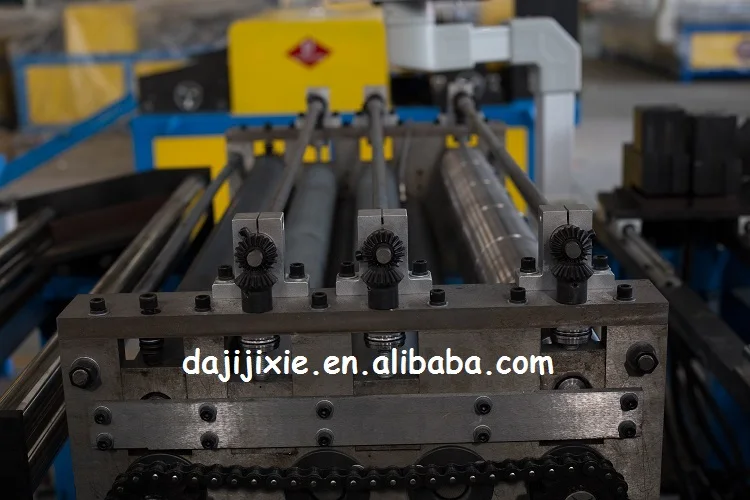

2) One set of leveling and beading equipment.

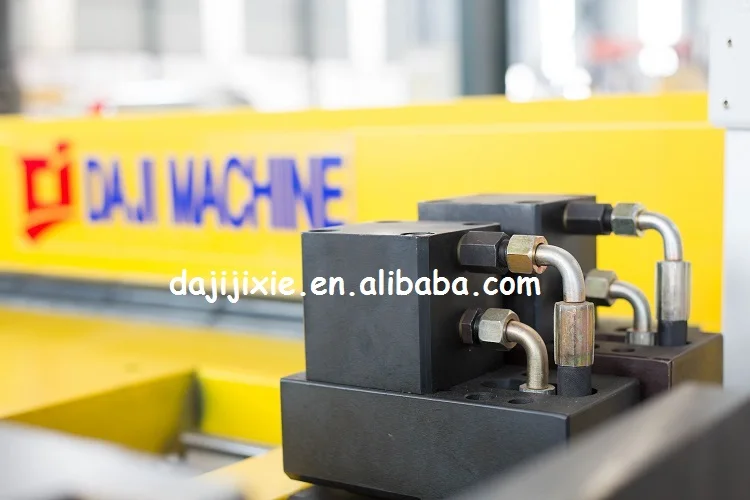

3) Hydraulic angle-shearing machine with four sets of die.

4) Hydraulic sheet-shearing machine.

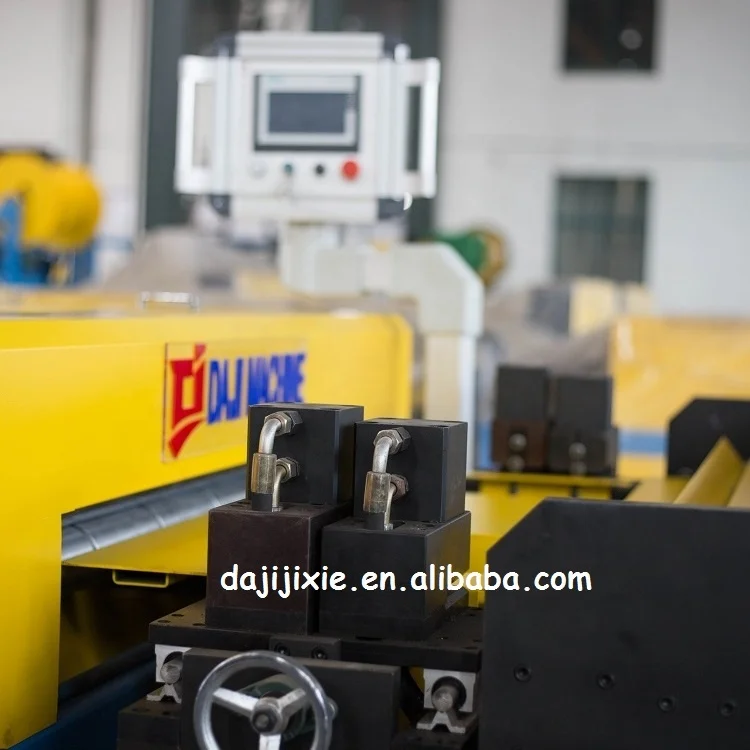

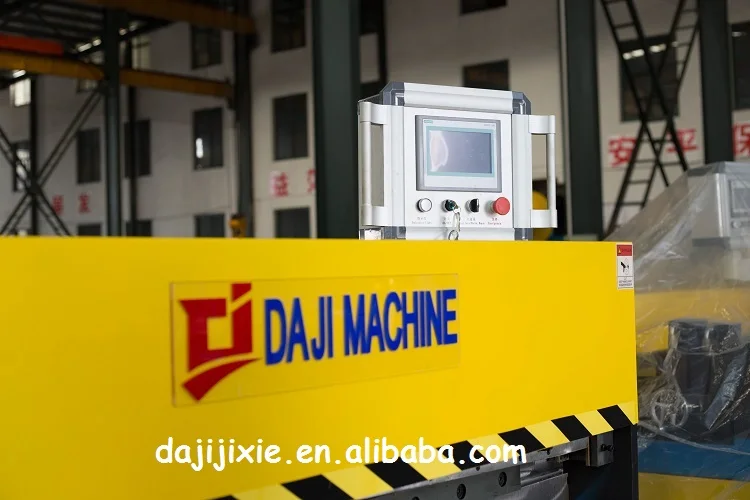

5) A set of CNC computer control system and production software.

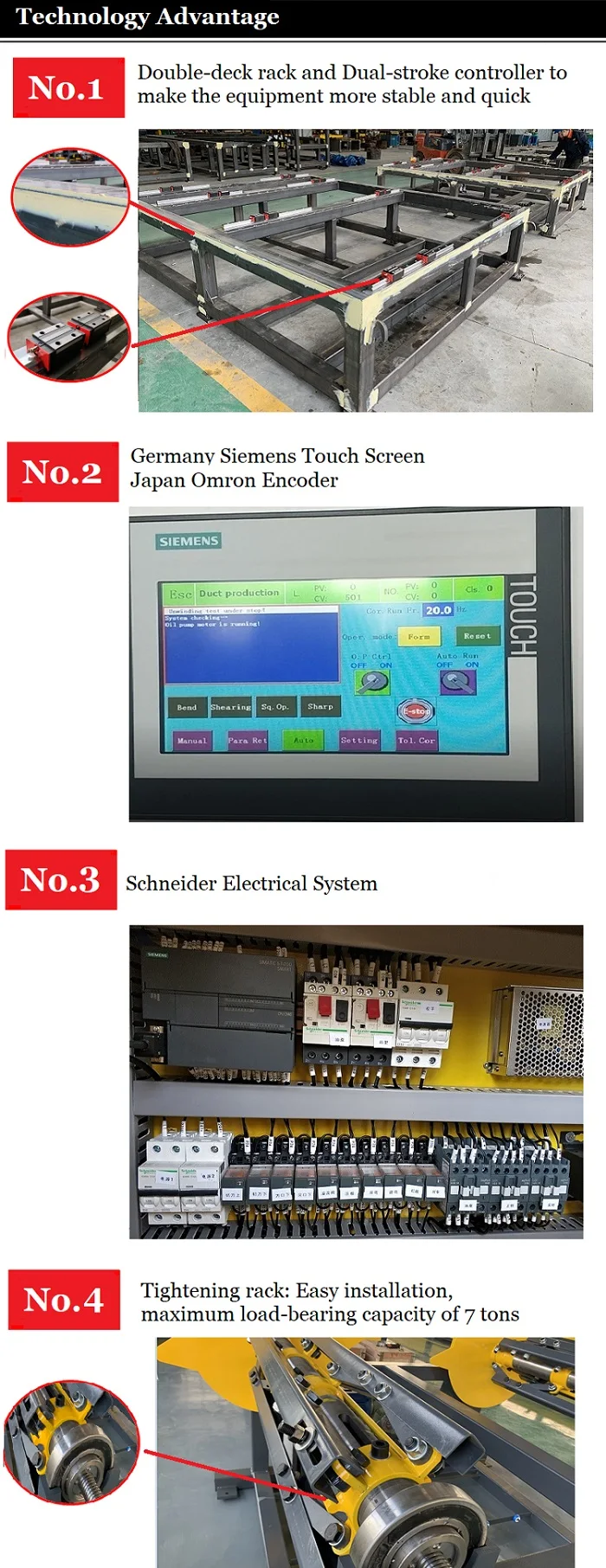

Main Import Configuration:

1)Germany Siemers CNC system and Schneider electrical system.

2)Beijing Huade or hydraulic system from Taiwan.

3)Special encode from Japan Omron.



Main Technical Parameters
Model	Thickness(mm)	Max Width(mm)	Max feeding speed (m/min)	Coiler max weight	Weight(T)	Dimension(mm)	Power(kw)
						L X W X H
DJ-AML-1250	0.5~1.2	1250	15	7000*2	3.2	4400x1950x1600	8
DJ-AML-1500	0.5~1.2	1500	15	7000*2	3.7	4400x2150x1600	8
