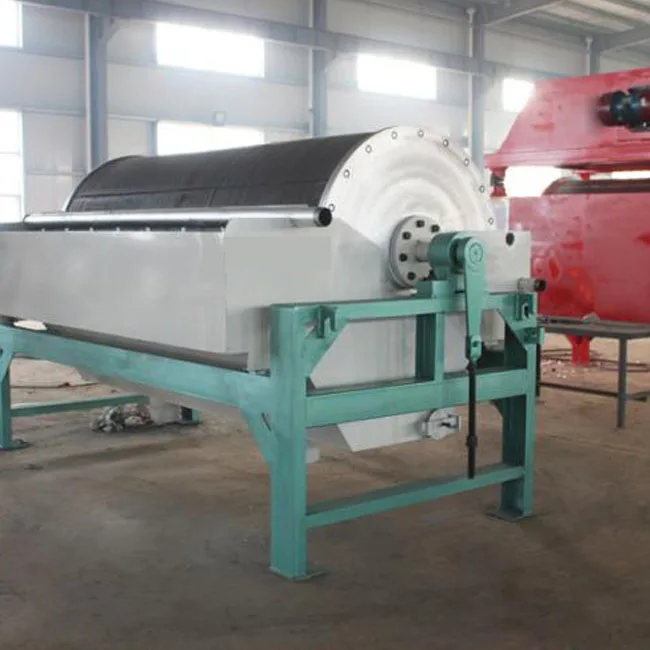

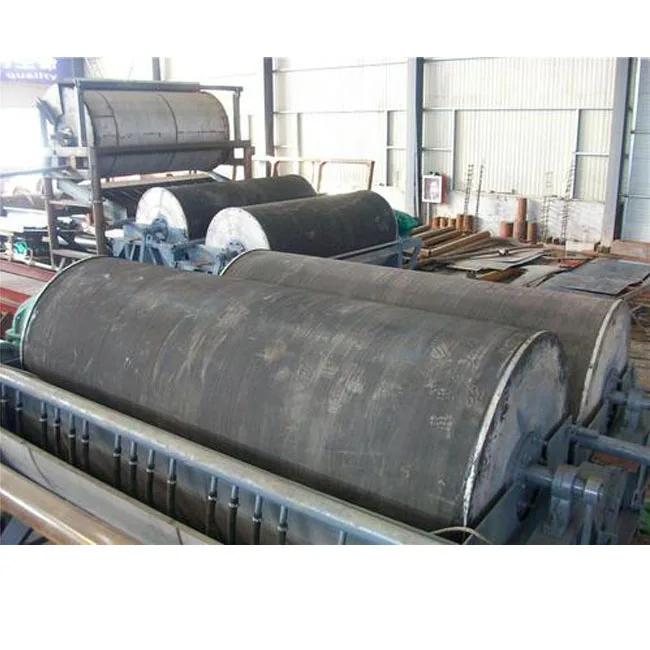

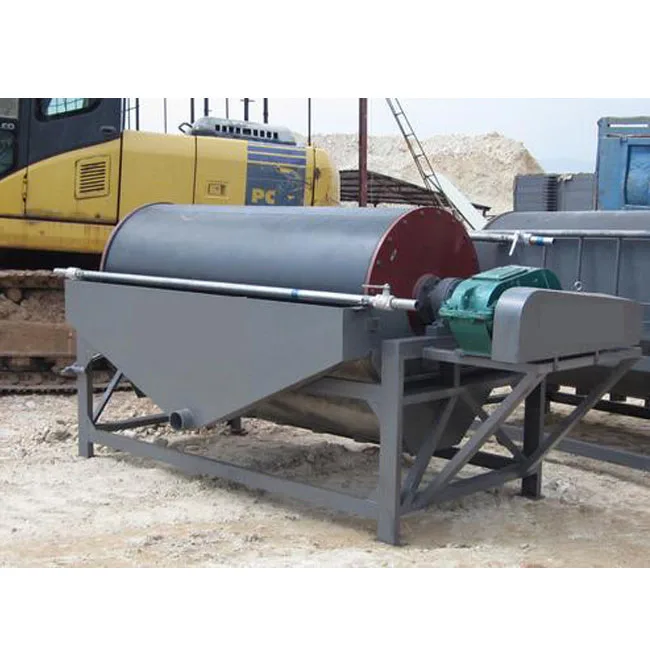

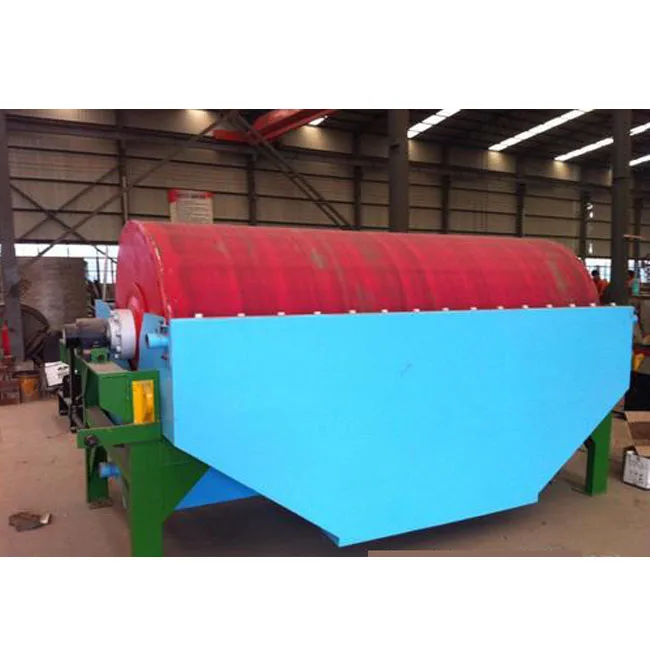

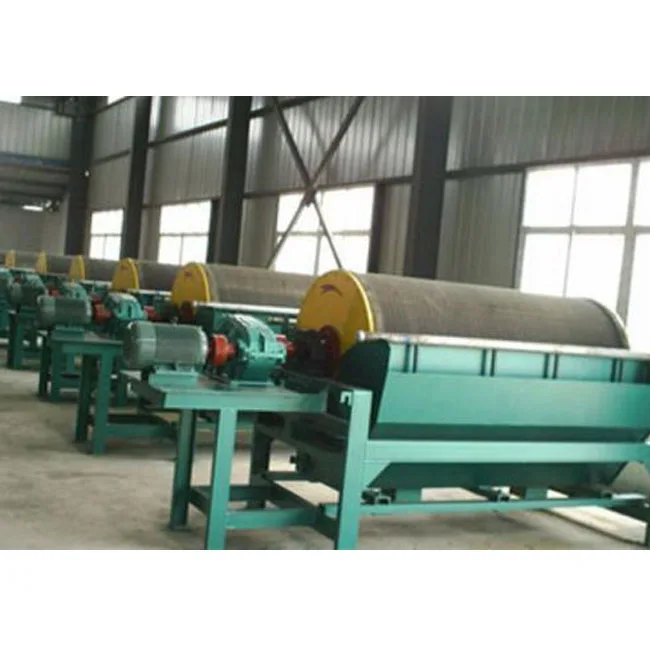

Wet iron sand magnetic processing separator can separate the raw materials with different magnetic rigidities .The machine works under the magnetic force and machine force .Magnetic separator is designed to recover ferromagnetic materials.The magnetic separator are reliable in designs and sizes to the magnetic system with its unique design , which has a proven record of high efficiency. The Magnetic Separators are available in cyclic design with process vessel diameters from 220 mm to 3,050 mm.
Features
1. Magnetic system is compounded of ferrite and permanent magnets; the average magnetic induction intensity of cylinder surface is 100~600mT.
2. The same cylinder can be equipped with three types of tank adapting to different dressing process.
3. Small area taken, good separation for magnetic mineral, reduce the load of next process magnetic separator price.
Working Principle

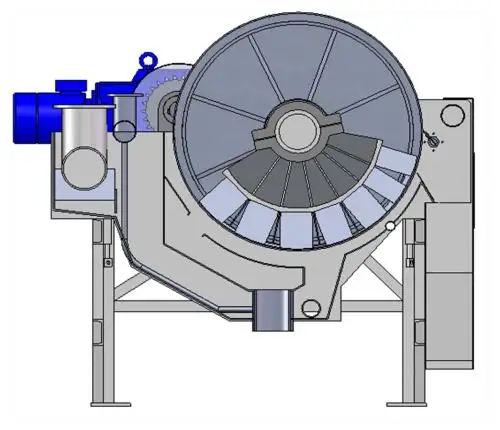

Wet iron sand magnetic processing separator is one kind of efficient equipment for processing fine, feebly magnetic minerals, such as hematite, limonite, wolfram, limonite, and tantalum-niobium, etc. In recent years, it is also more and more applied in purifying quartz, feldspar and nephrite. Its magnetic system is a ring-shape chain closed magnetic circuit with energizing coils made of copper tube and cooled internally by water. Grooved plates made of magnetic conductive stainless steel are used as magnetic matrix.
Technical data
Specification
Magnetic Field Strength
(gs)
Working Capacity
(kg)
Motor Power
(kw)
Weight
(kg)
CTB600x900
1450
8-15
1.1
910
CTB600x1800
1500
15-25
2.2
1340
CTB750x1800
1550
30-45
3
2050
CTB900x1800
1650
35-60
4
3000
CTB1050x2400
1650
60-95
5.5
5020
CTB1200x3000
1650
80-150
7.5
7800
CTB1500x3000
1650
120-200
11
9600
Packaging & Shipping
1.International export standard packing of Wet iron sand magnetic processing separator
2.small parts are woodened box package 3.main engine nude,container,or customer'requirement
Company Information
Henan Zhongjiao Mining Machinery Manufacturing Co. Ltd. is a joint-stock enterprise that focuses on the production of large and medium-sized mining machinery and equipment, and integrates design and development, production and processing, sales and technical services.The company mainly produces crushing equipment, sand production equipment, mineral processing equipment, grinding equipment, building materials equipment, metallurgical equipment and related technical service support.Believe in the quality of products for the life of the company, always adhere to the quality of brand building, service to enhance the brand, and strive to provide customers with innovative and high-quality products and services.
FAQ2
Q1.How long is the warrenty of your equipments? The warranty period of our equipments is one year. Q2. What Information should customers give us, So that we can be able to provide you suitable quotation and service. What minerals are you separating? What's the maximum size of your raw minerals? How much capacity do you need per hour for your project? Q3.Can you test our samples?Do you provide beneficiation flow chart? Yes. You can send your samples to us for test and analysis. Our experienced engineers are specialized in designing process flow for various ores beneficiation, including iron ore, tin ore, copper ore, gold ore, lead zinc ore, manganese ore, etc. Q4. If I need the complete crushing plant can you help us to build it? A: Yes, we can help you combine a complete crushing line and give you related professional advices as long as you need. We had already build many mining projects in China & Overseas.
