Same Pal Plas S Dai Automatic Tissue Look Bouquet Sleeves Dried Fresh Flower Cellophane Plastic Packaging Bags Making Machine
- Category: >>>
- Supplier: Wenzhou Dayu Machine Co. Ltd.
Share on (62311577041):
Product Overview
Description
Same as Taiwan Pal Plas S-Dai Automatic Tissue-Look Bouquet Sleeves OPP PE BOPP PP CPP Dried Fresh Flower Sleeves Cellophane Plastic Packaging Bags Making Machine
Why Choose Us
(1) Efficient and satisfied service
(2) Complete machines solution for the whole production line
(3) Various and multi solutions for different requirement
(4) More than 18-year professional experience
(5) Qualified product and strict quality control
(6) ODM,OEM is welcome
We had the honor to serve many customers from all over the world to help them to start from “0” to big factories and companies.
Welcome to be one of our top “VIP” customers.
We believe that “The quality is the soul of an enterprise”.
“With us your MONEY in SAFE; Your BUSINESS in SAFE”.

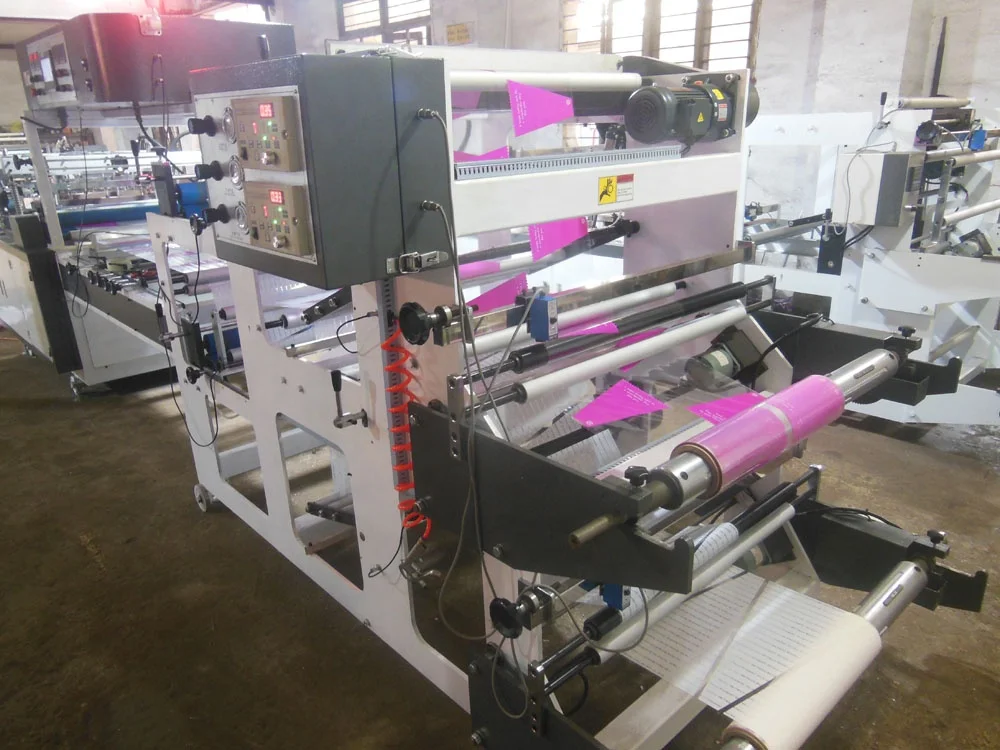

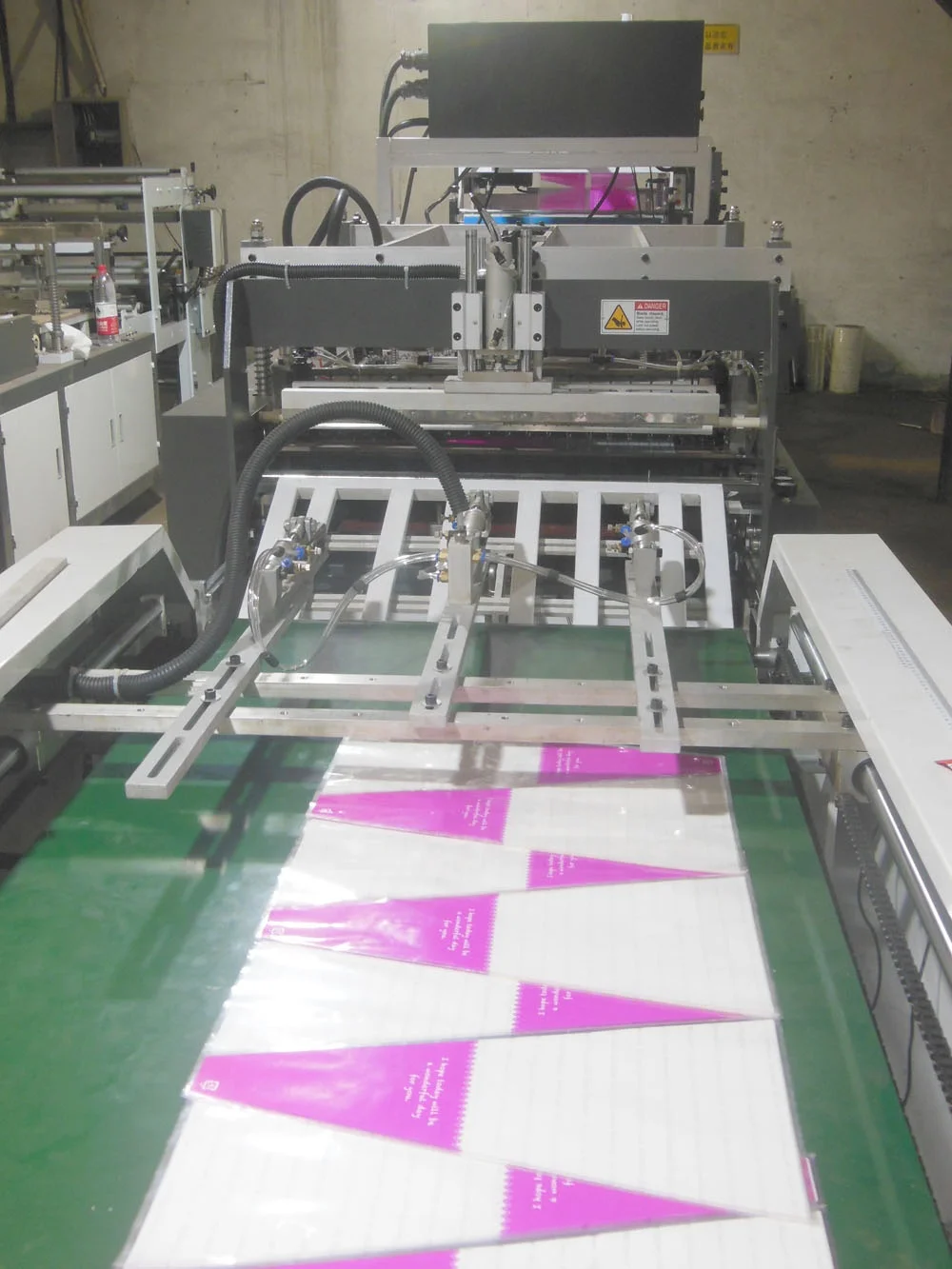

Machine Photos
Bag/ Sleeve type | bags or Sleeves of fresh salad, fresh begetable, plants, umbrella, fresh flower, necktie, candy |
Raw Material | Clear Cellophane BOPP, OPP, CPP, PP, PE, Printed or Unprinted or non-woven, kraft paper/plastic |
Optional | Sealed bottom, multi holes, handle hole, free shaped |
Max. Cutting Width | 720mm-1220mm customized from a variety of sizes |

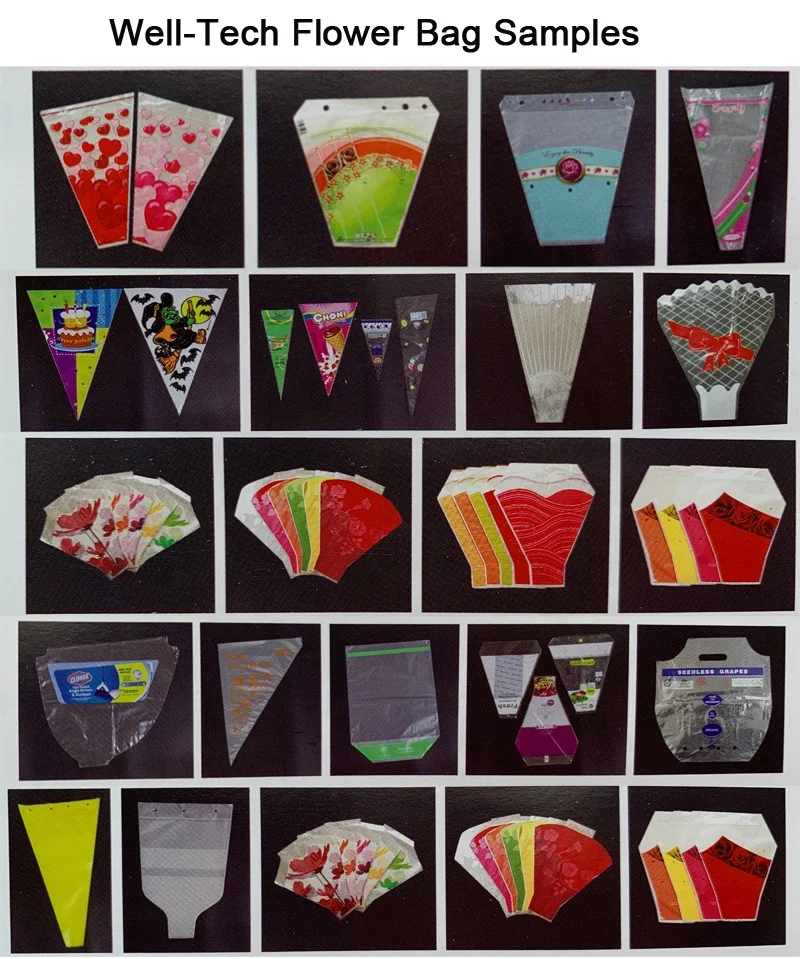

Final Products Samples
Product Paramenters
Application and Features
The machine is suitable for making fresh flower bags or other hot side sealing cutting bags with BOPP, PP, PE, etc. The machine adopts touch screen type microcomputer with PLC system in fixing cutting length, photoelectric device in tracing, limit stopping machine, automatic counter, automatic edge position rectifier, number alarm and double rolls unwinding, bag-neck cutter by inch and multi-position holing unit (it can be equipped with an additional side-sealing blade). It is widely used in making all kinds of special shaped bags, such as fresh flower bags, flower pot bag, vegetable bag, tie’ bags, bottle-shaped bags, fruit freshness protection package.
Main Features and Advantages
- 1). This machine adopts man-machine interface, and the whole machine integrated PLC operating system.
- 2). Fully automatic stacking conveyor, don't need workers to pick bags up from conveyor unit.
- 3). Stack held together with automatic hot needles.
- 4). High accuracy outfeed length controlled by AC servo motor.
- 5). Precise tracking and high accuracy positioning printing controlled by precision photocell.
- 6). 2 material rolls (2 printed rolls avialable) at unwinder work simultaneously, and
double automatic edge positioning controller (EPC).
- 7). Automatic double taper tension, double air shafts for unwinding.
- 8). Easy and quick to change and set different bag shapes and sizes.
- 9). Clean, elegant and secure sealing.
- 10). High efficiency, long term operations.
- 11). Easy to operate, several machines can be operated by one person at the same time.
- 12. Machine working videos are uploaded to youtube. Please contact us to get the videos links.
Optional equipment
- Round hole punch.
- Multi hole punch.
- Edge positioning controller (EPC).
- Up & down color double registering device.
- Wineglass shaped heat sealing Mold or other shaped sealing molds.
- Bottom sealing device.
Model | WTFB-C800 | WTFB-C1000 |
Bag film raw material | BOPP, OPP, CPP, PP, PE, or Non-woven fabric, Paper/plastic | BOPP, OPP, CPP, PP, PE, or Non-woven fabric, Paper/plastic |
Max. Bag making length | 720mm | 920mm |
Max. bag making speed | 40-160pcs/min | 40-160pcs/min |
Max. bag making angle | 45° | 45° |
Main motor power | 1.5kw | 2.2kw |
Total Power | 380v, 6.5kw | 380v, 8.5kw |
Weight of machine | 1500kgs | 1800kg |
Overall dimensions(L X W X H) | 7300*1500*1600mm | 7600*1500*1600mm |
Plastic Bag Line
Complete Plastic Bag Production Line
The Complete Plastic Polythene Bags Production Line Machines including Film Blowing Machine, Printing Machine, Plastic Bag Making Machine, and Plastic Recycling Machines can be supplied. Multi solutions for the project of plastic bags production!
