Electric automatic glass glazing robot lifter
- Category: Vacuum Lifter >>>
- Supplier: Taizhou Ruyi Handling Machinery Factory
Share on (62311636839):
Product Overview
Description

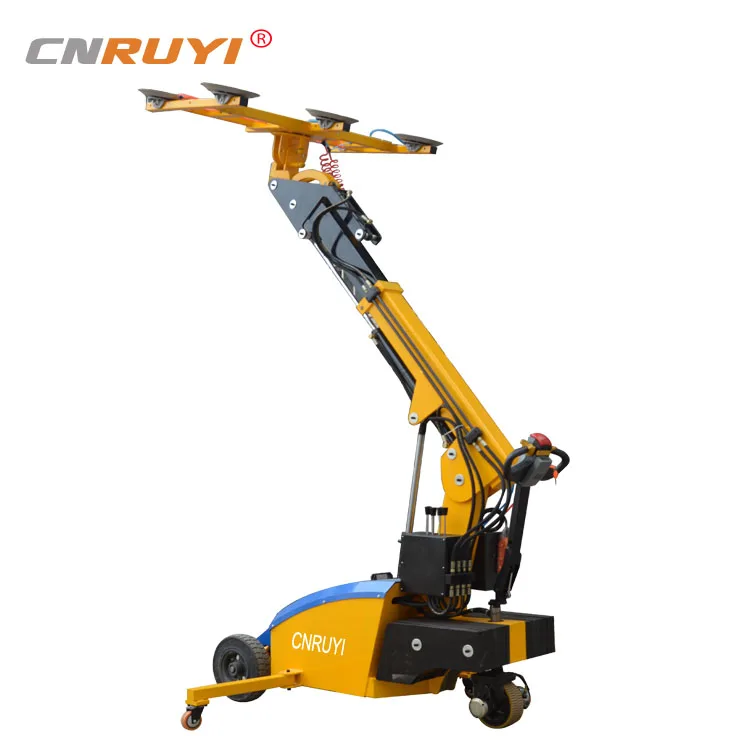

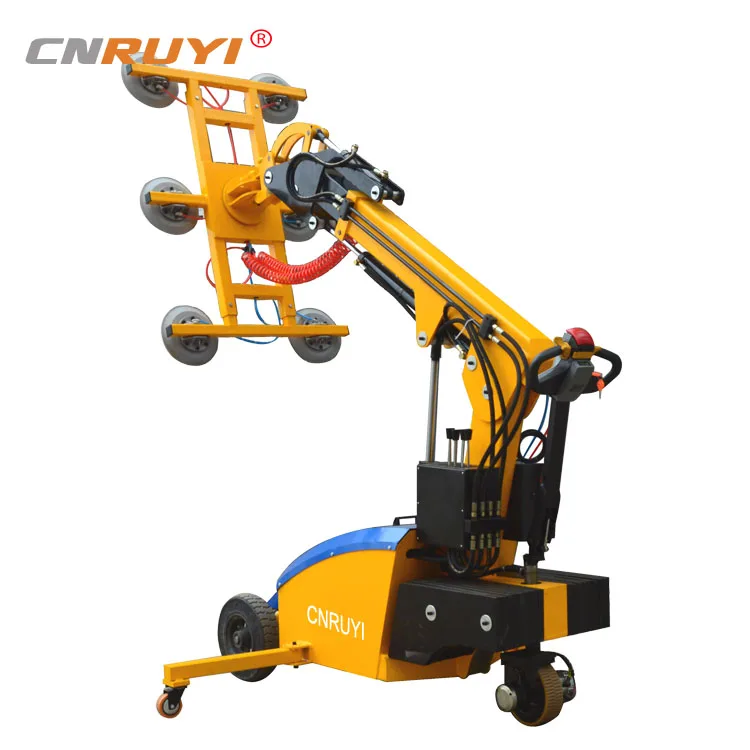

CE approved Glass transporter building glass vacuum lifter
Suitable for smooth surfaces such as glass, ceramics, stone, and sheet. Imported suction cup, three-layer sealing ring, good sealing, soft and environmentally friendly material. Double system control, Japan imported air pressure gauge, European imported air pressure pump, stable quality and high safety performance. Easily handle lifting, moving and spinning with vacuum chucks and powerful drive systems.
Electric Lifting Steel Plate vacuum Glass Lifter and transporter with CE
For more related products, please contact customer service.
| Electric Glass Lifter | Unit | RYGCPD | |||
| Rated load capacity | kg | 300 | 350 | 400 | 500 |
| Manual rotating | deg | 270 | 270 | 270 | 270 |
| lifting height | mm | 3500 | 3500 | 3500 | 3500 |
| Manipulation | / | Walkie Type | Walkie Type | Walkie Type | Walkie Type |
| Battery | V/A | 2x12/40 | 2x12/40 | 2x12/45 | 2x12/60 |
| Charger | V/A | 24/12 | 24/12 | 24/12 | 24/15 |
| Drive motor | V/W | 24/750 | 24/750 | 24/750 | 24/1200 |
| Lift motor | V/W | 24/2000 | 24/2000 | 24/2000 | 24/2200 |
| Overall Width | mm | 840 | 840 | 840 | 850 |
| Overall Length | mm | 2760 | 2760 | 2760 | 2800 |
| Driving wheel dimension | mm | 250*80 | 250*80 | 250*80 | 250*80 |
| Suckers diameter | mm | 300 | 300 | 300 | 300 |
| The glass size | mm | 3660*2440 | 3660*2440 | 3660*2440 | 3660*2440 |
How to place an order?
A:Tell us your detailed requirements of CE approved Glass transporter building glass vacuum lifter (material, dimension,weight and function you need),we will send you offer soon. If OK, send us PO,or we send you the PI
What’s your price term?
A: FOB,FCA,CIF,CFR,EXW and DDU price terms.
How could I pay them?
A:We accept Western Union; T/T; L/C;Alibaba trade assurance
How long could I get my order?
(1) Standard metal vacuum lifter, usually in stock, deliver within 24 hours.
(2) Customized order, don’t have items in stock, then need to check.
About warranty:
A:Our machines carry a full 1 year warranty.
Mode of transport:
A:Sea, air, railway and express transport
About package:
Standard exported packing(plywood case)
