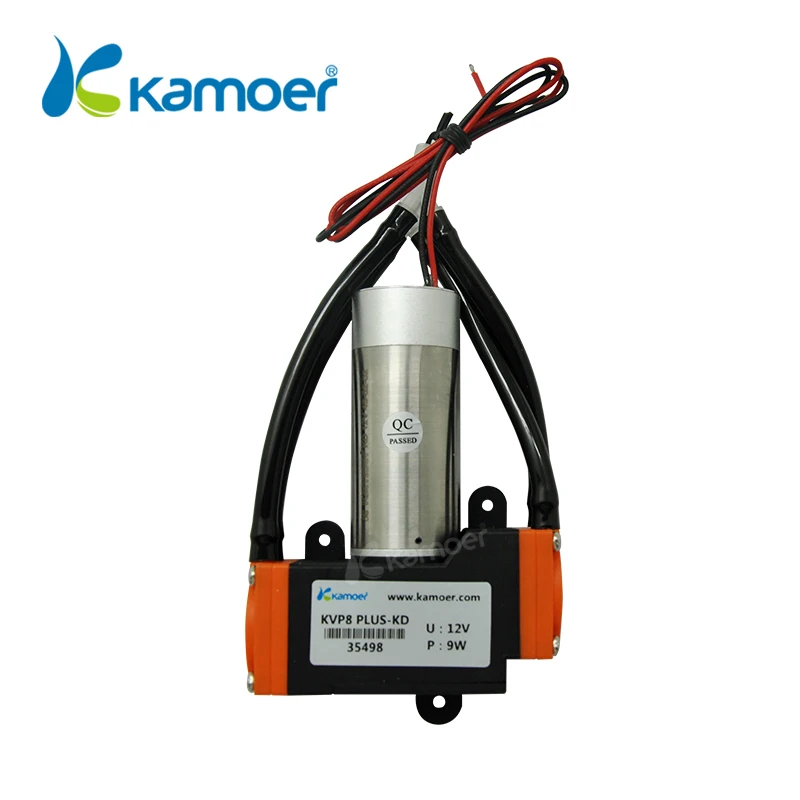

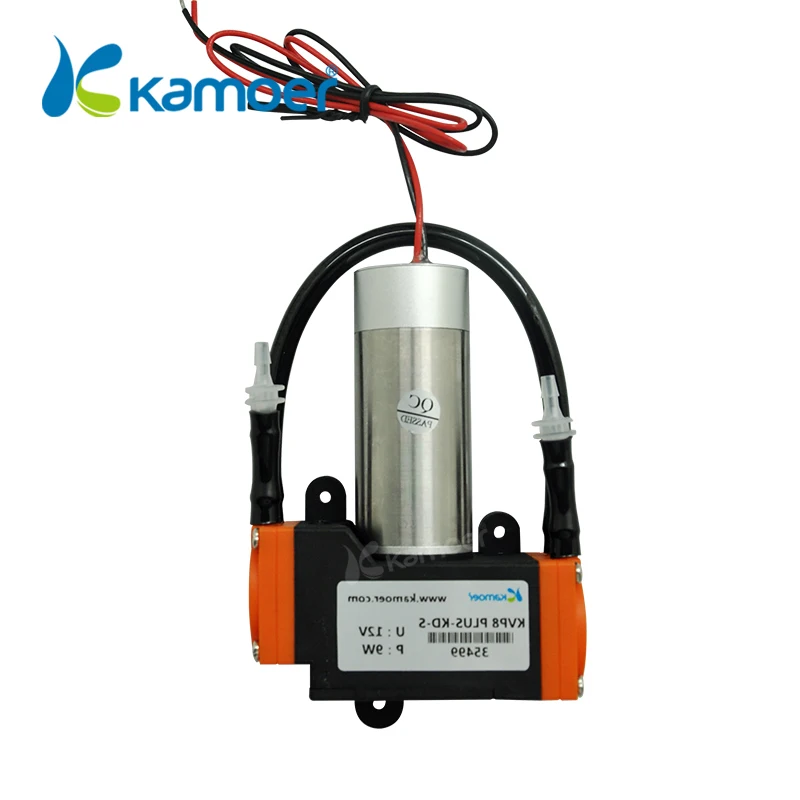

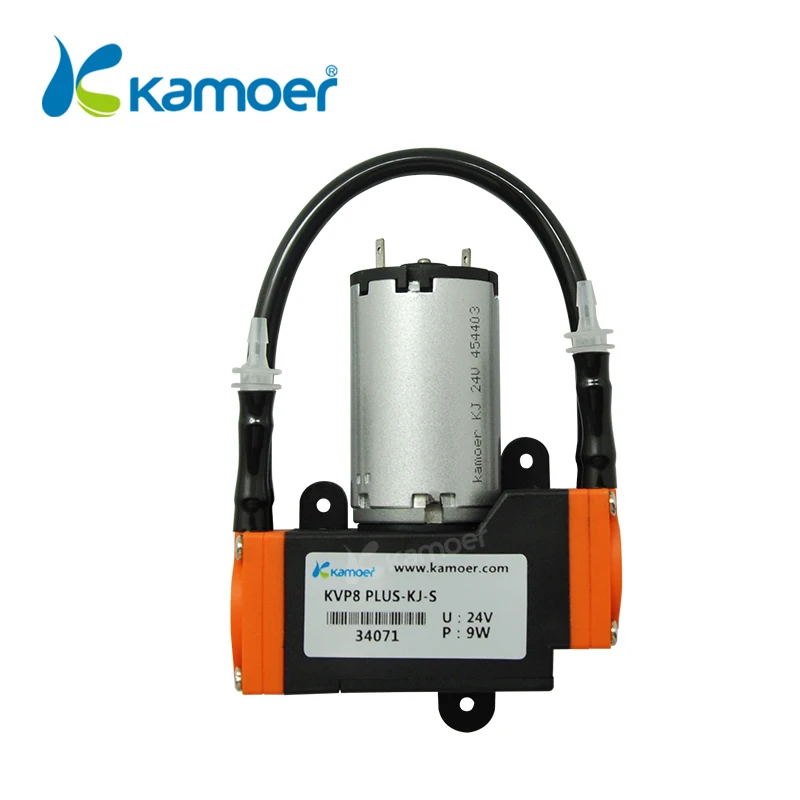

kamoer KVP8 PLUS 24V Miniature DC Brushed Motor Diaphragm Vacuum Pump

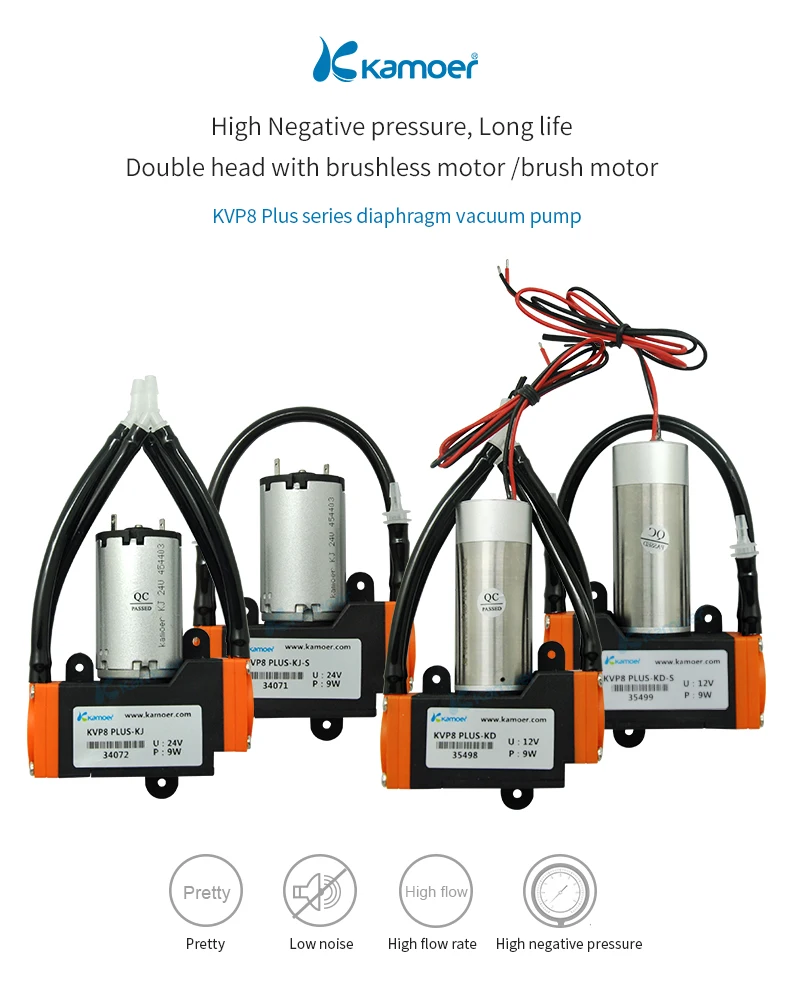

 KVP8 plus series Vacuum Pump

High Negative pressure, Long life

Double head with brushless motor /brush motor

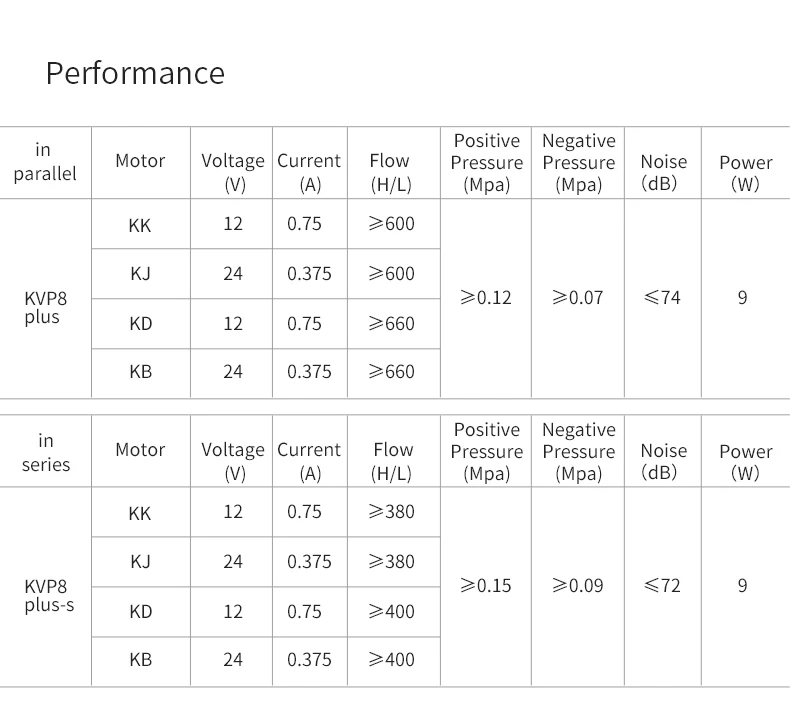

Parameters

Kvp8 plus mini diaphragm pump design on Volumetric principle, Which  control the diaphragm inlet and outlet to form the power drive after the drive mechanism to promote the piston reciprocating motion, the pressure to push the diaphragm back and forth to work to absorb and remove the liquid

Application

Gas analysis,Physiotherapy,Mounter,Beauty industry

Features

Small but powerful

Negative pressure (in series )<-0.09Mpa

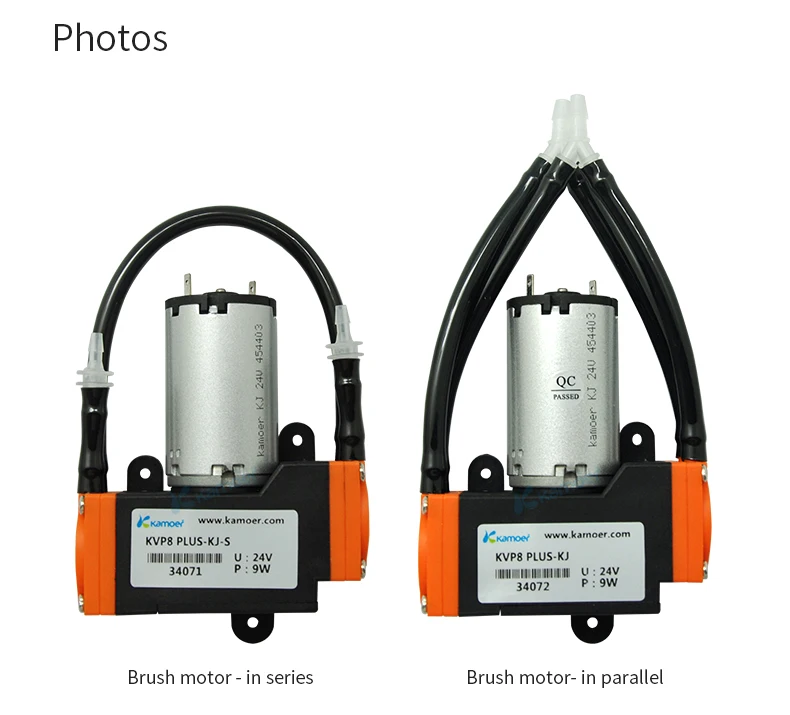

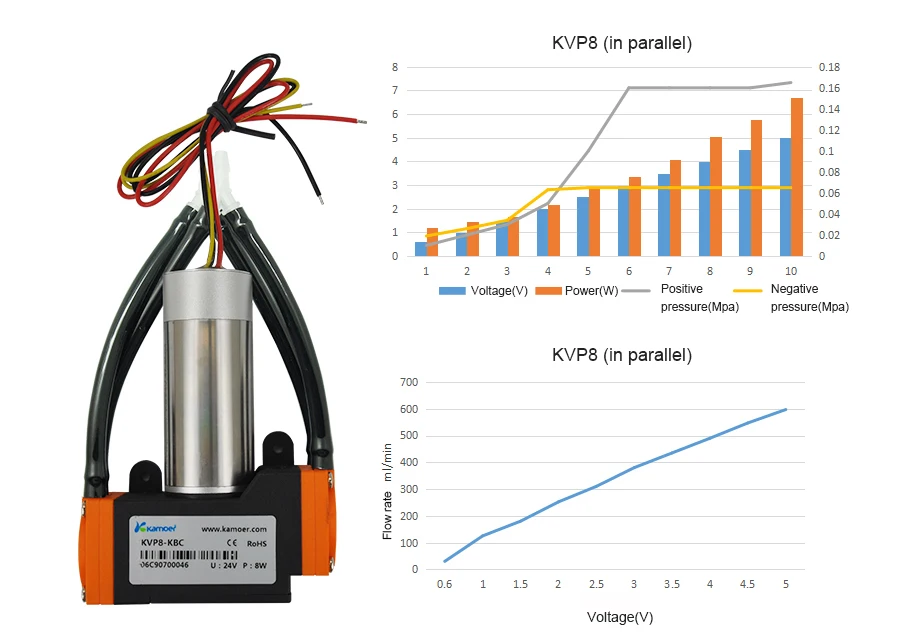

Negative pressure( In parallel) <-0.07Mpa

Dry running , durableand and maintenance free

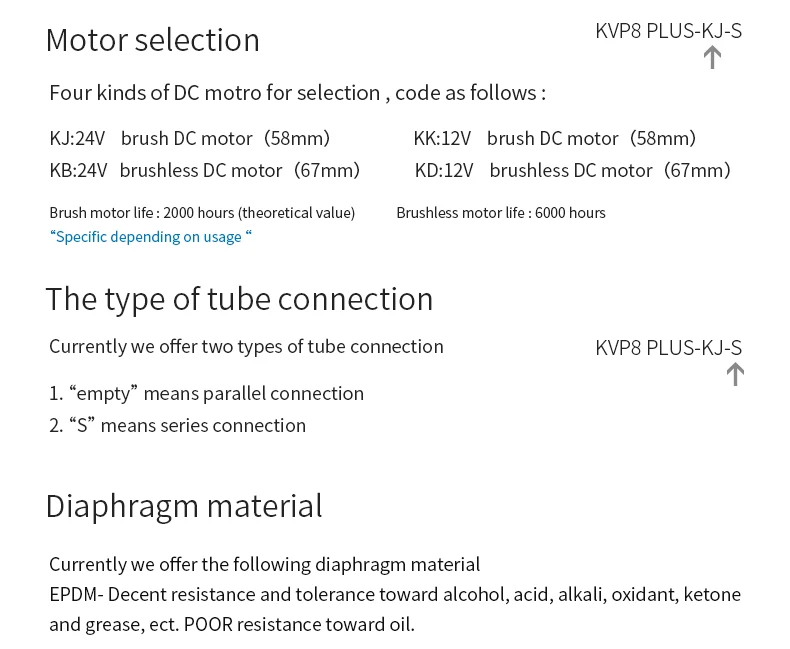

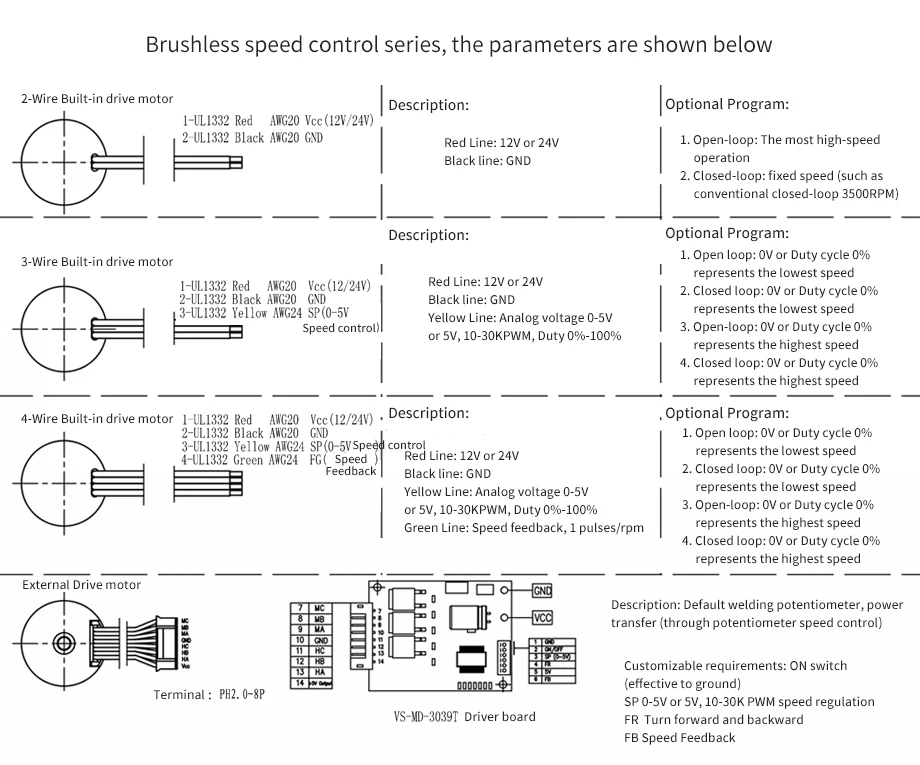

Brush motor and brushless motor for selection

Flow rate≥660H/L

Air positive pressure >0.1Mpa

Chemical stability
