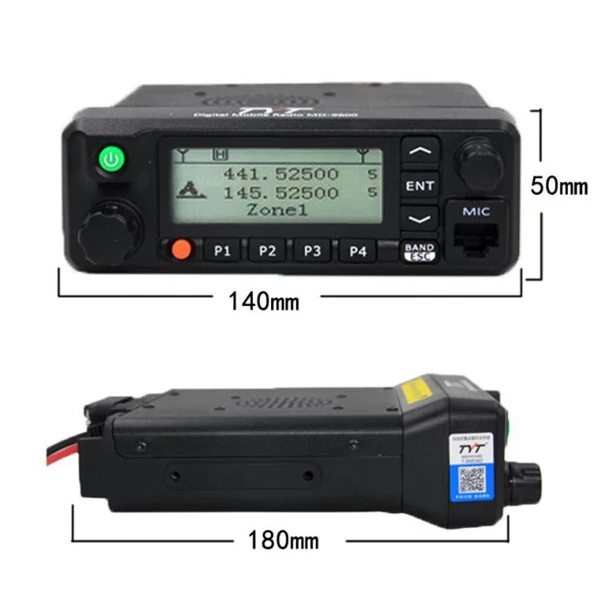

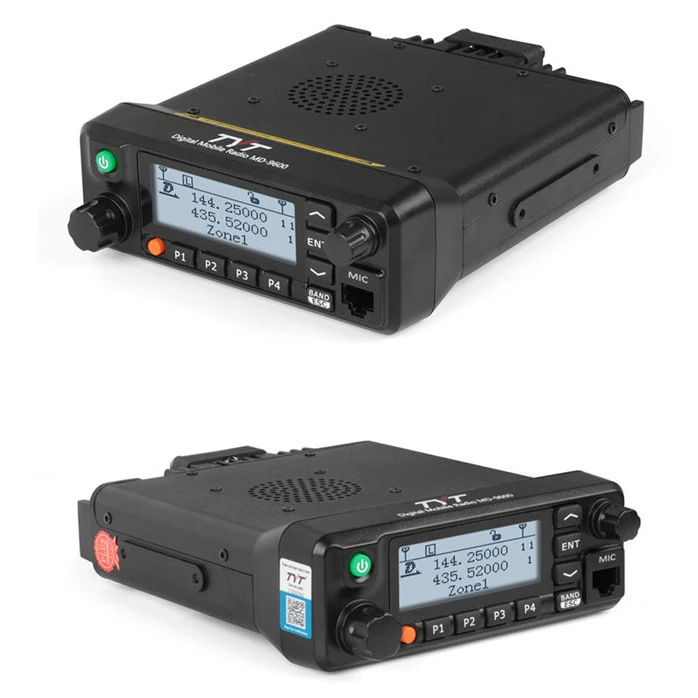

TYT MD 9600 GPS Digital/FM Analog Dual Band DMR Mobile Transceiver 50 Watt VHF/UHF Car Truck Amateur Radio HAM Two Way Radio
- Category: >>>
- Supplier: Fujian Quanzhou Qunyi E-Commerce Co. Ltd.
Share on (62311788315):
Product Overview
Description
Product Description
Receiver | ||||||
Frequency Stability (-20℃ + 60℃, +25℃) | +/-1.0ppm | Spurious Rejection | TIA603C:70 dB ETSI:70 dB | |||
Digital Sensibility | 0.3uV/-117.4dBm (BER 5%) 0.7uV/-110dBm (BER 1%) | Audio distortion @ rated audio | ≤3% | |||
Analogue Sensibility | 0.35uV/-116dBm (20dB SINAD) 0.7uV/-120dBm (20dB SINAD) | FM Hum and Noise | -40dB @12.5kHz -45dB @25kHz | |||
Rated audio | 5W | Audio Response | +1dB~-3dbB | |||
Adjacent Channel Selectivity | TIA603C:60dB @12.5kHz ETSI:60Db @12.5kHz | Spurious Emission | -57dBm@<1GHz -47dBm@>1GHz | |||
Intermodulation | TIA603C:65Db ETSI:65dB | Block | 84dB | |||
Co-channel Rejection | 12 dB @12.5kHz | |||||
Transmitter | ||||||
RF Power Output | L:25W H:50W(VHF) L:25W H:45W(UHF) | Audio Distortion | 3% | |||
FM Hum and Noise | -40dB @12.5kHz -45dB @ 25kHz | FM modulation | 12.5kHz:11KOF3E 25kHz:16KOF3E | |||
Modulation Limited | +/-2.5kHz @12.5kHz +/-5.0kHz @25kHz | 4FSK digital modulation | 12.5kHz only data:7K60FXD 12.5kHz data and audio:7K60FXE | |||
Conducted/Radiated Emission | -36dBm<1GHz -30dBm>1GHz<4GHz | Digital Protocol | ETSI TS 102361-1, -2, -3 | |||
Adjacent Ch. power | -60dB @12.5kHz -65dB @25kHz | Digital vocoder type | AMBE++ | |||
Audio Response | +1dB~-3dbB | Digital agreement | DMR | |||
