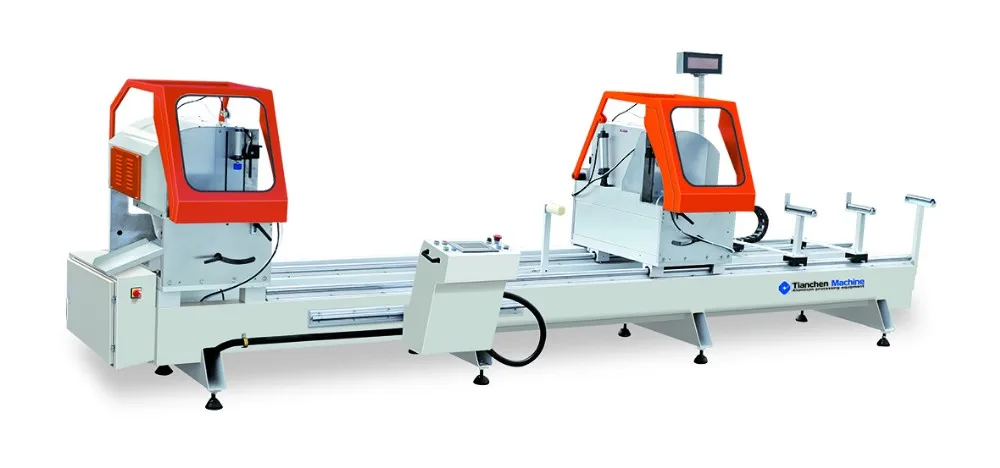

Applicable for cutting profile of aluminum windows and doors and curtain walls
Main Feature
★ Imported cutting motor connects with saw blade; the saw blade feed adopts gas-liquid damping cylinder drive, with smooth cutting
★ Easy to operate and maintain, with reliable performance and advanced technology
★ Adopting SIEMENS control system, stable and reliable
★ Using magnetic system for length scaling and digital display, with high precision
★ Imported carbide saw blade gives accurate processing and high efficiency
★ The follow-up supporter is space saving
Technical Parameters
Item
Specification
Saw Head Motor Power
2X3.0KW
Cutting Length
Max 4200mm, min 400mm
Cutting Width
Max 150mm
Cutting Height
Max 210mm 45° max 150mm 90°
Cutting Angle
90°, 45°
Cutting Speed: Stepless speed regulation
0-3m/min
Blade Specification
φ500mm x 4.4mm xφ30mm z=120
Repeat Locating length tolerance
±0.2mm
Cutting Angle tolerance
±5'
Contour dimension
6500x1700x1900mm
Weight
2100KG
Detailed Image

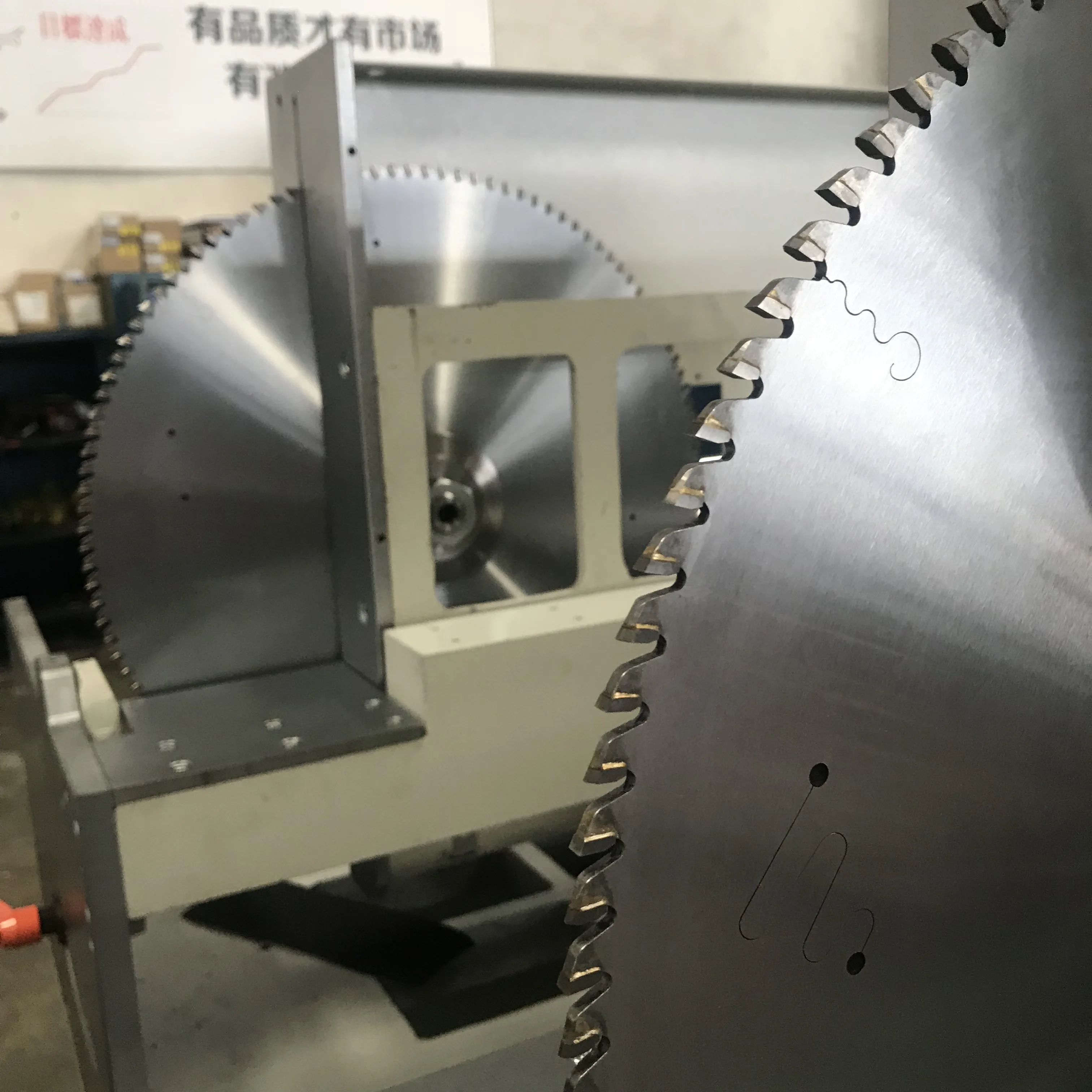

Carbide alloy Cutting blades, with fast cutting speed, high production efficiency and high precision

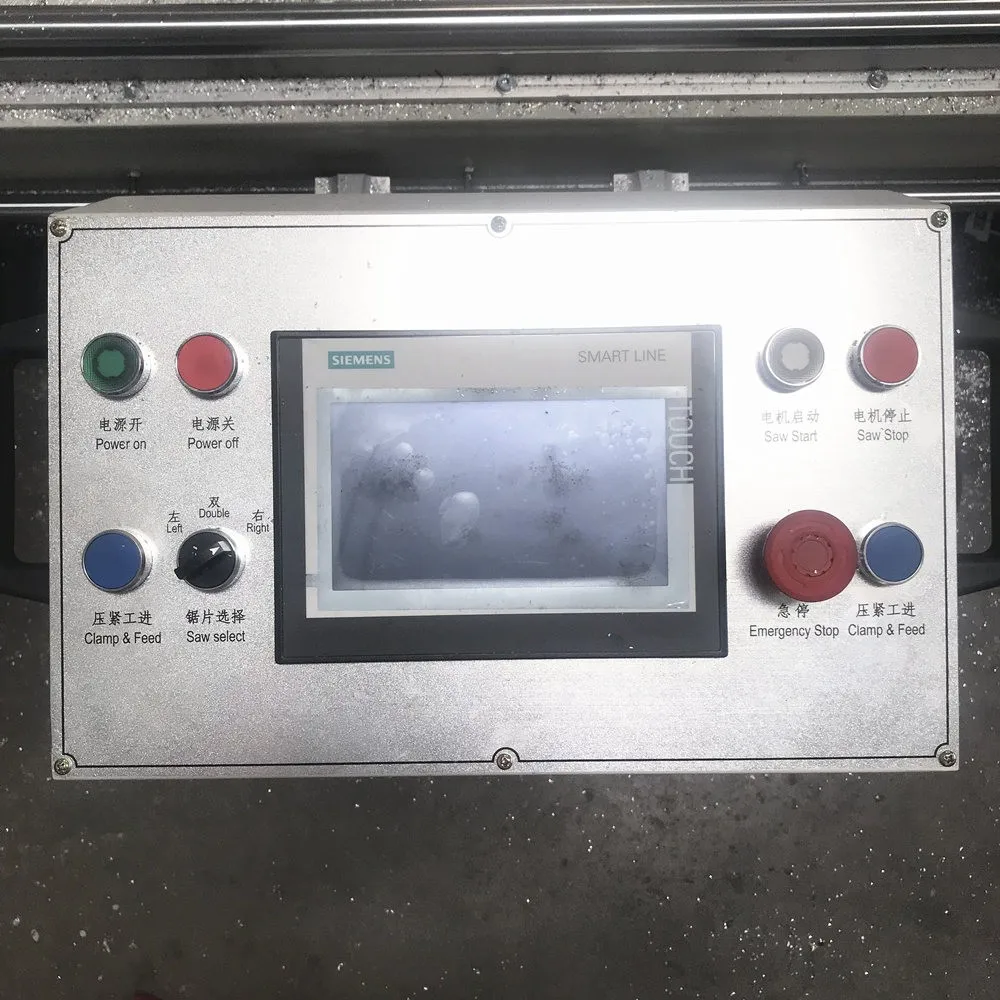

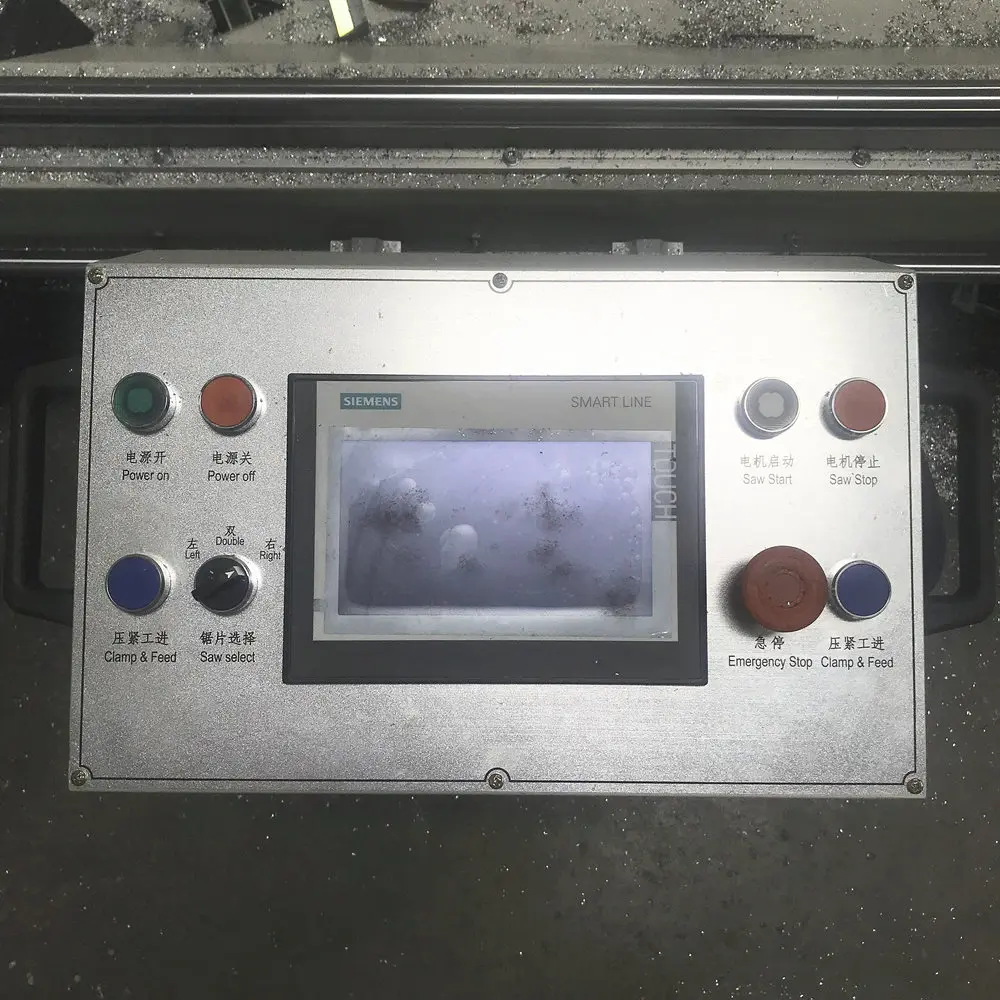

Adopting SIEMENS control system, stable and reliable

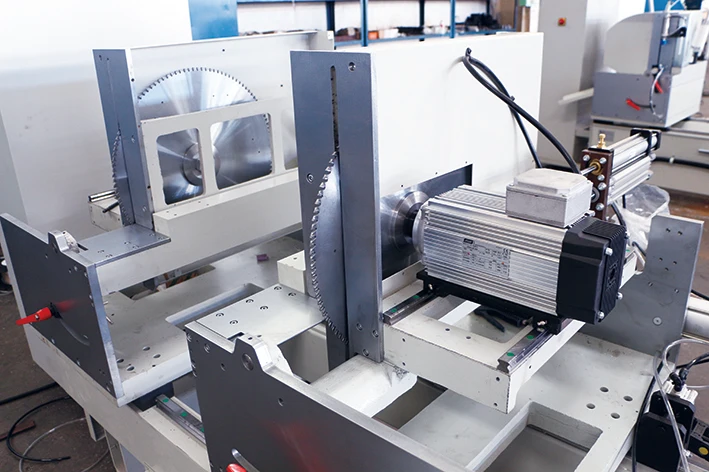

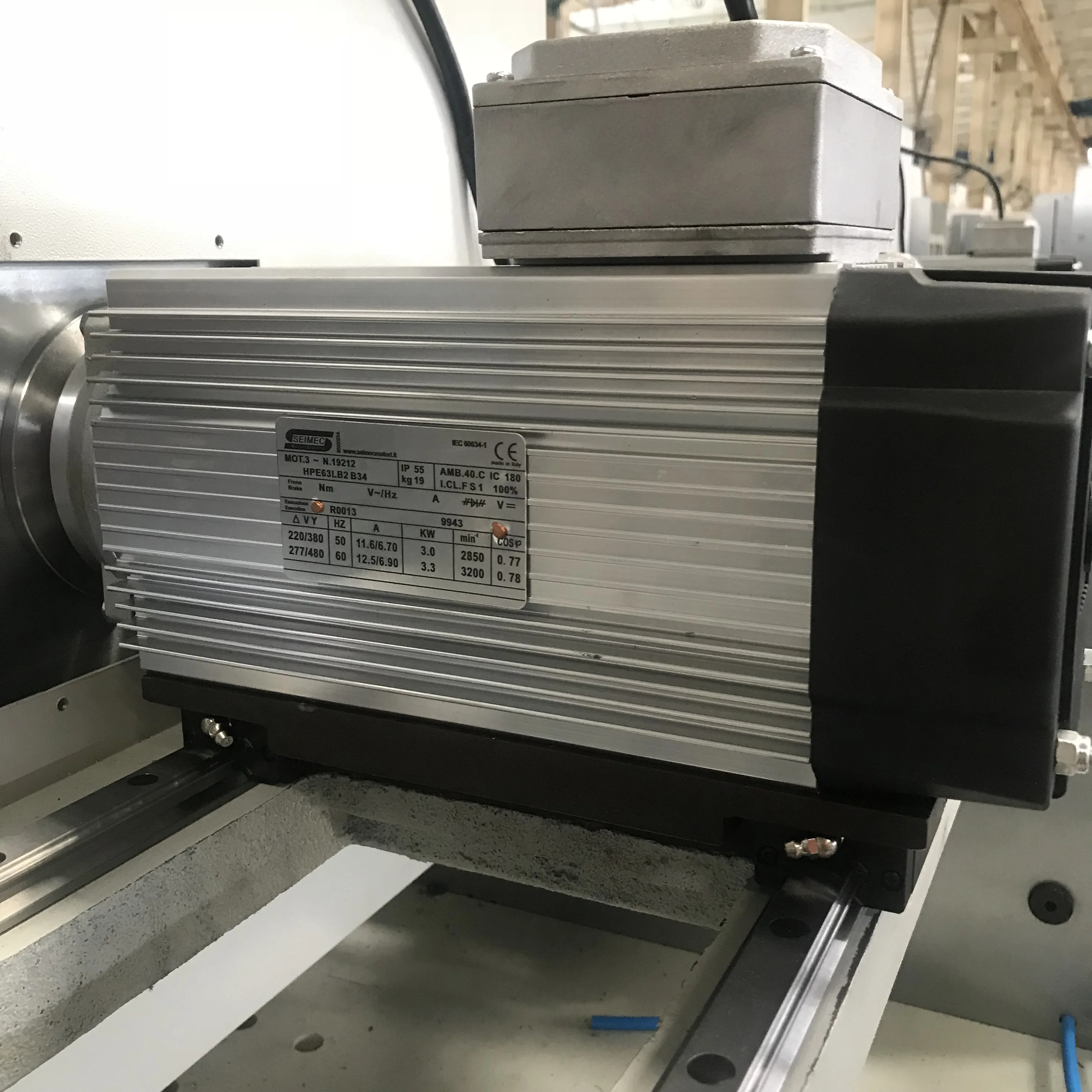

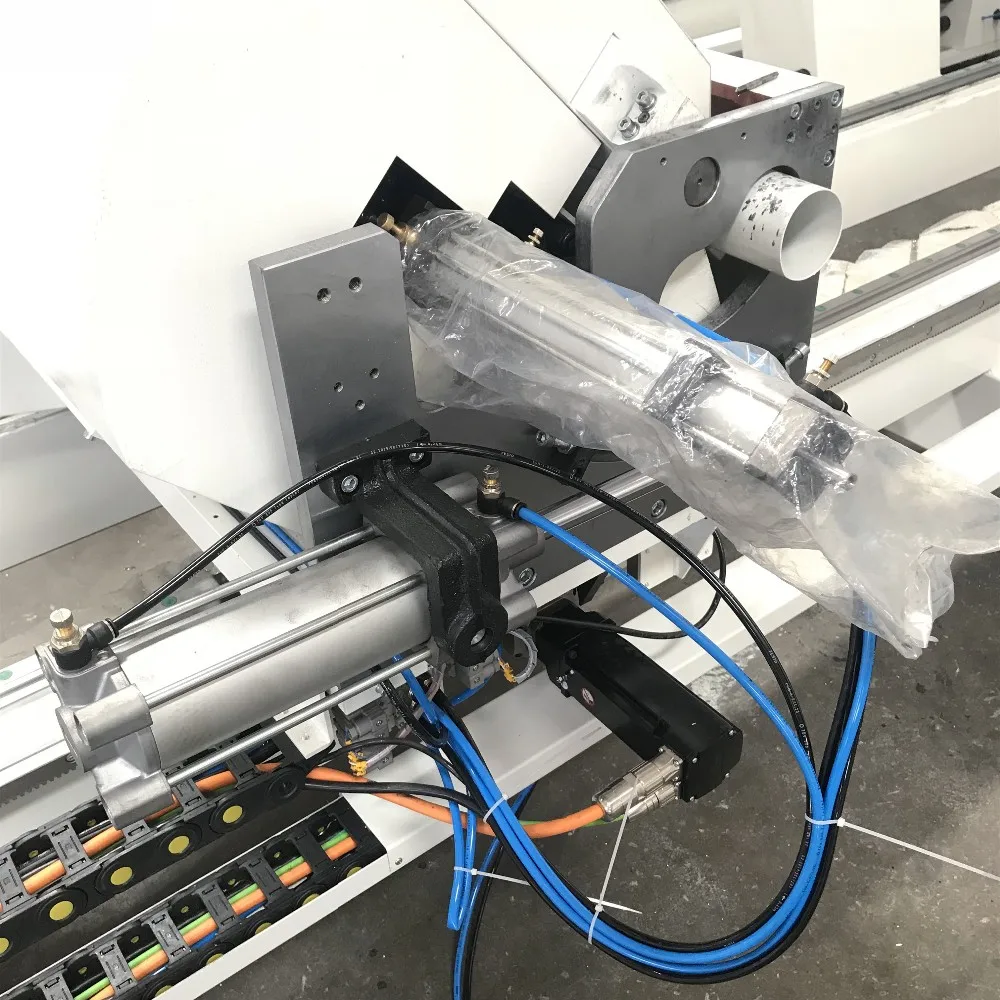

Imported cutting motor connects with saw blade; the saw blade feed adopts gas-liquid damping cylinder drive, with smooth cutting

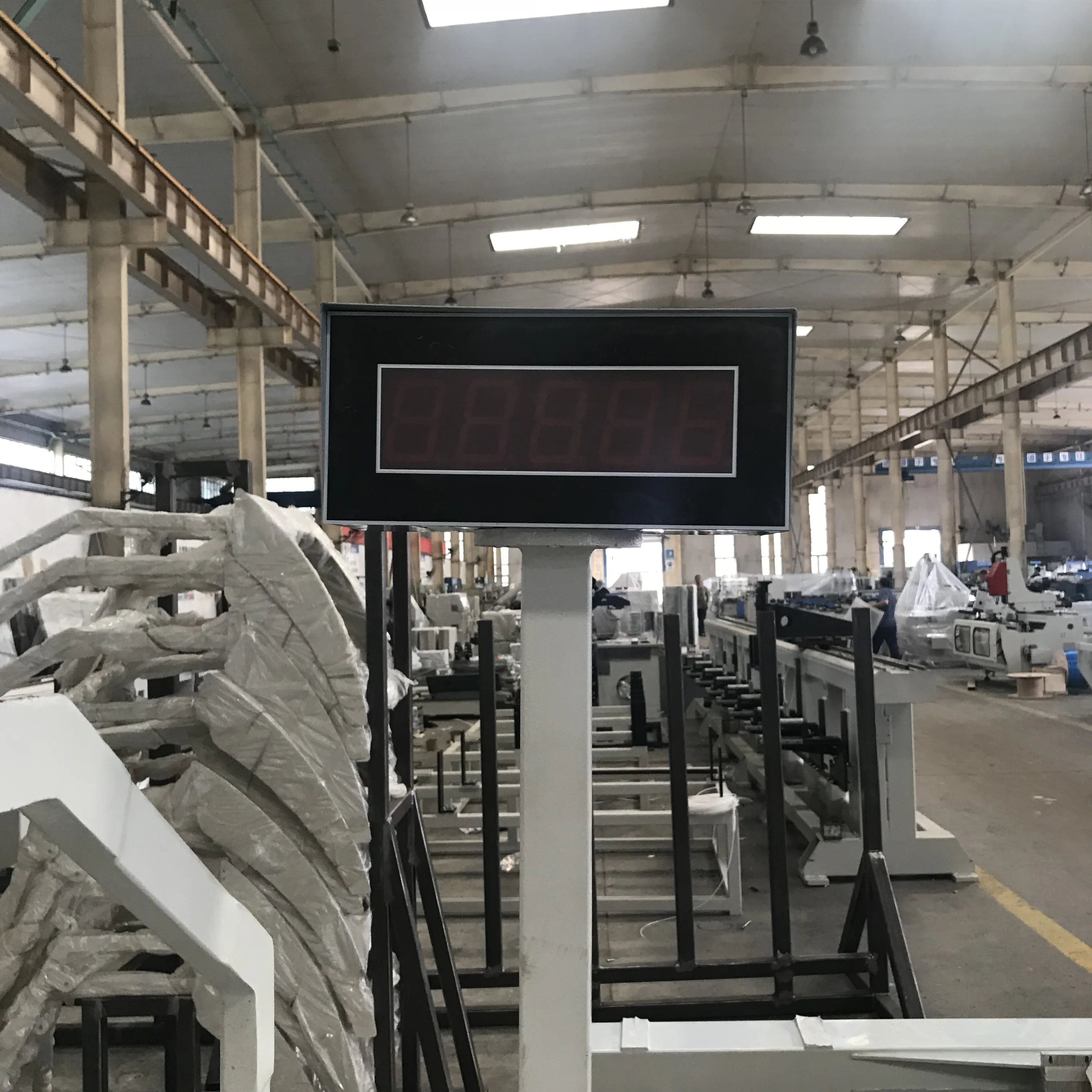

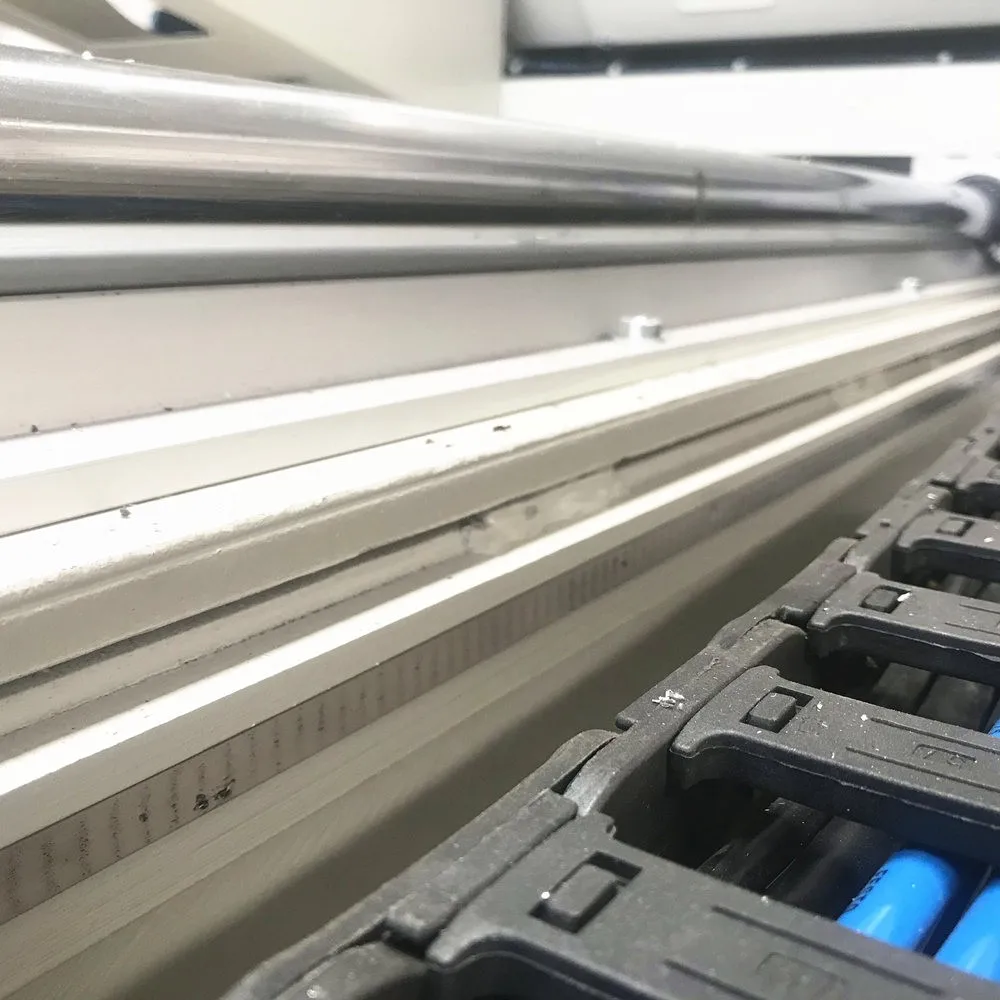

Using magnetic system for length scaling and digital display, with high precision
Certifications
CE Certificate
ISO Certificate
AAAA Grade in Good Standardizing Practice Certificate (2016-2019)
The First Selected Brand of Manufacturing Equipment in 2018~2019 The 14th AL-survey Chinese Doors, Windows and Curtain Wall Industry Brand List
High-tech Enterprises of Shandong Provinces in 2017~2020
Outstanding Contribution Enterprise for Thirty Years of Chinese Building Curtain Wall Industry
Green Products of China Formwork and Scaffold Industry(2018-2019)
Key Enterprises in Shandong Construction Machinery Industry
Famous Trademark in Shandong, China
Our Service
1.24hr online customer service
2. Offering customized service and OEM service
3. Engineers available to service machinery overseas
4. 12 months warranty for whole machine, excepting the wearing parts.

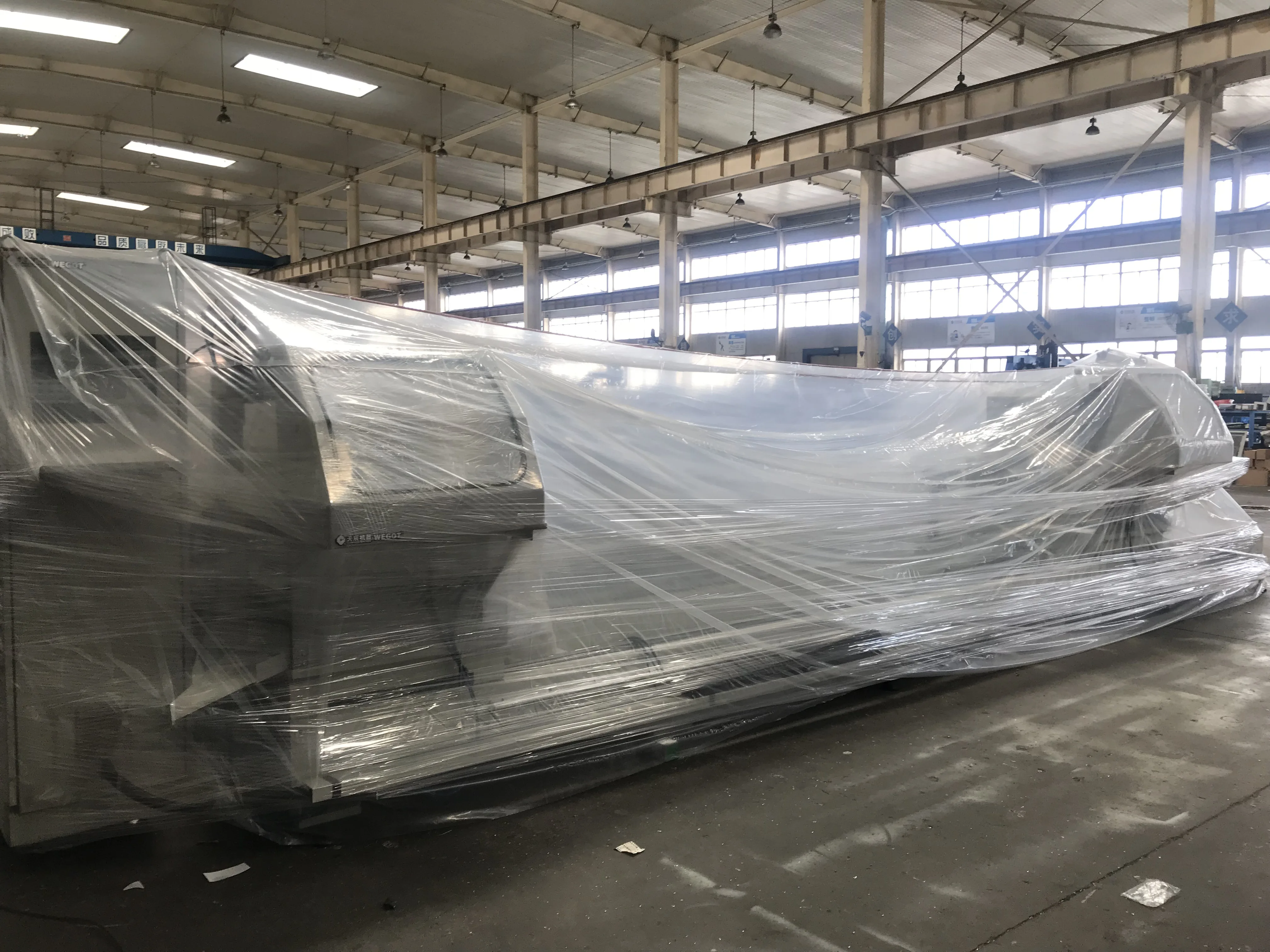

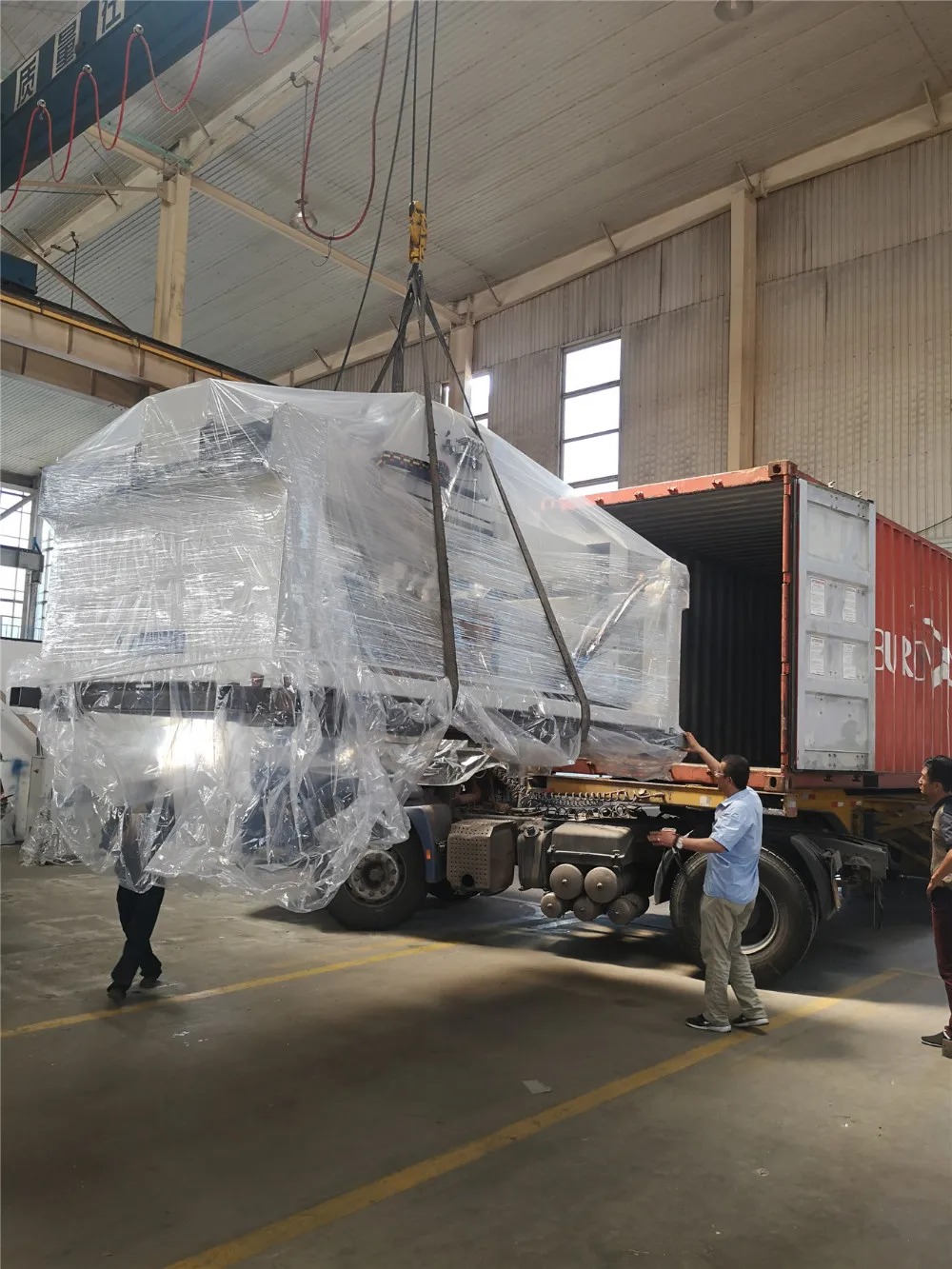

Packing & Delivery

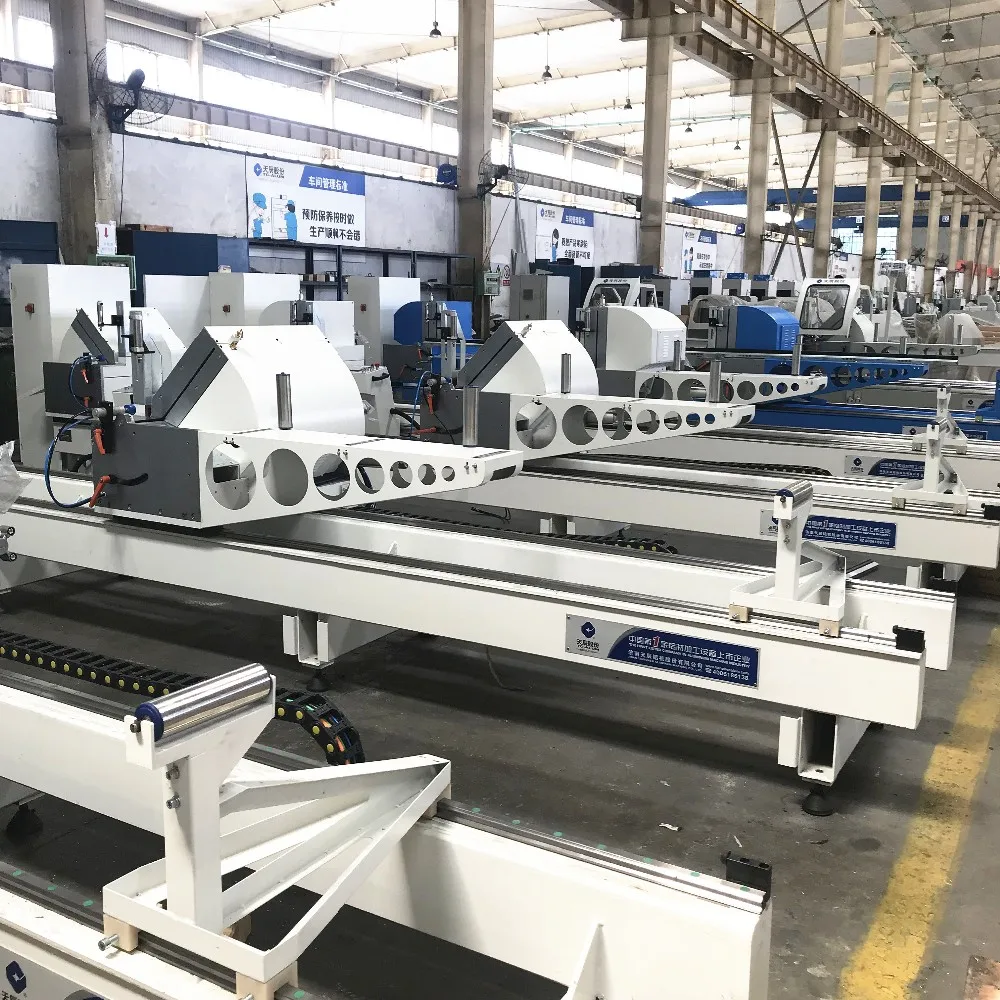

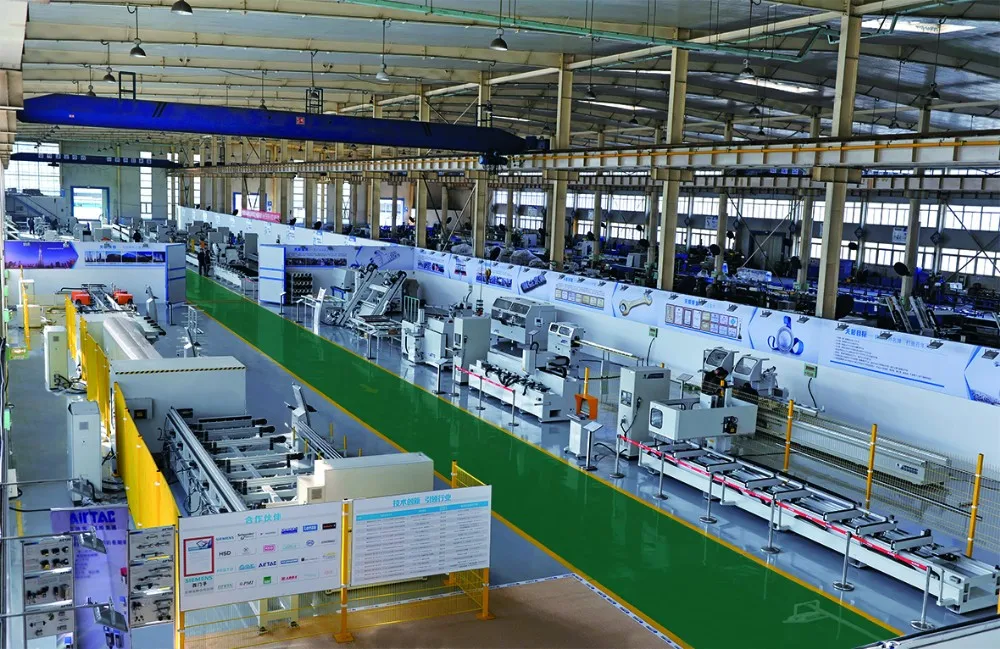

Our Company
Jinan Tianchen Aluminum Machine Co., Ltd is the first listed company in China for door and window curtain wall equipment, and it is a holding subsidiary of Jinan Tianchen Machinery Group, a well-known enterprise in Shandong Province. The company focuses on the research and development and manufacture of aluminum door and window curtain wall and industrial aluminum deep processing equipment. It is a comprehensive high-tech enterprise integrating scientific research, production, sales, testing and service. Tianchen Aluminum Machine has developed into a professional manufacturer of aluminum door and window curtain wall industry with the most complete varieties, the largest production and sales volume, and the largest number of service outlets in China. The products include aluminum door and window curtain wall processing equipment, aluminum formwork production line and industrial aluminum deep processing equipment for rail transit and automobile lightweight industry.
As a world renowned Chinese brand, Tianchen has created a team of responsible, dedicated and dedicated professionals in technology, marketing and after-sales. With professional ability and service spirit, we provide customers with stable and technologically advanced processing equipment based on industry needs.
The people oriented design concept, strict mechanical processing technology and perfect quality assurance system have created the outstanding quality of Tianchen. Tianchen has the most powerful parts processing and manufacturing capabilities in the industry. It has introduced dozens of large-scale processing equipment, CNC machining centers, laser interferometers, ball-bars and other high-precision testing equipment. Tianchen Company adheres to the model of independent innovation and lean manufacturing, continuously improves the level of R&D and manufacturing, and has won the unanimous approval from the market and customers. At present, Tianchen has provided machines to more than 7,000 aluminum door and window manufacturers and more than 100 aluminum curtain wall manufacturers in China, with a domestic market share of over 40% (more than 70% in some major markets) and over 60% of the top 100 companies in China's building curtain wall industry have become loyal users of Tianchen, and has been exported to more than 60 countries and regions such as the United States, Russia, South Korea, Singapore, Thailand, Vietnam, the Philippines, Australia, the United Arab Emirates, South Africa, France, Greece, Italy, India and etc, and enjoys world wide reputation.
"Doing new, doing well", Tianchen closely follows the development trend of domestic and foreign door and window curtain number of patents fill the gap in the industry. In the future, Tianchen will adhere to innovation-driven development, help transform old and new kinetic energy, and promote industry progress!
Never forget the original heart, practice the spirit of artisans; work hard to create a national brand!
Exhibitions
FAQ
1. Which machine should I choose? A: Tell us your specific requirements for the machine; we will give you perfect suggestions and solutions.
2. How to use the machine, what should I do if problems occurred to the machine? A: You can refer to the user's manual or instructions delivered along with the machine; if anything unclear, please feel free to contact us. We will support you by email, telephone or instant messengers. If still have difficulties, we offer oversea installation, maintaining and training service.
3. Which payment method do you accept? A: We accept T/T, L/C and etc.
4. What is the delivery time? A: The delivery time differs depend on the machine model and the order quantity. Usually the delivery time shall be 7-25 working days after deposit.
