QR 2 servo motor automatic voice coil winding machine

Product Overview

Description

QR-2  servo motor automatic armature field  coil winding machine

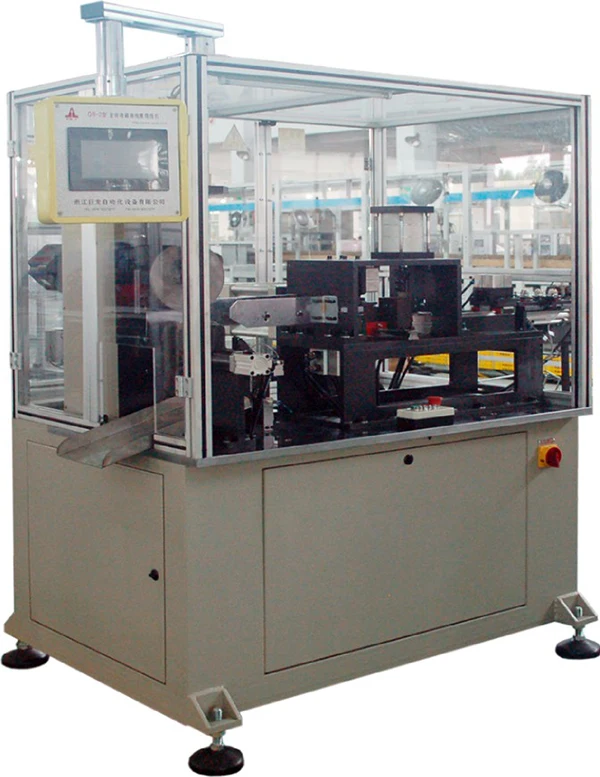

QR-2 Full Automatic Field Coil Winding Machine

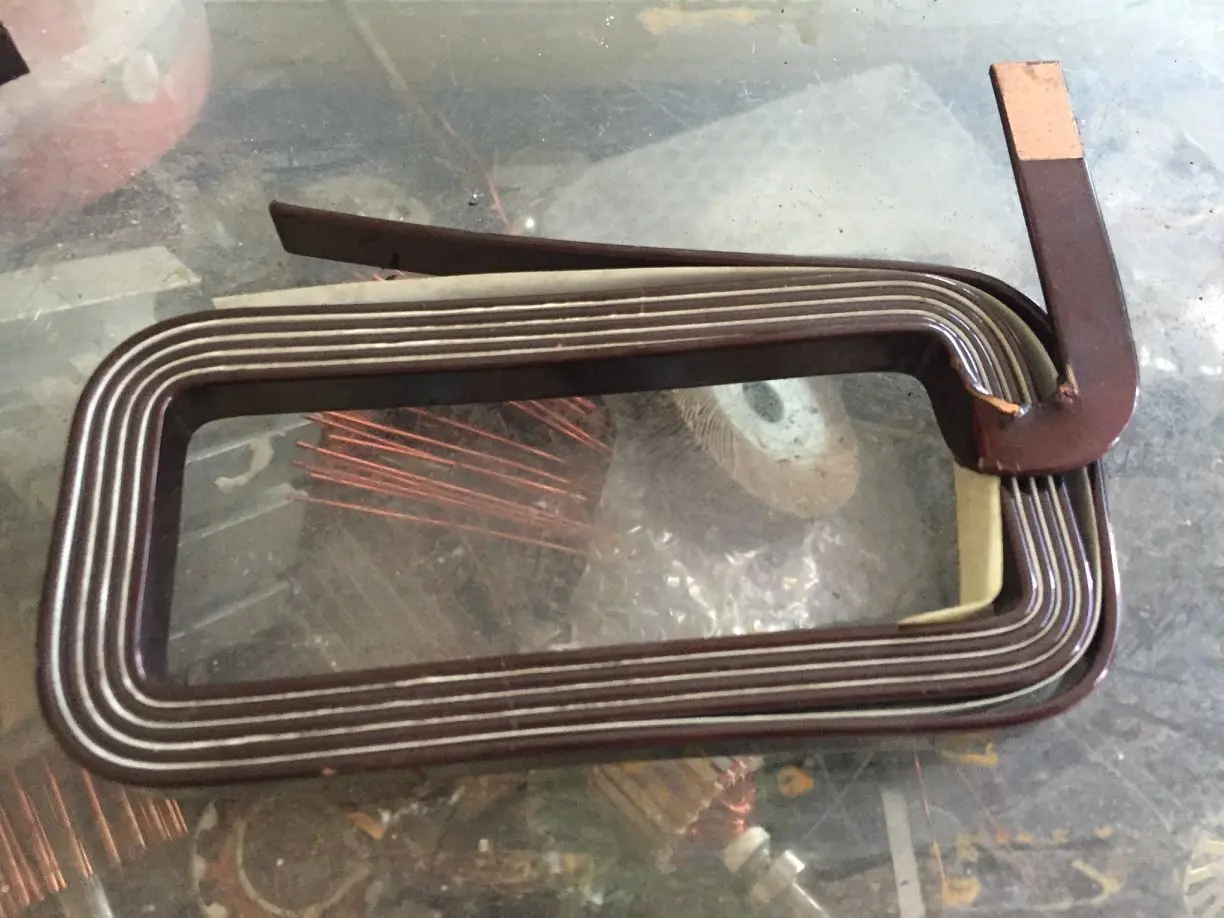

Suitable for a variety of starter motor stator and other flat wire coil automatic elbow and winding, turn between the automatic insulation pad insulation paper.Automatic continuous winding, automatic wire feeding, straightening, bending twisting head, pneumatic tracking pressure winding, encoder precision long cut off, automatic stripping, frequency control, PLC program, touch screen display, cylinder action, deceleration Motor winding, one person can manage multiple machines, a high degree of automation.







Technicai Parameters



Supply voltage	AC220V±10% 50Hz
Air pressure	0.5~0.7 MPa
Total power	3kw
Winding speed	0~80r/min
Turning diameter	Φ160mm
Wire Range	≤20mm
Special specifications can be customized
