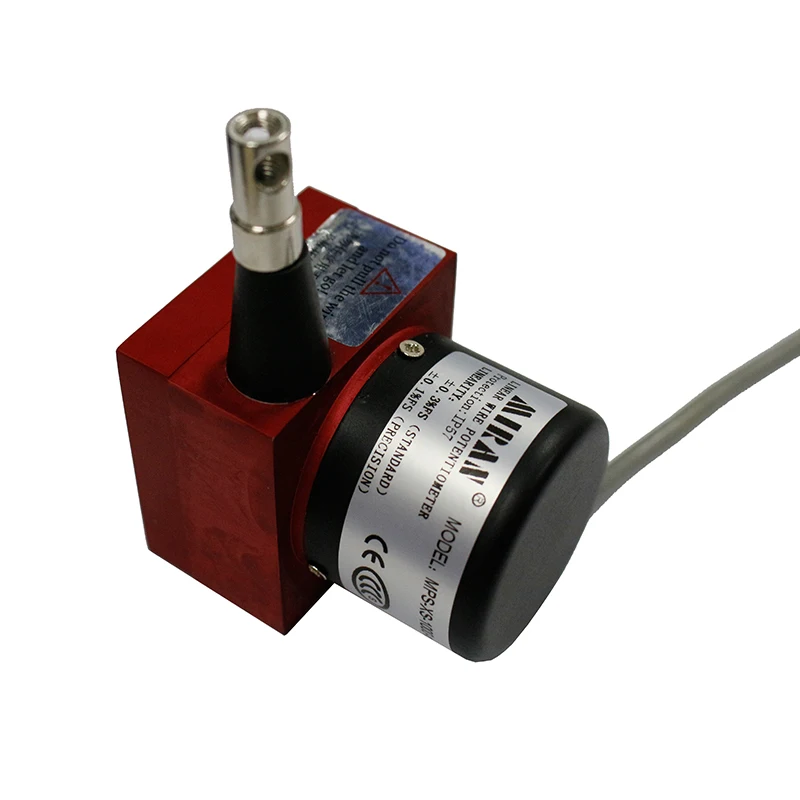

MIRAN MPS Linear Analog Sensor Length Measurement Rope Encoder Draw Wire Displacement Sensor
MIRAN MPS Linear Analog Sensor Length Measurement Rope Encoder Draw Wire Displacement Sensor
MIRAN MPS Linear Analog Sensor Length Measurement Rope Encoder Draw Wire Displacement Sensor

MIRAN MPS Linear Analog Sensor Length Measurement Rope Encoder Draw Wire Displacement Sensor

Share on (62311944297):


Price:

Quantity:


Product Overview

Description


Product Description
MIRAN Linear Wire Encoder MPS Analog Output High Resolution Draw Wire Linear Displacement Sensor Easy Installation with Screw
Electric Specifications
Stroke Length(mm)
100mm~1000mm
Output Signal
0~5VDC or 0~10VDC
Linearity
± 0.25%FS(normal standard)
Repeatability
± 0.02%FS
Resolution
Essentially Infinite
Wire Measurement
Diameter 0.8mm   SUS304
Sensor Type
Wire-Winding potentiometer
Starting Force
≤200g
Max Measuring Speed (back and forth)
500mm/sec
Mechanic Specifications
Voltage Supply
0~24VDC for 0-5V output; 12-24VDC for 0-10V output
Working Temperature
-35℃～+70℃
Storage Temperature
-20℃～+80℃
Vibration
10Hz to 2000Hz
Ingress Protection
IP65
MIRAN Draw Wire Encoder(MPS)
Application
Miran Draw Wire Potentiometer MPS type is widely used in storage positioning, dam protections, sluice gate control, screw machines, paper machines, sewing machines, sheet metal machines, printing machines, horizontal control equipment, construction machines, industrial robot, injection machines, woodworker machines, elevators, air compressors, hydraulic machines, X-Y axis displacement, liquid level measurements and position control.
Product Selection Guide
Model Example: MPS-XXXS-R-100mm
Measuring range and enclosure models
XXXS:100-200mm
XXS:100-800mm
XS:100-1000mm
S:100-1250mm
M:1250-4000mm
L:4500-8000mm
XL:9000-100000mm

There are 6 kinds of output as below,please choose the one you need.
R: 0-5KΩ Resistance
V1：0-5V
V2：0-10V
A1：4-20mA with 3 wires
A2：4-20mA with 2 wires
P：incremental pulse phase output AB phase or ABZ phase.
Detailed Images
MIRAN Linear Wire Encoder MPS Analog Output High Resolution Draw Wire Linear Displacement Sensor Easy Installation with Screw
Packing&Shipping
1.Packing with carton.
2.Shipping via DHL,FedEX,TNT,UPS etc.
3.Delivery time: around 3-5 days after receive the payment.(according to your quantity)
4.Port: Shenzhen
Related Products
Company Introduction
Since 2003 we have been developed and produced displacement sensors in Shenzhen.In order to meet more customer needs,we expend the scale of production.And set up our new factory in Hubei Province
Zaoyang Miran Technology Co., Ltd. is the professional manufacturer of Linear Position Sensor in China.It's our new factory which is located in Hubei Provice.Our sales headquarters located in Shenzhen.

Our main products are: Linear Position Sensor,Wire Rope Encoder,Magnetostrictive Liquid Level Sensor,Angle Sensor,Inclinometer, Lubricating System(pump and distributors and the other accessories),LVDT sensor,Eddy Current Sensor, and many other motion control products to support many different industries.Our factory is approved by ISO9001:2008, and all our products have CE, CCC certificates.

Our Principles: Quality First, Credit First, Customer First.

Our Advantages
1. Strong capability in Research&Design.We spend million dollars every year for developing new tech and new products.
2. Promise high quality after strict tests. Every product will go through vibration test, low and high temperature test,electromagnetic interference regulatory test,endurance test, and explosion proof test.
3. Strong production capacity. We have factories both in Shenzhen and Hubei Province, and also a lot of in-stock products in warehouses. We can meet large demands from our customers, and deliver the orders on time.
4. Excellent sales & after-sales service. We are headquartered in Shenzhen, and have branches all over China. We guarantee life-long for all products.We can offer you the competitive perfect products.
5.OEM is aviable.We also support to put your logo on the products if you need.

Hope we can build up the long-term and harmonious business relationship!
Wechat/WhatsAPP/Phone: 86 18988775283
Skype: miranivy
FAQ

Q1: What payment method your company accepts?

  A: We accept T/T (Bank Transfer), Western Union, Paypal, Alipay, Wechat  pay.


Q2:How long for the production time?

  A: Standard products in stock, or 5-7 days depends on order quantity and  product type. Exactly time              please contact us.


Q3: You said we can use our own logo? What's the MOQ if we wanna do this?

  A: Yes, 1 pcs MOQ.We can also offer customized products.


Q4: Can I have a sample products for testing?

  A: Yes you can buy sample product.


Q5: Can you do drop shipping?

  A: Yes, we can help you ship the goods to any address you want. We will not put any catalogue or any            document with our company info in it if you requested.


Q6: What is the shipping methods?

  A: Usually by express, such as DHL, FedEx, TNT, UPS etc..
