Цена, термоформовочные машины/Термоформовочная Машина для пластиковых пластин

Product Overview

Description



parts of the machine









I Usage

The machine mainly used for making different kinds of plastic cups, such as water drinking cups, jelly cups, yogurt cups, coffee cups, it can also make disposable bowls, lids, dishes, trays and ect.



II Major construction features

The sheet feeding pin chain is controlled by motor with encode.

The stretching of plug inside of up mould is controlled by air cylinder.

The operation is controlled by PLC with touch screen.

Adopt two pillars to fix the mould.

Adopt hydraulic system to drive the movement of the mould.

Temperature control modules to control each temperature area.

Machine production process started from sheet feeding, heating, stretching, forming and in-mould cutting in one stroke.

Machine frame adopts square steel, more stable and serviceable.

Convenient operation, reliable performance, low noise and high quality.





Model	FSDT-660/350-A	FSDT-660/350-B
Quantity Of Stations	3	4
Sheet material	PP, PS , PVC, PET, HIPS, EPS, OPS, ABS
Max forming area	660×350mm
Max. Pos/Neg Depth	100/30mm
Max. Plastic Sheet Width	690mm
Max. Plastic Sheet Dia	800mm  500KG
Thickness Of Plastic Sheet	0.1-2mm
Max. No-Load Speed	30Cycles/min
Air Consumption	1.5-1.8m3/min, 0.5-0.8Mpa
Overall Power	55KW	60KW
Dimension(LXWXH)	L9000×W2200×H2500mm	L9800×W2200×H2500mm
Weight	7T	8T
Power Supply	380v/50Hz  Three Phase Four Wires

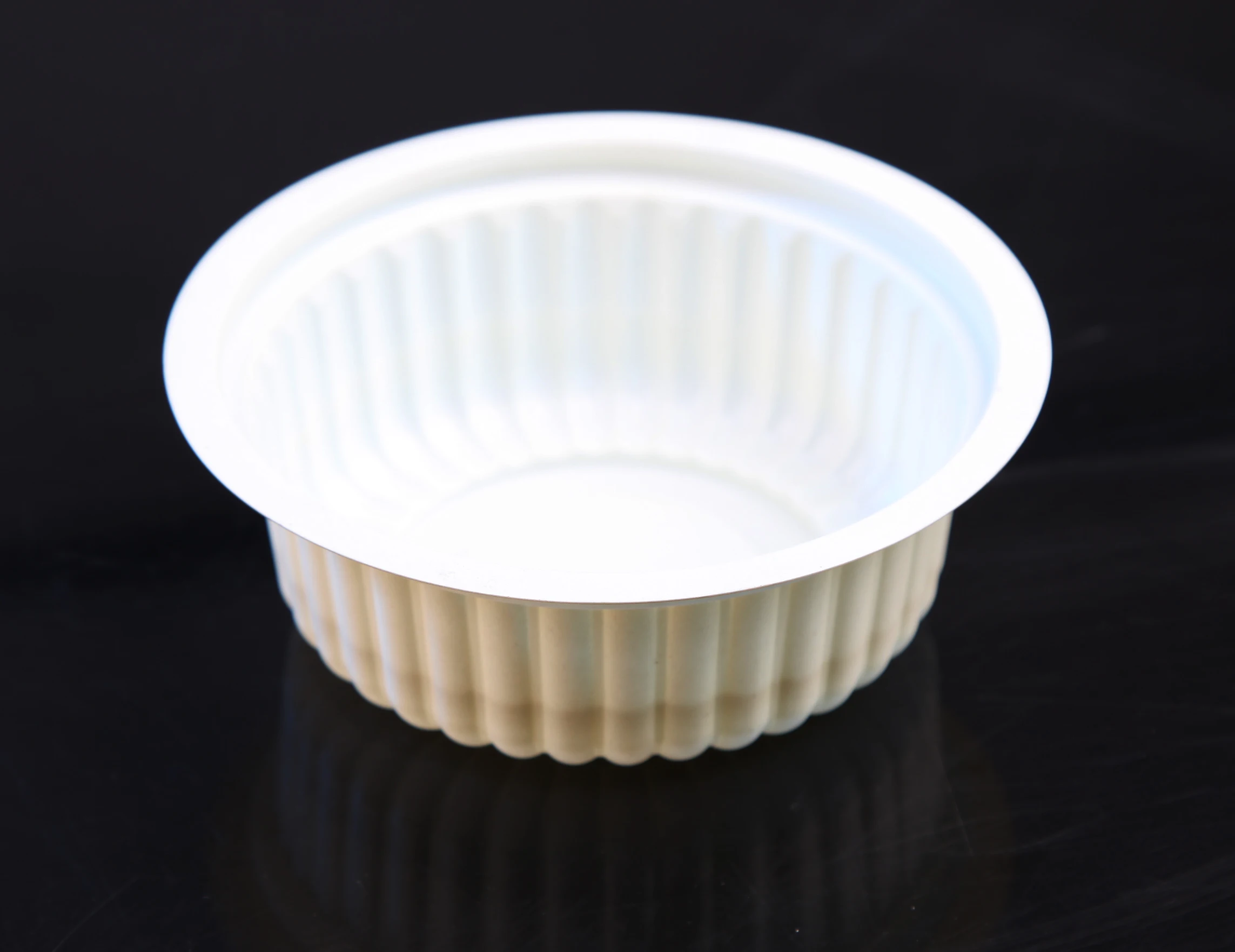

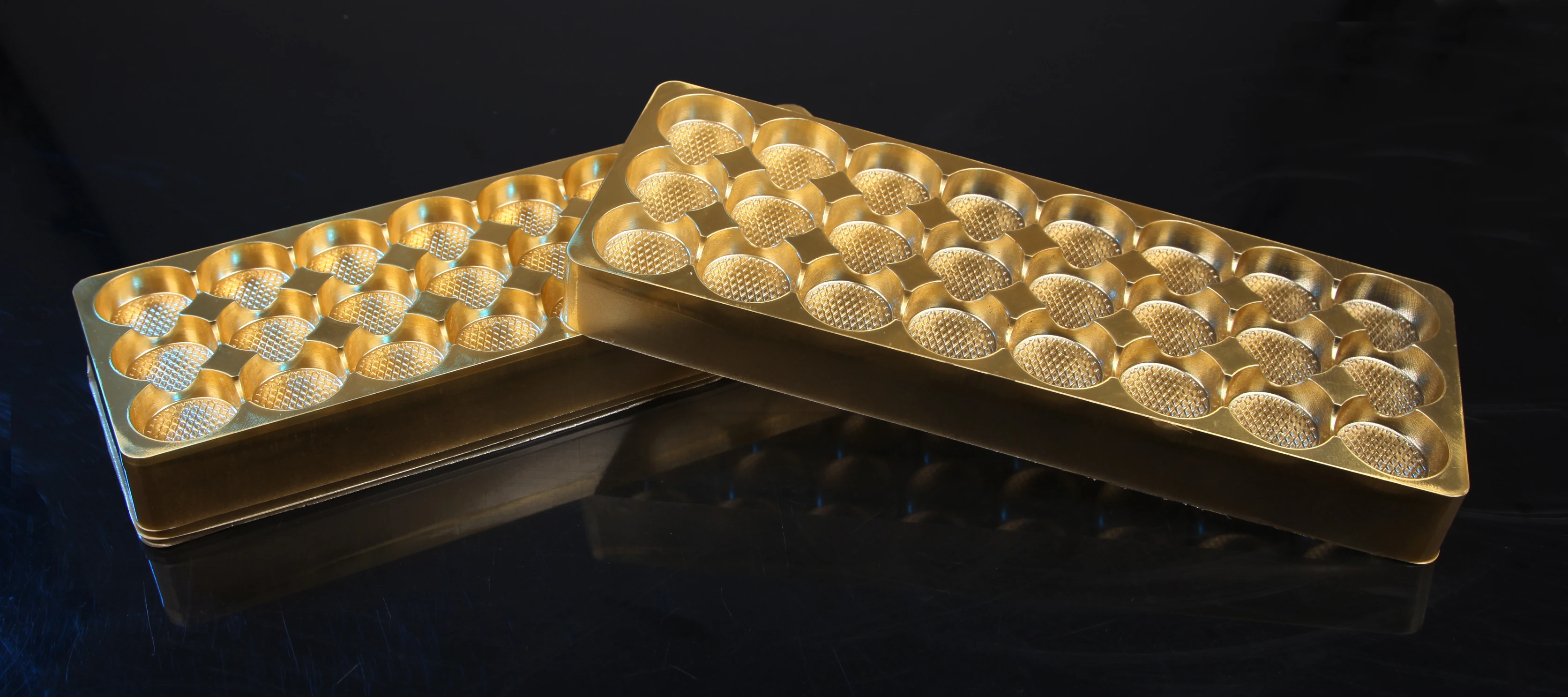

the samples







WOODEN CASE



Warranty and After-sale service

1,The warranty of all our testing machine is one year

2,During this Warranty,it is free to replace the spare parts

3,Out of this warranty, it only charges the cost of the spare parts

4,All our testing machines enjoy a long after-sales service



After all machines are delivered to customer’s factory; Seller should assist buyer to finish preparation work, such as electricity supply, water supply, labors and etc.



Our products are sold in whole China and exported to many countries and regions such as USA, Japan, Canada, Indonesia, Taiwan, Malaysia, Iran, Singapore, Australia, South Africa, Saudi Aribian, Egypt, Turkey, Philipines, etc. Our company slogan is “Credit by Quality, Market by Service”.





We are appreciated with advance equipment, experience and production power. We provide on time after- sales service. We integrate the design, development, production, sales and after-sales services to our clients.













WE have the specification of every machine.
