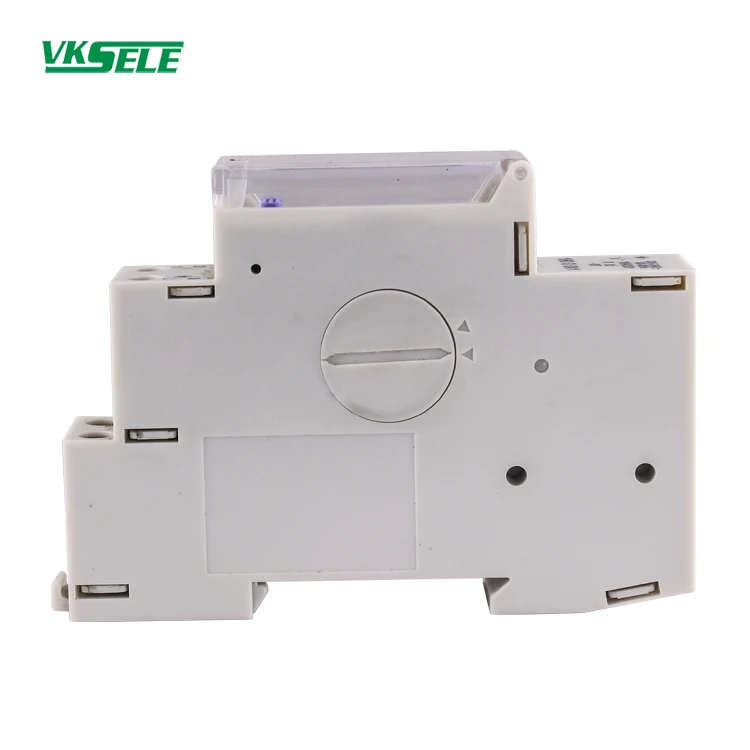

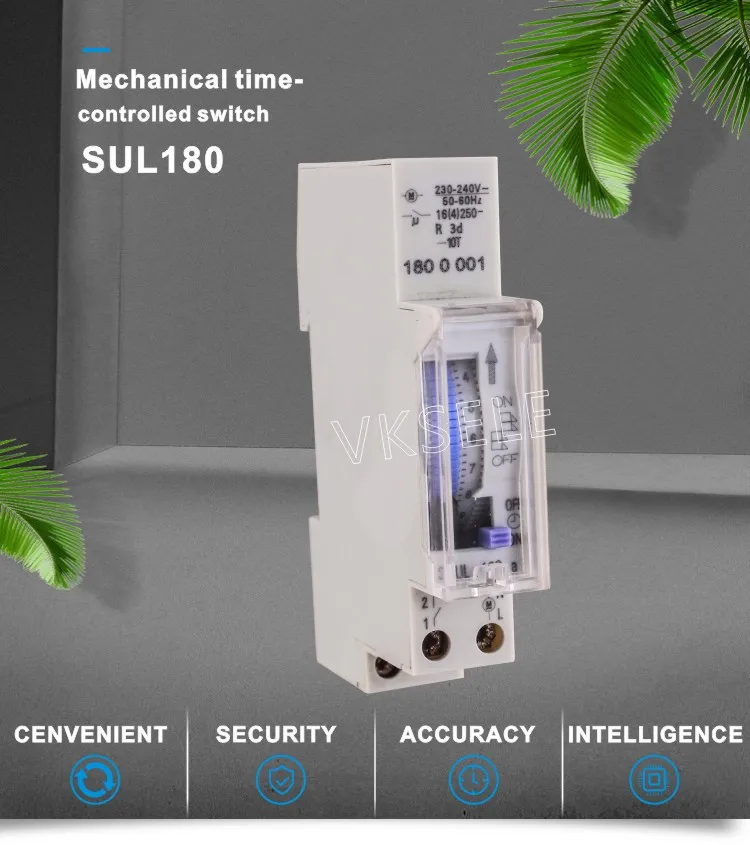

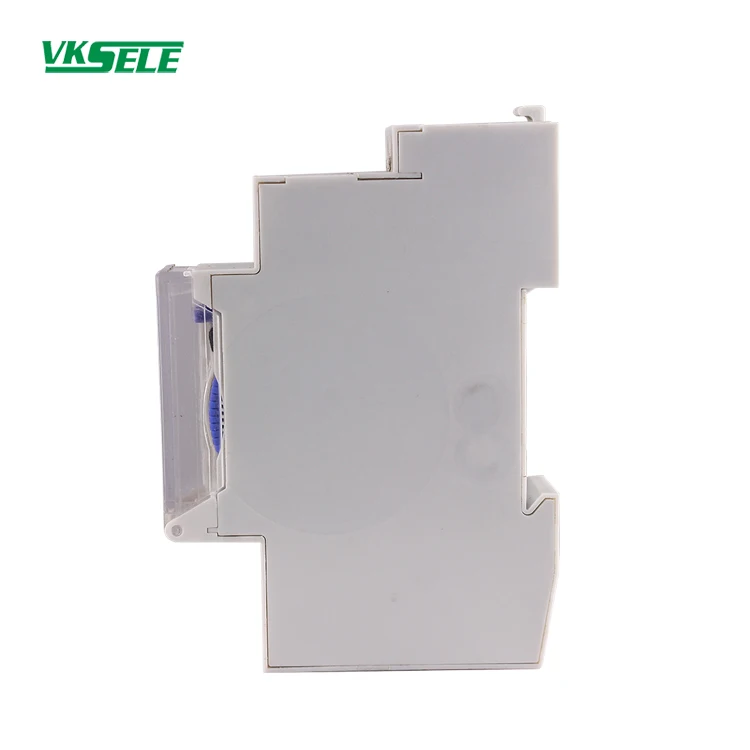

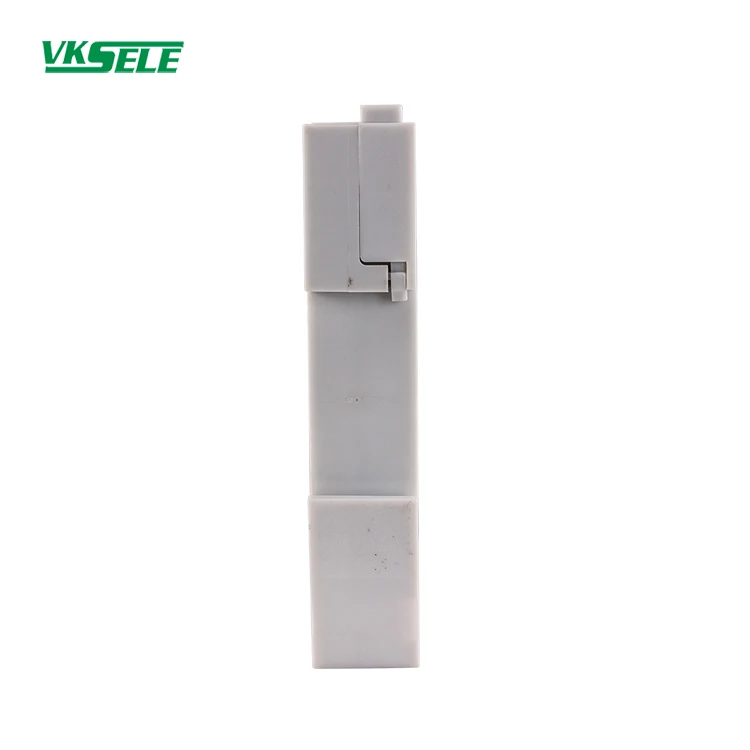

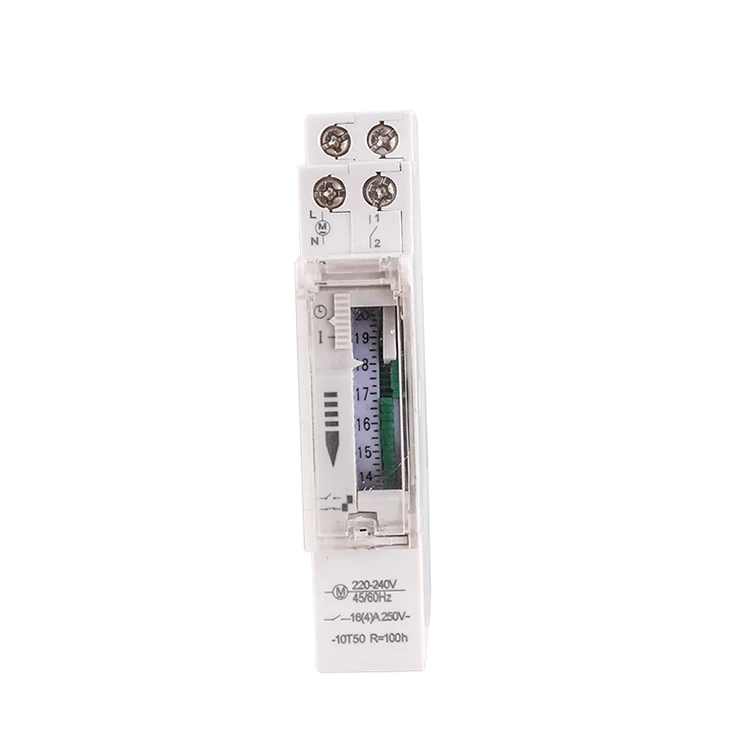

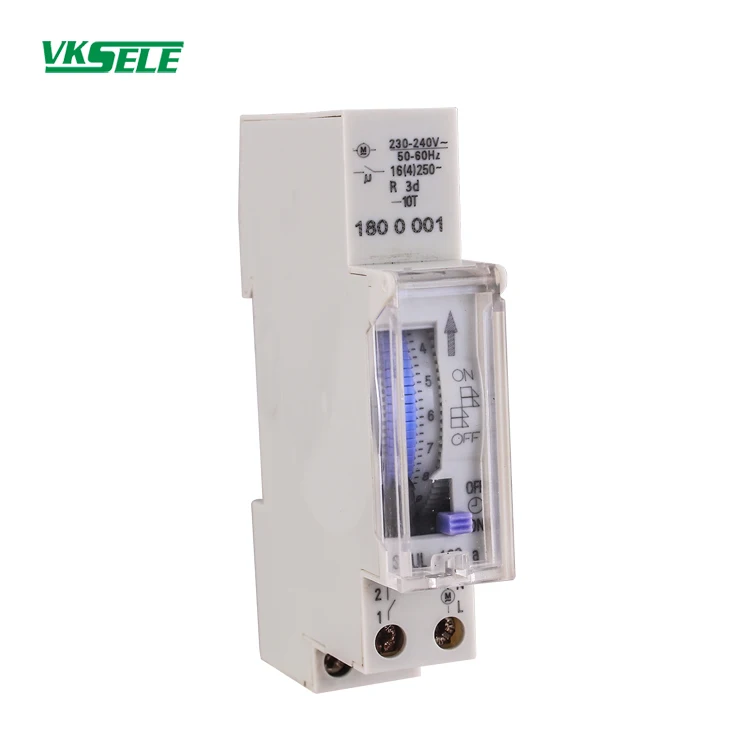

SUL180 Mechanical timer switch DIN Rail timer switch relay
- Category: >>>
- Supplier: Zhejiang Weikesen Power Technology Co. Ltd.
Share on (62311989964):
Product Overview
Description
Product Description
Main Technical Parameter:
| Model | SUL180 |
| Working Voltage | 220VAC 50/60HZ |
| Contact Rating | 16A 250VAC |
| Circuit Number | Single loop |
| Power Waste | 110VAC 1W |
| Travel time error | ≤60s pen month at 20℃ |
| Cycle | 24 Hours |
| Number of operations | The 96 time 15/times |
| Storage time | 72 hours |
| Installation mode | DIN Rail |
| Wiring resistance | ≤50mΩ |
| Installation resistance | ≥100mΩ |
| Life | 10000000 time |
| Ambient temperature | -10℃~+50℃ |

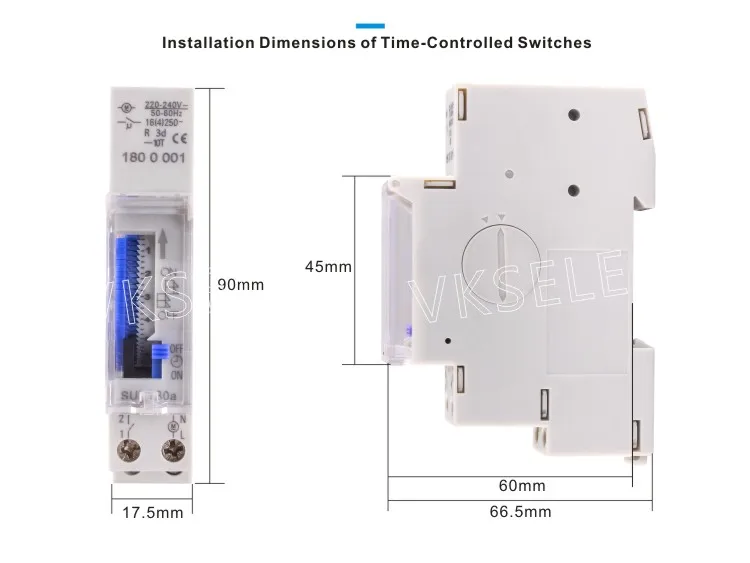

Dimensions:

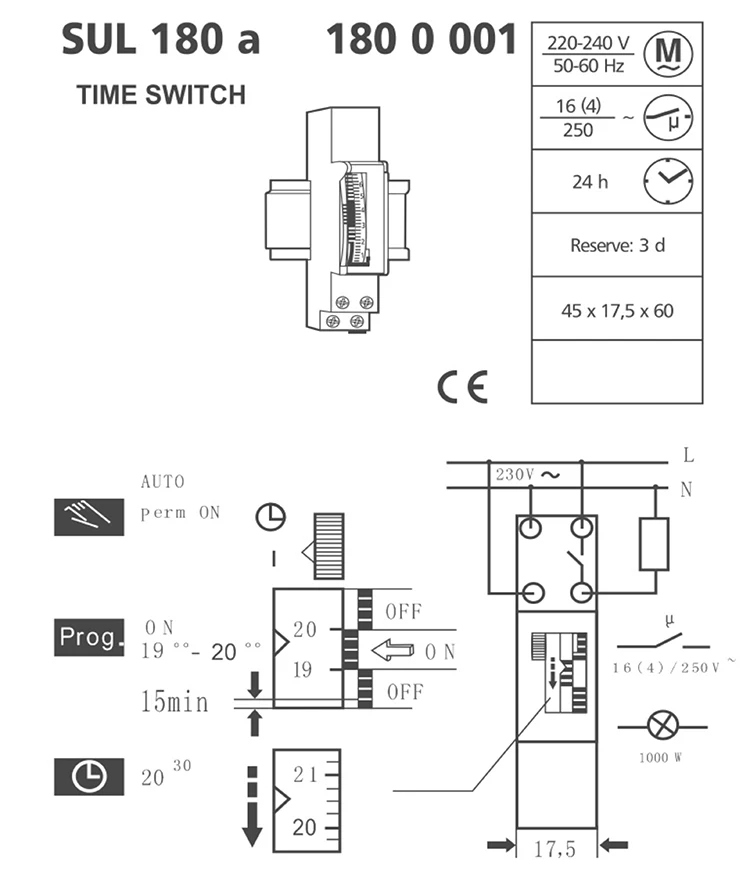

Wiring Diagrams:
