Product Description
Function

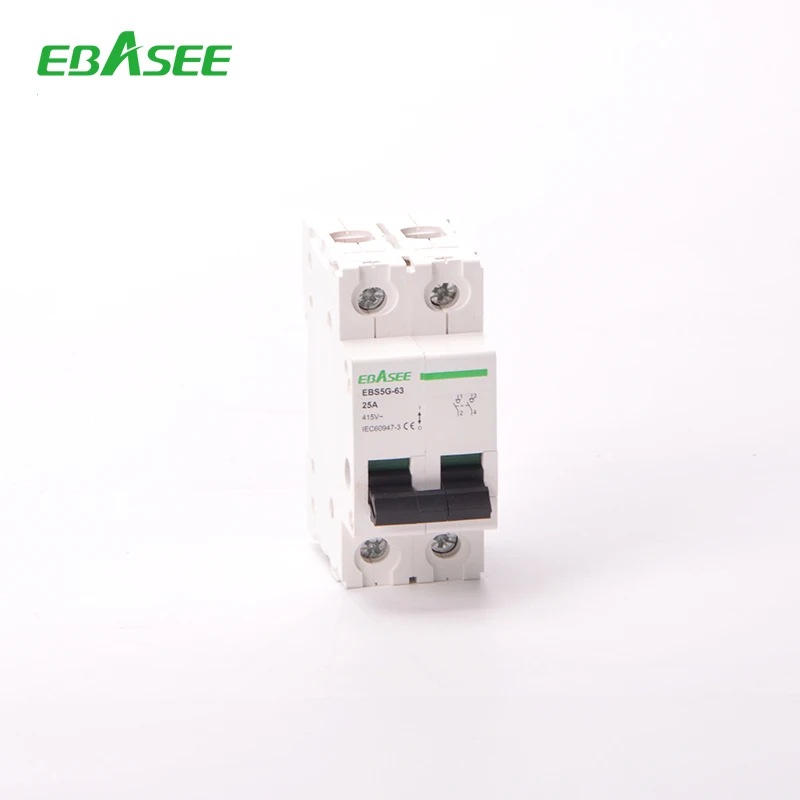

EBS5G is also know as isolating switch HL30.
n Capable of switch electric circuit with load
n Adaptable to padlock device
n Contact position indication
n Capable of quickly releasing stored energy operation
n High short-circuit current withstand capacity
n Used as main switch for household or similar installation
Technical Parameter
Model name |
| EBS5G |
Standard |
| IEC60947-3 |
Poles |
| 1P, 2P, 3P, 4P |
Rated current In(A) |
| 16, 25, 40, 63 |
Rated voltage Un(V) |
| 230/400V AC 50/60Hz |
Rated short-circuit making capacity |
| 6kA |
Rated withstand current |
| 1kA within 1sec |
Connection capacity |
| Rigid conductor 25mm2 |
Connection terminal |
| Screw terminal Pillar terminal with clamp |
Installation |
| Installed on 35mm DIN rail |
Applicable Working and bus bar connection
Ambient temperature |
| -5~+40℃, the average value cannot exceed to +35℃ within 24h |
Altitude |
| ≤2,000m |
Relative humidity |
| ≤95% |
Pollution level |
| II. |
Installation location |
| Mount on the place where has no obvious vibration or impact |
Detailed Image
Packaging & Shipping
Company Information
1.About us
Shanghai EBASEE Electric Co., Ltd. has been committed to low voltage electric products’ designing, R&D, manufacturing and marketing for decades.
EBASEE factory locates in Shanghai,China, covering an area of 5000m2.There are 300 well-trained workers, more than 30 rich experience production and R&D engineers. EBASEE product portfolio have 4 lines and 8000+ items in application of power distribution, circuit protection, electricity control and power measuring.
QUALITY is our CULTURE. With qualified raw materials and components, all products are manufactured to defined specifications, applying ISO9001 quality control system and in compliance with relevant international approvals, such as RoHS, CE, CB, SEMKO, TUV, KEMA. CNAS approved laboratory enables EBASEE to develop and test new products to meet variable markets’ tailored demands. EBASEE branded and OEM/ODM products are widely served for residential, commercial and industrial applications in 60+ countries and districts.
