heat transfer powder coating machine hot melt powder laminating machine
- Category: >>>
- Supplier: Yancheng Hickey Machinery Co. Ltd.
Share on (62312081195):
Product Overview
Description
Product Description

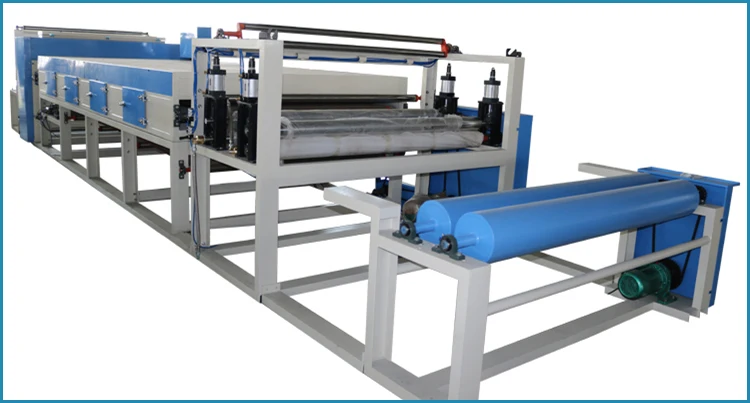

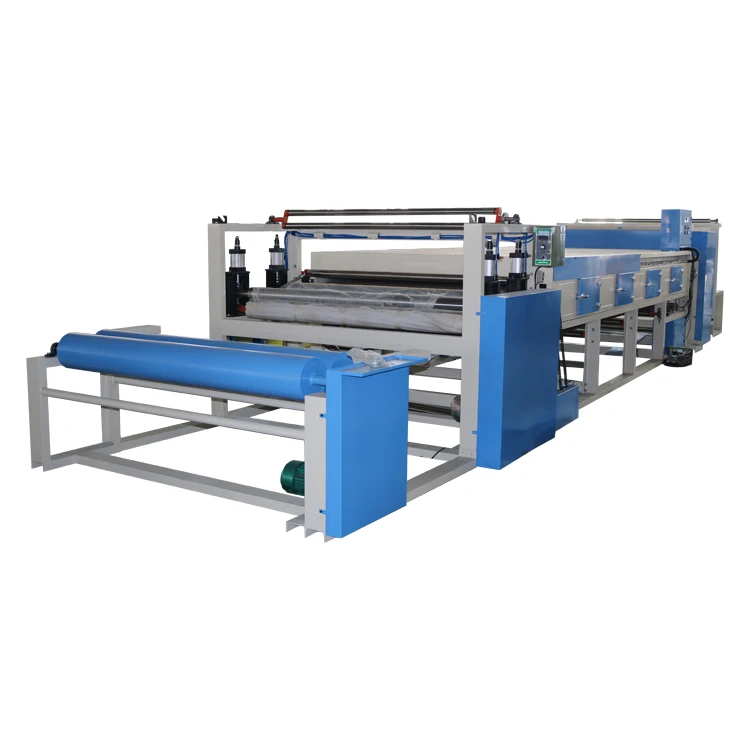

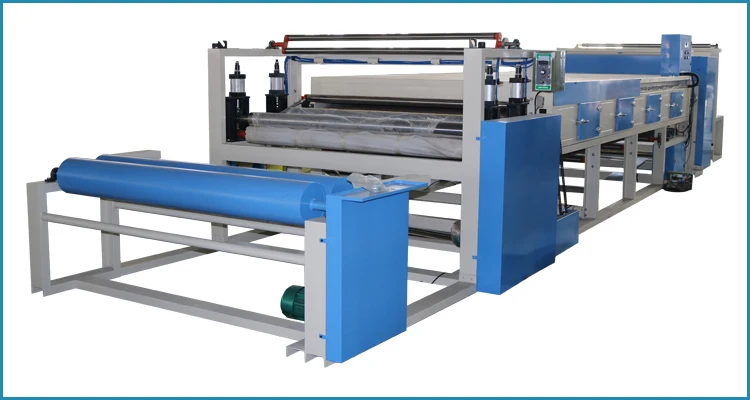

HC-HP-1800 heat transfer powder coating machine hot melt powder laminating machine
Hot melt powder laminating machine (alias: powdering laminating machine, powderdot transfer laminating machine, hot melt powder laminating machine), mainly used for adhesive bonding of sponge, cloth, EVA, artificial leather, artificial cotton and other materials. | ||||||||
The hot melt powder is used as the bonding medium, and the laminated material has the characteristics of strong gas permeability, large peeling force, and easy ironing. | ||||||||
Product Parameter | ||
Model No. | HC-ASC-1400 | |
Bonding method | hot melt powder | |
Length of oven | 3-6m (customizable) | |
Heating method | Electrical Heating | |
Laminating speed | 0-30m/min | |
Motor power | 3KW+1.5KW/3HP+2HP | |
Voltage | Three phase 380V 50Hz (customizable) | |
Material Width | customizable | |
Overall dimension | 9800*2400*2400mm | |
Weight | 4000-5000KG | |
OEM service | YES | |
Detailed Images
Features and Advantages | ||||||||
● The hot-melt powder laminating machine adopts the powder dot transfer technology to uniformly transfer the hot-melt powder onto the lining cloth. After baking, thermally laminating with the fabric, so that the molten dots penetrate into the fabric to a certain depth, thereby The two layers of strong materials are bonded together. | ||||||||
● Different hot-melt powders are used to make the laminated fabrics feel good, washable, sand washed and dry cleaned. | ||||||||
● The conveyor belt of this machine has an automatic infrared adjusting device, which can effectively prevent the deviation and prolong the service life of the conveyor belt. | ||||||||
● The heating system of the machine is divided into two groups. The user can select the heating mode (one or two groups) according to the needs, which can effectively save energy and reduce production cost. | ||||||||
● The customer can choose DC motor or inverter linkage as needed to make the machine have better controllability. | ||||||||

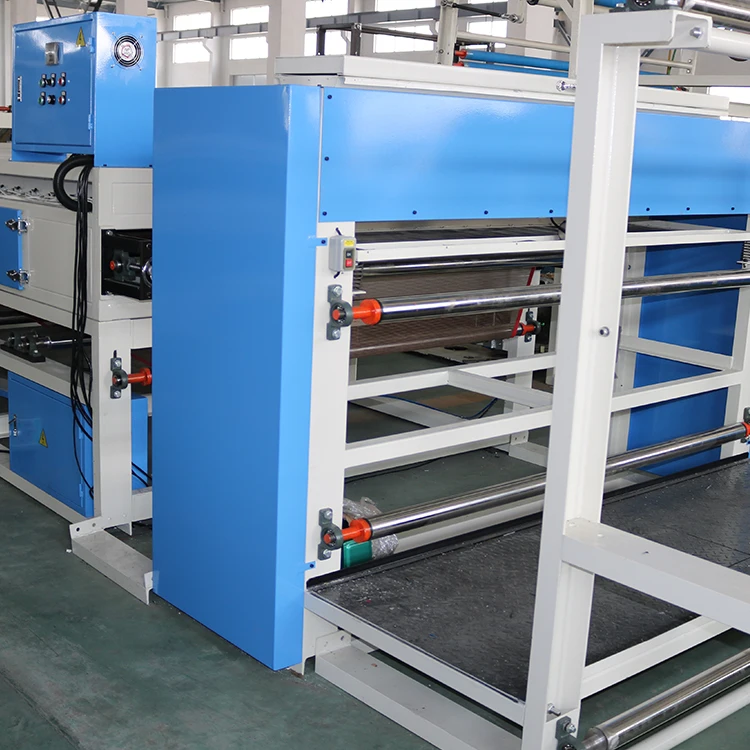

Oven
Powdering device

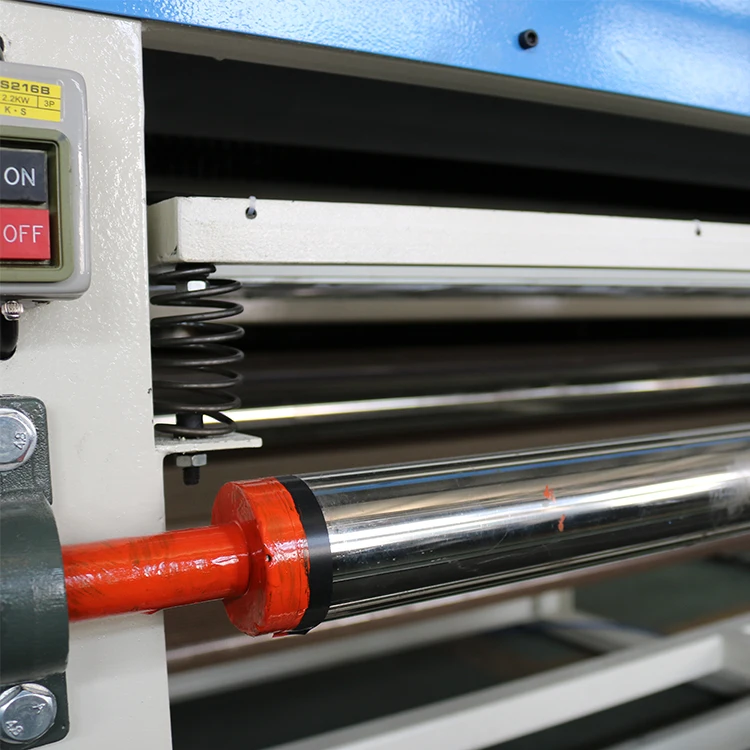

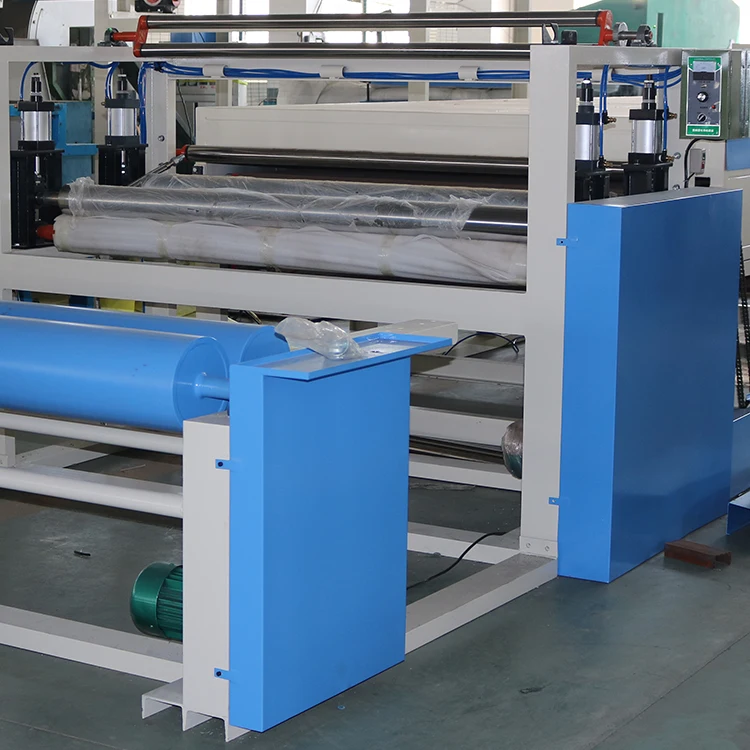

Pressing device
Vibrating screen
Hot-sale products |
Ultrasonic quilting machine
PUR hot melt glue laminating machine
Sandpaper laminating machine
Glue dot transfer laminating machine
Flame laminating machine
Water based glue laminating machine
Embossing machine
Bronzing machine
Dot paste coating machine
Certification
Chamber of Commerce Certificate
High-tech enterprise certification
Technological Innovation Award
Application
This hot melt powder laminating machine mainly used for bonding and laminating of sponges, cloths, EVA, rayon and other materials.It is mainly used for the bonding of raw materials for shoes, hats, gloves, leather garments, luggage, car seat cushions, toys and other industries.
Company Introduction
Yancheng Hickey Machinery Co., Ltd is is a professional manufacture of all kinds of laminating machines, rapid thermal shaping machine, and footwear machines, located in Yancheng, Jiangsu province, China. We have manufacturing experience of laminating machines for more than 20 years.
International Cooperation
Hickey adhere to take the road of the development of science and technology innovation.We enjoy good sale in over 20 countries and regions. We have close technical cooperation and trade relations with Italy, Germany, Turkey, USA and other countries and regions.
Packing&Shipping
Inner Package: Protective Film, etc |
Outside Package: Standard Export Container |
FAQ
1. Q:Are you a trading company or a manufacturer ? | ||||||||
A: We are a manufacturer. | ||||||||
2. Q:Where is your factory ? | ||||||||
A: Our factory is located in Yancheng, Jiangsu, China, about 4 hours from Shanghai. All clients are most welcomed to visit us. | ||||||||
3. Q: What is your MOQ of this item? | ||||||||
A: 1 set per style. | ||||||||
4. Q:How about the lead time ? | ||||||||
A: It depends on your order quantity. Normal size laminating machine costs 20 days. | ||||||||
5. Q: How do you guarantee the quality? | ||||||||
A: We have certificate of patent and professional QCs. | ||||||||
