socks making machine automatic pantyhose machinery the price of a socks making machine harga mesin pembuat kaos kaki
- Category: Sock Knitting Machines >>>
- Supplier: Shaoxing,Rainbowe,Machinery,Co.,Ltd.
Share on:
Product Overview
Description
Introduction
1. Diameter is 3.5 inch.
2. Production Capacity/24 hours: 300~400 pairs according to different sizes or crafts of socks.
3. Main feeders are 8 pcs and max. 16 colors can be knitted in one sock
4. 3D socks, two-color heel socks, low-cut socks, five-toe socks, terry socks, and non-terry socks can be knitted, invisible sock function is optional
5. Double down pickers and double up pickers are adopted for a better and quicker heel-knitting
3. Main feeders are 8 pcs and max. 16 colors can be knitted in one sock
4. 3D socks, two-color heel socks, low-cut socks, five-toe socks, terry socks, and non-terry socks can be knitted, invisible sock function is optional
5. Double down pickers and double up pickers are adopted for a better and quicker heel-knitting
Configuration

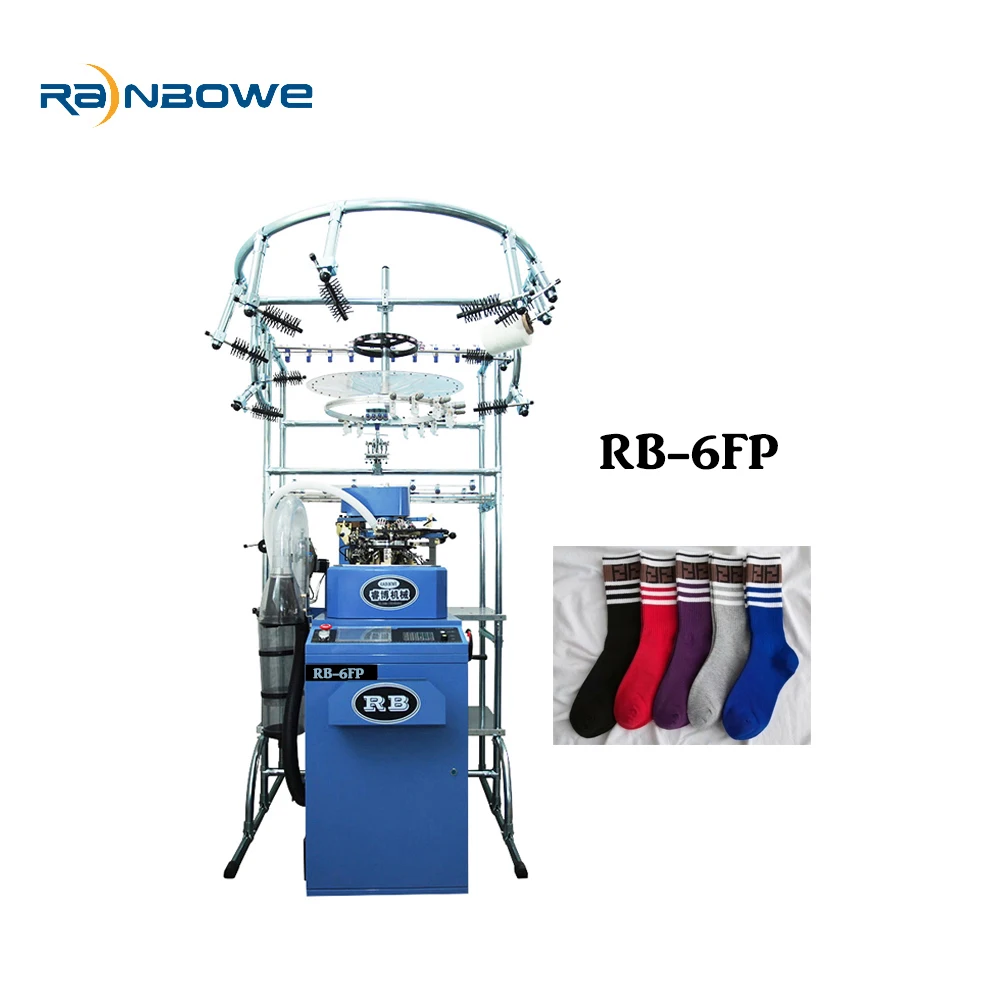

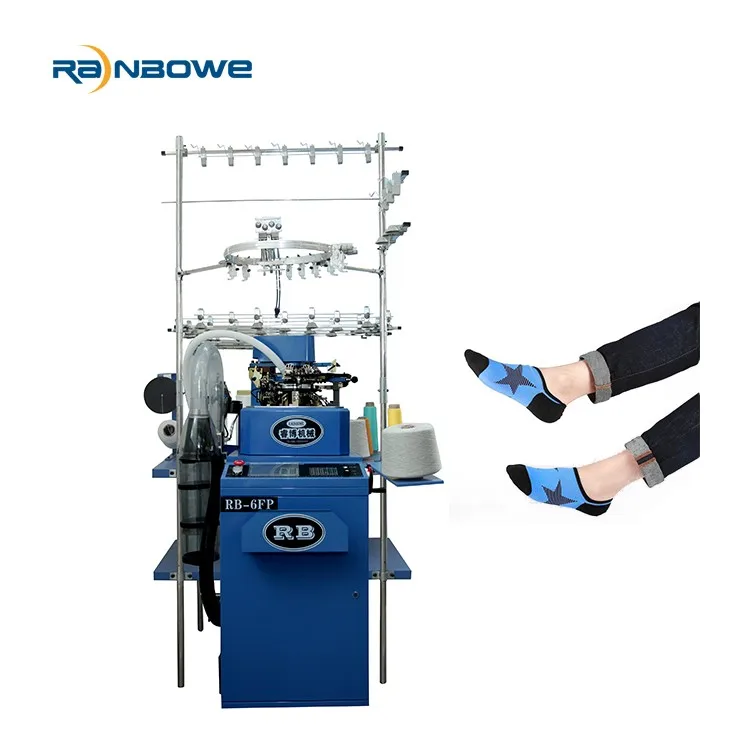

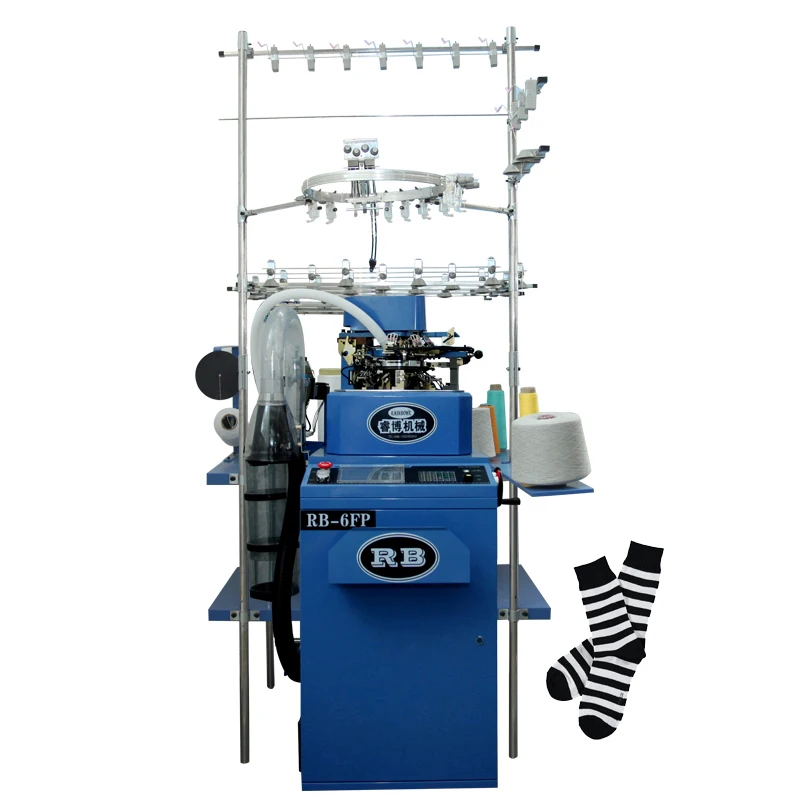

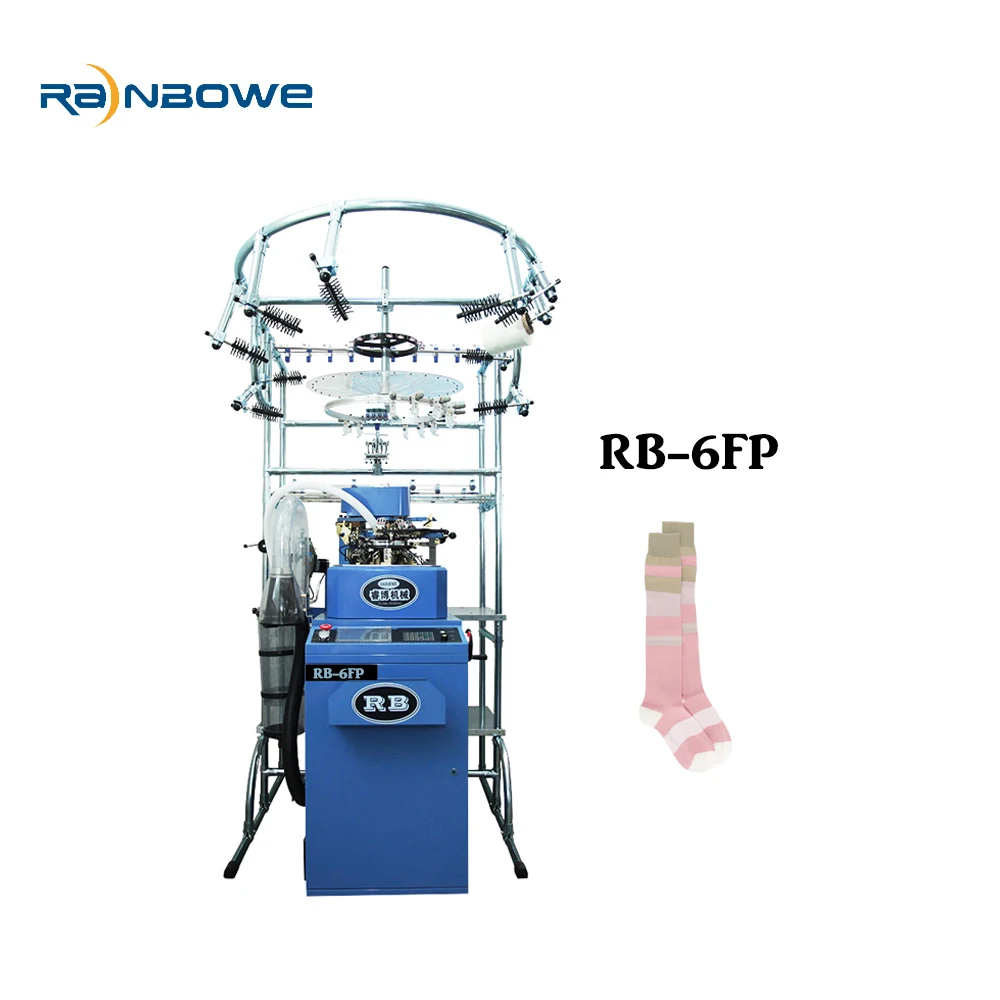

Rainbowe's RB-6FP plain socks knitting machine
This is a kind of socks machine designed to make plain socks which is thin and suitable to wear in summer.
Standard configuration
1. Controller: Mingde controller is adopted, which is compatible with glory system, Glory, Hengqiang(Jiagu Software) are also optional.
2. Servo Motor: Royaltec or Y.M.C, both of them are stable in performance and less repair rate.
3. Pneumatic Cylinder: LIDING, best brand in China.
4. Selector: Mingde brand as standard configuration, Fushun brand will be optional if buyer requires.
5. Needles: Feijian or Golden Roc brand.
6. Cams: CR12MOV material are used instead of casting part, which has a longer life.
7. Standard air valve configuration.
8. Package: Plywood case
9. Electricity Required: 380V 3-phase.
Optional configuration
1. Suction fan motor 1.1kw （for small quantity of sock machine, below 10 sets, individual suction fan motor is suggested, if over 10 sets, central suction fan motor is better, which can help save electricity consumption greatly）
2. Solenoid on main feeders, sub-feeders, valve box
3. Double elastic motors, double elastic feeders
4. Invisible sock function
5. BTSR yarn break sensors
6. LGL or Chinese brand accumulators

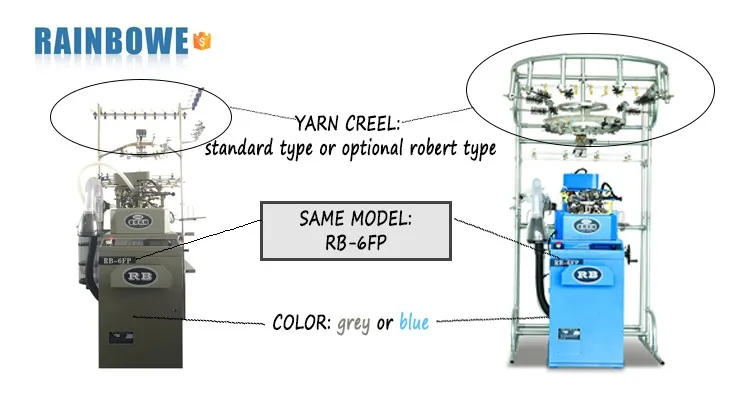

7. Robert yarn creels
8. Power: 220V 3-phase
9. Machine colors: blue or grey
Different type of socks machine is with different configuration
Sock making process

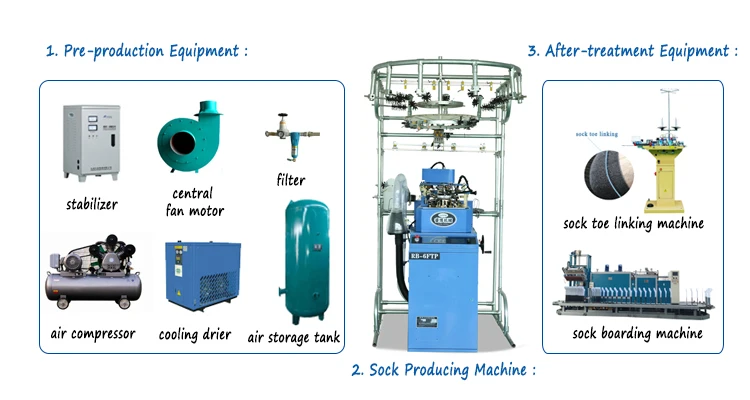

1. What equipment we need?
Most people think there is only socks knitting machine needed for making socks. Actually, there are many others equipments will be necessary for the whole socks making line. Let's to get a start with 10 sets socks machine!
Pre-production equipments
1. Air compressor
2. Air storage tank
3. Filter
4. Cooling drier
5. Stabilizer
6. Suction fan motor
Socks knitting machine
Choose the suitable type and needle counts socks machine dependes on socks you want to make
After- treatment machines

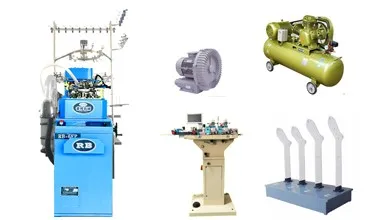

If we just wanna start with 1 or 2 sets socks machine
If you are a new one to start a small business for socks, 1 or 2 sers socks machine will be better. The necessary equipments can be very simple like picture show:
1or 2 sets socks machine suited socks you want to make with individual suction fan motor, an air compressor with 500kw, a set socks toe linking machine, 2 sets simple socks boarding machine.
2. What others we need?

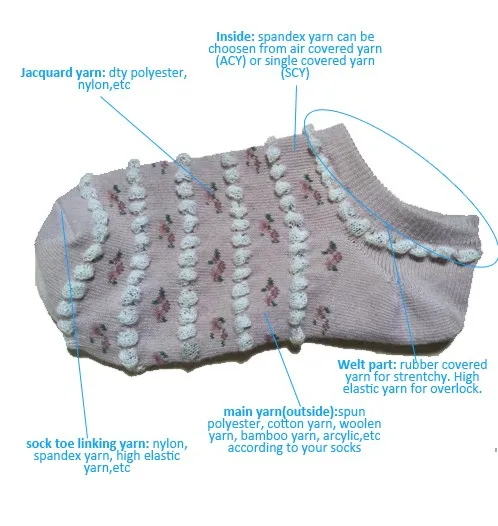

The mort important one is YARNS.
Main yarn: according to requirements, it can be spun polyester, cotton yarn, woolen yarn, bamboo fiber, acrylic, etc.
Spandex yarn: This kind of yarn help socks stretchy. There are air covered yarn (ACY) and single covered yarn (SCY) can be choosen.
Rubber covered yarn: used to make welt.
Jacquard yarn: Nylon, polyester DTY,etc for making patterns on socks.

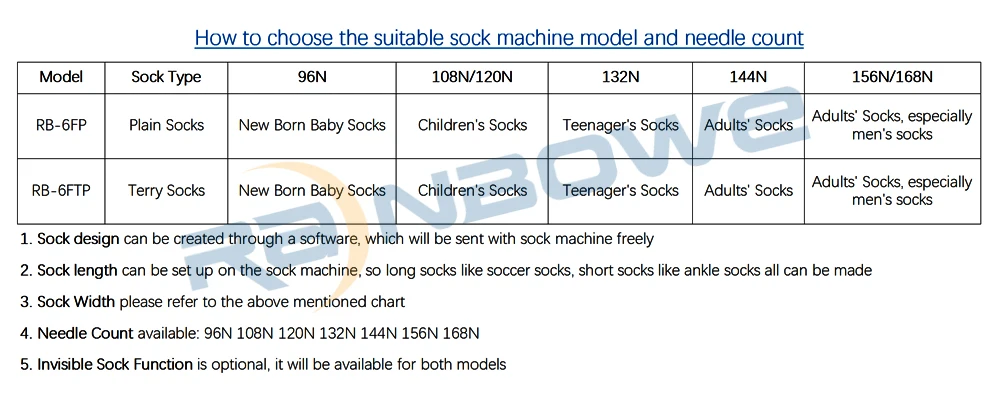

3. Sock machine needle counts
Recommend Products
Packing & Delivery
PACKING DETAILS | ||
Package size (L*W*H) | 90*75*160CM | |
Net weight | 250kgs | |
Gross weight | 305kgs | |
Loading info (A 20ft container) | 18 sets socks machines | |
Loading info (A 40ft container) | 39 sets socks machines | |
Delivery time | 7-25 working days after receiving the deposit (If regular needls, such as 144N, can be delivery immediately) | |
Contact US
Ophelia's Whatsapp/Wechat/Cell: +8613858406776
Email: [email protected]
