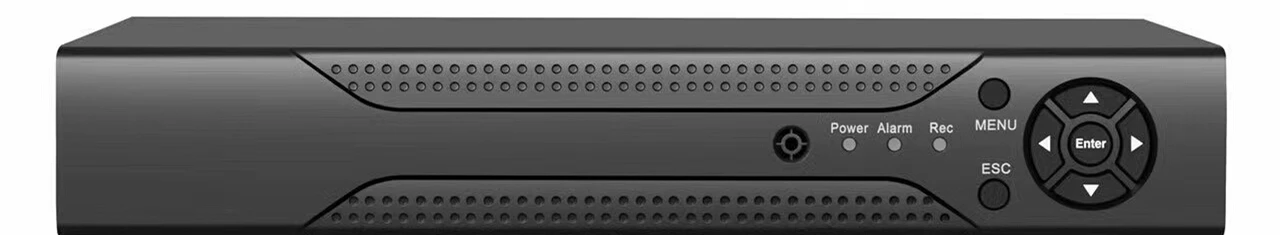

1 SATA h.265 8ch 5 in 1 DVR XVR 8CH 8MP AHD DVR Best feedback
1 SATA h.265 8ch 5 in 1 DVR XVR 8CH 8MP AHD DVR Best feedback

1 SATA h.265 8ch 5 in 1 DVR XVR 8CH 8MP AHD DVR Best feedback

Share on (62312258569):


Price:$83.50 - $84.90

Quantity:


Product Overview

Description











Key Feature:

Support H.265+ encoding, ultra-low bitrates, compatible with H.264 surroundings;

Support VGA, HDMI full HD output simultaneously;

Support ONVIF; access third party;

Support multiple cloud technology, network penetration, alarm information pushed to your phone and other functions;

Support web, CMS, center platform management software MYEYE, provide SDK development;

Support various mobile monitoring (iPhone, Android);

Remote Access, With DNS (ARSP),easy to monitor remotely

Support UTC, control signal& video stream transmit through one single coaxial

Support XVI/AHD/TVI/CVI/CVBS/IP six signals;

Support intelligent analysis: functions like Perimeter alert,item retention,Video diagnosis,intelligent fast play and intelligent retrieval

 Specification:

ModelAI-TVR8108-A
SystemMain processorHi3531D
InterfacePreview1/4/8/9
VideoCodecH.265+/H.265/H.264+/H.264
Monitor qualityVGA(1080P at most);HDMI(4K at most)
Preview ability8*8M@15fps(AHD)/8*5M@20fps(6 in 1)/8*4M(6 in 1)
Encode ability8*8M@8fps(AHD)/8*5M@14fps(6 in 1)/
8*4M@18fps(6 in 1)/8*3M@21fps(6 in 1)/8*1080P(6 in 1)
Decode ability8*8M@8fps(AHD)/8*5M@14fps(6 in 1)/
8*4M@18fps(6 in 1)/8*3M@21fps(6 in 1)/8*1080P(6 in 1)
Multi-mode inputanalog: 8*8M;8*5M;
hybrid: 4*5M@20fps(analog)+4*5M(network) network:8*3M ;4*5M
 Each screen can be set to 192 (16 * 12) detection areas; multi-level sensitivity can be set
Motion Detection(Limited local channel)
AudioAudio compressionG.711A
Intercomsupport
Record & playbackRecord modemanual>alarm>motion detection>timing
Local Playback8ch(analog input mode)
Search modeSearch by time, calendar, event, channel
Storage &Video storageHDD, network
backupBackup modeNetwork, USB hard disk, USB burner, SATA burner
External InterfaceVideo input8ch BNC
Video output1ch VGA, 1ch HDMI
Loop VoutN/A
Audio I/O4(Can be extended to 8ch)/1
Alarm I/O0(Can be extended to 4ch)/0(Can be extended to 1ch)
Network interfaceRJ45 10M/100M self-adaption
PTZ control1*RS485, Support kinds of PTZ protocols
USB2* USB 2.0 ports
HDD2*SATA ports (Max 8TB/per)
Wireless3G, WIFI (extend via USB)
GeneralPower supply12V/4A
Power Consumption<15W (without HDD)
Working environmentTemperature:0℃—+55℃,Humidity:10%—90%,Atm:86kpa—106kpa
Dimension200mm*85mm
Weight182g










Production Process

megapixel-ip-camera-AI-I130IB-WDR_27

Company Profile
2040_60
Aiseeing Technology Co.,Ltd was established in 2003 as a premier provider for Security IP Cameras, NVR Recording systems,
analog camerasand standalone DVRs. We also have some featured product lines such as LPR/ANPR cameras, fisheye
cameras for your choice.

High quality is our first principal way to show respect to our customers. We have passed ISO9001 quality management system
and got CE, FCC,RoHs and other certificates.

All our security products have been widely used in USA, European countries, South American, Russia, South African, the Middle
East, Asia and so on.

You can find more information of us at: //aiseeing.en.alibaba.com/

Certificates
    common-_37

Trading Process
NV_59
Our Service
l  After-sale service
   A.All goods will be strictly checked by our QC department before shipping
   B.All goods will be well packaged
   C.12-24 Months hardware warranty
   D.Life –time software/firmware update and technical support
   E.All questions will be replied at the first time
l  Payment terms
   We accept T/T by bank transfer, PayPal, Escrow, Western Union, Money Gram and L/C for bulk order
2040_79

l  Shipping
   We have strong cooperation with DHL, FedEx, UPS, TNT, EMS, China post office. You can also choose your own forwarder
2040_88
