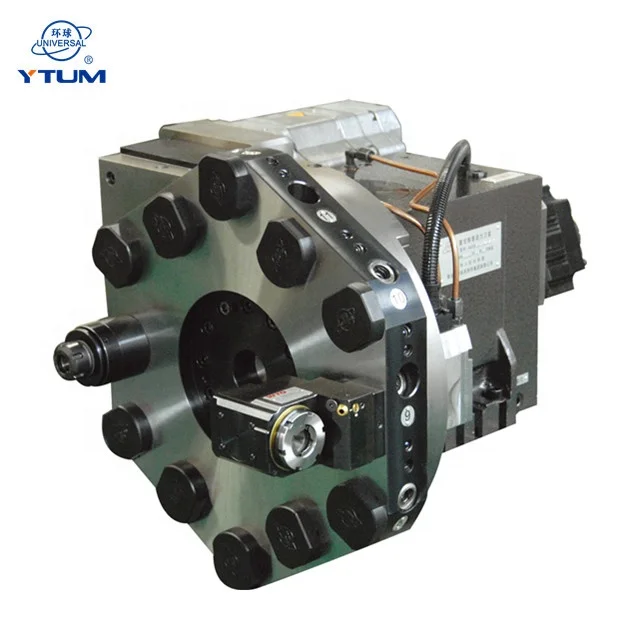

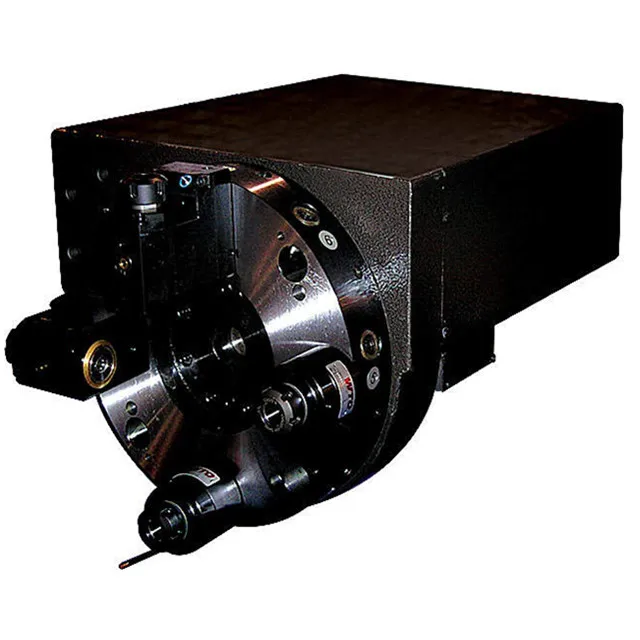

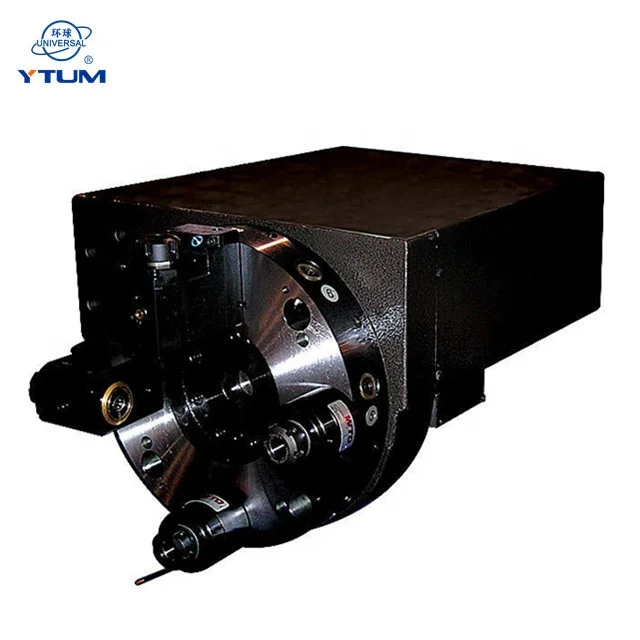

ISO9001 high speed qualified AK33 living tool NC TURRET CNC lathe turret
- Category: >>>
- Supplier: Yantai Universal Machine Tool Equipment Co. Ltd. [Shandong China]Yantai
Share on (62312263993):
Product Overview
Description
ISO9001 high speed qualified AK33 living tool NC TURRET CNC lathe turret
Product Description
| No. | Items | AK3380D | AK33100D | AK33125D |
1 | Center height(mm) | 80 | 100 | 125 |
| 2 | No. of working positions(pc) | 8/12 | 12 | 12 |
| 3 | Angular accuracy | ±6" | ±6" | ±6" |
| 4 | Repeatability | ±2" | ±2" | ±2" |
| 5 | Time for 30' ratation(s) | 0.15 | 0.05 | 0.32 |
| 6 | Time for 30' ratation and clamping(s) | 0.57 | 0.45 | 0.95 |
| 7 | Time for 180' ratation and clamping(s) | 1.54 | 1.0 | 2.5 |
| 8 | Max unbanlanced load torque(N.m) | 15 | 40 | 60 |
| 9 | Indexing frequency(n/h) | 750 | 750 | 750 |
| 10 | Max. interia of mass(kg.m) | 1.3 | 4.5 | 1 |
| 11 | Max load capacity(kg) | 40 | 120 | 160 |
| 12 | (DIN69880VDI TOOL shank size) | ∅30 | ∅30 | ∅50 |
| Coupling | DIN5482 | DIN5482 | DIN5482 | |
| Trans mission ratio | 1:1 | 1:1 | 1:1 | |
| (r/min)Max speed | 5000 | 4000 | 3000 | |
| (N.M)Max torque | 20 | 40 | 60 | |
| (Kw)Max power | 6 | 8 | 10 | |
| 13 | No. of Rotating tool holders | 12 | 12 | 12 |
| 14 | Coolant in | G1/4" | G1/4" | G1/4" |
| 15 | Pressure Mpa | 2-2.5 | 2-2.5 | 2-2.5 |
| 16 | N.W. kg | |||
| 17 | G.W. kg | 185 | 245 | 450 |
| 18 | Packing dimension (mm) |
Packaging & Shipping
Company Information
Yantai Universal Machine Tool Equipment Co.,Ltd
- Professional Machine Tool Functional Parts manufacturer with scientific technological R&D
- Over 70 years experience with 700 employees
- Strong technical team: 2 provincial level master technicians ,179 city level technicians ,41 advanced level technicians , and 138 general level technicians
- Produce: NC turret ,Rotary table,Dividing head, Chucks & other accessories
- Add: NO.563,JUFU ROAD,FUSHAN DISTRICT,YANTAI,CHINA
