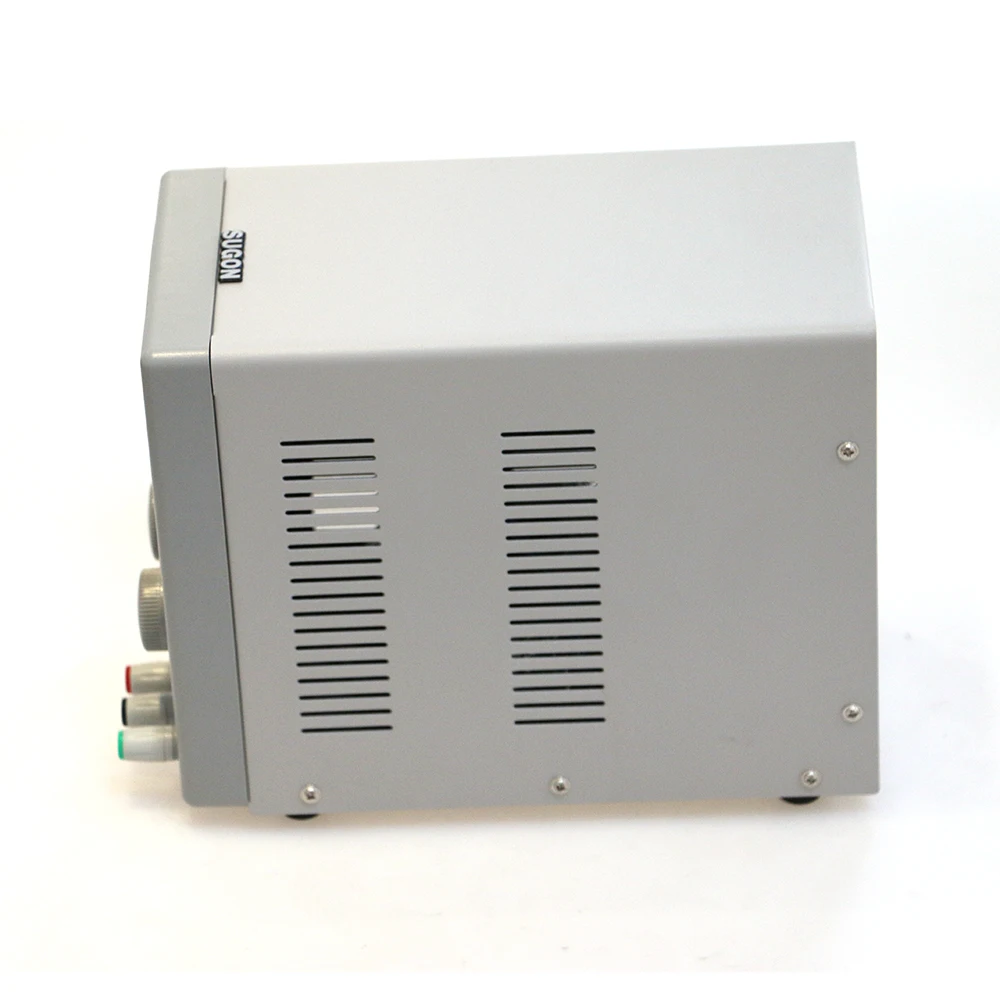

Блок питания SUGON 3005 30 в 5 А постоянного тока для ремонта мобильных телефонов

Product feature

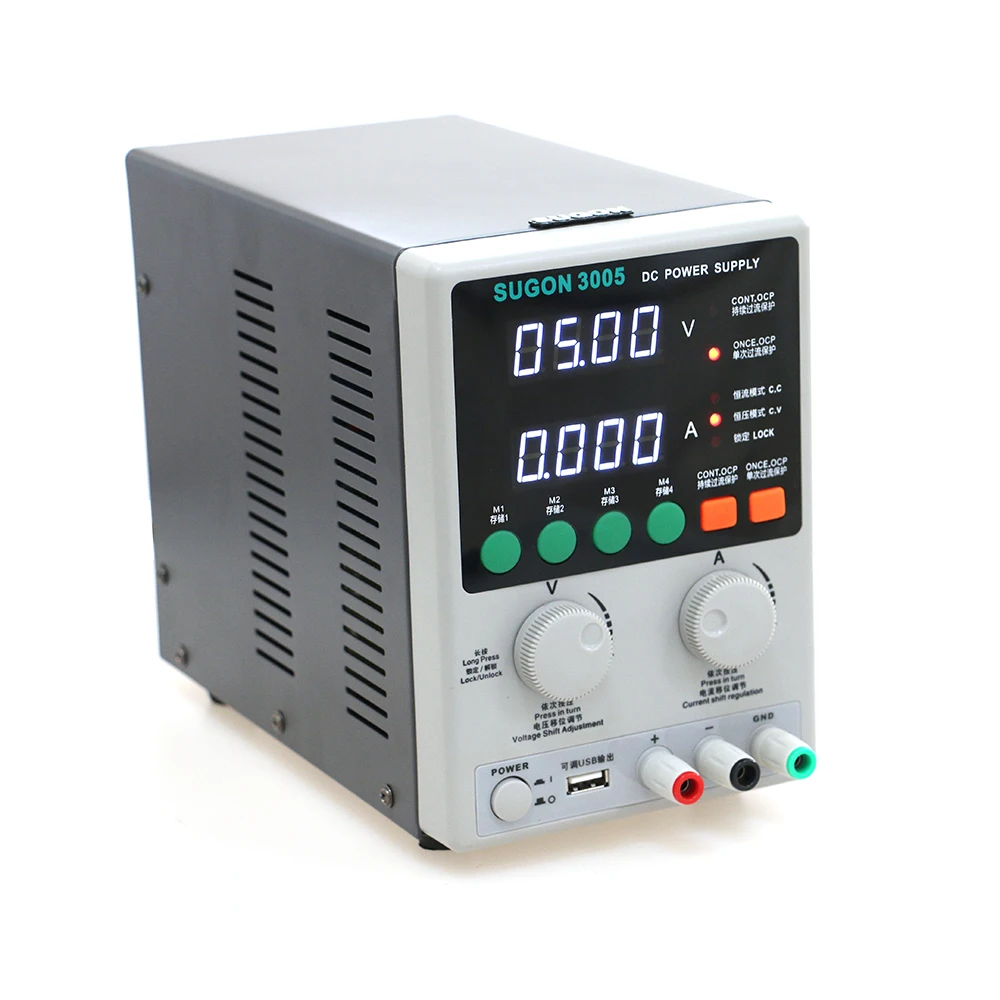

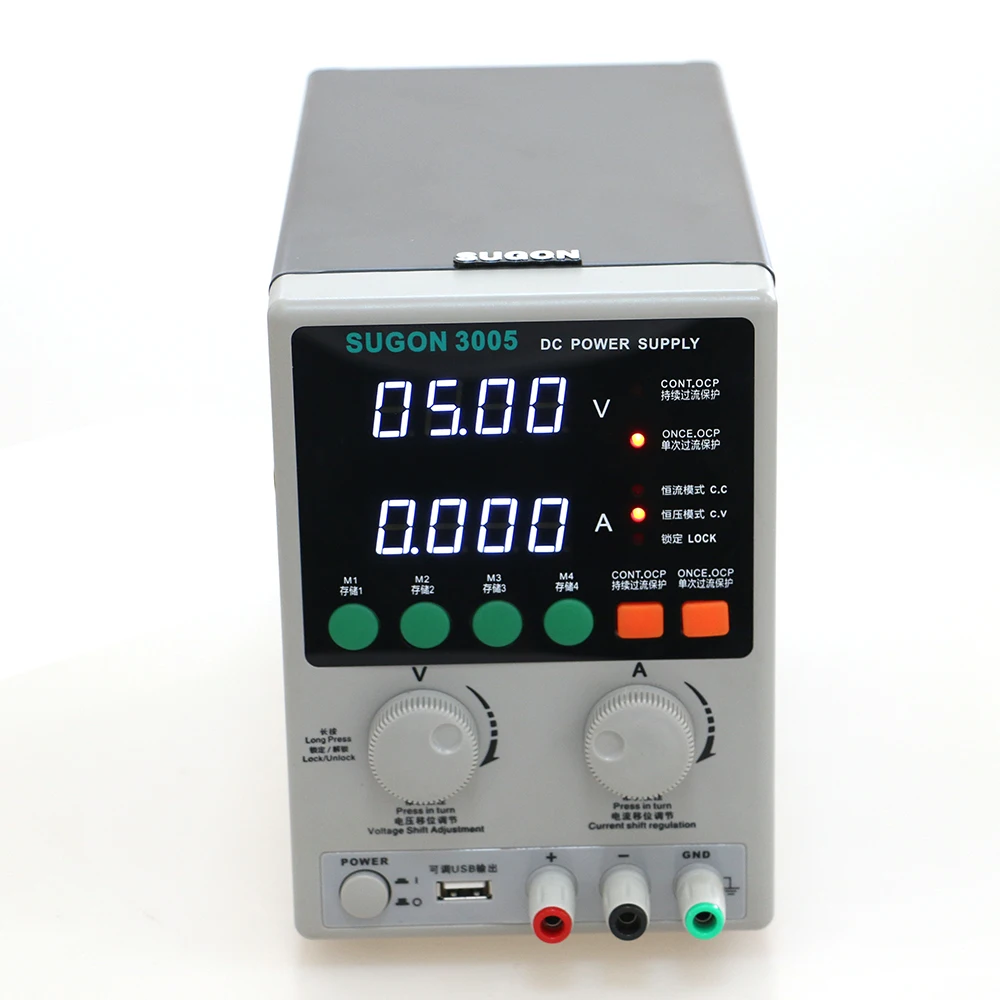

Double Digital Display

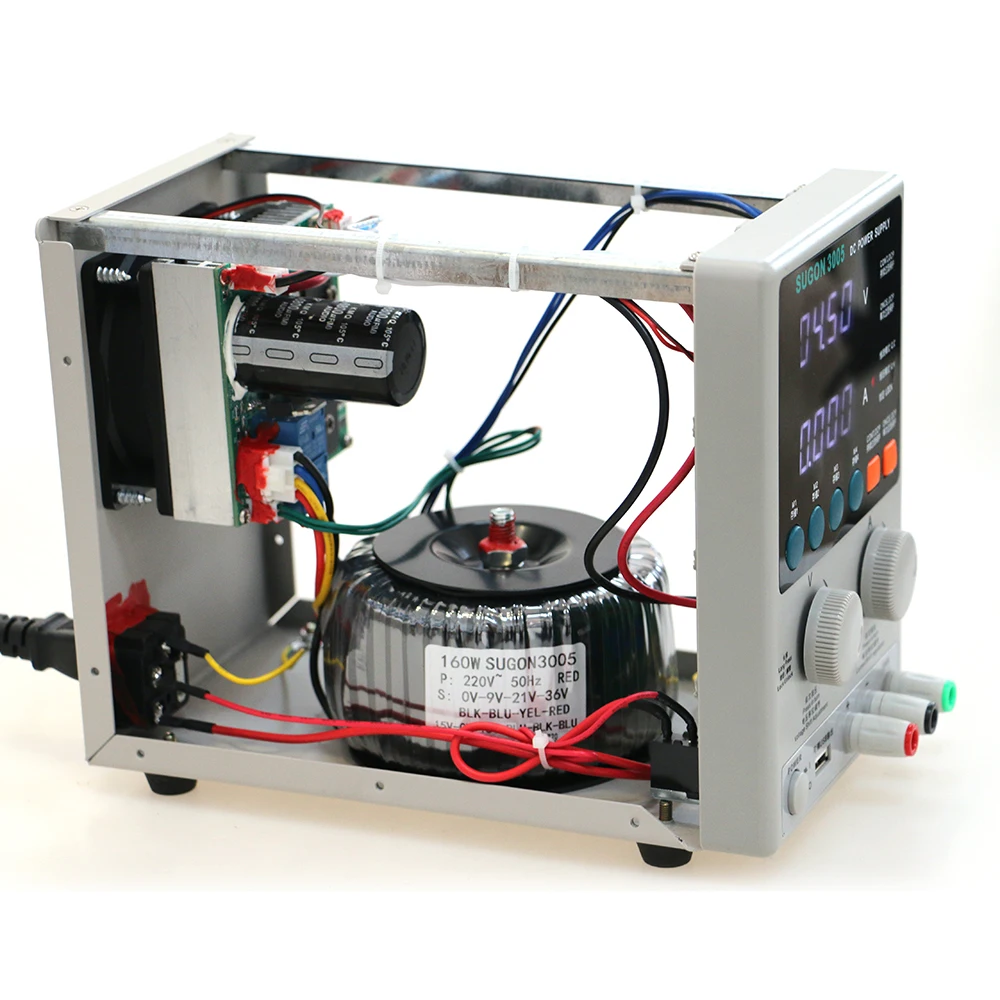

1. Ring Transformer: working for a long time.

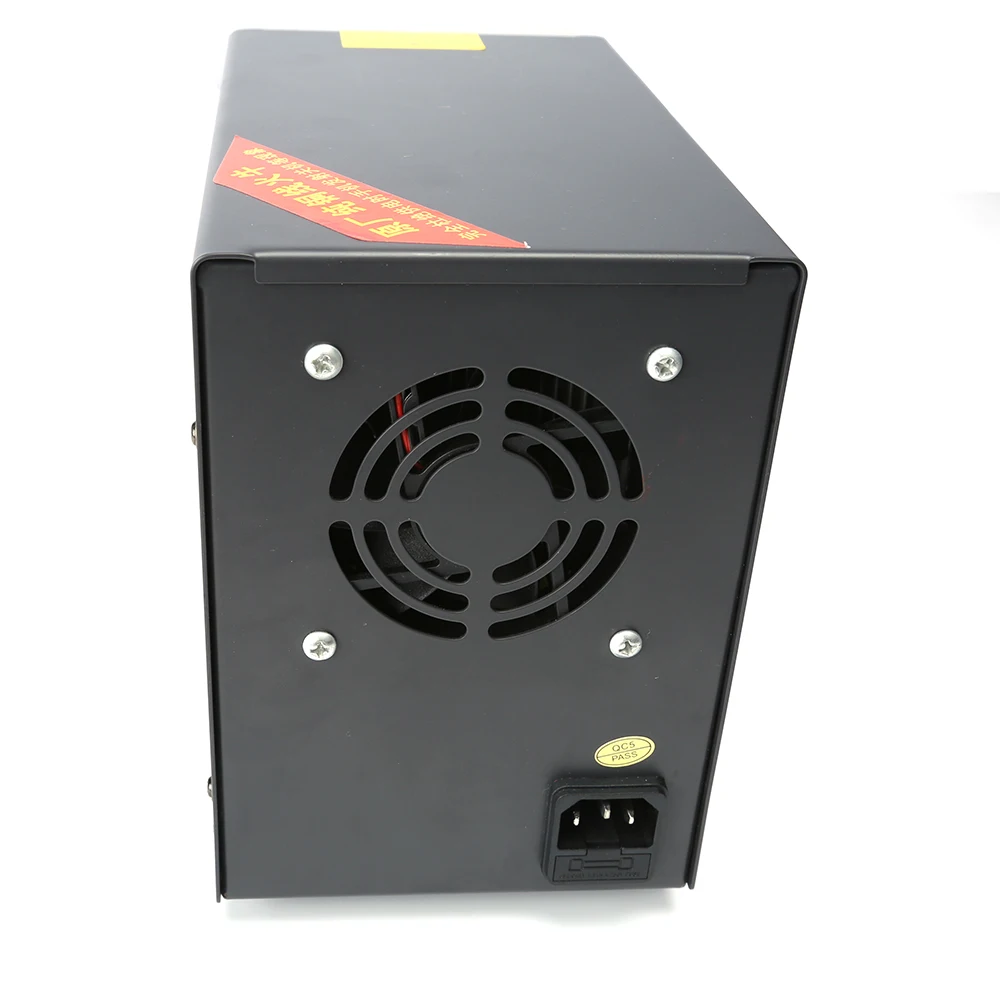

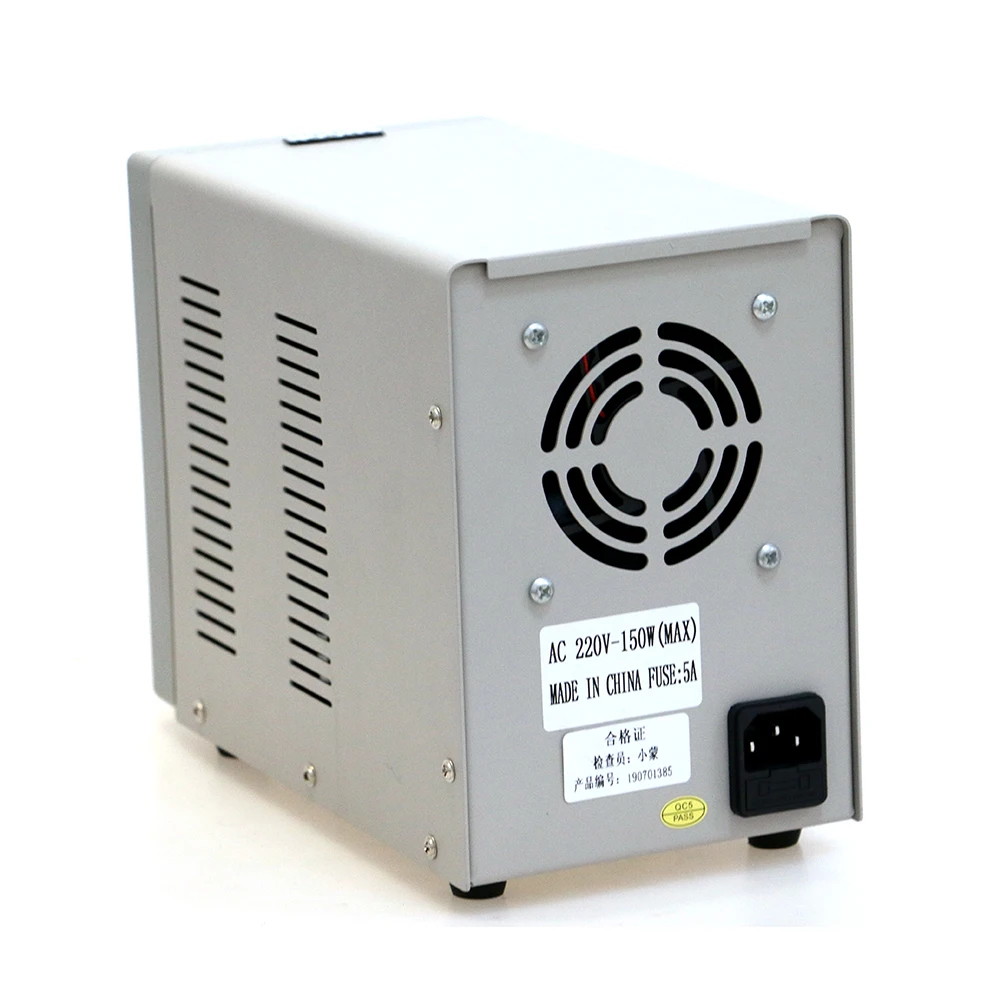

2. Temperature-sensitive Cooling Fan: automatically activates the fan function when the components temperature is too high.
3. 4 Memory Modes : M1, M2, M3, M4 4 memory modes, save the records(current/voltage) by setting.
4. Orange Bottons: current/Voltage protection function, continuous overcurrent protection and once overcurrent protection, press and hold one of them to make the corresponding lamp (CONT. OCP or ONCE. OCP) lights up to work.
5. Double modes to adjust current and voltage: <1> Normally twist V/A knob keys to adjust current and voltage; <2> When you need to quickly adjust larger or smaller current or voltage, long press 3 seconds current or voltage button to make the number jump and then knob directly to adjust the digital current or voltage you want.
6. USB output: Adjust the current and voltage you want in the same way as above when connecting via USB.

Input voltage:220V +/-10%
Frequency range: 50- 60Hz
Operating temperature: 32-104 F (0-40 oC)
Operating humidity: < 80%RH
Storage temperature: 32-158 F (0-70 oC)
Storage humidity: < 70%RH

Output Voltage Range: 30V / 5A Continuously adjustable
Setup Resolution: 10 mV/1mA
Setup Accuracy: <0.05% +20 mV/<0.1% +3 mA
Ripple: < 1mVRMS , < 3mARMS
Read back Accuracy: 10 mV, 0.1% + 5mA
Temp. Coefficient: < 0.1% + 10mV, < 100 ppm+5 mA
Read back Temp. Coefficient: < 100 ppm+10 mV, < 100 ppm+5 mA

Foshan Nanhai Express Electronics Factory was established in 2003, is comm- itted to the design and production of Precise electronic instrumentation tool supplies, the main factory brands are -SUGON-Deili-IWEI-AIFEN-EAGKE, every provinces have an Agents, OEM products in the international community to enjoy universal praise, do the best "Made in China" is the core concept of the factory, do the best "Create in China" is the company's development direction.

Sugon Building, Da Chong industrial park, Nan Hai district,FoShan city China ( factory )

4F 4 Building, Dongwu industrial park, Longhua district, Shenzhen China ( office )

Q1.  Are you a factory or trading company?

A1.  We are a manufacturer,Welcome to visit our factory

Q1.  Can we customize product?

A1.  OEM and ODM both can . We have rich experiences in this area.

Q1.  How about lead time?

A1.  It is based on your quantity, in general, small quantity is within one week. Large quantity will be about 20-30days.

Q1.  If I have a question I would like advice on how to contact you?

A1.  The best way is by e-mail. Tel, wechat, whatsapp, contact us on our website online service worker are good ways to reach us also.
