2 seats battery operated electric vehicle

Share on (62312308860):


Price:

Quantity:


Product Overview

Description


Product Description

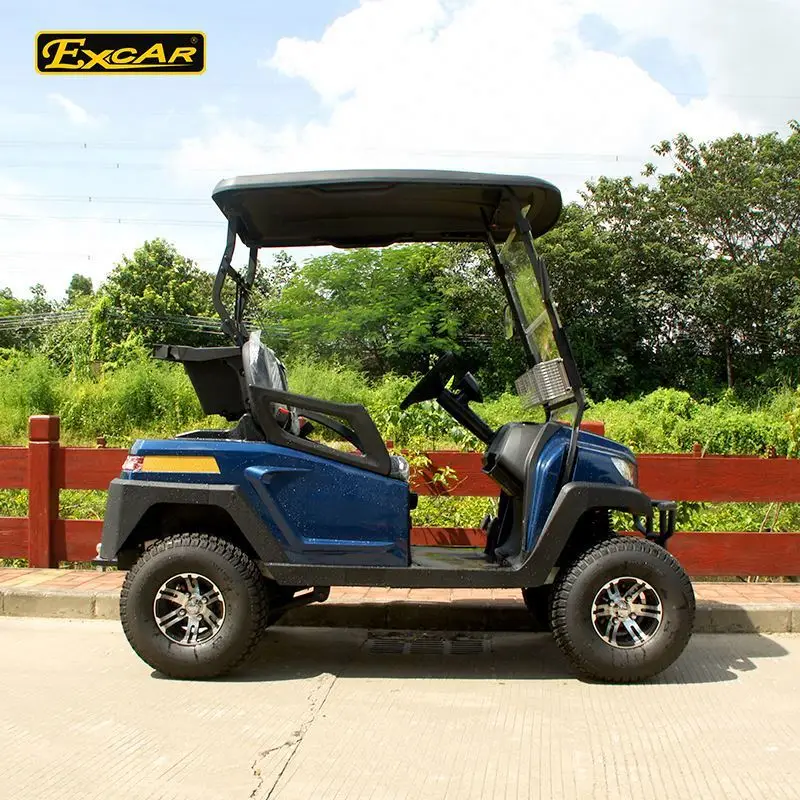

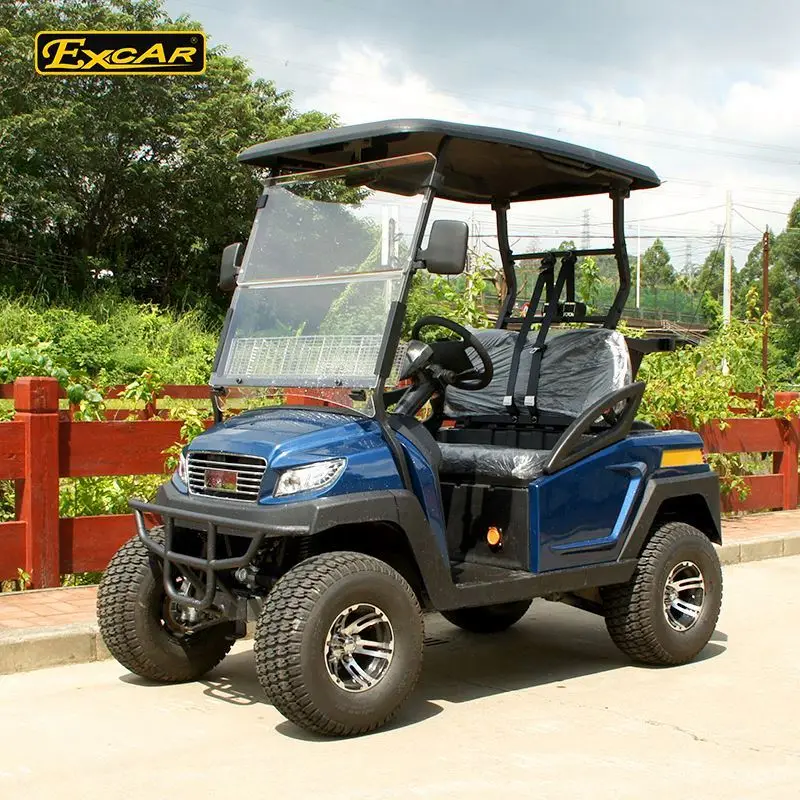

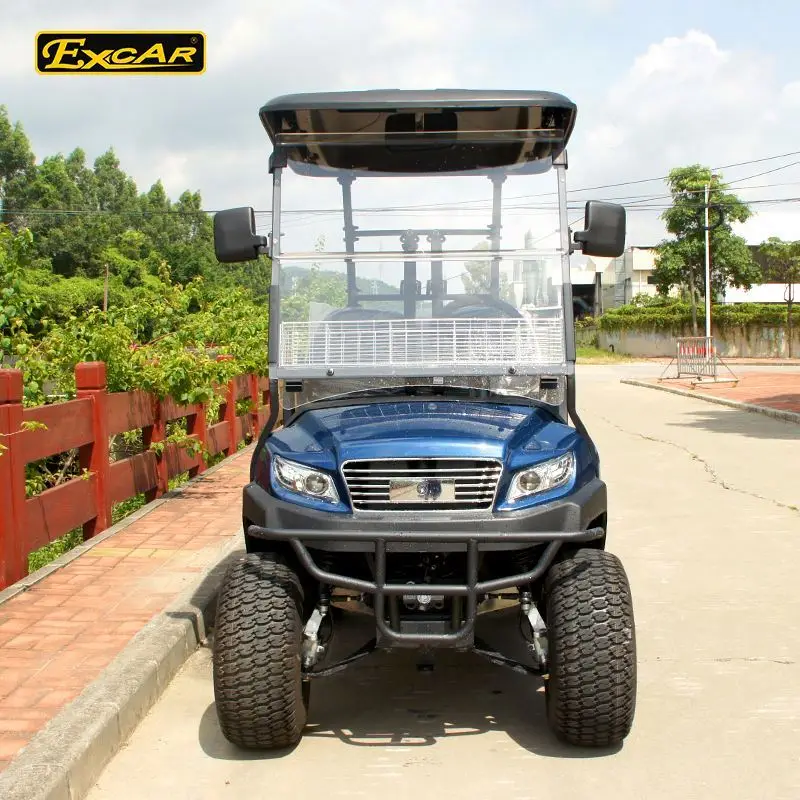

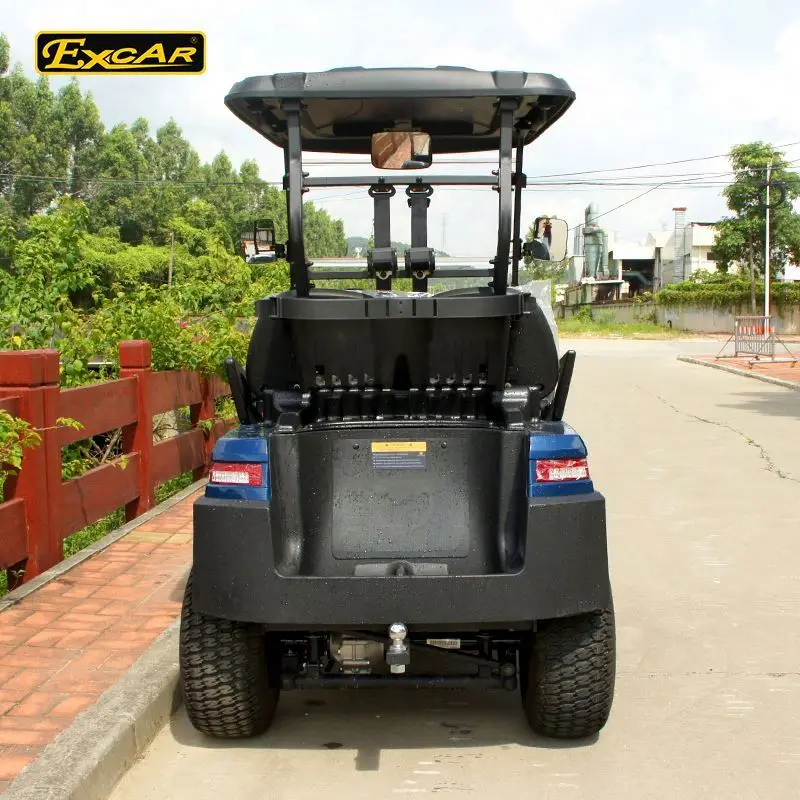

2 seats battery operated electric vehicle

Golf cart  had become one of our major products in the recent years. Although our monthly output is high, small order is still accepted for this model of golfcart, to facilitate our customers of different kinds.The outside cover of this golf cart made of steel, unlike the ones made of FRP, our materials are not easily broken. Even after accidents, this kind of golf cart can be easily fixed.

As a manufacturer of this filed for many years, we have been concentrating on quality control all the time. We always insist to use the best parts to construct our cart. We' re a more reliable partner.

\t
SPECIFICATIONS FOR ELECTRIC GOLF CART
\t

Configuration
\t
Motor
\t
KW
\t
3.7KW
\t
Battery
\t
V
\t
T-875  48v
\t
Controller
\t
A
\t
275A
\t

Chassis Configuration
\t
Front-Suspension
\t
Independent Spring Front Suspension
\t
Rear-Suspension
\t
Spring Hydraulic Shock Absorbers
\t
Steering
\t
Dual Self Adjusting "Rack&Pinion" Steetring
\t
\t
Brake System
\t
Rear Wheel Mechanical Drum Brake and Regeneration Brake
\t
Max Speed
\t
25 km/h
\t
Slope Climbing Capacity
\t
30%
\t
Wheelbase
\t
1670mm
\t
Turning Radius
\t
2900mm
\t
Performance
\t
Range
\t
80-100KM
\t
F/R Track
\t
860/970MM
\t
Pay Load
\t
400KG

Main Features

1) Advanced Disc Brake Technology

2) Global Special LED Headlight

3) Curtis Controller 48V 275A

4) USA Imported Unique E-KEY

5) 100% Waterproof accelerator

6) Deep Cup Holders

7) Italy Graziano Transaxle

8) Eletromagnetic Brake Makes Driving More Safty

Optional Color


- Body Color:White,Black,Beige,Champagene,Dark Green,Red,Metallic Red,Purple,Yellow,Green,Pink,Blue,Dark Blue or made on Panton number

- Seat Color:Black or Beige

- Roof Color:Black,White or Beige


Optional Rim

For M1S2,standard rim is 12 aluminum rim,you can choose from below one

Certifications
Detailed Images

Name: Special Battery Tray

Original: China

Unique Design for the battery tray and 100% waterproof

Main Features

Name: Motor
Brand: KDS
Original:USA
Famous Brand Motor,DC System 3.7KW and AC System 5KW

Main Features

Name:Transaxle
Brand: Graziano
Original: Italy
We use italy Graziano alxe with 12:1 and also 16:1

Now only our Excar factory have 16:1

Main Features

Name: E-card
Brand:EXCAR
Original: China
We use special E-KEY and can make different function based on customers usage like rental service to design the time,cost etc

Main Features

Name: Controller
Brand:Curtis
Original:USA
We use Curtis controller 48V 275A(DC & AC)

Main Features

Name:Battery
Brand:Trojan
Original:USA
We useTrojan Acid battery T-875,6*8V

Packing & Delivery
\t
Packaging
\t
Size
\t
3600(L) * 1300 (W) * 1500mm (H)
\t
Weight
\t
600kgs
\t



Packaging Details
\t
For 1pc,The normal package is Steel Frame Package(Size: L*W*H).If container is too tigher,we will use pe film for packing or pack it according to customers special request.
\t
Packaging
\t
Size
\t
2700 (L) *1200 (W) * 1300mm (H)
\t
Weight
\t
450kgs
\t



Packaging Details
\t
The normal package is wooden bar(Size: L*W*H). If export to european countries,the wooden bar will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to install the golf cart, training how to use the cart.

* Engineers available to service golf cart  overseas.
