NBDP Information Terminal

Product Overview

Description



NBDP-NB-1501

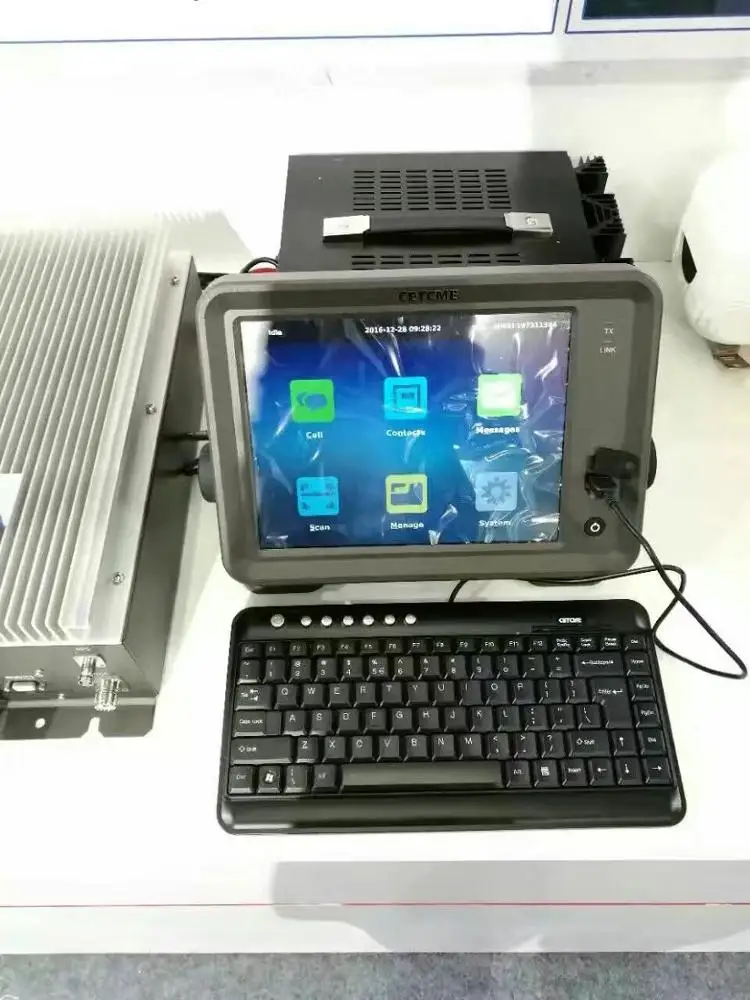

Information Terminal (NBDP) NB-1501

Product overview:

Information terminal (NBDP) is the important part of GMDSS system. NBDP and WT-B150 constitute a M/F frequency combination station. Adopting advanced software radio technology, it can provide more outstanding reception, transmission and operation performance. It is in accordance with the mandatory requirements of GMDSS.

Function:

The main users of the product are all kinds of ships. According to the international maritime regulations, the device must be installed on the ships operating in A3-A4 sea area.

Feature:

1.The function of remote software upgrade.

2.Providing automatic error-free telex communication and distress message handling in compliance with the GMDSS;

3.Based on 10.4 inch color TFT LCD screen and touch screen design, supporting for touch screen operation and keyboard operation;

4.Based on Cortex-A8 platform design, providing 32GB RAM, 2GB ROM, software running more smoothly, more powerful message storage technologies;

5.Using the popular simple, graphic design style, the operating interface is more friendly and more humane.

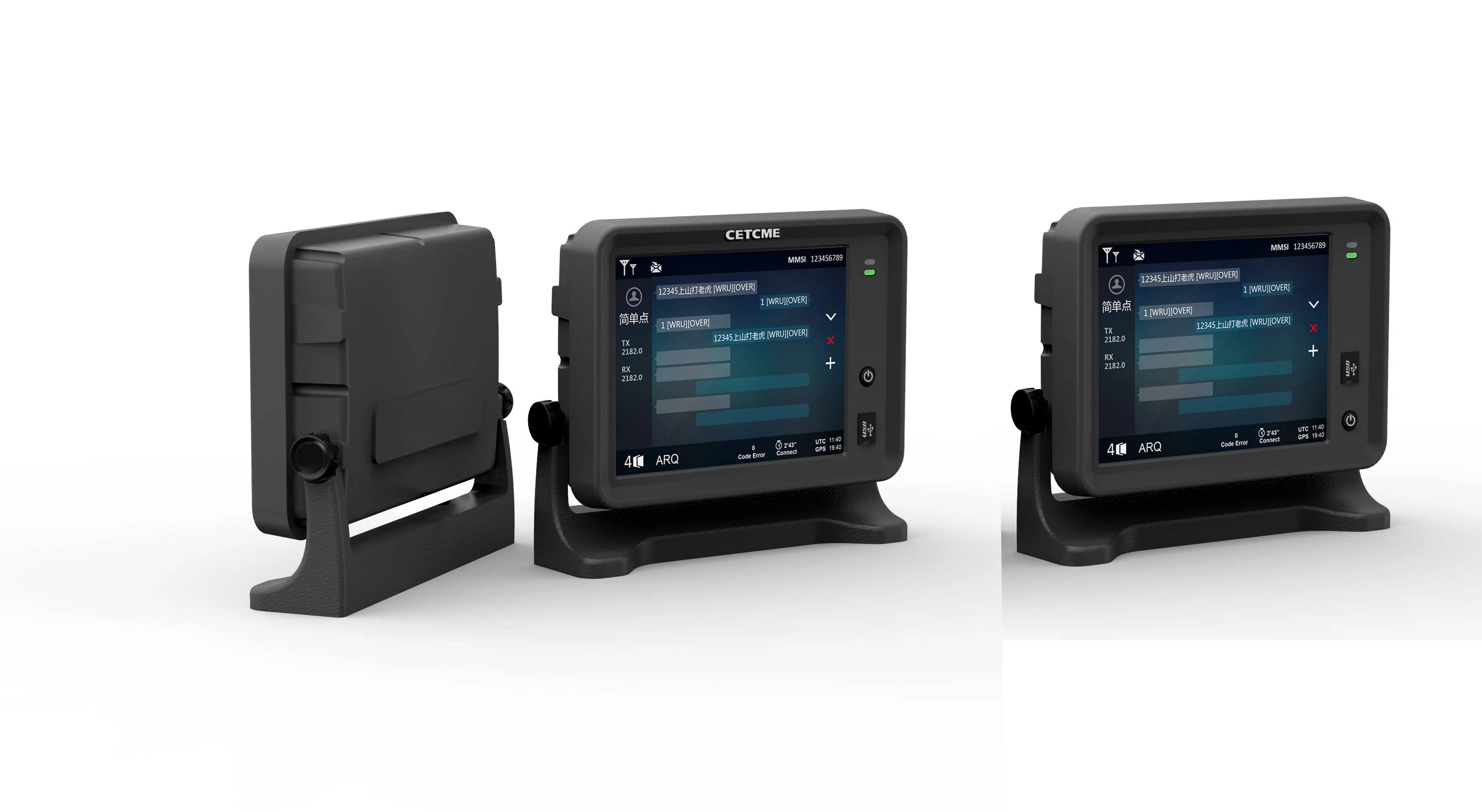

6.Desktop installation and embedded installation.

7.Comply with IEC 60945,IEC61097-09,IMO A.806(19),IMO A.694(17),ITU-R Rec.625-3 specification requirements;



Specifications:

1.Display Screen: 10.4 inch color TFT LCD screen + touch screen;

2.Frequency Range: 1.605MHz~27.5MHz (transmitting), 0.5MHz~30MHz(receiving);

3. Modulation Mode:F1B;

4.Operation Temperature:-15℃~55℃;

5.Storage Temperature:-55℃~70℃;

6. Ambient Humidity:95%(35℃)

7. Power Supply Voltage:24V DC-30%~24V DC+10%;

8. External Interface:RS-232,USB,10M/100M;/ RS-232, USB, 10M/100M network port.
